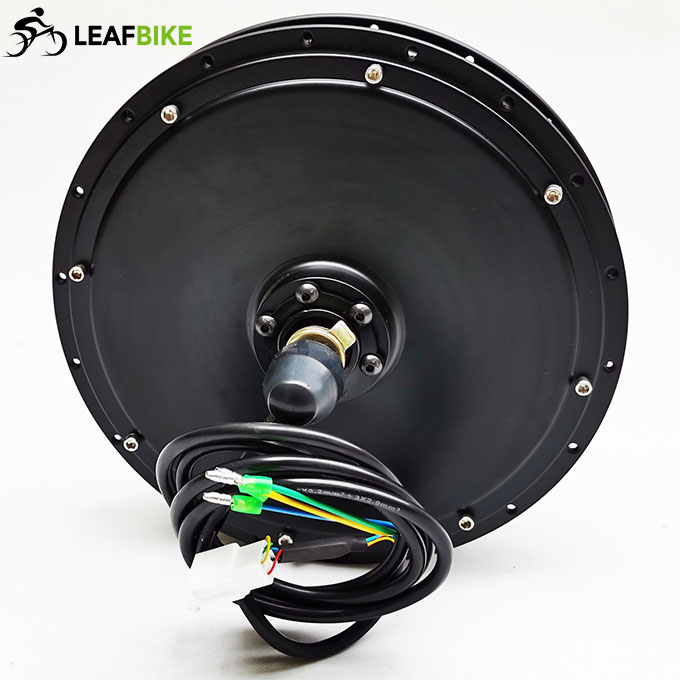

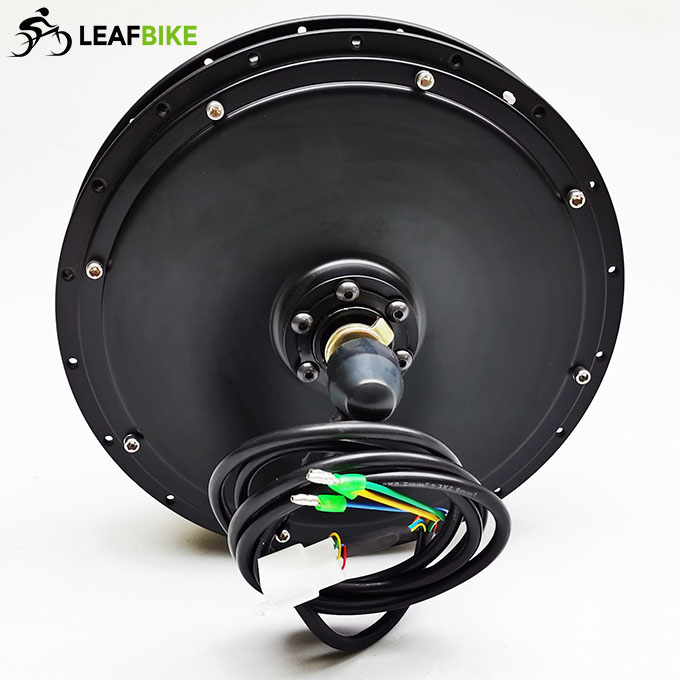

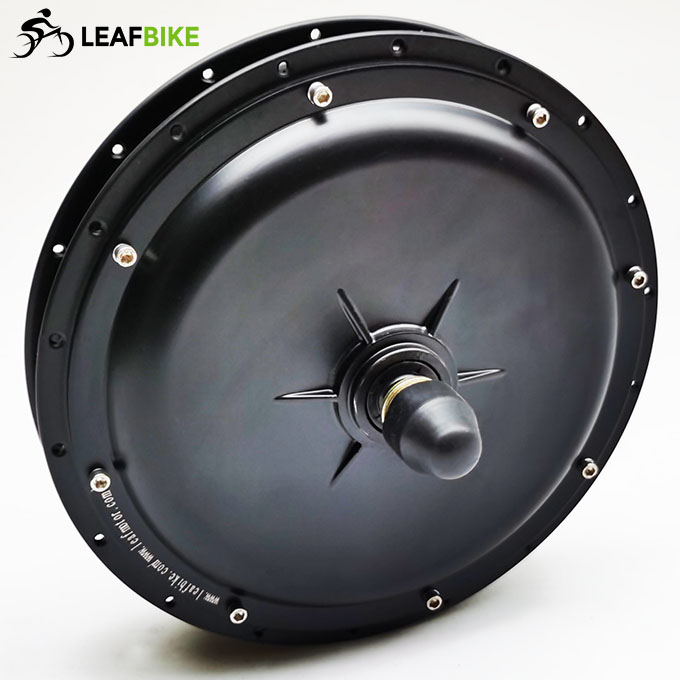

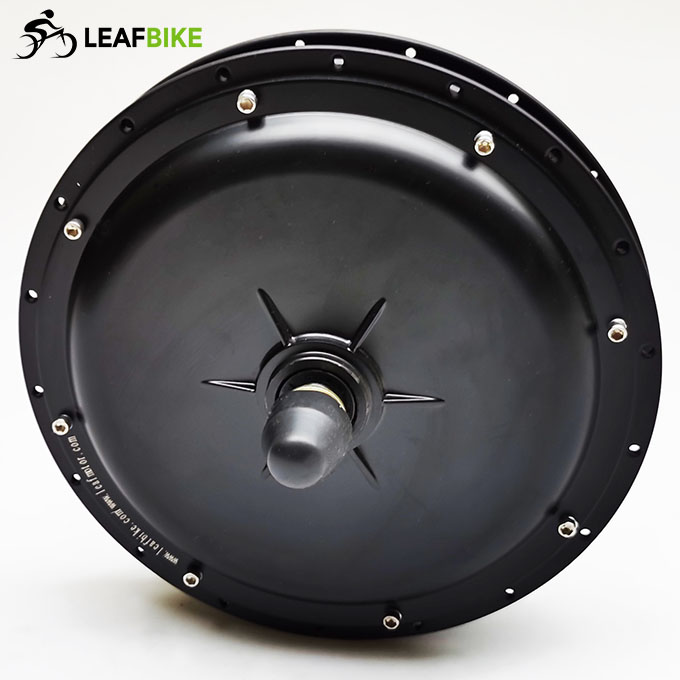

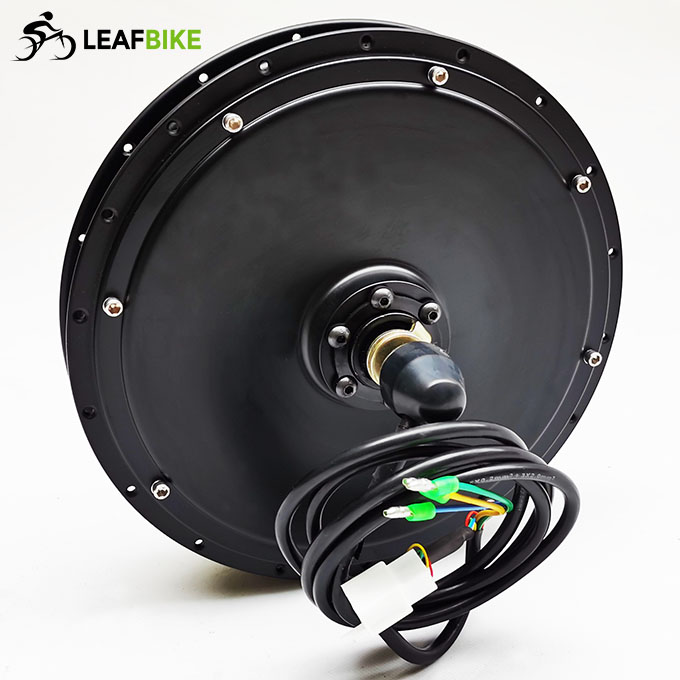

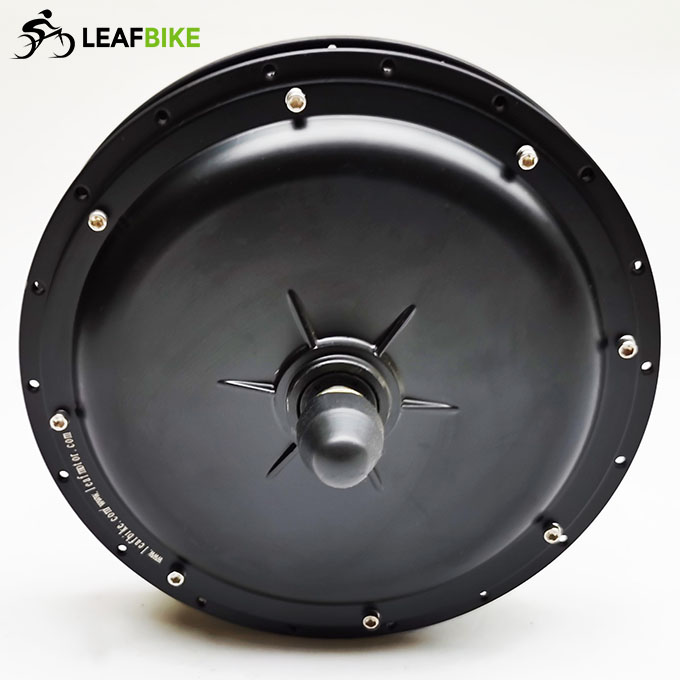

48V / 52V 1000W front spoke electric bike motor

Item ID #LBM481KFN
$245.00 $278.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
BRAND NEW LEAF BIKE 2022 Version Black Lightning Brushless, Gearless hub motor!
New ULTRA powerful and efficient Gearless motor custom made with higher grade laminations, wider magnet stack, high speed bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.

This 48V / 52V 1000W front spoke electric bike motor has the more acceleration at low end, better mid range, and more top end. Also offer this wheel professionally laced into our double wall aluminum rims with 12g spokes.  Message us for details. 20", 24", 26", 27.5"(650b), 700c, 28" and 29 inch sizes are available.

Detail:
Motor type: spoke electric bike motor
Voltage: 48V / 52V
Power: 1000W
Max efficiency: 90.5%
RPM: 731
Mechanical brake: Disk or V
Cable location: shaft end, Left
Cable length:150cm / 60"
Install: spacing of 100mm fork
Noise: < 60 db
Surface: Black painted
Net weight: 6.15 kg / 13.5 lbs
Gross weight: 7.2 kg ( after packing )

Package Content:
1 x 48V / 52V 1000W front spoke electric bike motor
Package Size: 28cm L x 25cm W x 30cm H
Package Type: Cardboard Box

Share Video:
20 inch 48v 1000w front hub motor kit
Wire Diagram:
front electric hub motor - bike conversion kit - wire diagram
1000W Front Drw.
1000w-front-electric-bike-motor-drawing
Performance Data:
1000w-hub-motor-curve-data

Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards,  your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
torque arm
