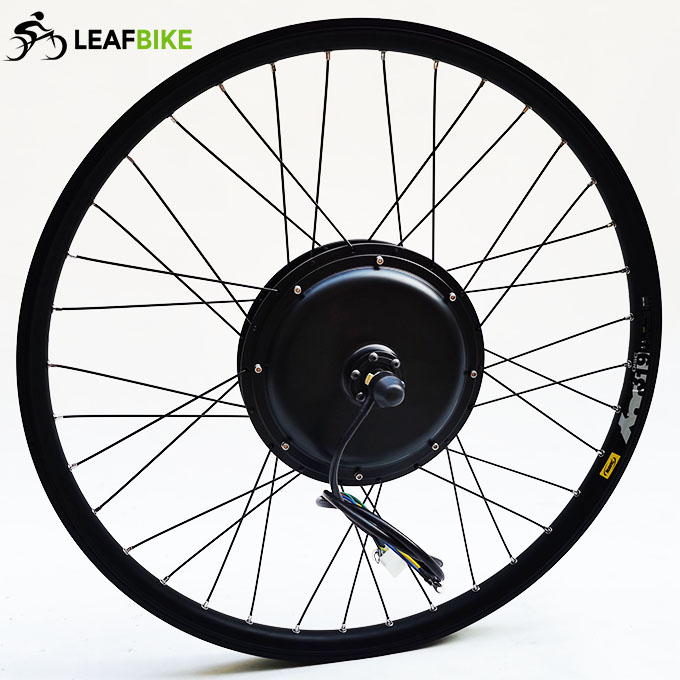

29 inch 48V / 52V 1500W rear bike motor wheel

* This 29 inch 48V / 52V 1500W rear electric bike motor wheel combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
>. Rim: 29 inch double wall Alloy (Rim Fit For: 29 × 1.95" / 2.1" / 2.5" tire)
>. Spoke: Black 12 gauge / 188mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.

>. Engine : hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 67.5 kmh -- 41.9mph Default (Optional other speed: 65mph,45mph,35mph,30mph or 25mph...please leave message)
>>. Max speed: about 55kmh -- 35mph (Ride on flat road)
>>. Mechanical brake: Disk or  V
>>. Freewheel / Cassette: space for single speed... 6 speed or max 7 speed Default: Fit for Screw on Sprocket (If install Cassette Sprocket,please leave message)
>>.  Cable location: shaft end , LEFT
>>.  Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>.  Install: spacing of Min 135mm to Max 155mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

Package Content:
1 x 29 inch 48V / 52V 1500W rear bike motor wheel

Net Weight: 8.1 kg
Package Size: 66cm L x 23cm W x 66cm H
Package Type: Cardboard Box

* This motor & controller system handle a 48V / 52V battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).

Share Video:

Wire Diagram:

1500W Rear Drw

Performance Data:
