20 inch 36V 750W front electric bike motor wheel

Item ID #LBM2036750FN
$265.00 $356.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
LEAF BIKE 2022 Version Black Lightning Brushless, Gearless hub motor!
New ULTRA powerful and efficient Gearless motor custom made with higher grade laminations, wider magnet stack, high speed NSK bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.

This 20 inch 36V 750W front electric bike motor wheel has the more acceleration at low end, better mid range, and more top end. Also offer this wheel professionally laced into our double wall aluminum rims with 12g spokes.  Message us for details. 20", 24", 26", 27.5"(650b), 700c , 28" & 29 inch sizes are available.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Detail:

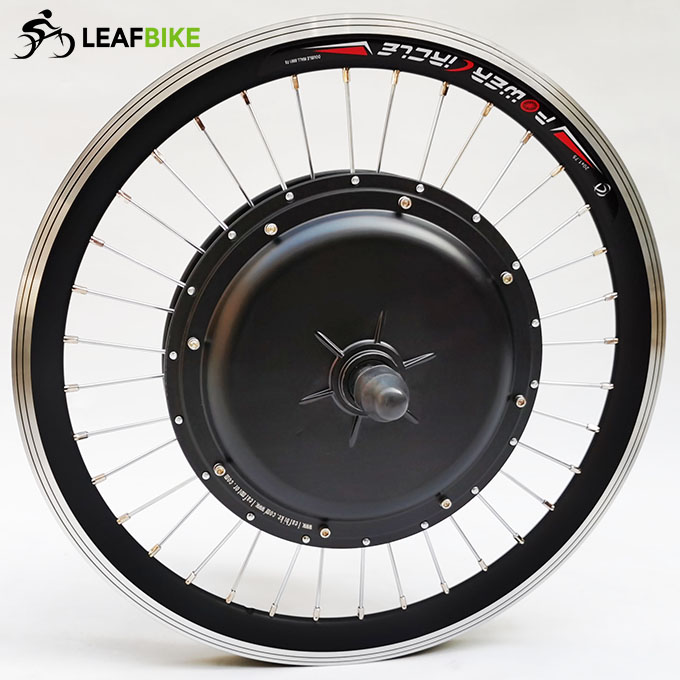

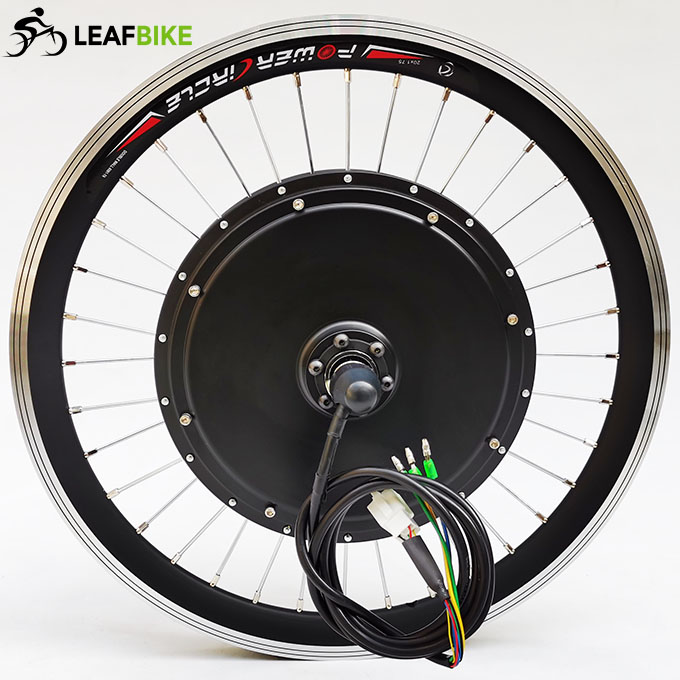

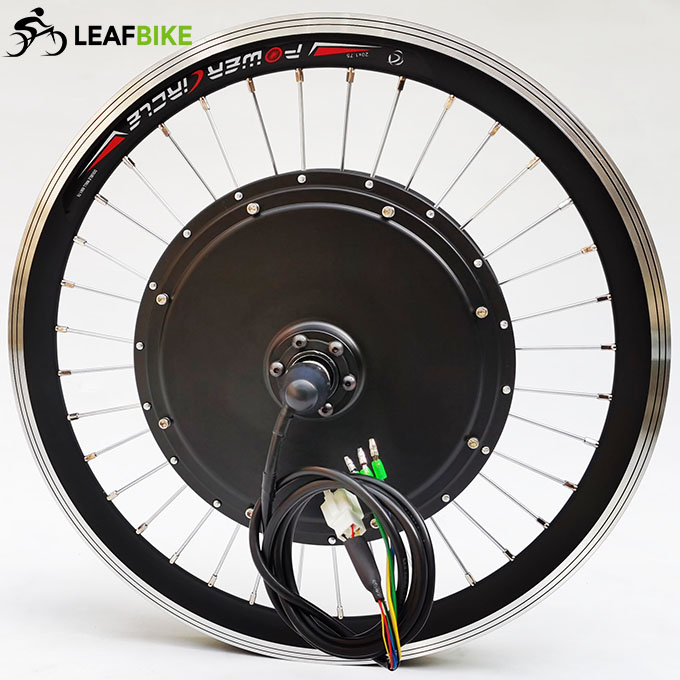

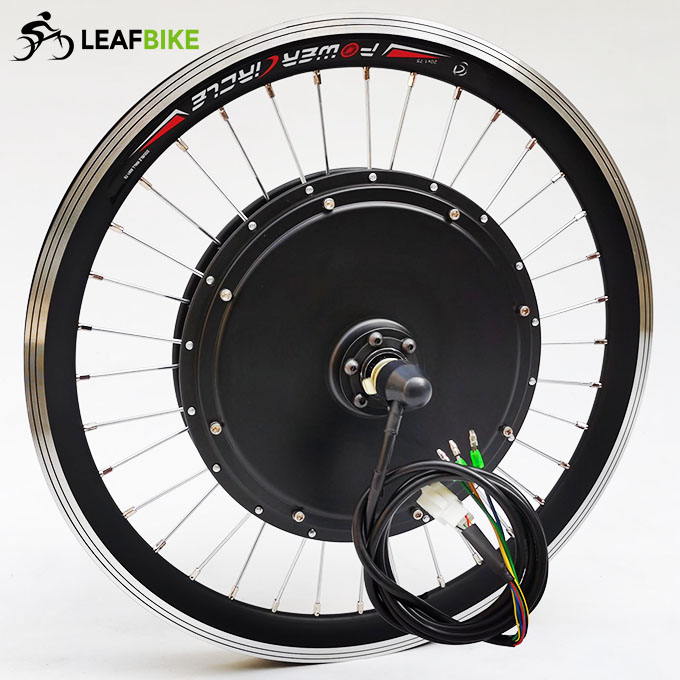

Size: 20 inch front hub motor wheel

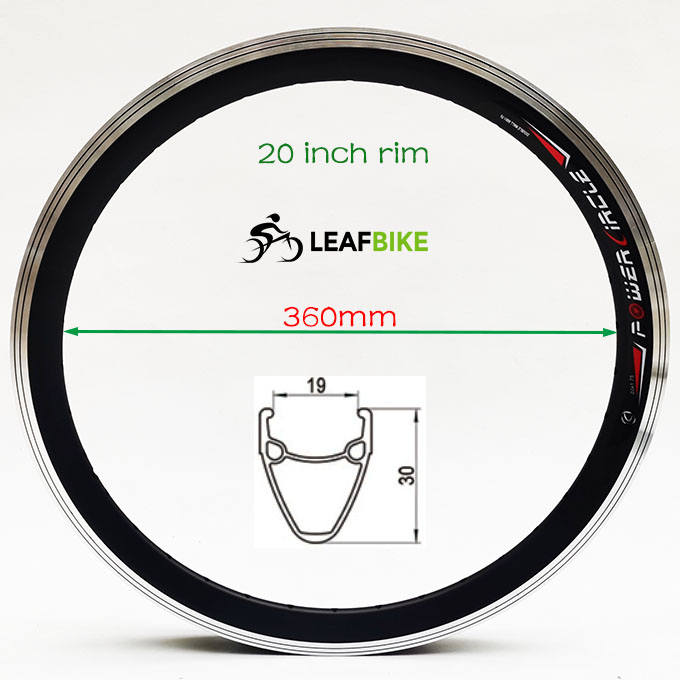

Rim: 20" double wall alloy
Spoke: 12 gauge / 72mm Length × 36 pcs
Motor Type: brushless gearless dc motor
Voltage: 36V
Power: 750W
Efficiency: ≥ 87.5%
Max speed: 53 kmh -- 32.9 mph
Mechanical brake: Default Disk or V
Cable location: shaft end , LEFT
Cable length:160cm / 63"
Install: spacing of 100mm fork
Noise: < 60 db
Surface: Black painted

Package Content:
1 x 20 inch 36V 750W front electric bike motor wheel

Net Weight: 6.98Kg / 15.4 lbs
Package Size: 52cm L x 22cm W x 51cm H
Package Type: Cardboard Box
Share Video:
20 inch 36v 750w front hub motor kit
Wire Diagram:
1000w new hub motor electric bike conversion kit wire diagram
750W Front Drw.
750w-front-electric-bike-motor-drawing
Performance Data:
750w-electric-hub-motor-performance-data-curve
Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards,  your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
torque arm
