BMX 26 inch 60V 2000W rear hub motor - electric bike conversion kit

Name: BMX 26 inch 60V 2000W rear hub motor - electric bike conversion kit
Brand: Leaf Bike
SKU: LBCK26602000RNB
Price: 403 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK26602000RNB

$403.00 ~~$452.00~~

Please select the information you wantX

Tyre Size :

26 x 1.5" / 1.75"

26 x 1.95" / 2.0" ~ 2.5"
Max. Speed :

50mph

40mph

30mph

20mph

Other Speed
LCD :

S830

SW900

08HU

08SU

Quantity :

Maybe You Need These

Description

The 26 inch BMX motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun. Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
This 26 inch BMX bike kit works with a 60V battery.

Main Features:

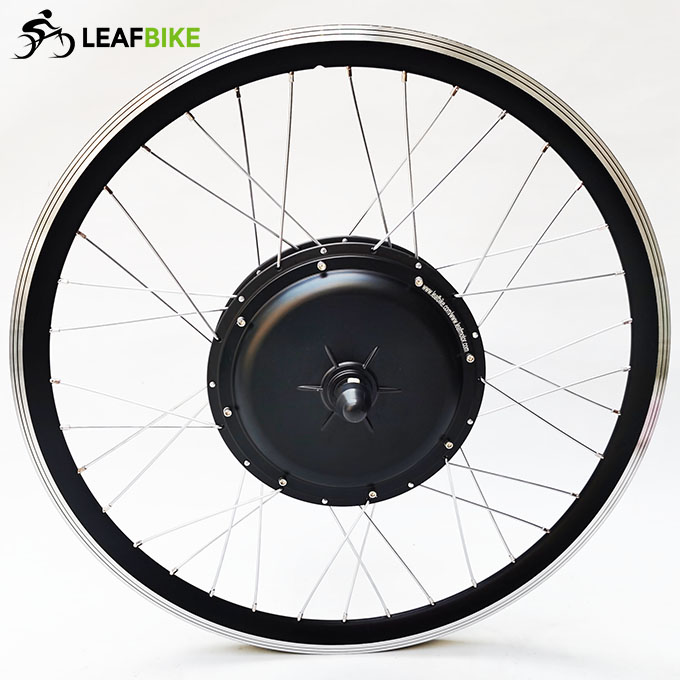

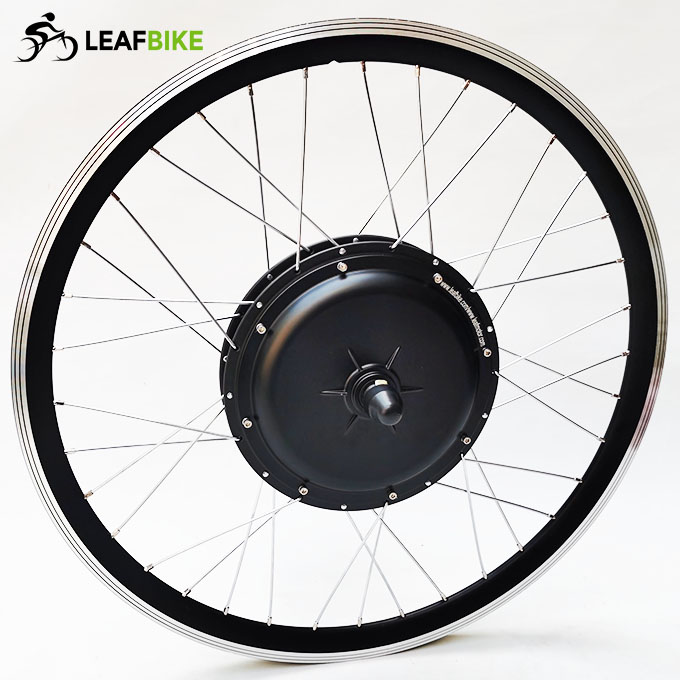

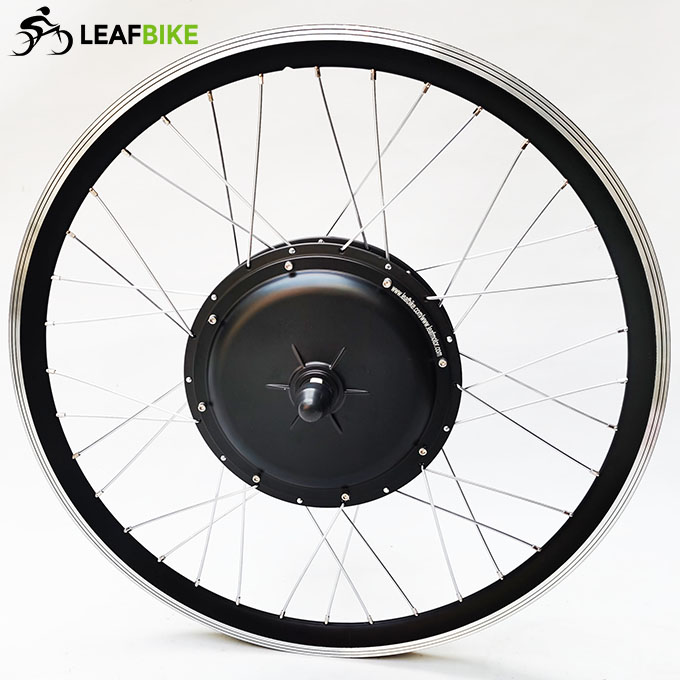

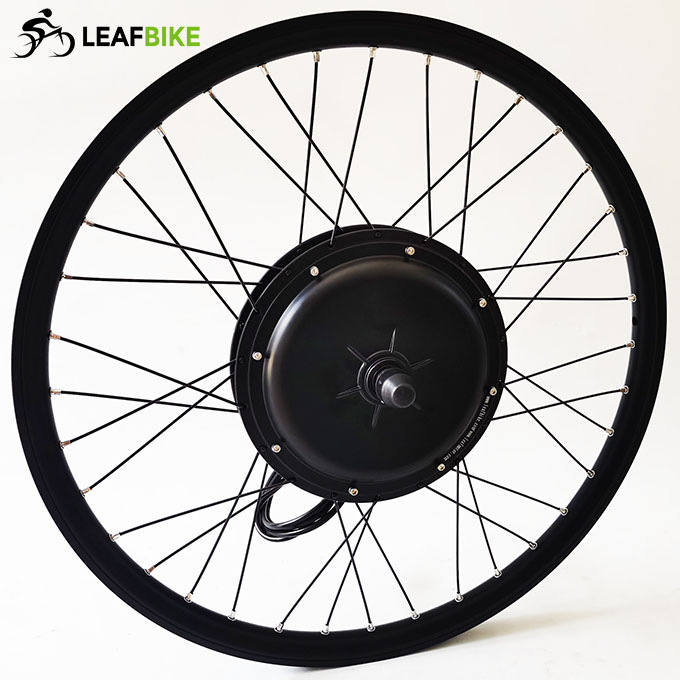

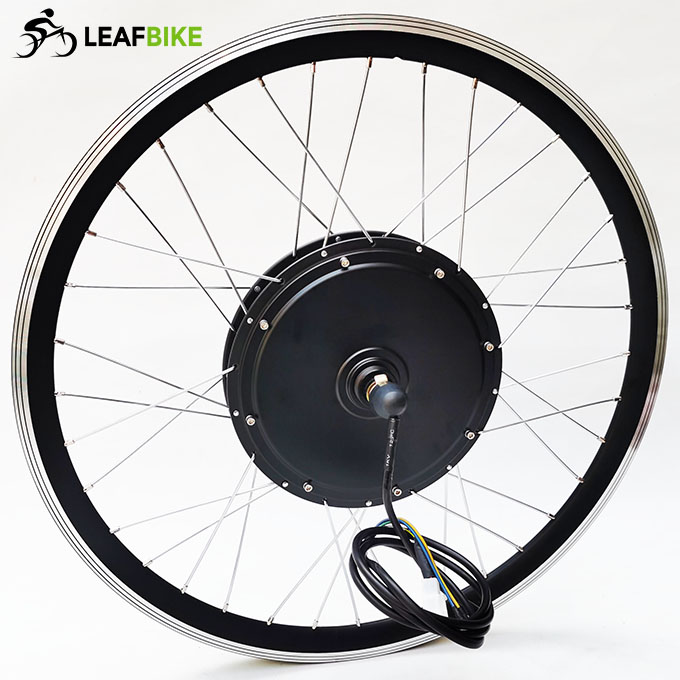

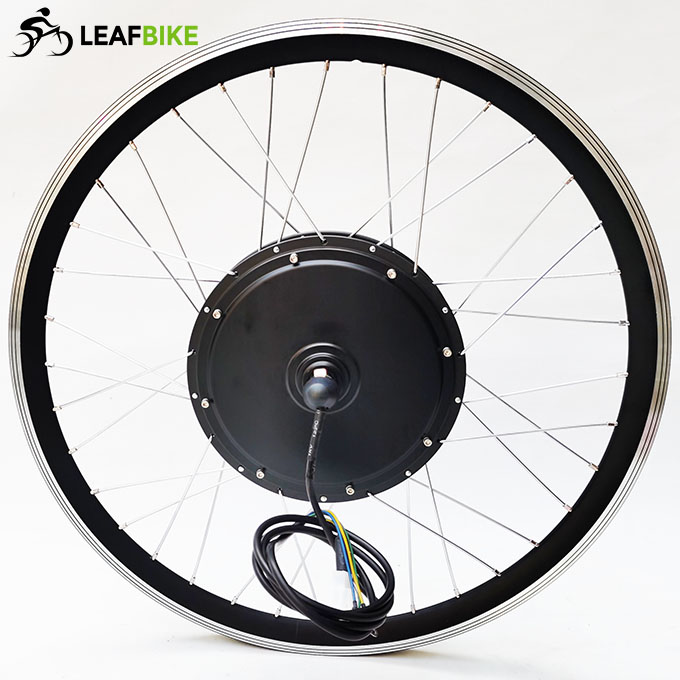

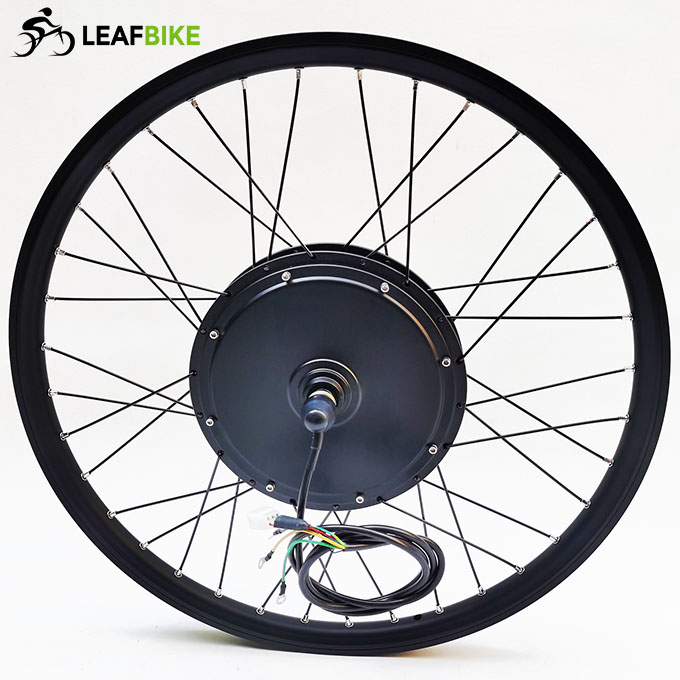

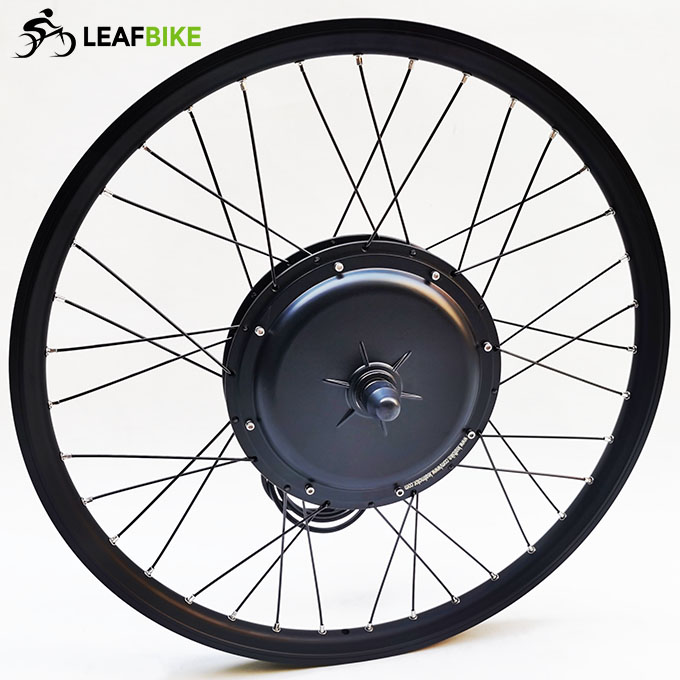

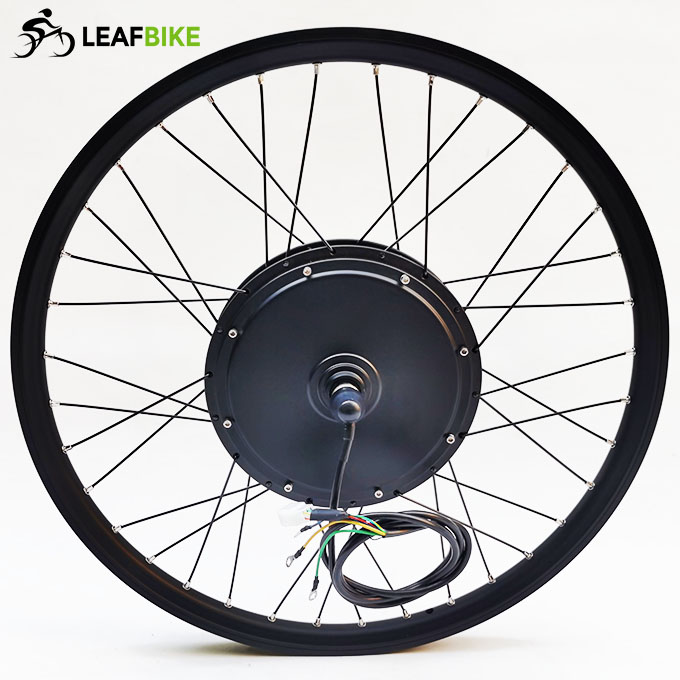

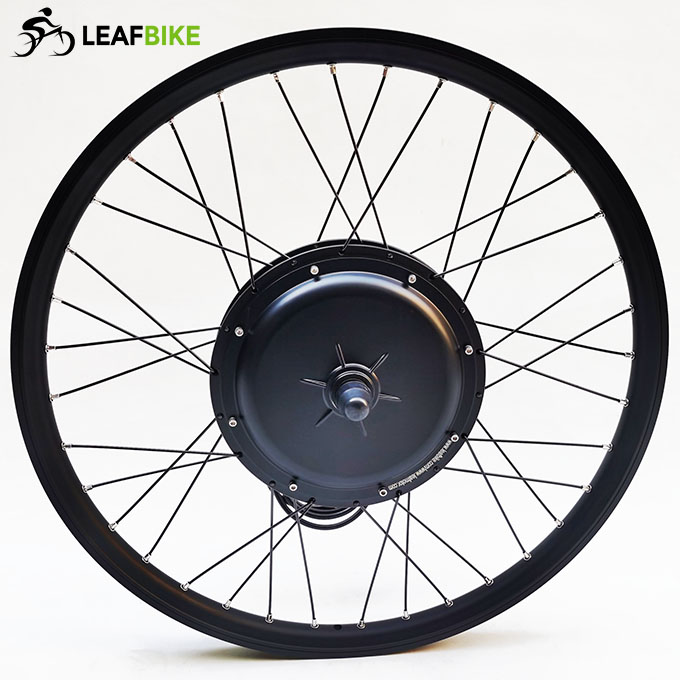

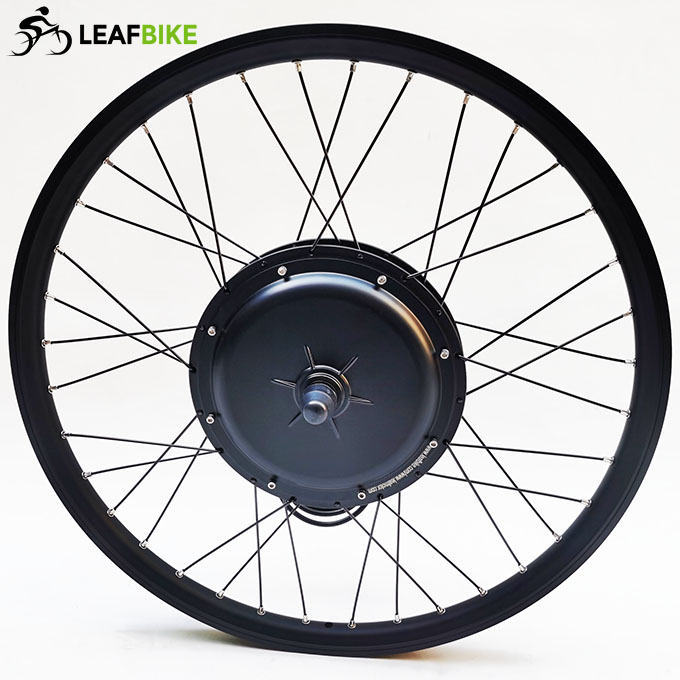

>. Rim A: 26 inch double wall Alloy (Rim Fit For: 26 x 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 154mm Length x 36 pcs

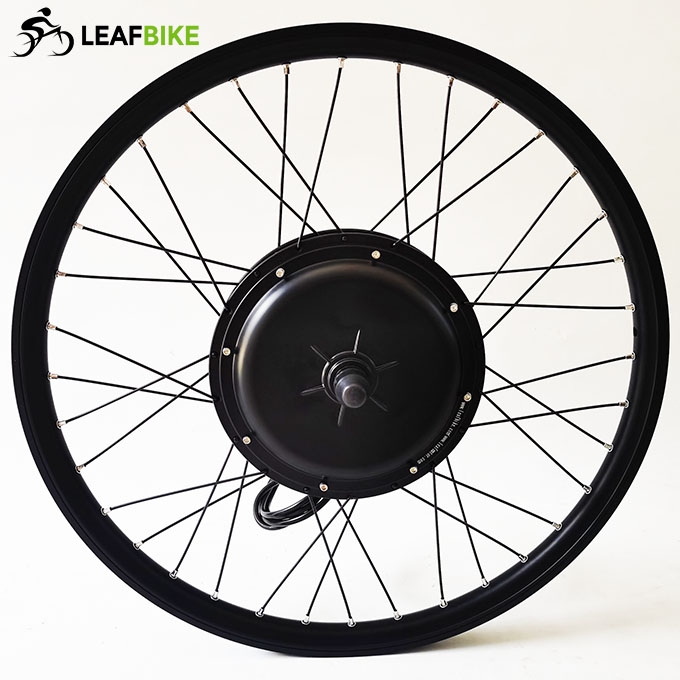

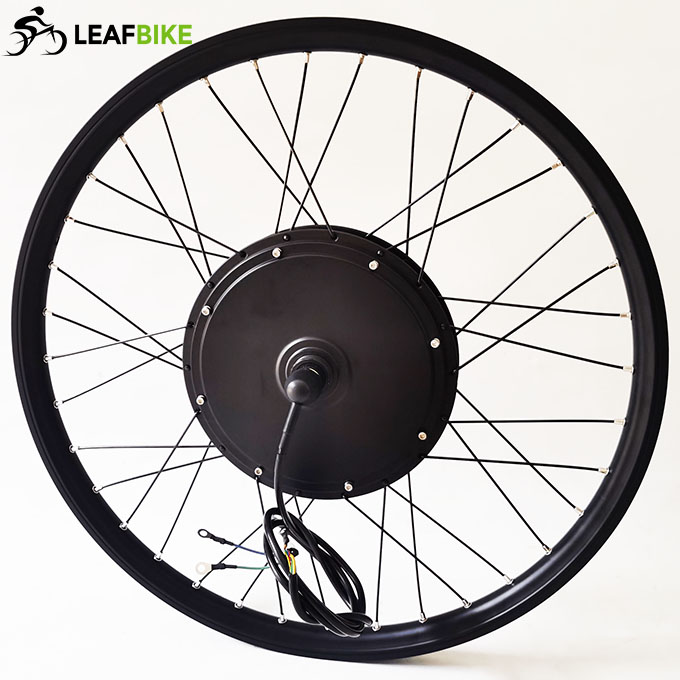

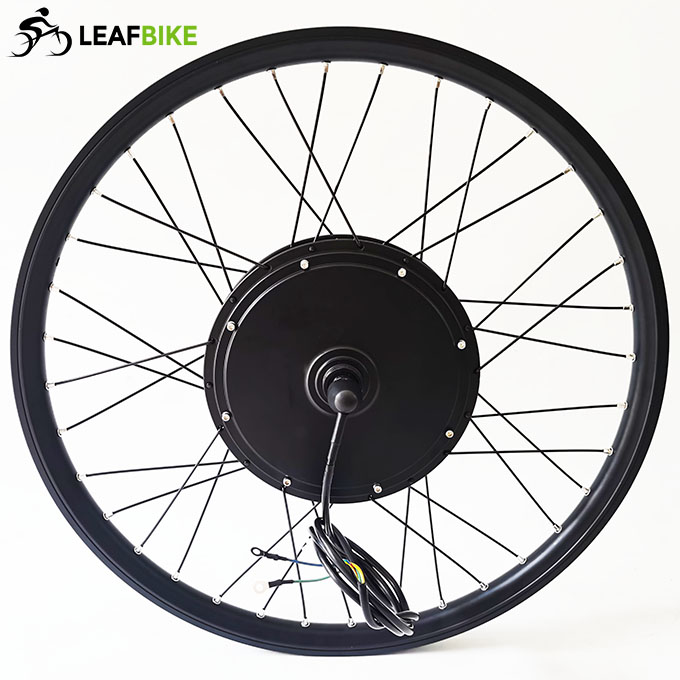

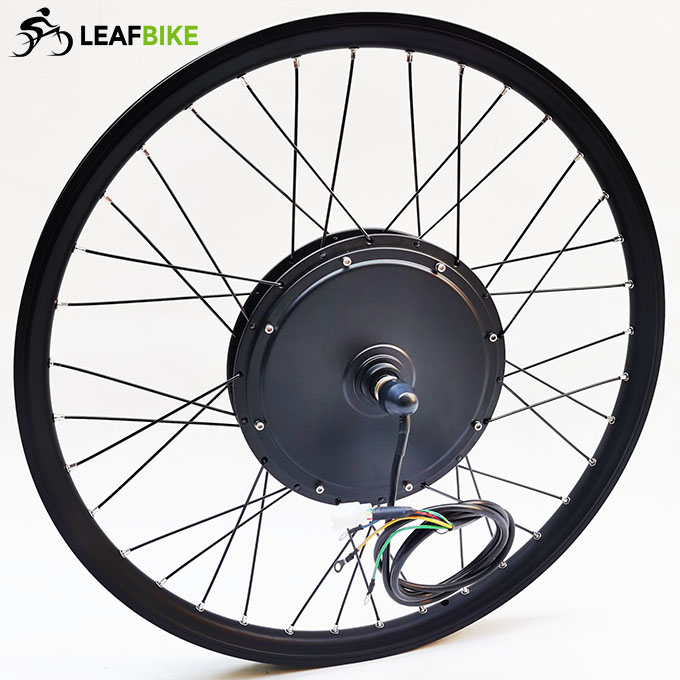

>. Rim B: 26 inch double wall Alloy (Rim Fit For: 26 x 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 159mm Length x 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 85.8 kmh -- 53.3 mph
>>. Mechanical brake: V
>>. Freewheel: 1 ~ 7 speed
>>. Cable location: shaft end, Right
>>. Cable length: 150cm / 60"
>>. Install: spacing of 110mm rear fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 52.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155mm L x 72 mm W x 38 mm H

With LCD, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward" -- "Right side / backward")
* Kmh / mph
* Speeds ( 0 - 5 ) -- "0" is off. "1" is the slowest. "5" is the fastest.
* ..

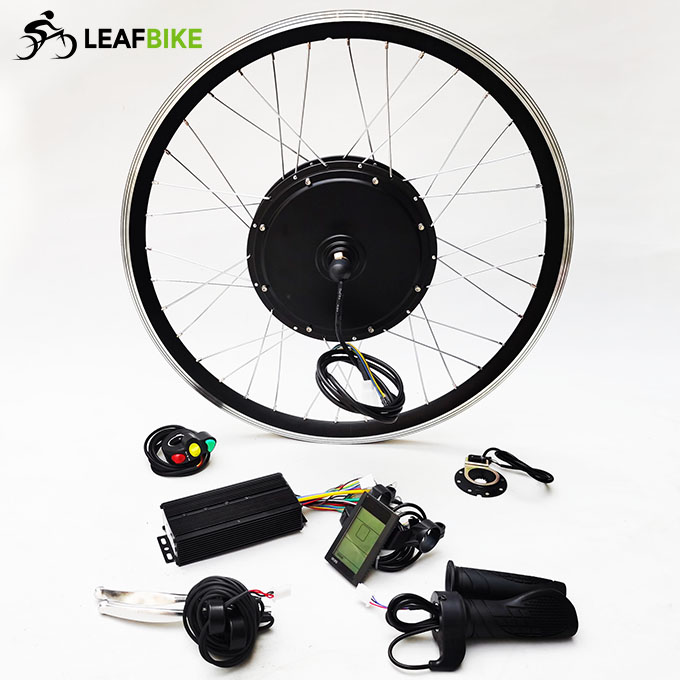

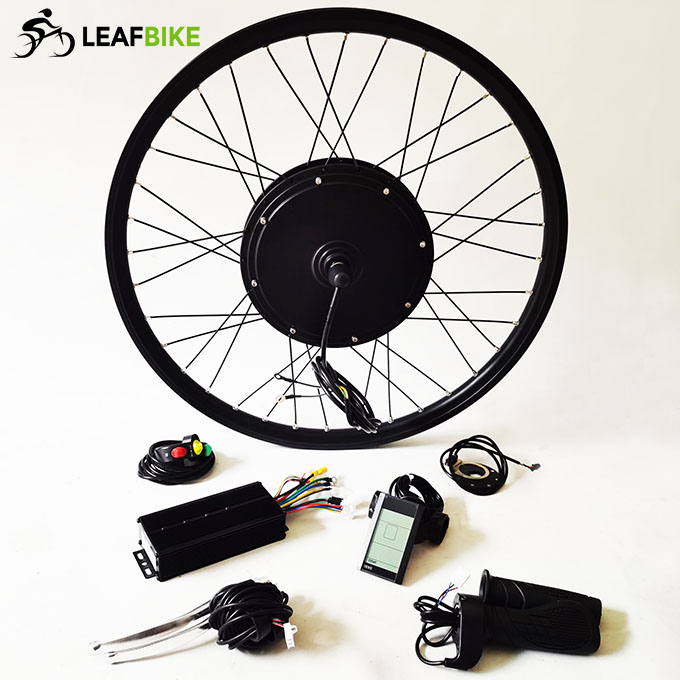

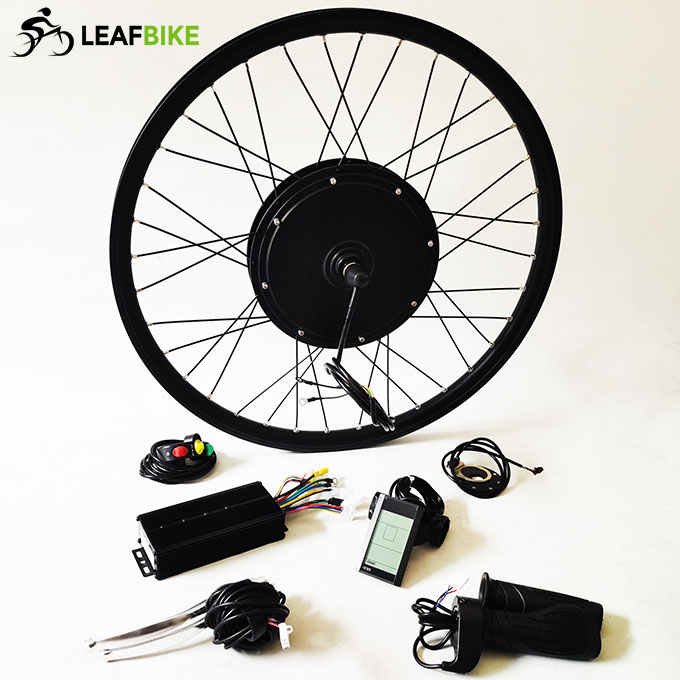

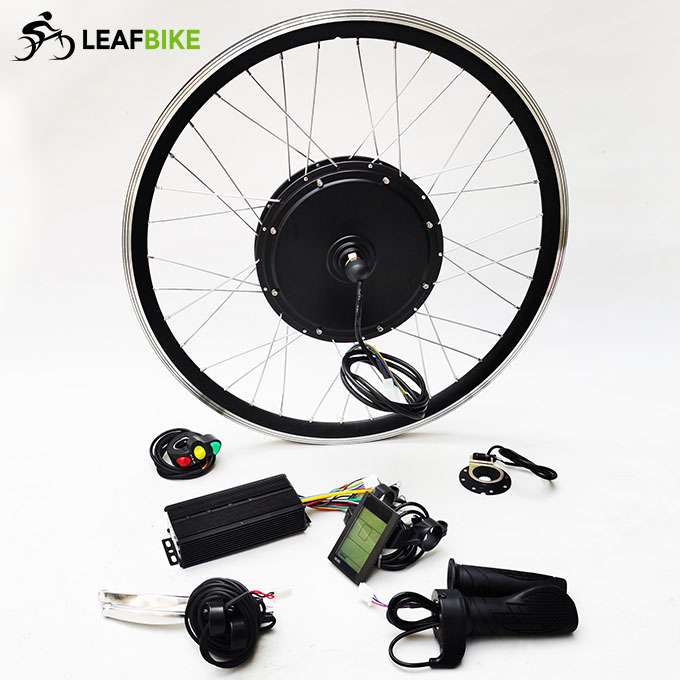

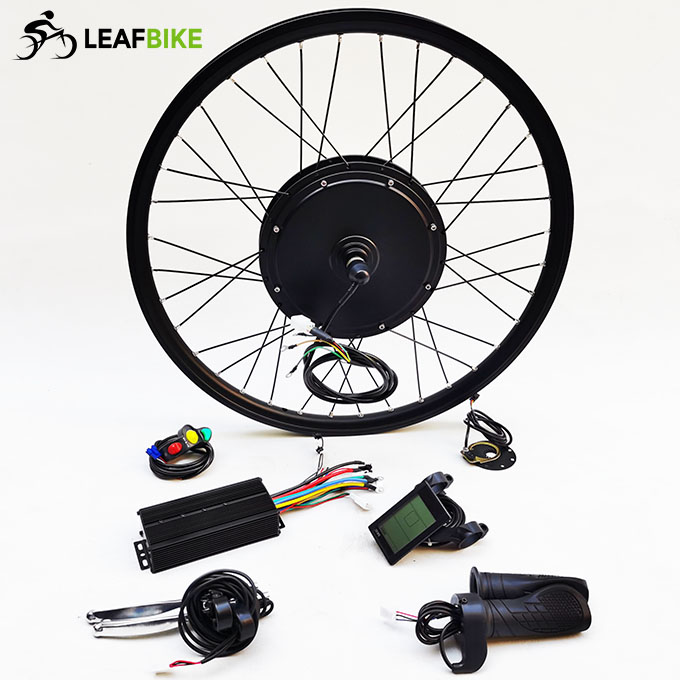

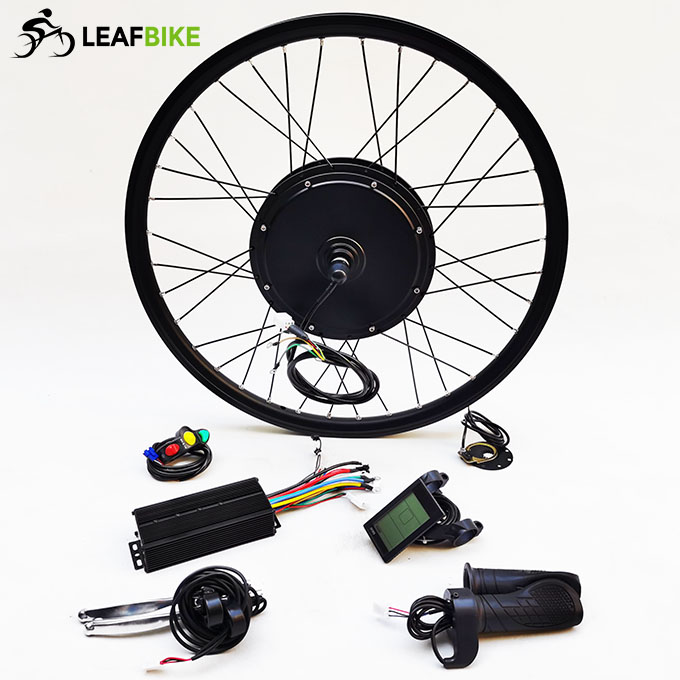

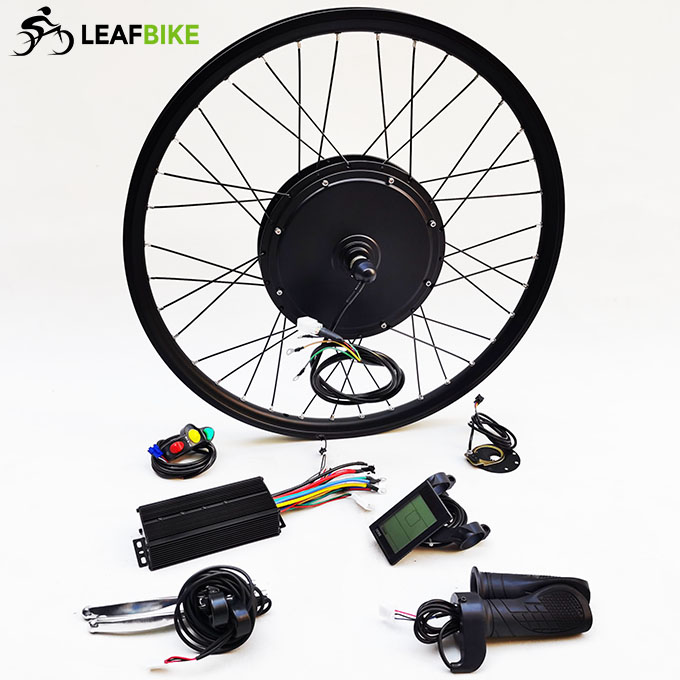

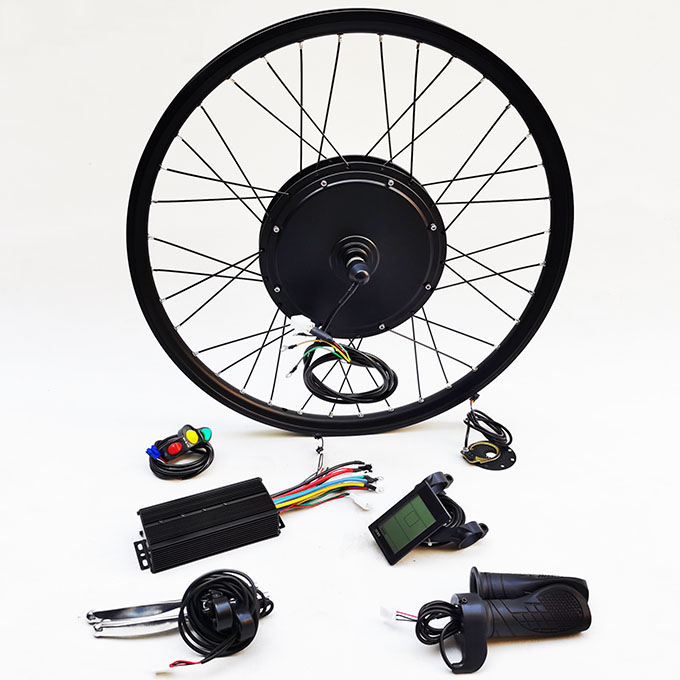

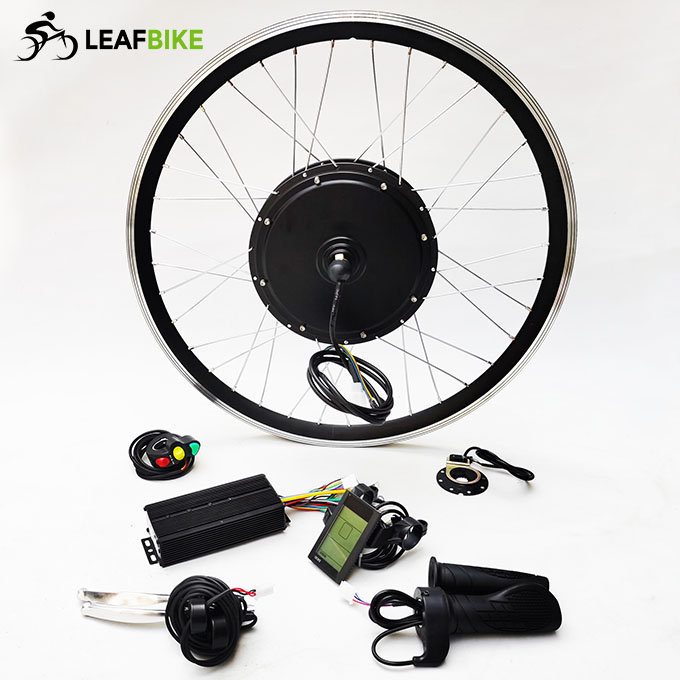

Package Content:
1 x BMX 26 inch 60V 2000W rear hub motor wheel (Fit for 110mm rear dropout)
1 x 60V 2000W 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.0 kg / 24.2 lbs
Package Size: 62cm L x 62cm W x 25cm H
Package Type: Cardboard Box

Share Video:

BMX 26 inch 60V 2000W rear hub motor electric bike conversion kit video

Wire Diagram:

2000W BMX Motor Drw.
