29 inch 48V 52V 1000W rear wheel - electric hub motor kit

Item ID #LBCK29481000RN
$339.00 $388.00
    Please select the information you wantX
  • Sprocket :
  • LCD :
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These
Please watch videos for 29 inch 48V 52V 1000W rear hub motor electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, max 32kmh, max 45kmh..
Share Video:
28 inch 1000w rear hub motor electric bike conversion kit
Rotor part 1:
electric hub motor winding rotor
Rotor part 2:
electric bike motor winding rotor
Install hub motor:
electric hub bike motor

* This 29 inch electric bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
>. Rim: 29 inch double wall Alloy (Rim Fit For: 29 × 1.95" ~ 2.5" tire)

>. Spoke: Silver 12 gauge / 188mm Length × 36 pcs
Default: Silver spokes
Optional: Black spokes -- Please leave message.

>. Engine : Bldc electric hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1000W
>>.  Efficiency: 90.5%
>>.  Max speed: 72 kmh -- 45mph Default (Free customization other speeds: 35mph or 30mph, 25mph, 20mph, 15mph...please leave message)
>>. Mechanical brake: Disk or  V
>>. Freewheel / Cassette: space for single speed..6 speed or 7 speed
>>.  Cable location: shaft end , LEFT
>>.  Cable length:100cm / 40"
>>.  Install: spacing of 135mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: Brushless motor controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1000 Watts
>>.  Casing material: aluminum
>>.  Maximum Current: 26 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

LCD, More Function:
* Cruise -- Green switch to control
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest speed ~ "5" is the fastest speed.
* Battery gauge
* ...

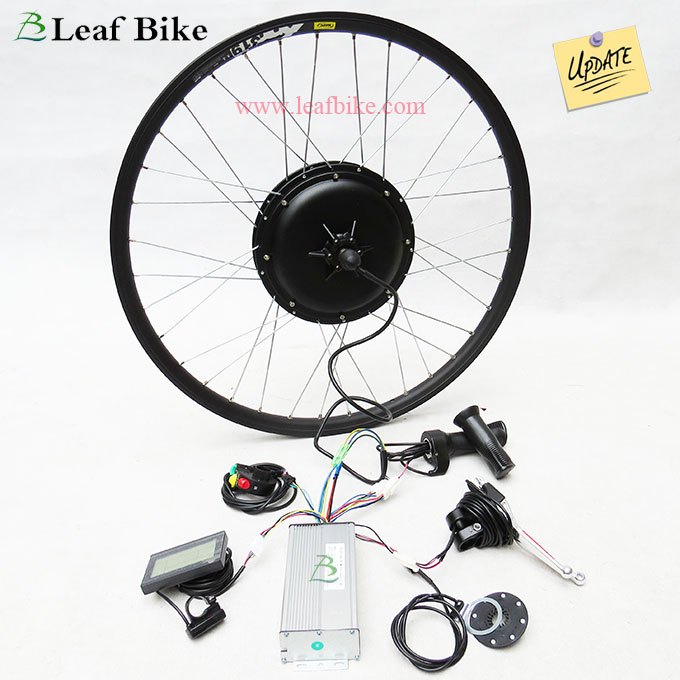

Package Content:

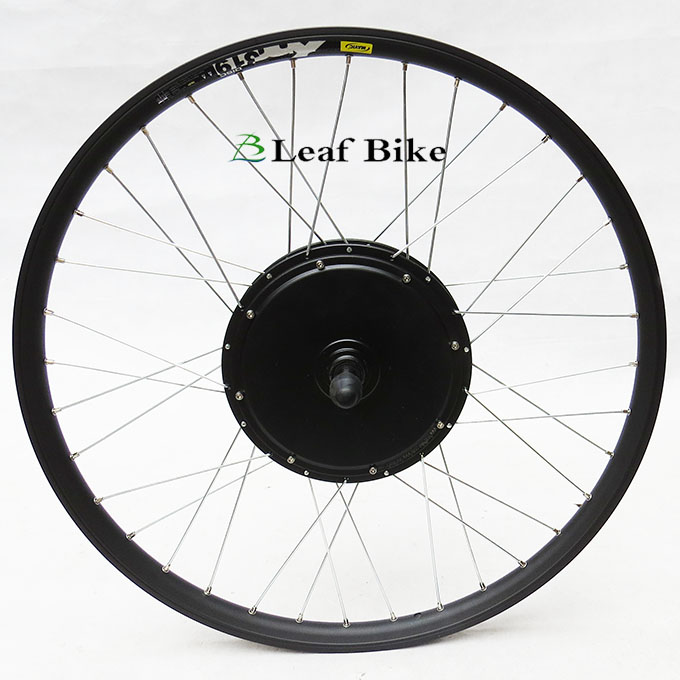

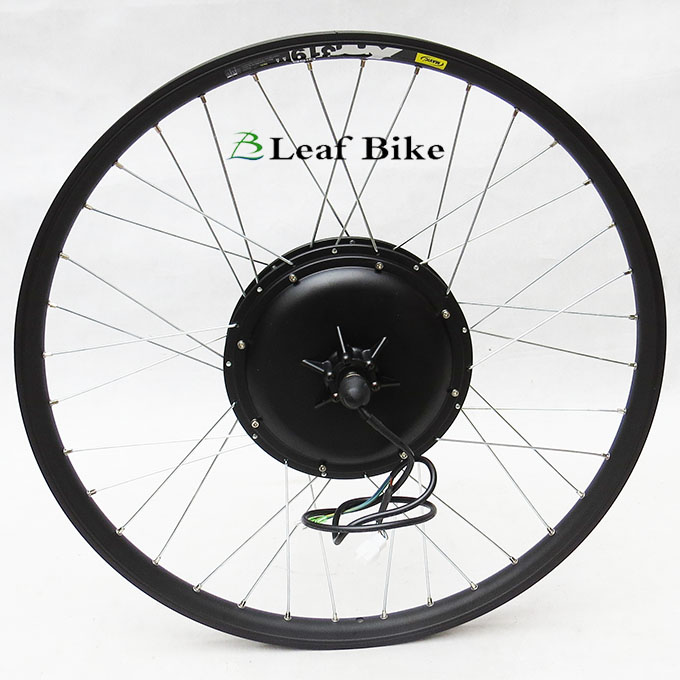

1 x 29 inch 48V 52V 1000W rear hub motor wheel

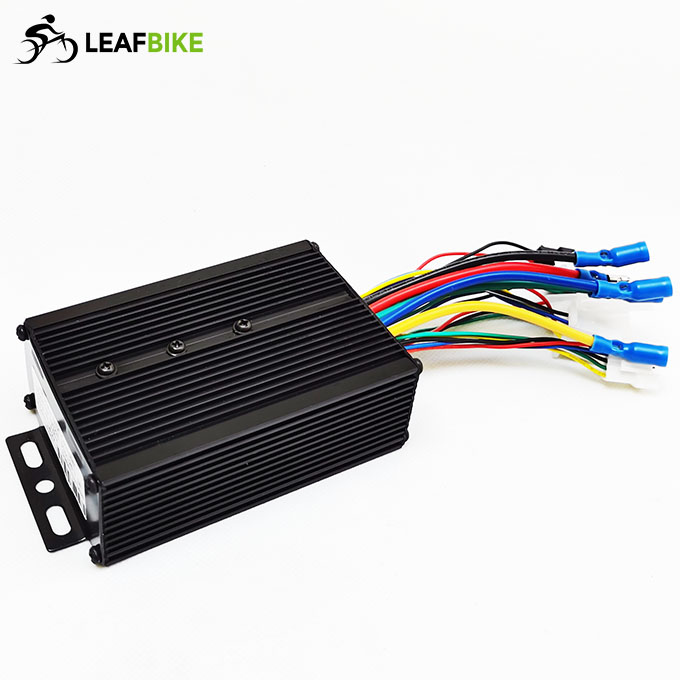

1 x 48V 52V 1000W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.2 kg   /  24.6 lbs
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box
Shipment: by airplane ( ship by ups or Fedex or TNT or DHL express )

* This 29 inch electric bike motor conversion kit system works with a 48V or 52V lithium battery.
Wire Diagram:
1000w Rear Drw.
1000w rear hub motor drawing
1000W Cassette Drw.1000w cassette hub motor drawing
Performance Data:
