29 inch 48V / 52V 1000W front wheel - electric hub motor kit

Item ID #LBCK29481000FN
$399.00 $478.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description

* The 29 inch electric bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.


>. Rim: 29 inch double wall Alloy (Rim Fit For: 29 × 1.95" ~ 2.5" tire)
>. Spoke: Silver 12 gauge / 188mm Length × 36 pcs
Default: Silver spokes
Optional: Black spokes -- Please leave message.

>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1000W
>>.  Efficiency: 90.5%
>>.  Max speed: 73.5 kmh -- 45.0 mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>.  Mechanical brake: Disk or  V
>>.  Cable location: shaft end , LEFT
>>.  Cable length:160cm / 63"
>>.  Install: spacing of 100mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

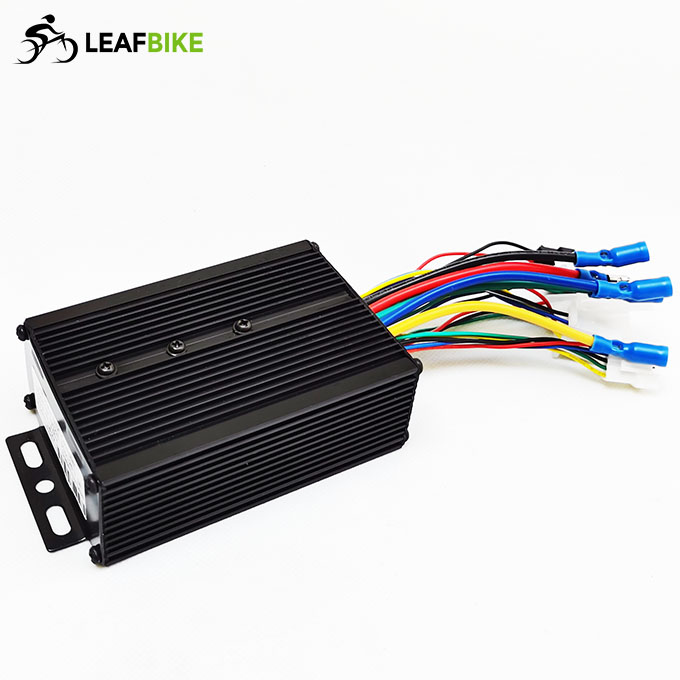

>. Driver: brushless controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1000 Watts
>>.  Casing material: aluminum
>>.  Maximum Current: 26 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

LCD-830, More Function:
* Cruise -- Green switch to control
* Forward & Backwards (Optional) -- Yellow switch to control
* Regen brake -- Red switch to control
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Speed ( 0 - 5 ) "0" is off. "1" is the slowest speed. "5" is the fastest speed.
* Battery gauge
* ...

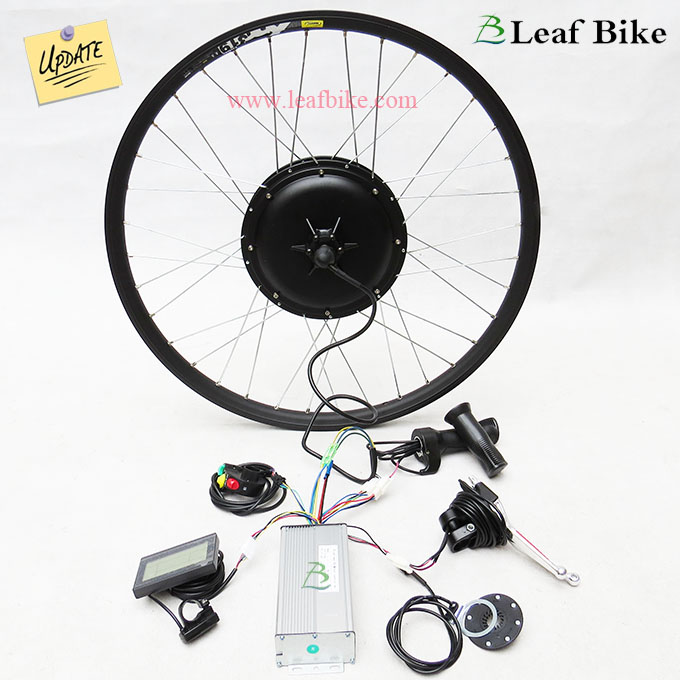

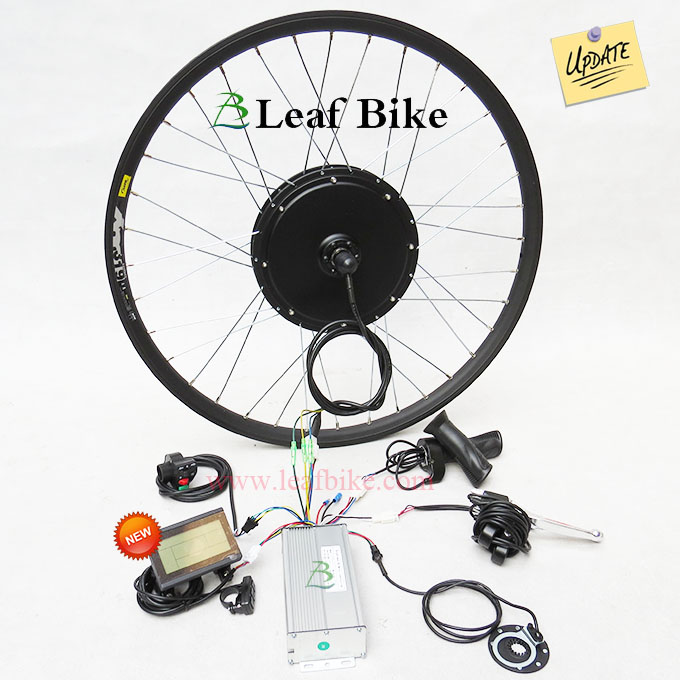

Package Content:
1 x 29 inch 48V / 52V 1000W front hub motor wheel
1 x 48V / 52V 1000W 12-MOSFET motor controller
1 x LCD-830
1 x Twist throttle -- Cable length: 1800mm
 1 x Brake levers -- Cable length: 1800mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1800mm
1 x Pedal assist -- Cable length: 1000mm

Net Weight: 11.2 kg   /  24.6 lbs
Package Size: 66cm L x 23cm W x 66cm H
Package Type: Cardboard Box
Shipment: by airplane ( ship by ups or Fedex or TNT or DHL express )

* This 29 inch electric bike motor conversion kit system works with a 48V or 52V Lithium battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).

Share Video:
29 inch 48v 1500w front hub motor - electric bike conversion kit video

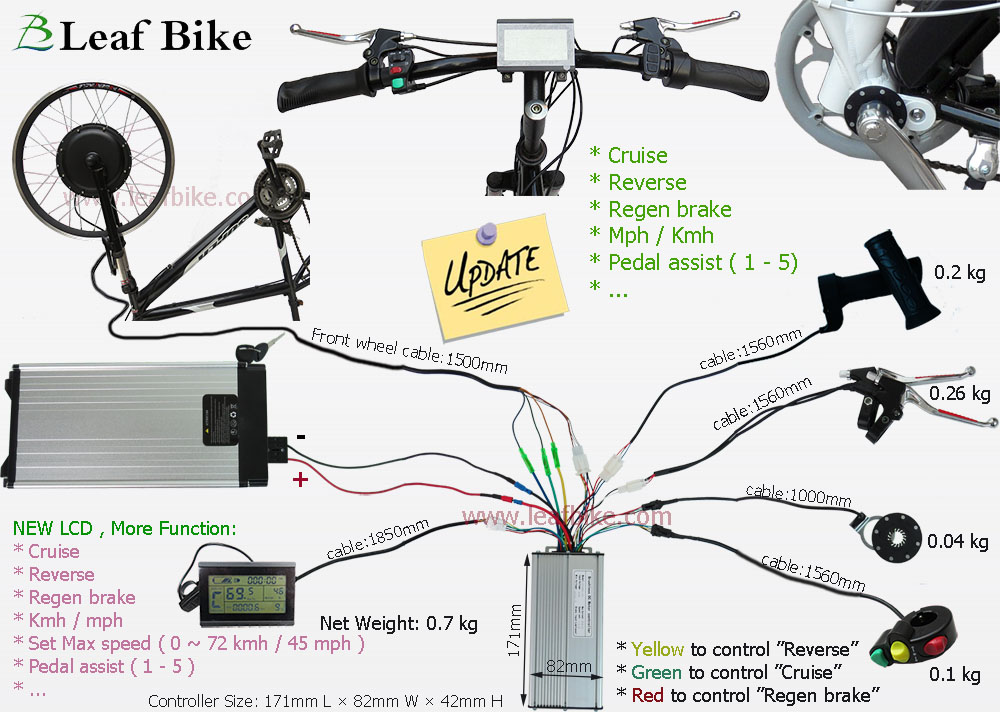

Wire Diagram:
29-inch-front-hub-motor-electric-bike-conversion-kit-wire-diagram
1000w Front Drw.
1000w-front-electric-bike-motor-drawing
Performance Data:
1000w-hub-motor-curve-data
Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards,  your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
torque arm
