27 inch 48V 500W front electric hub motor bike conversion kit

Name: 27 inch 48V 500W front electric hub motor bike conversion kit
Brand: Leaf Bike
SKU: LBCK2748500FN
Price: 349 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK2748500FN

$349.00 ~~$393.00~~

Maybe You Need These

Description

The 27 inch bike kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 27 inch bike conversion kit works with a 48V battery.

Main Features:
>. Rim: 27 inch double wall Alloy (Rim Fit For: 27× 1-1/4, 1-3/8 tire)
>. Spoke: 12 gauge / 234 mm Length × 36 pcs

>. Engine: Bldc hub motor -- Brushless Geared
>>. Voltage: 48V
>>. Power: 500W
>>. Efficiency: 78%
>>. Max speed: 44.8 kmh -- 27.8 mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, Right
>>. Cable length: 150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 25 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

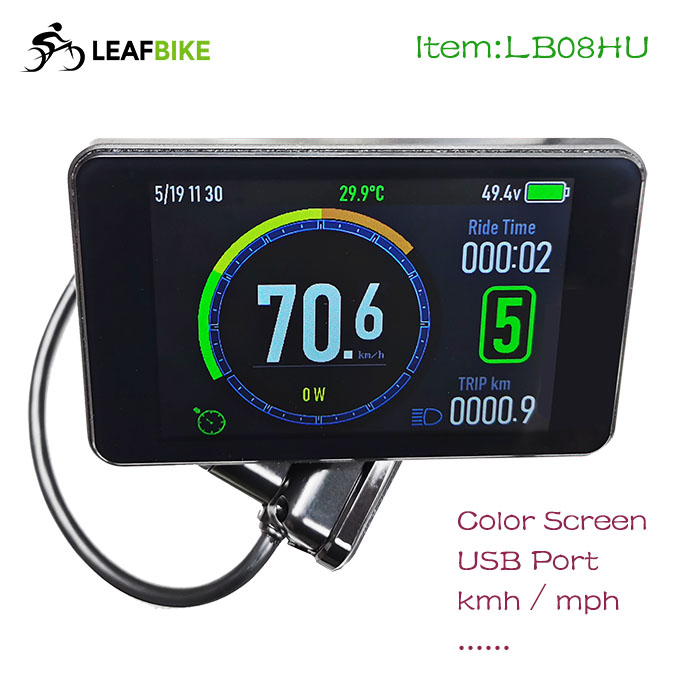

With LCD, More Function:
* Cruise
* Reverse ( The motor can't reverse )
* Kmh / mph
* Speeds ( 0 - 5 ) - "0" is off. "1" the slowest. "5" is the fastest.
* ...

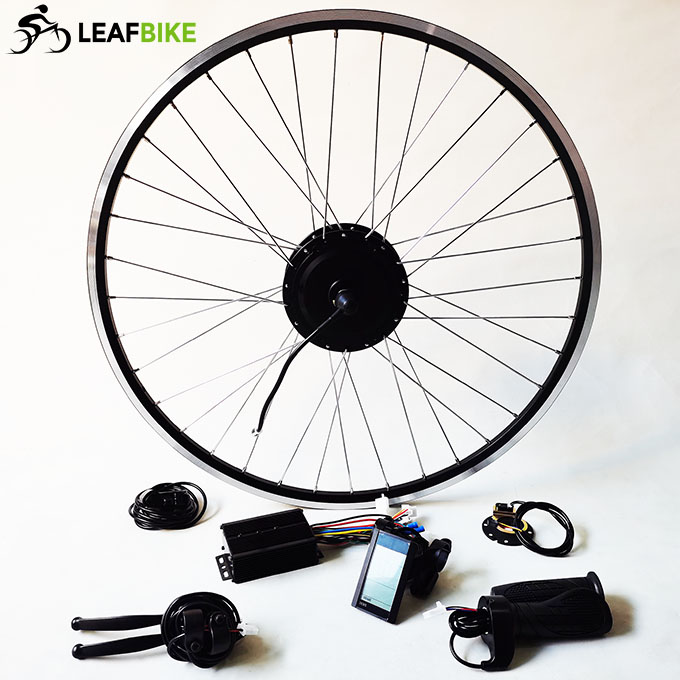

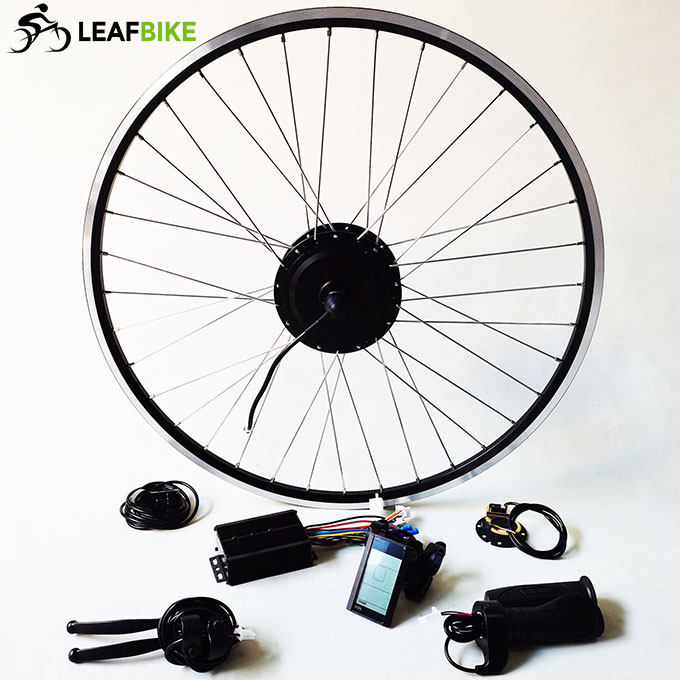

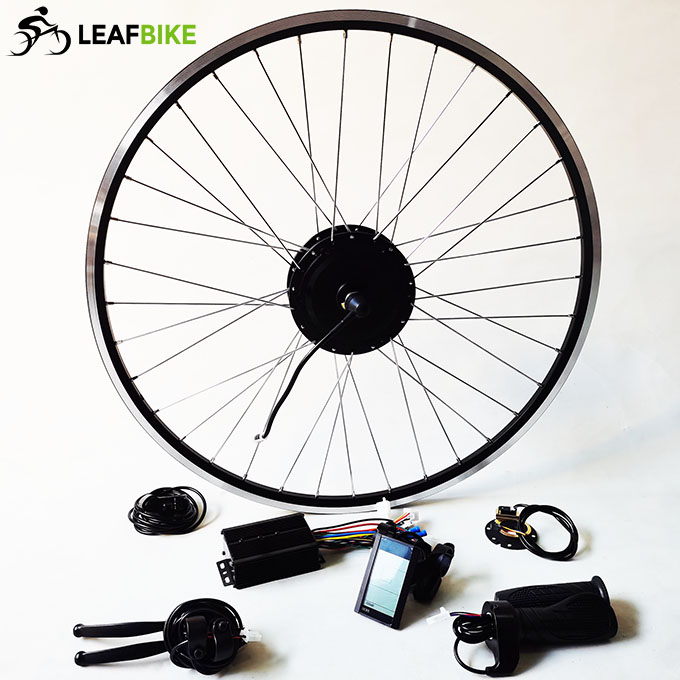

Package Content:

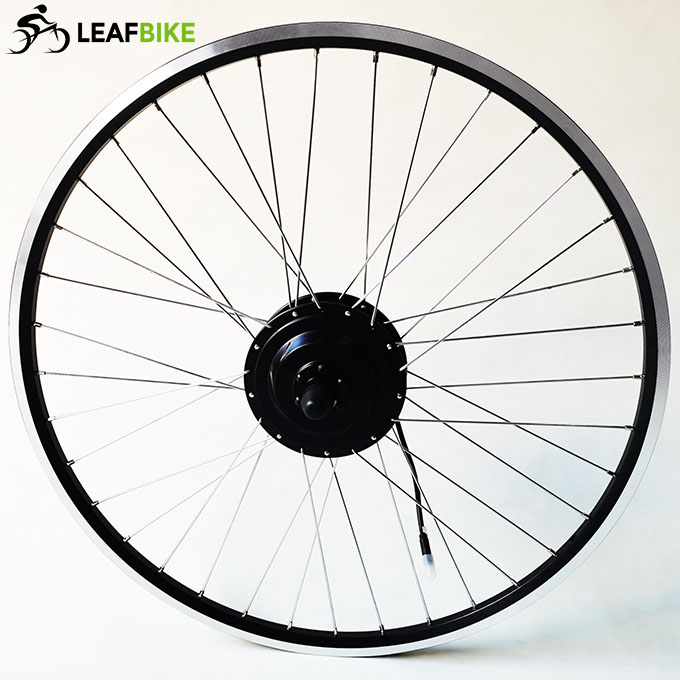

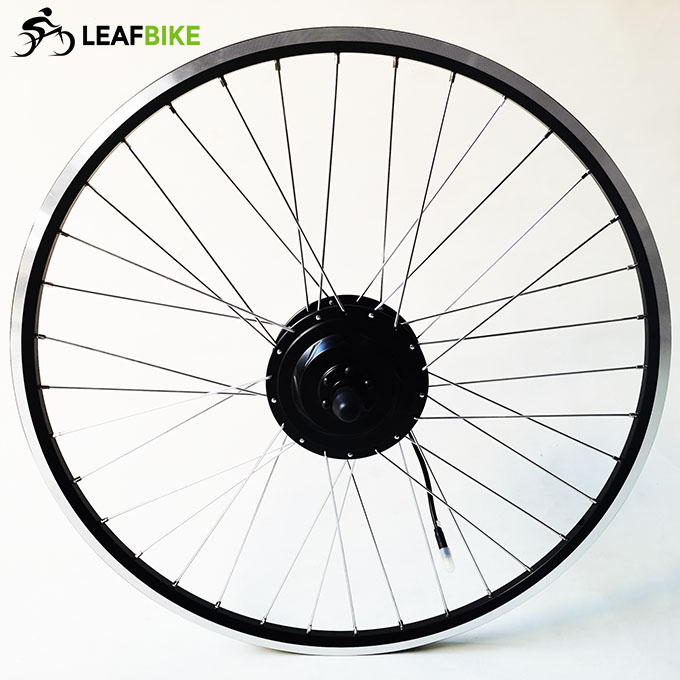

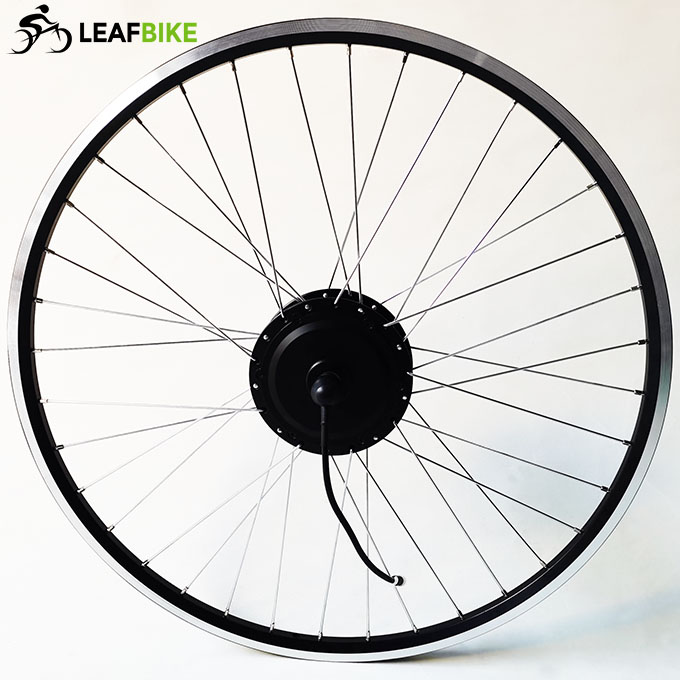

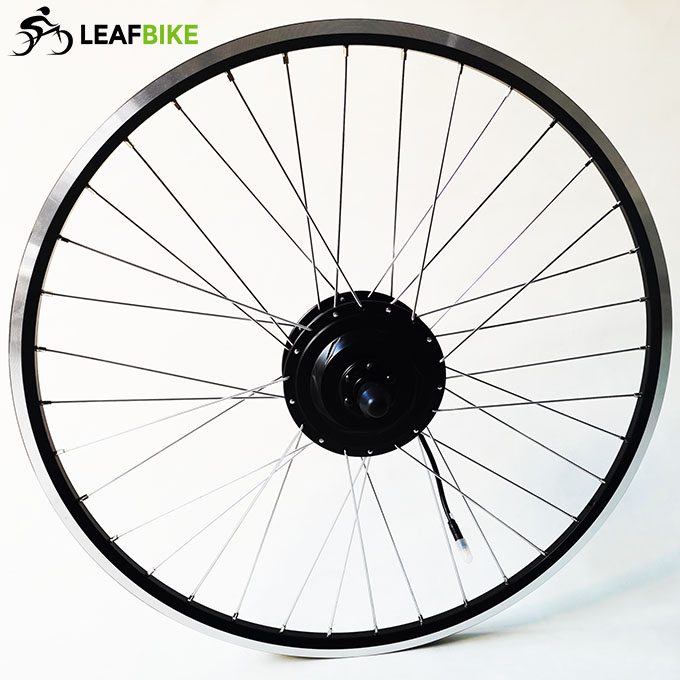

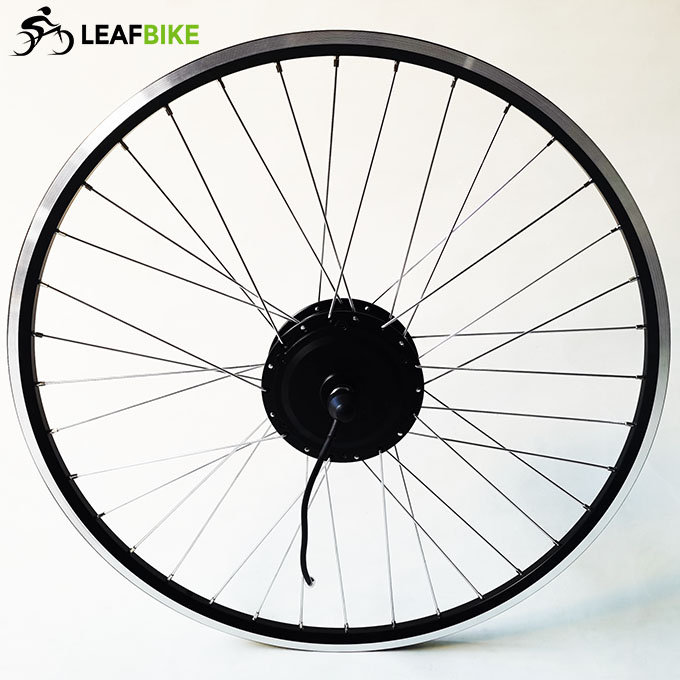

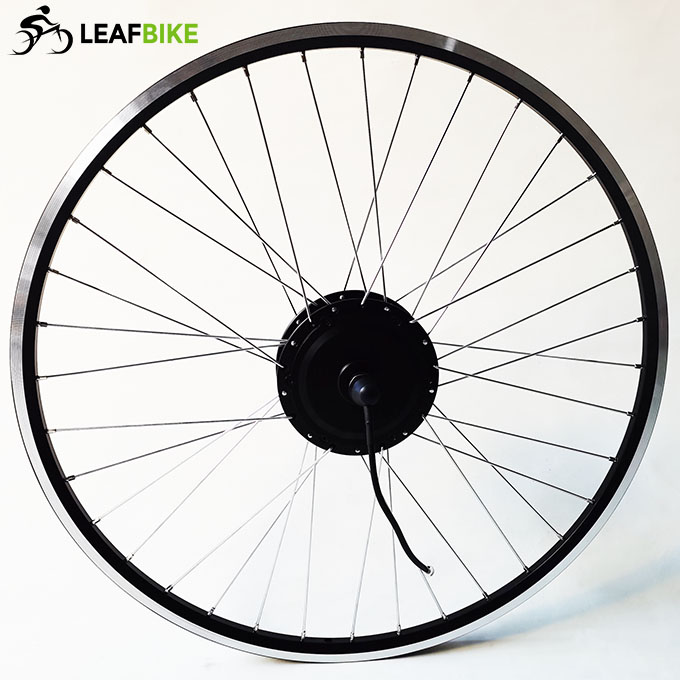

1 x 27 inch 48V 500W front BLDC hub motor wheel
1 x 48V 12-MOSFET motor controller
1 x LCD
1 x Twist throttle
1 x Brake lever
1 x Three button switches
1 x Pedal assist

Net Weight: 6.25 kg
Package Size: 68cm L x 68cm W x 25cm H
Package Type: Cardboard Box

Wire Diagram:

20-24-26-27-28-29-inch-700c-bpm-front-hub-motor-electric-bike-conversion-kit
