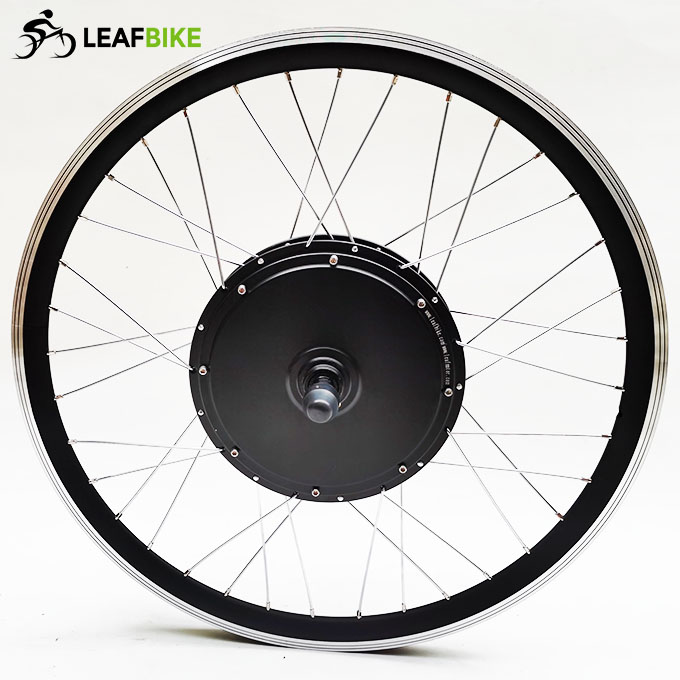

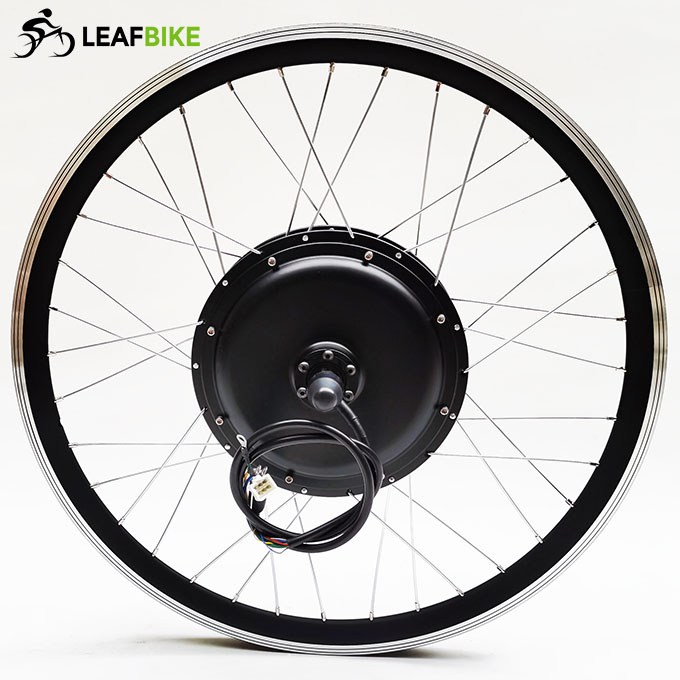

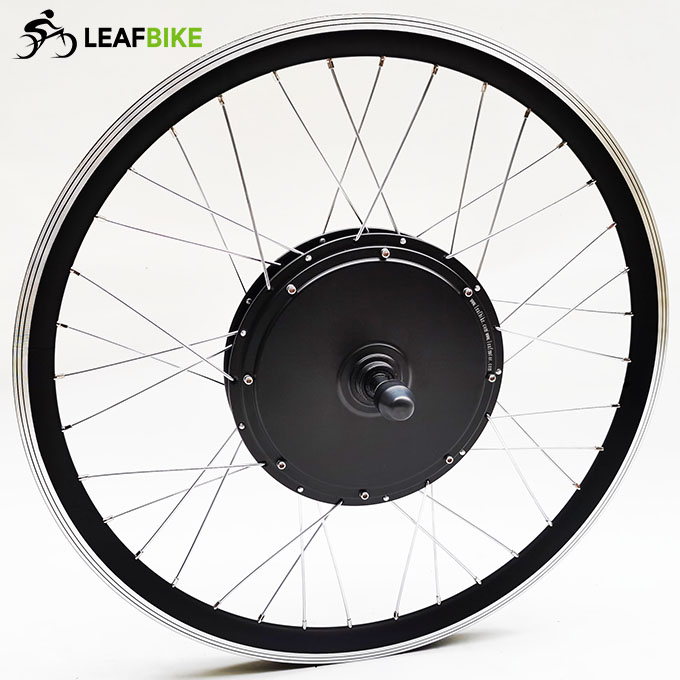

26 inch 48V 52V 1500W rear electric hub motor kit

Item ID #LBCK26481500RNL
$373.00 $428.00
    Please select the information you wantX
  • Tyre Size :
    26 x 1.5" / 1.75" / 1.95"
    26 x 1.95" / 2.0" / 2.1" ~ 2.5"
  • Sprocket :
    Freewheel
    Cassette
  • LCD :
    S830
    SW900
    08HU
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description

* This 26 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

This Brand New 18 - Mosfet electric motor controller with Sine wave, Square wave, No hall, three modes compatible.

What are three modes?
* First mode: Sine Wave Status - Motor without noise,Very quiet !
If one of motor hall sensor is broken, controller still can work in Sine Wave Status.

* Second mode: Square Wave Status - Motor with a little noise, < 60db, speed is about 8% faster than Sine Wave Status.
If two of motor hall sensors are broken, controller can work in Square Wave Status.

* Third mode: No Hall Status - Motor with a little noise, < 60db, speed is about 8% faster than Sine Wave Status.
If all of three hall sensors are broken, controller can work in No hall Status.

If your motor's hall sensors are broken, don't need to replace hall sensors. Just use this controller that can recover your motor to work.
If you don't know how to match motor wires to controller.

Just plug two blues together, controller into learning status and looking for correct working way. After 1-2 seconds, it can find correct working way,then disconnect these two blue wires' plugs. From now on,it always works with this kind of correct way.



Main Features:

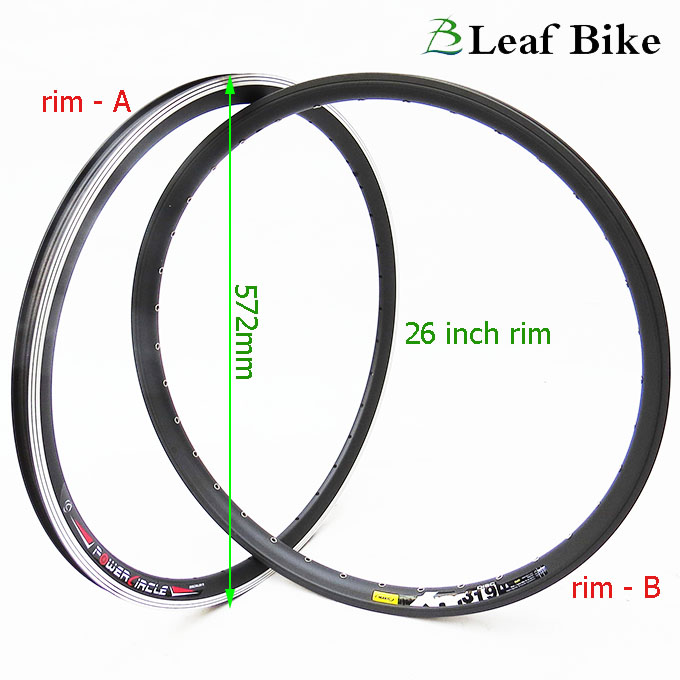

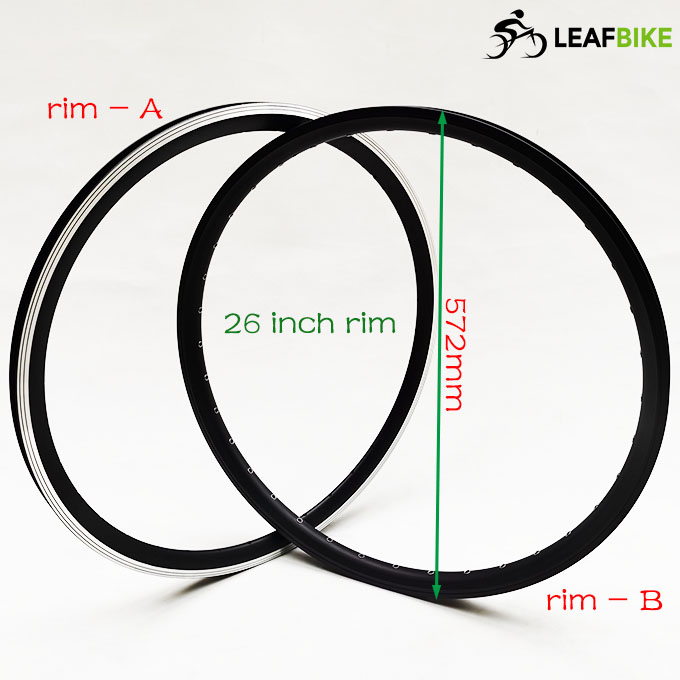

>. Rim A: 26 inch double wall Alloy (Rim Fit For: 26 × 1.5" / 1.75" / 1.95" tire)
>. Spoke: Silver 12 gauge / 154mm Length × 36 pcs

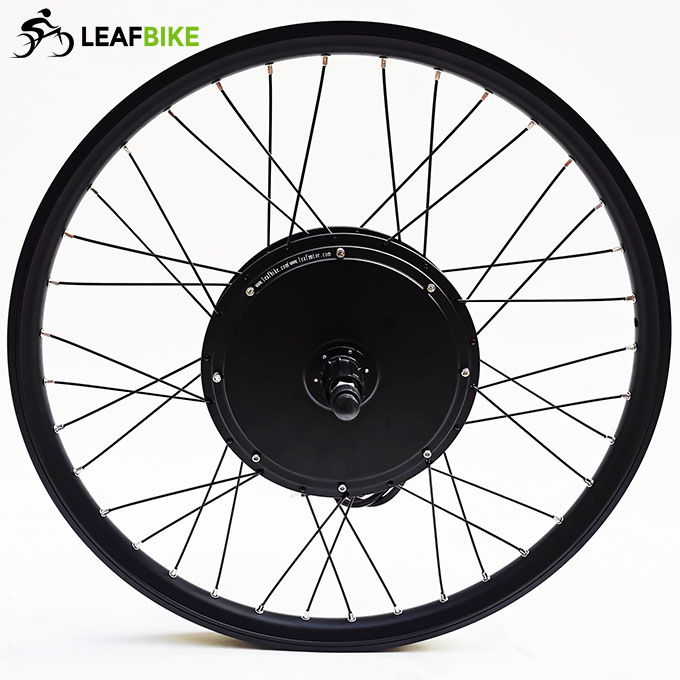

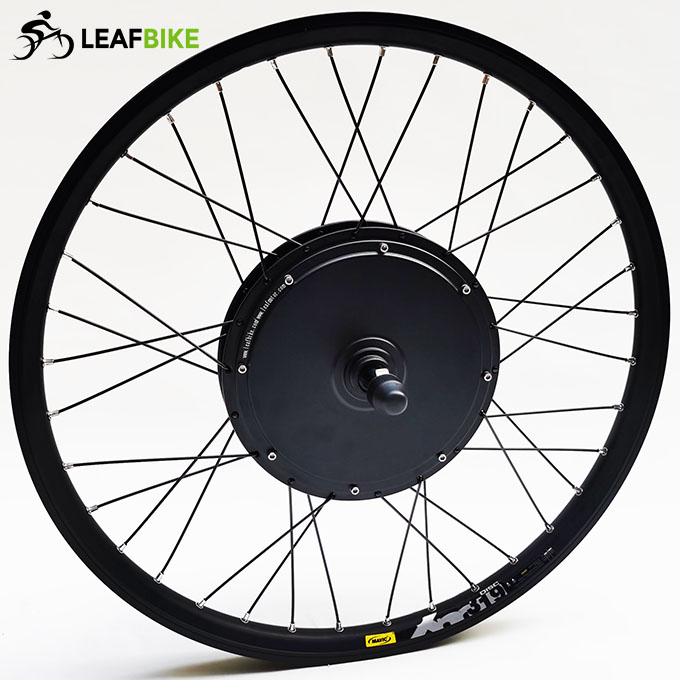

>. Rim B: 26 inch double wall Alloy (Rim Fit For: 26 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 159mm Length × 36 pcs



>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 60.5 kmh -- 37.5mph @ 48V Default  (Free customization other speeds: 42mph or 30mph, 25mph, 20mph, 15mph...please leave message)
>>. Mechanical brake: Disk or  V
>>. Freewheel : space for single seed.. 6 speed.. max 7 speed
>>.  Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>.  Install: spacing of Min 135mm to Max 155mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: sine wave controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1500 Watts
>>.  Casing material: aluminum
>>.  Maximum Current: 40 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

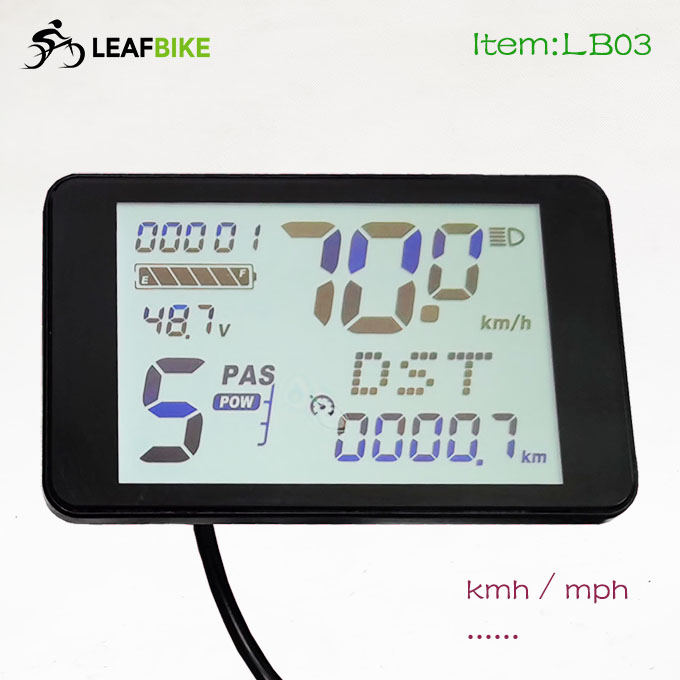

With LCD, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / Backwards")
* Kmh / mph
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest speed. "5" is the fastest speed.
* ...

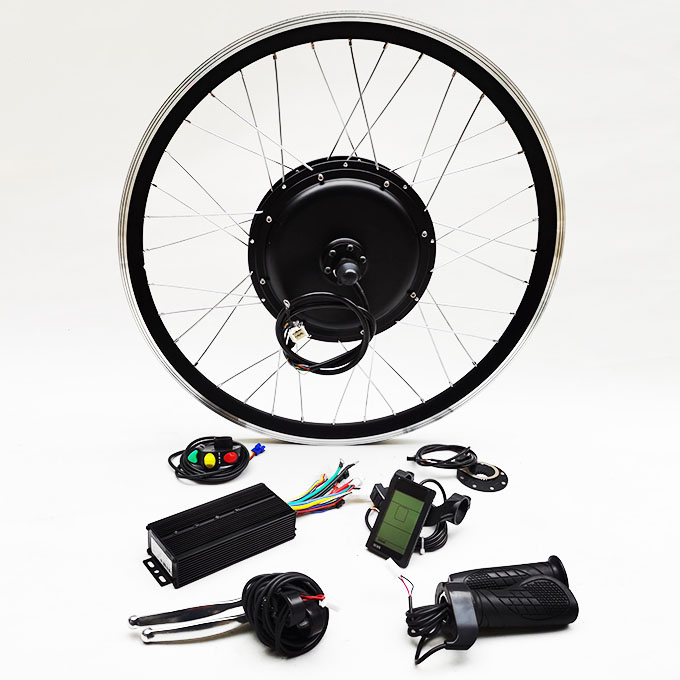

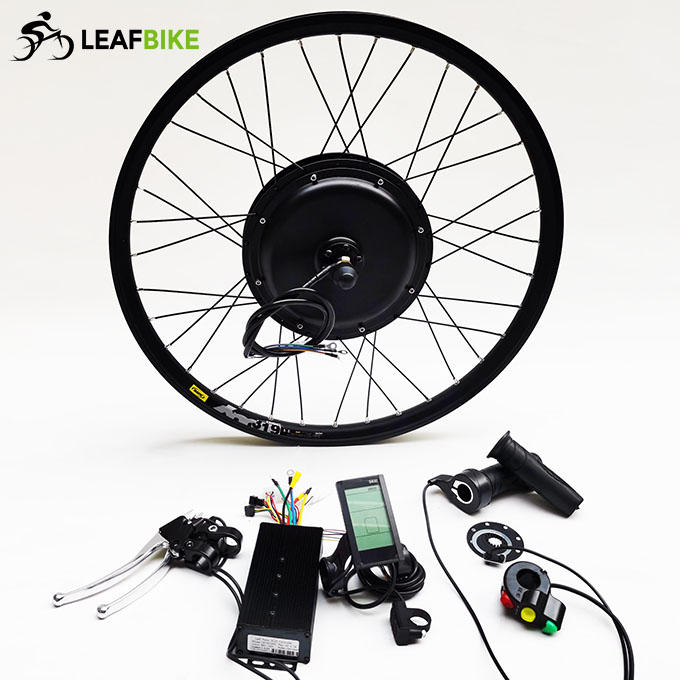

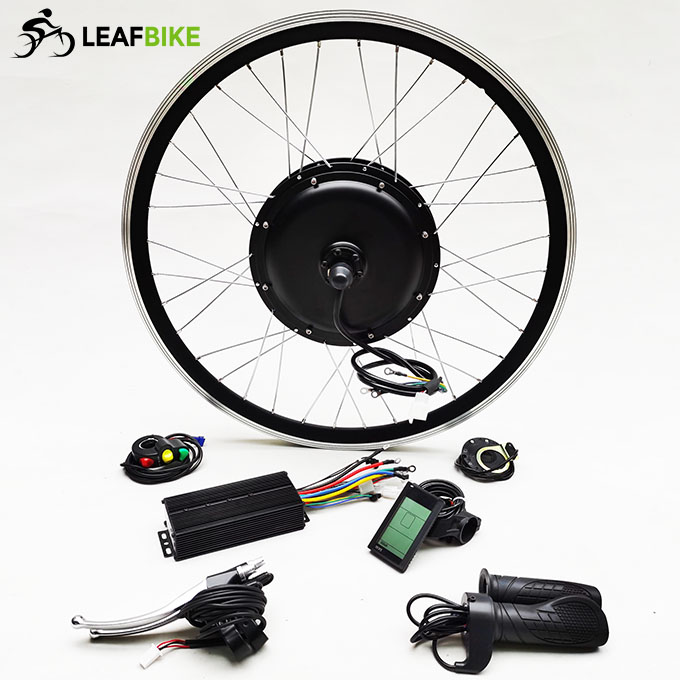

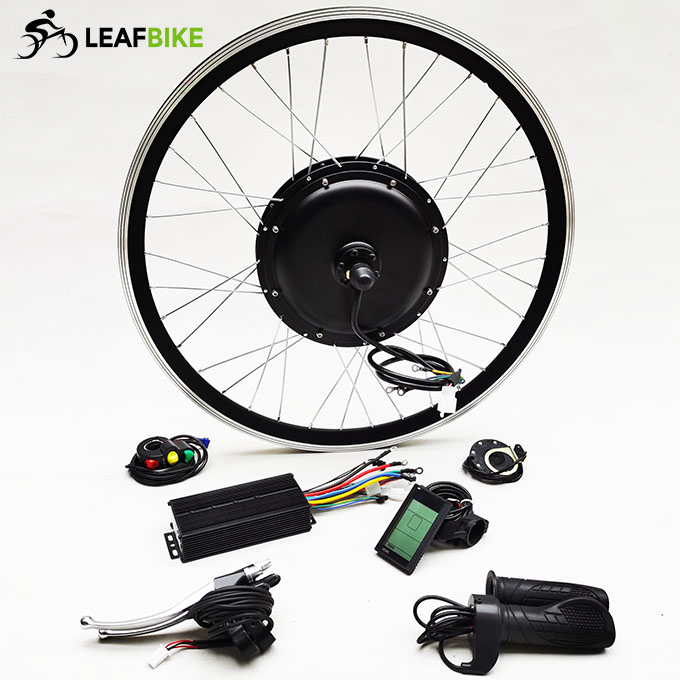

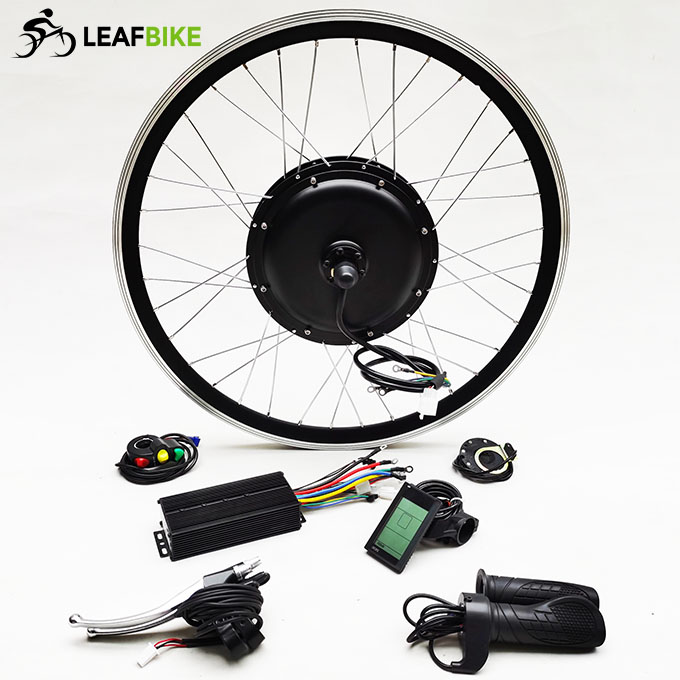

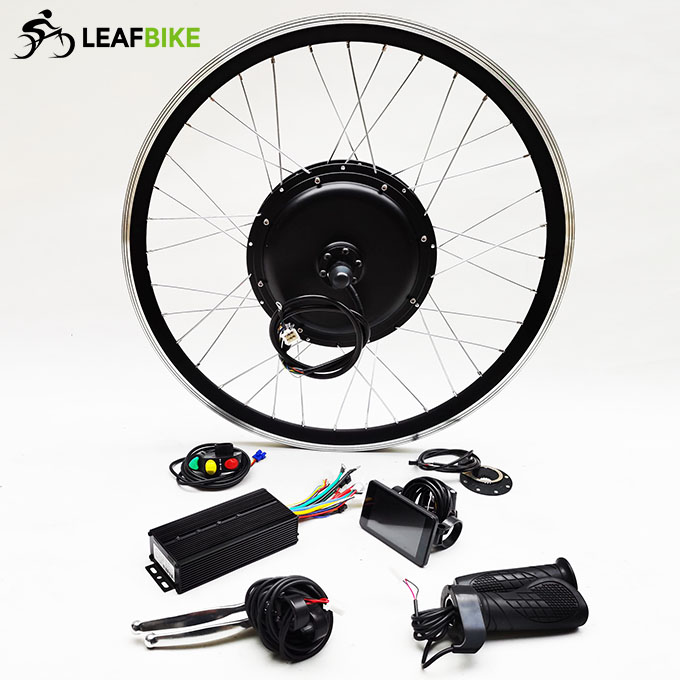

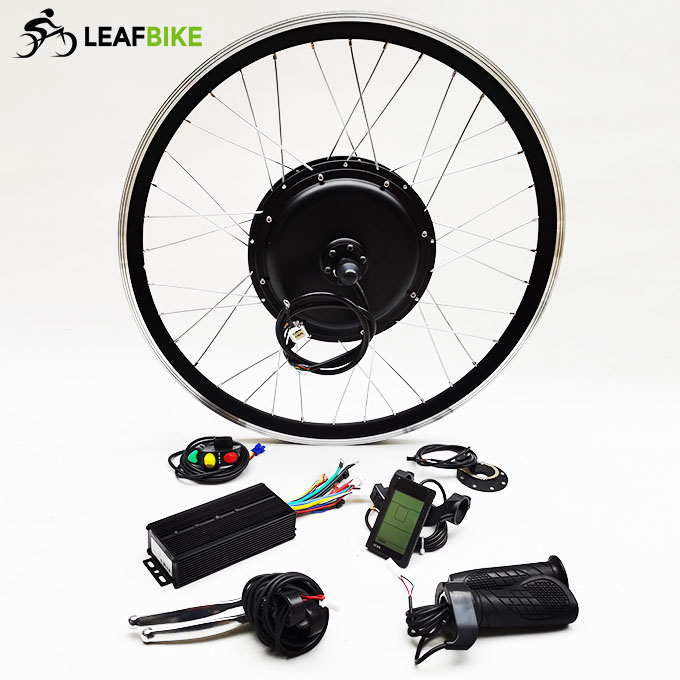

Package Content:

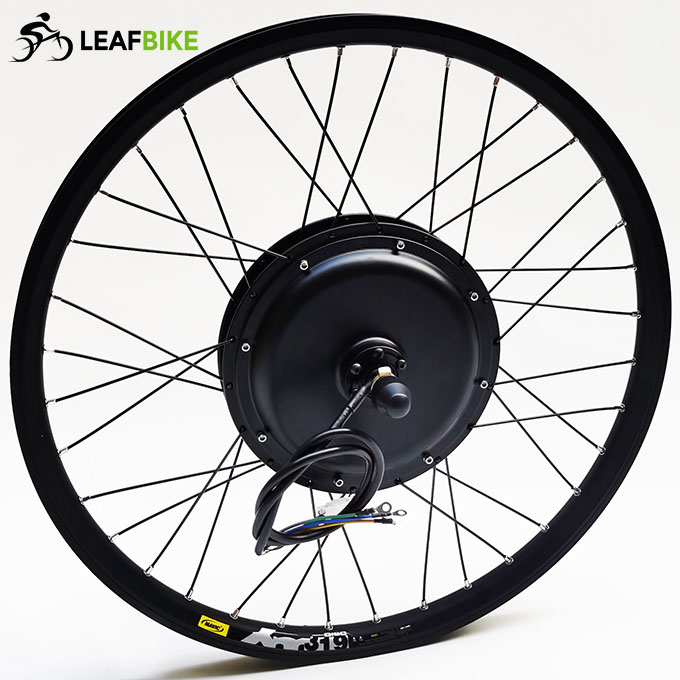

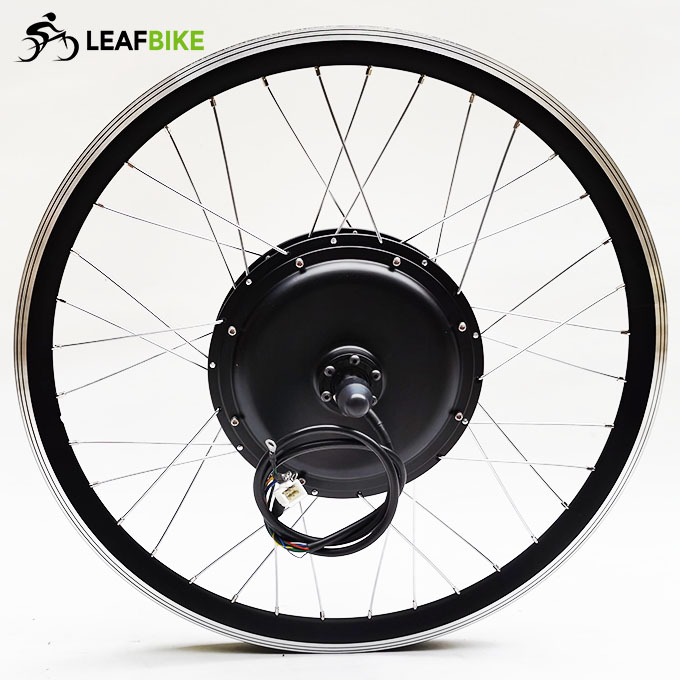

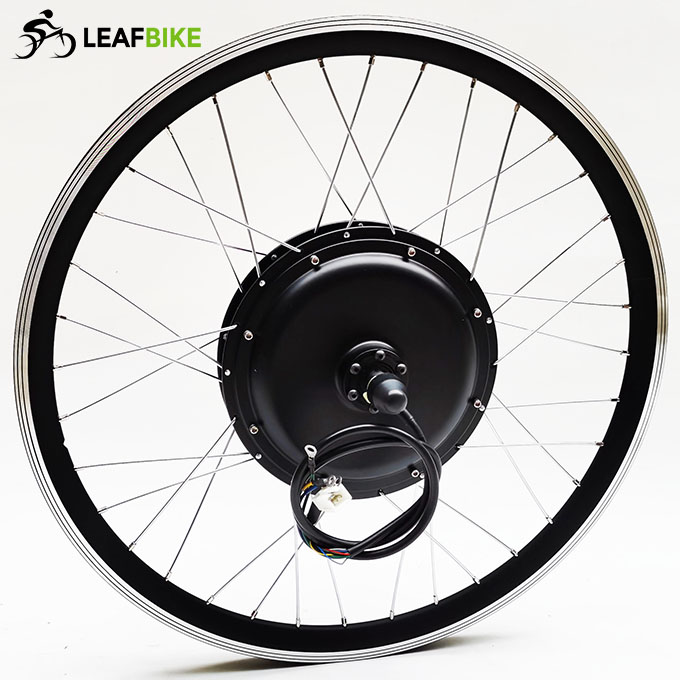

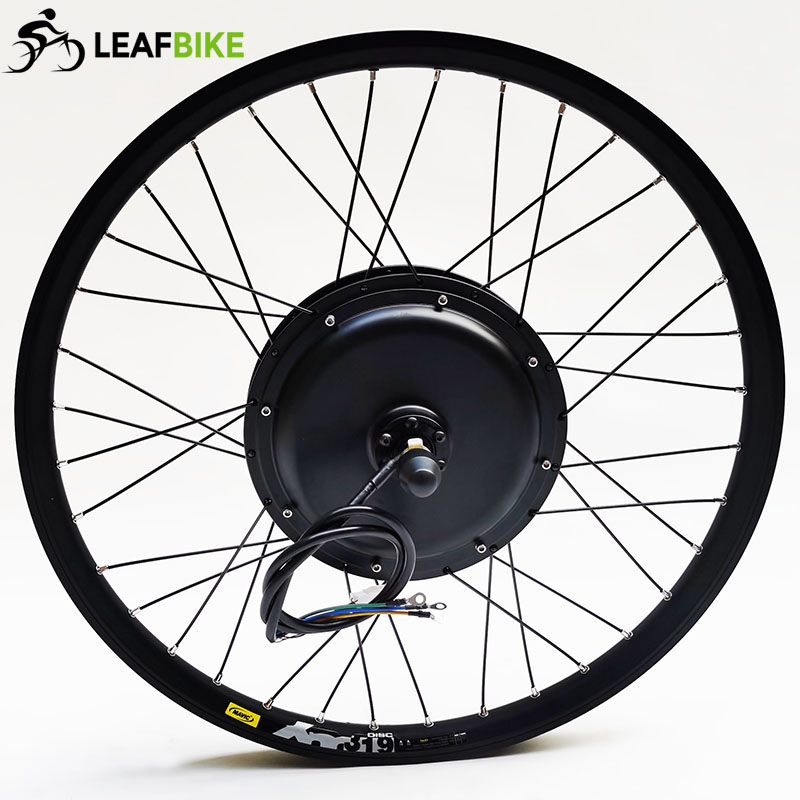

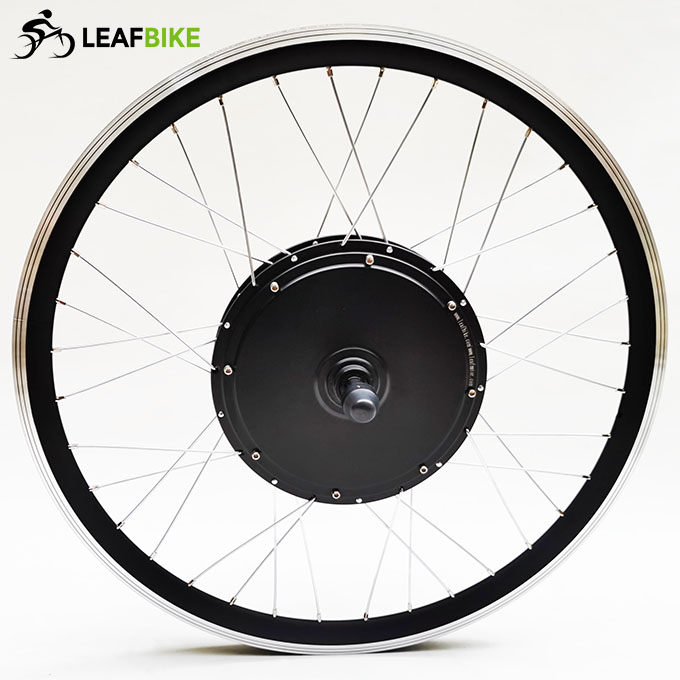

1 x 26 inch 48V / 52V 1500W rear bike motor wheel
1 x 48V / 52V 1500W 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

 Net Weight: 25.6 lbs
Package Size: 62cm L × 62cm W × 25cm H  /  24.4" L x 24.4" W x 9.8" H
Package Type: Cardboard Box

* This motor & controller system can handle with a 48V or 52V battery.

Cassette Video:
26 inch 48V 52V 1500W rear electric bike kit - hub motor wheel
Wire Diagram:
1500w rear electric hub motor bike conversion kit wire diagram
1500W rear Motor Drw.1500w rear freewheel hub motor drawing
1500W Cassette Drw.1500w cassette hub motor drawing
Performance Data:
1500w rear hub motor performance data curve
S830 Video:
26 inch rear hub motor electric bike conversion kit
08HU Video:
Freewheel Video:
26 inch 48V 52V 1500W rear electric bike kit
Share Video:
26 inch 1500w rear hub motor - electric bike conversion kit video
The fastest - OVER 62mph
the fastest 26 inch 1500w rear hub motor kit video
Recommended Products: Hydraulic Mechanical Brake Cut Off Sensor Switch Cable
Why do you need this external brake sensor cable?
Brake sensor for either hydraulic or mechanical brakes where you would like to keep your existing brake levers.
For front or rear brakes. Very simple to install, very easy to use. Will allow you to cut off the electric system on your electric vehicle.
Hydraulic Mechanical Brake Cut Off Sensor Switch Cable
