26 inch 48V 52V 1000W rear wheel - electric hub motor kit

Item ID #LBCK26481000RN
$298.00 $378.00
    Please select the information you wantX
  • Tyre Size :
    26 x 1.5" / 1.75" / 1.95"
    26 x 1.95" / 2.0" / 2.1" ~ 2.5"
  • Sprocket :
    Freewheel
    Cassette
  • LCD :
    S830
    SW900
    08HU
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description

* This 26 inch electric bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
>. Rim A: 26 inch double wall Alloy (Rim Fit For: 20 × 1.5" / 1.75" / 1.95" tire)
>. Spoke: Silver 12 gauge / 154mm Length × 36 pcs

>. Rim B: 26 inch double wall Alloy (Rim Fit For: 20 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 159mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1000W
>>.  Efficiency: 90.5%
>>.  Max speed: 71 kmh -- 42mph Default (Free customization other speeds: 35mph or 30mph, 25mph, 20mph, 15mph...please leave message)
>>. Mechanical brake: Disk or  V
>>. Cassette: 7 speed
>>.  Cable location: shaft end, Left
>>.  Cable length:100cm / 40"
>>.  Install: spacing of min 135mm ~ max 155mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1000 Watts
>>.  Casing material: aluminum
>>.  Maximum Current: 26 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

LCD-830, More Function:
* Cruise
* Forward & Backwards
* Regen brake
* Kmh & mph
* Set Max Speed ( 0 ~ 100 kmh / 60 mph )
* Speed ( 0 - 5 ) -  "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

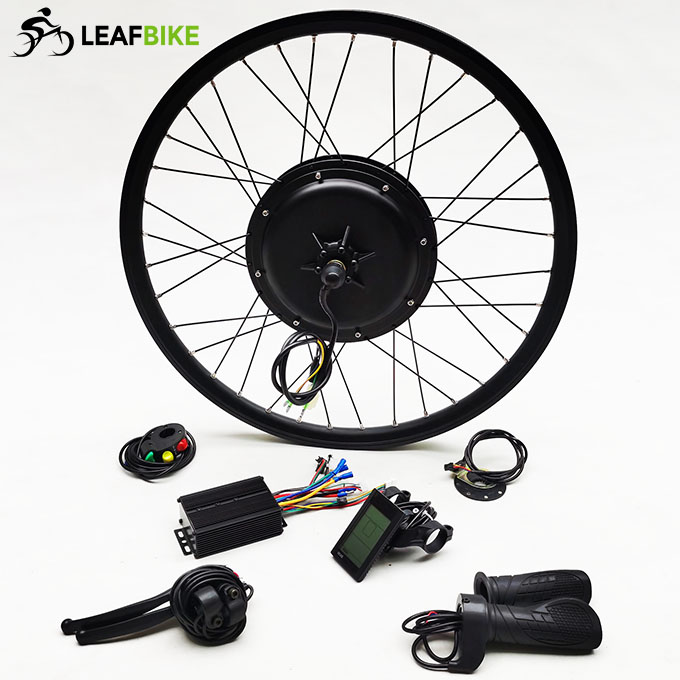

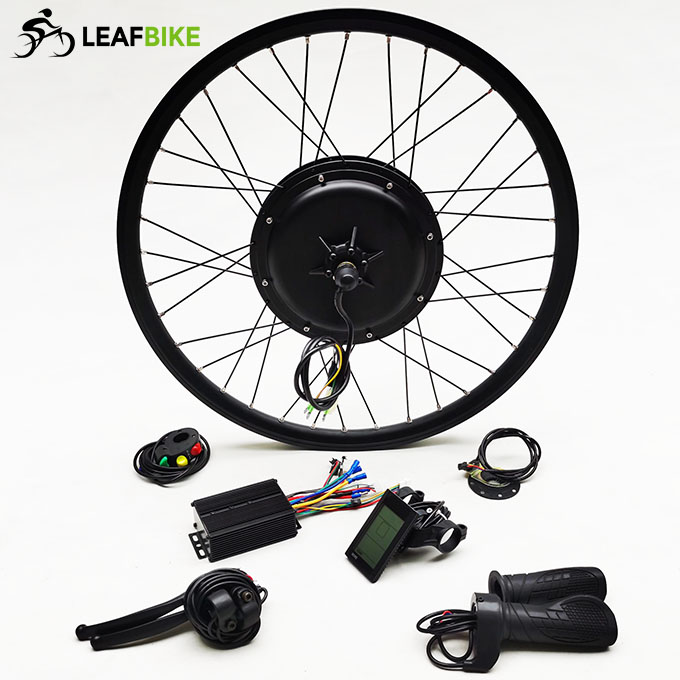

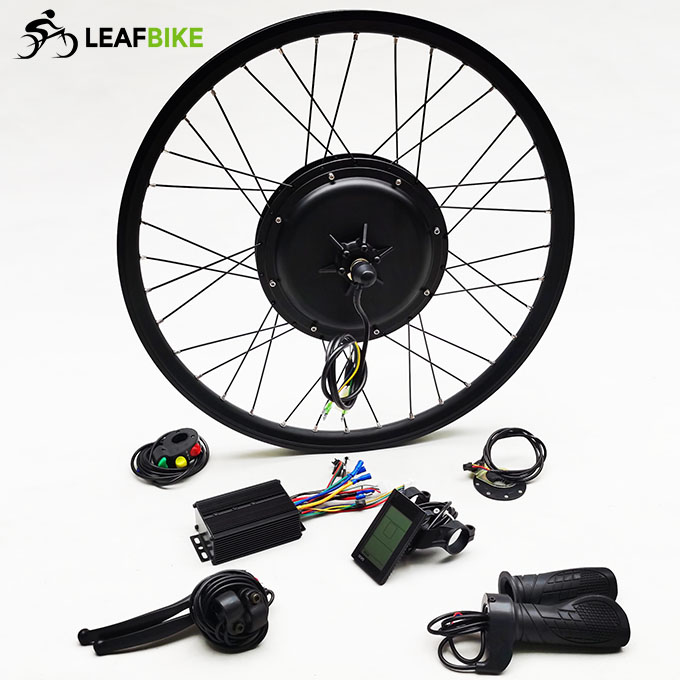

Package Content:

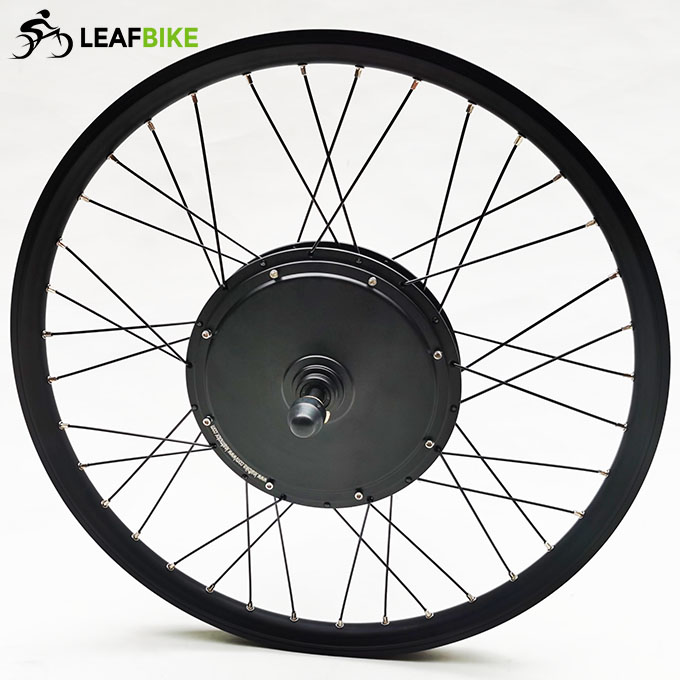

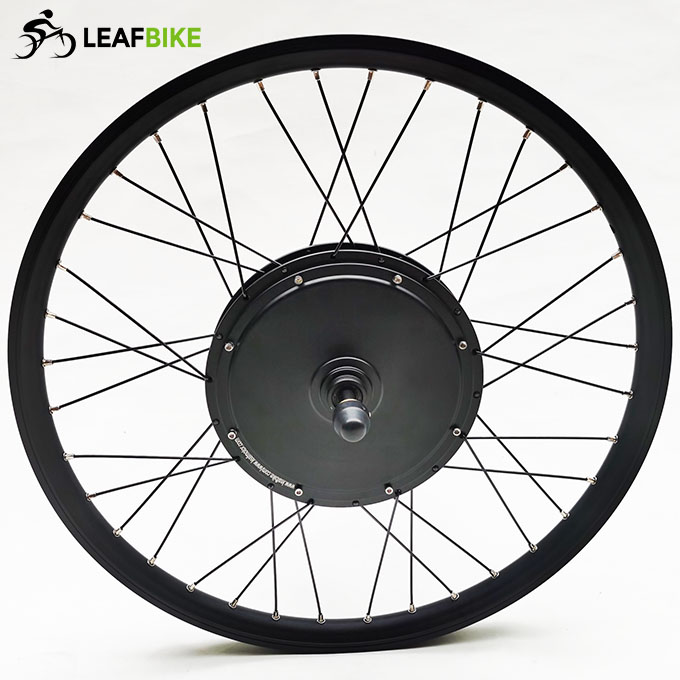

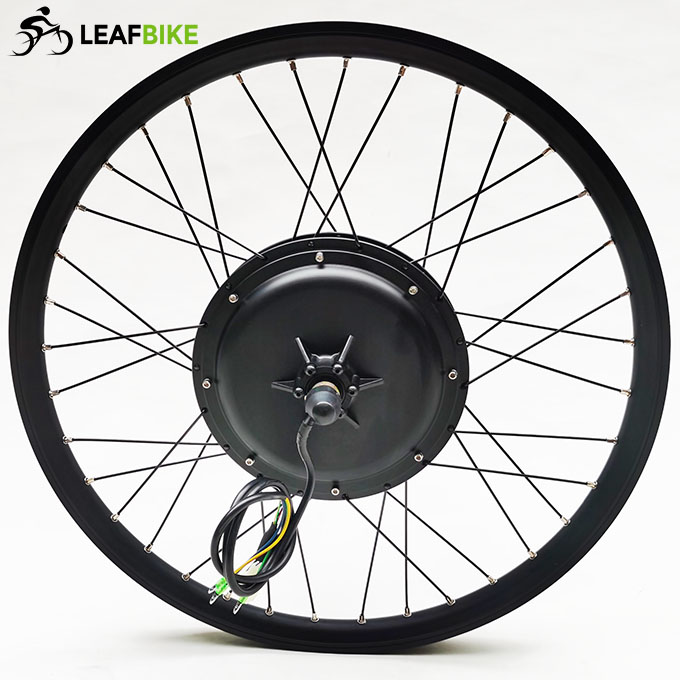

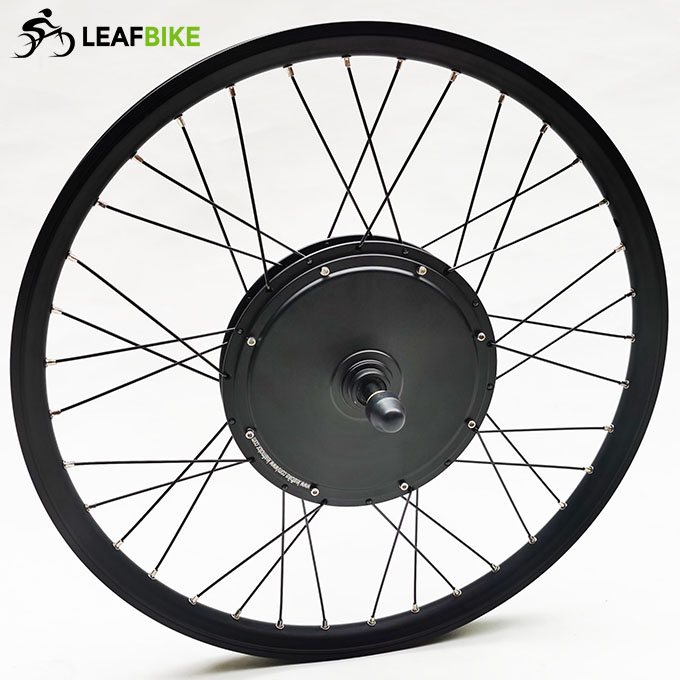

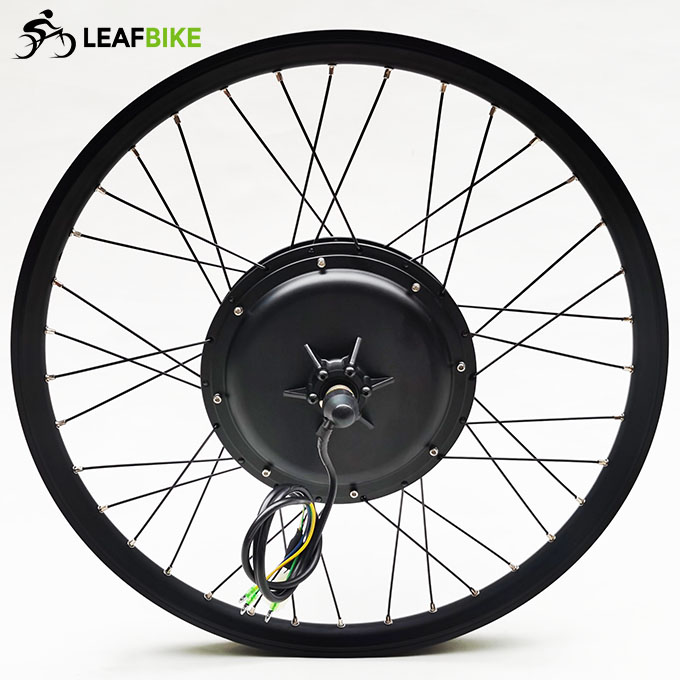

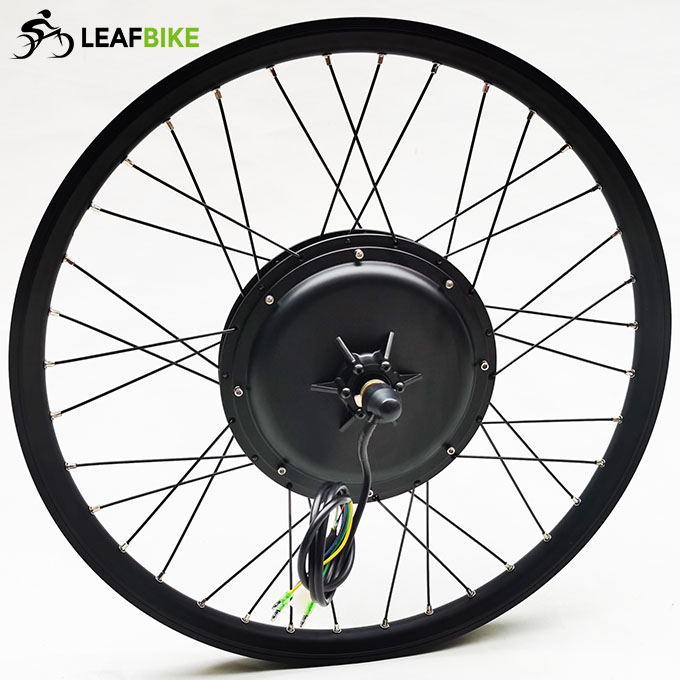

1 x 26 inch 48V / 52V 1000W rear hub motor wheel
1 x 48V / 52V 1000W 12-MOSFET motor controller
1 x LCD - 830
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1500mm

 Net Weight: 24.5 lbs
Package Size: 60cm L × 25cm W × 60cm H  /  23.6" L x 9.8" W x 23.6" H
Package Type: Cardboard Box

* This motor & controller system handle a 48V / 52V battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).

Share Video:
26 inch cassette 1000w rear electric bike conversion kit

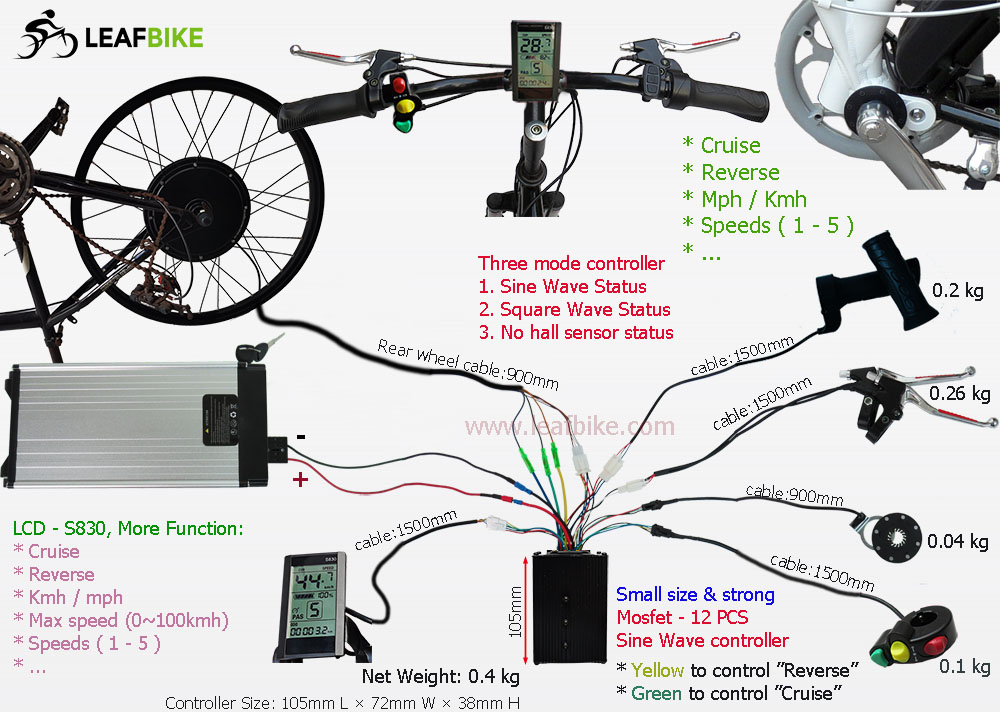

Wire Diagram:
26 inch rear hub motor electric bike conversion kit wire diagram
Freewheel Drw.
1000w rear hub motor drawing
Cassette Drw.
1000W cassette rear hub motor
Performance Data:
1000w hub motor curve
Rotor Part 1:
electric hub motor winding rotor part
Rotor Part 2:
electric bike motor winding rotor part
Install Motor:
electric hub bike motor
