26 inch 48V / 52V 1000W front wheel - electric hub motor kit

Item ID #LBCK26481000FN
$395.00 $478.00
    Please select the information you wantX
  • Tyre Size :
    26 x 1.95" / 2.0" / 2.1" ~ 2.5"
    26 x 1.5" / 1.75" / 1.95"
  • LCD :
    S830
    SW900
    08HU
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
* The 26 inch electric bike kit combines the full E-bike technology: direct drive Brushless high torque Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.


Main Features:
>. Rim A: 26 inch double wall Alloy (Rim Fit For: 26 × 1.5" / 1.75" / 1.95" tire)
>. Spoke: Silver 12 gauge / 154mm Length × 36 pcs

>. Rim B: 26 inch double wall Alloy (Rim Fit For: 26 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 160mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1000W
>>.  Efficiency: 90.5%
>>.  Max speed: 70.9 kmh -- 44.0 mph Default (Free customization other speeds: 35mph or 30mph, 25mph, 20mph, 15mph...please leave message)
>>.  Mechanical brake: Disk or  V
>>.  Cable location: shaft end , LEFT
>>.  Cable length:160cm / 63"
>>.  Install: spacing of 100mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52V Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1000 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 26 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise -- Green switch control it
* Forward & Backward (Optional) -- Yellow switch control it
* Regen brake -- Red switch control it
* Kmh & mph (Optional)
* Set any Max speed from min 6kmh to max 100 kmh / 60 mph (If hope riding max 32kmh, just set LCD to be "32", then e-bike 's max speed is less than 32kmh)
* Pedal assist ( 0 - 5 ) "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

Package Content:
1 x 26 inch 48V / 52V 1000W front hub motor wheel
1 x 48V / 52V 1000W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1800mm
 1 x Brake levers -- Cable length: 1800mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1800mm
1 x Pedal assist -- Cable length: 1000mm

 Net Weight: 23.8 lbs
Package Size: 62cm L × 62cm W × 25cm H  /  24.4" L x 24.4" W x 9.8" H
Package Type: Cardboard Box

* This motor & controller system handle a 48V / 52V battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).

S830 Video:
08HU Video:

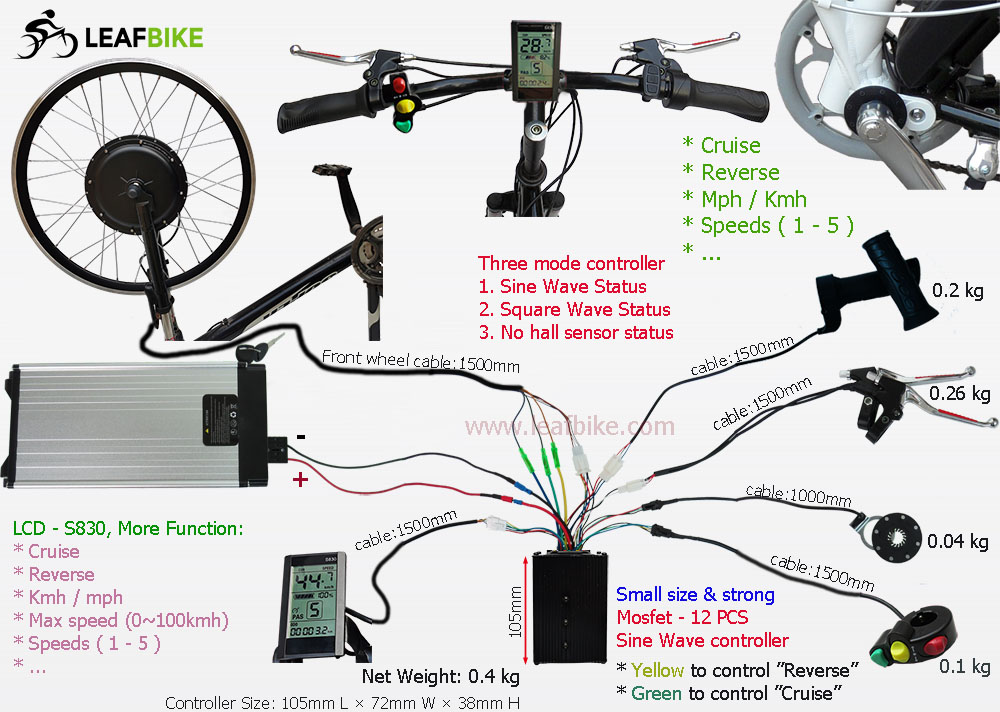

Wire Diagram:
26 inch front electric hub motor - bike conversion kit - wire diagram
1000w Hub Motor Drw.
1000w-front-electric-bike-motor-drawing
Performance Data:
1000w-hub-motor-curve-data
Share Video:
26 inch 1000w front hub motor - ebike conversion kit video
Share Video:
26-inch-1000w-front-hub-motor-electric-bike-conversion-kit video
