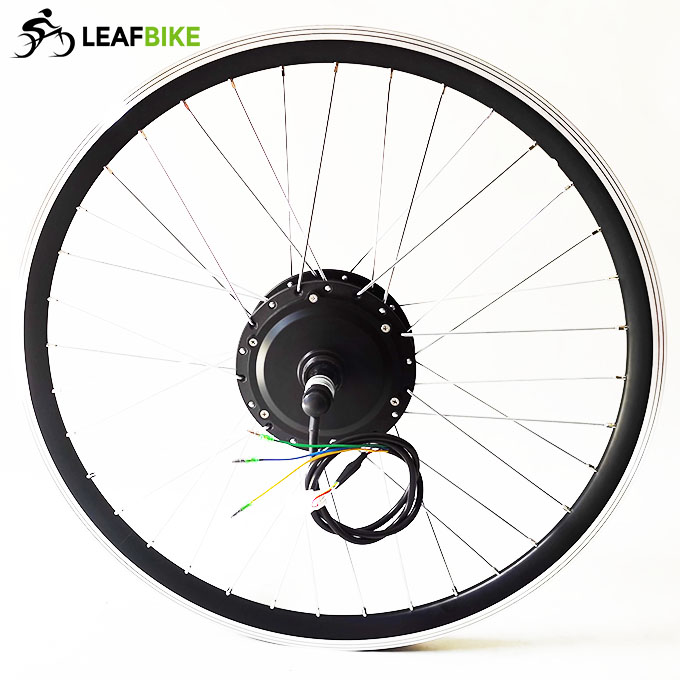

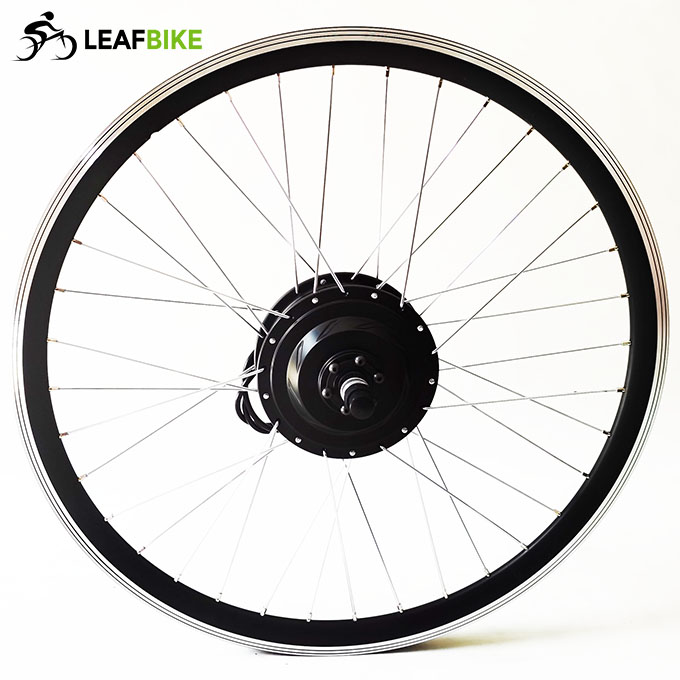

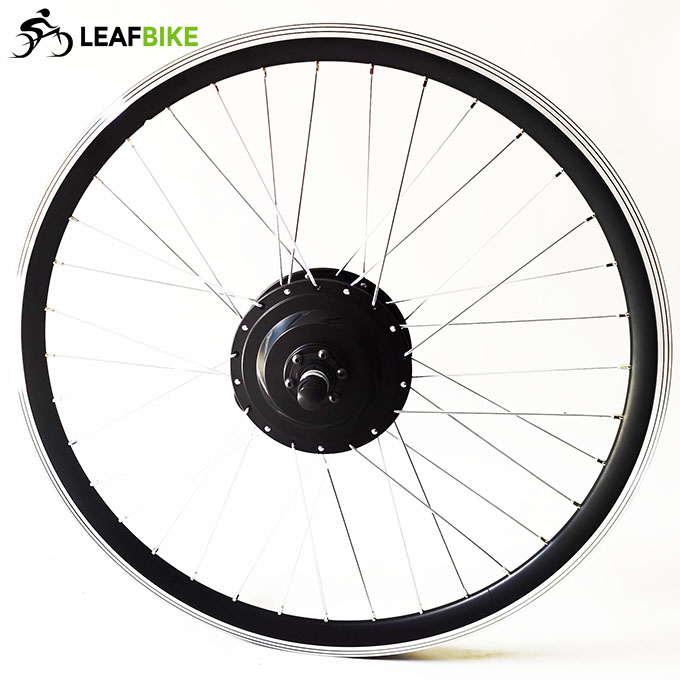

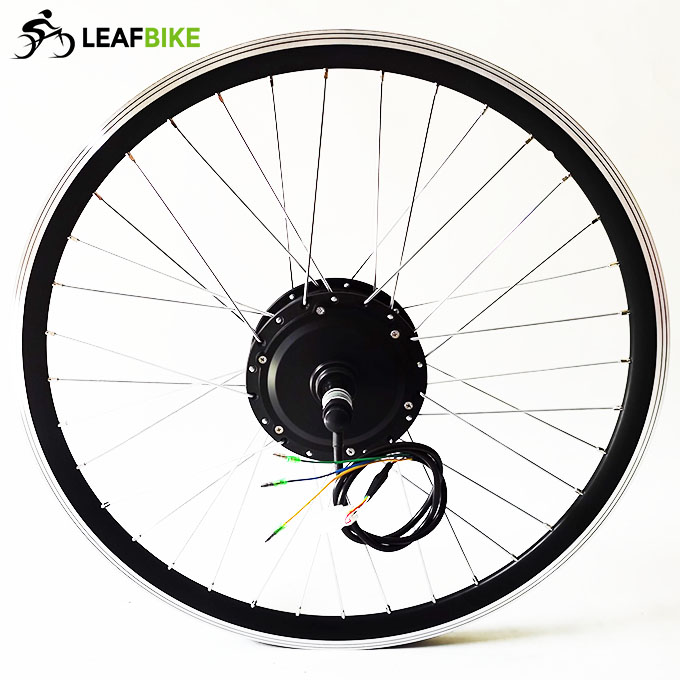

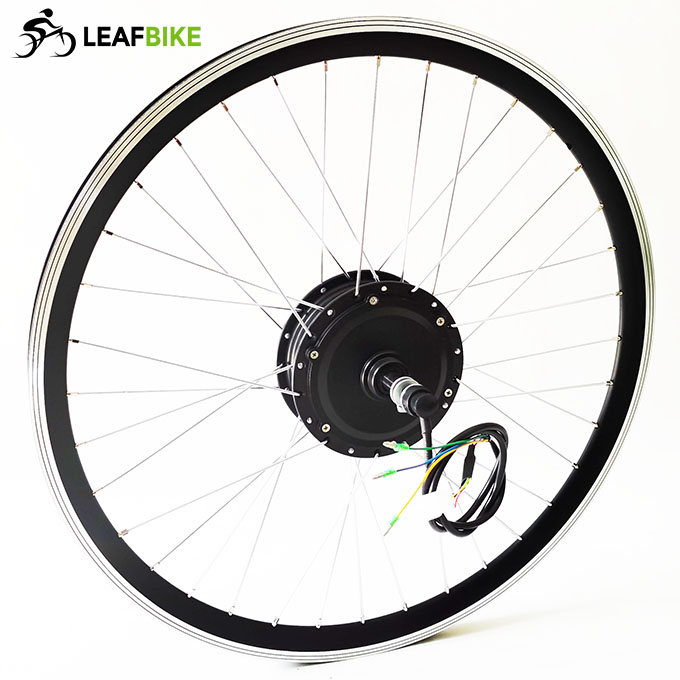

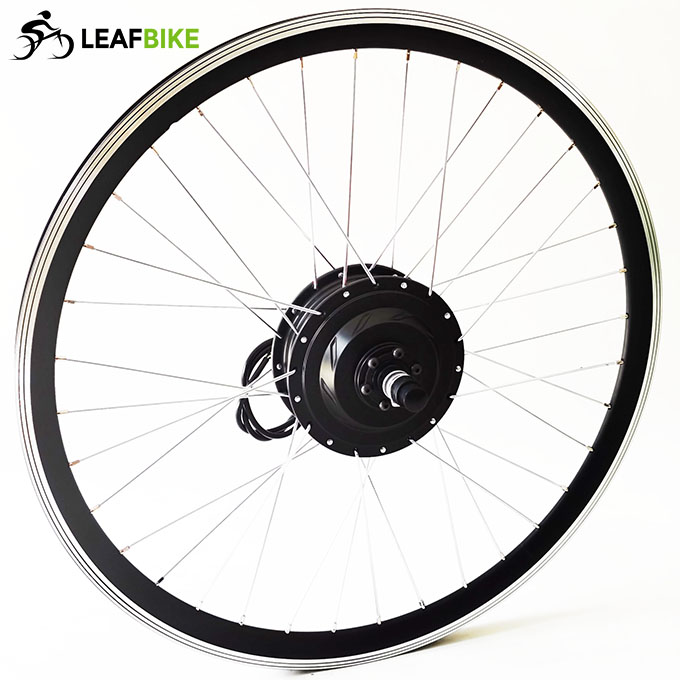

This 26 inch hub motor kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun. Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:
Rim: 26 inch double wall Alloy (Rim Fit For: 26 x 1.5" / 1.75" tire)
Spoke: silver 12 gauge / 190mm Length x 36 pcs
>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 350W
>>. Efficiency: 90.5%
>>. Max speed: 32 kmh -- 20mph
>>. Mechanical brake: V or Disk
>>. Sprocket: Freewheel
>>. Cable location: shaft end, Right
>>. Cable length: 150cm / 60"
>>. Install: spacing of 135mm rear fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 350 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L x 72 mm W x 38 mm H
With LCD, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Kmh / mph
* Speeds ( 0 - 5 ) -- "0" is off. "1" is the slowest. "5" is the fastest.
* ..

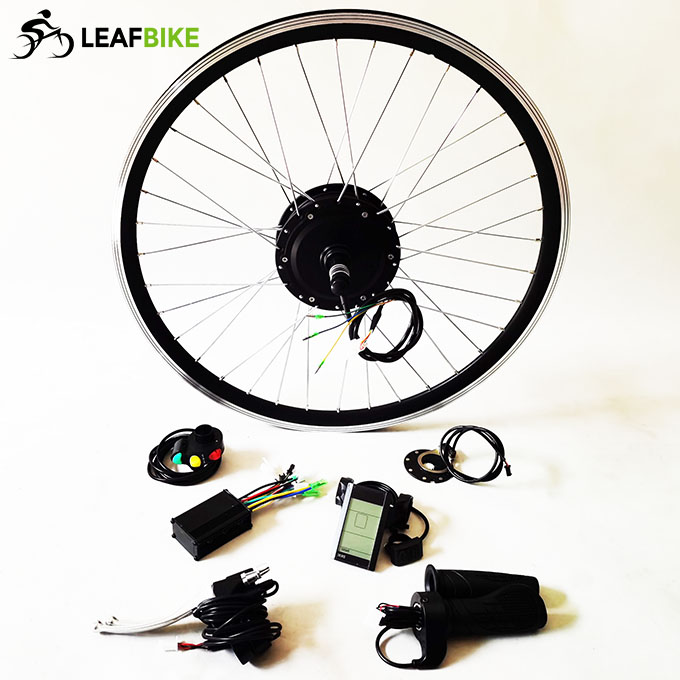

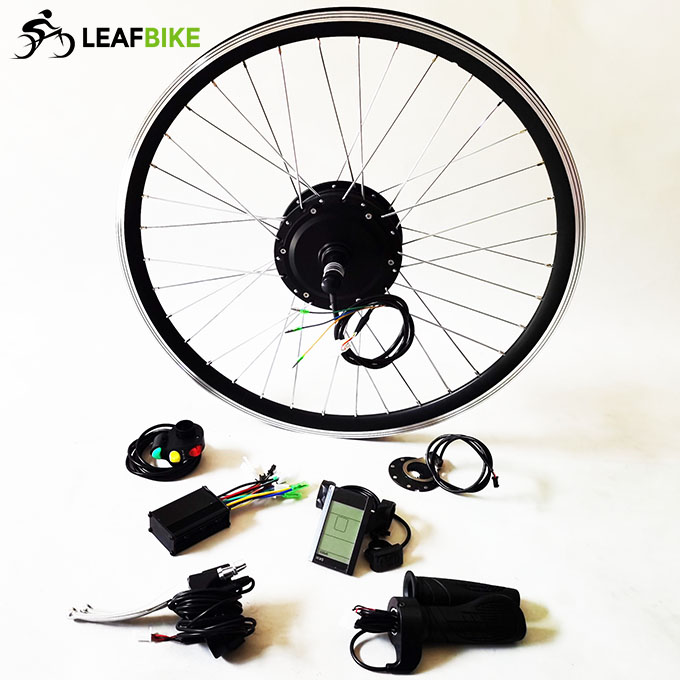

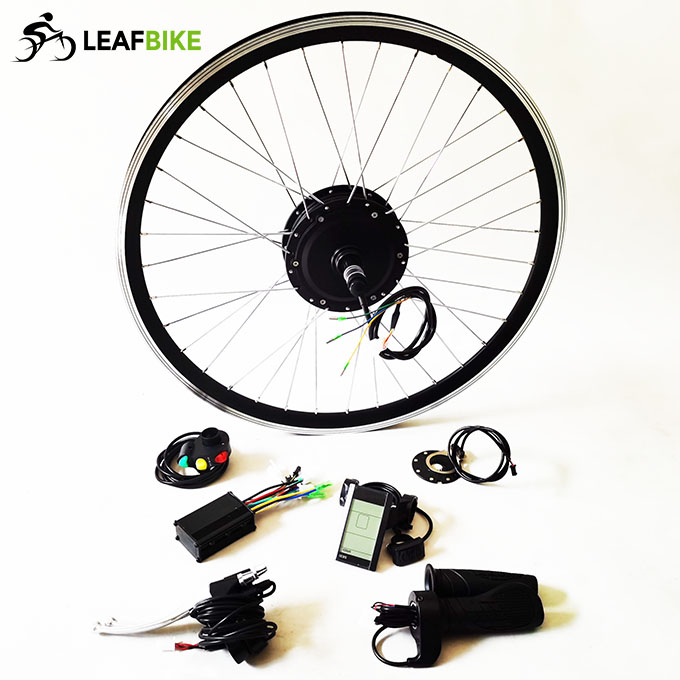

Package Content:
1 x 26 inch 36V 350W rear brushless geared hub motor wheel
1 x 36V 12-MOSFET motor controller
1 x LCD - S830
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise..)
1 x Pedal assist
Net Weight: 5.1 kg / 11.2 lbs
Package Size: 62cm L x 62cm W x 25cm H
Package Type: Cardboard Box
Share Video:
Wire Diagram:
