26 inch 36V 300W - 500W front hub motor - electric bike kit

Name: 26 inch 36V 300W - 500W front hub motor - electric bike kit
Brand: Leaf Bike
SKU: LBCK2636400FN
Price: 299 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK2636400FN

$299.00 ~~$343.00~~

Maybe You Need These

Description

The 26 inch bike kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 26 inch bike motor kit works with a 36V battery.

Main Features:

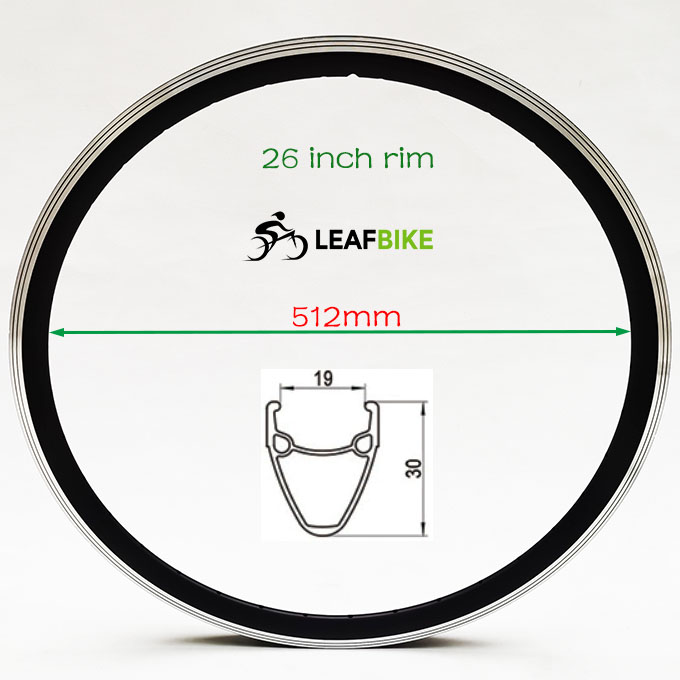

>. Rim: 26 inch double wall Alloy (Rim Fit For: 26 x 1.5" / 1.75" tire)
>. Spoke: 12 gauge / 192 mm Length x 36 pcs

>. Engine: Bldc hub motor -- Brushless Geared
>>. Voltage: 36V
>>. Power: 400W
>>. Efficiency: 78%
>>. Max speed: 19.7 kmh --12.2 mph
>>. Mechanical brake: Disc or V
>>. Cable location: shaft end, RIGHT
>>. Cable length: 150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Bright silver

>. Driver: brushless controller
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 400 Watts
>>. Casing material: aluminium
>>. Maximum Current: 16 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 95 mm L x 61 mm W x 35 mm H

With LCD, More Function:
* Cruise
* Regen brake
* Kmh / mph
* Set Max speed ( 0 ~ 20 kmh / 12 mph )
* Pedal assist ( 1 - 5 )
* ..

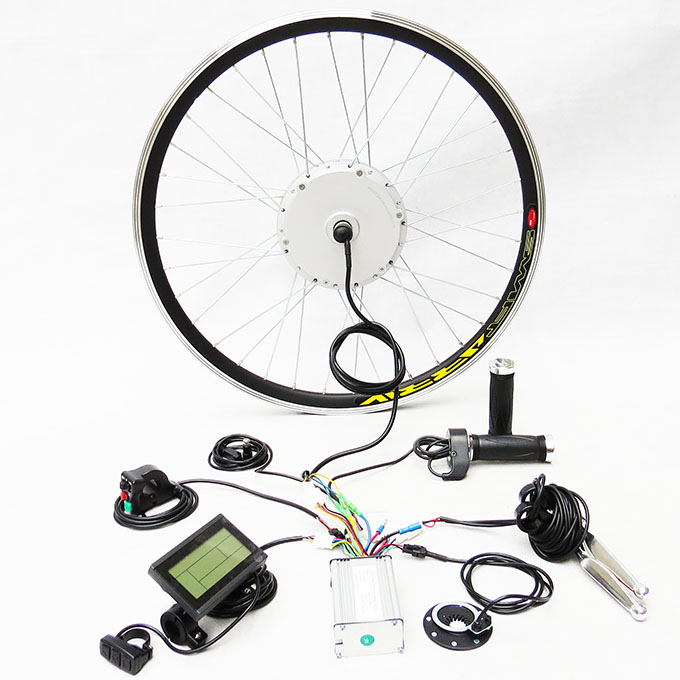

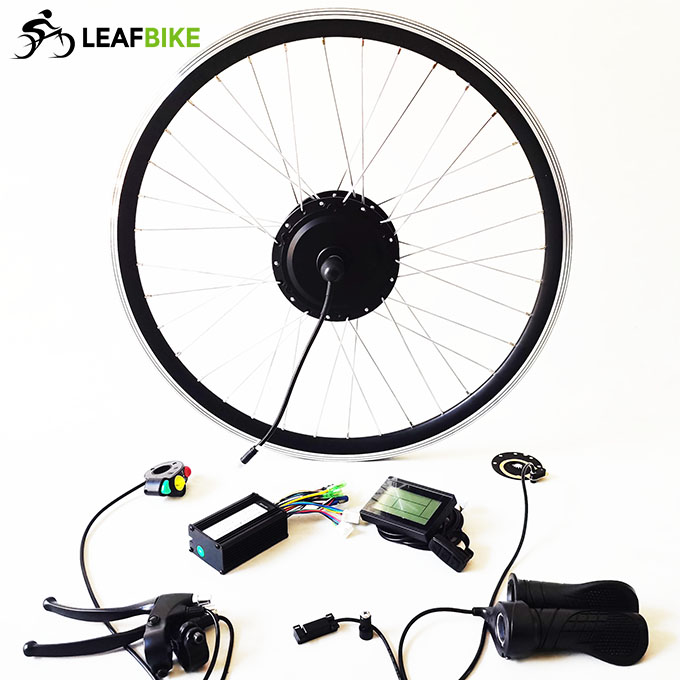

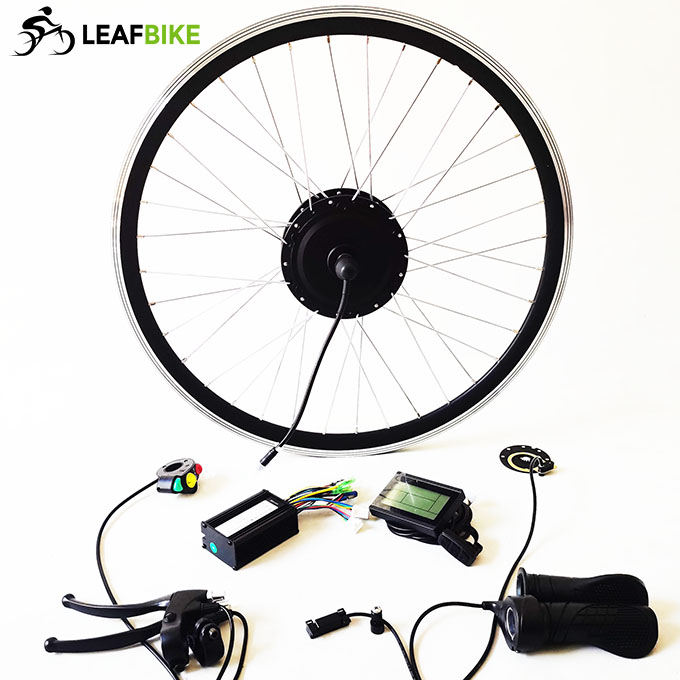

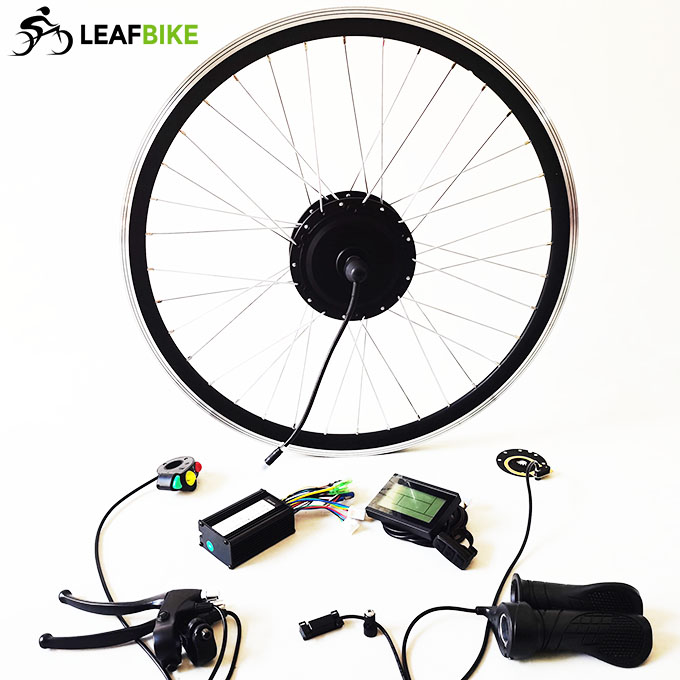

Package Content:

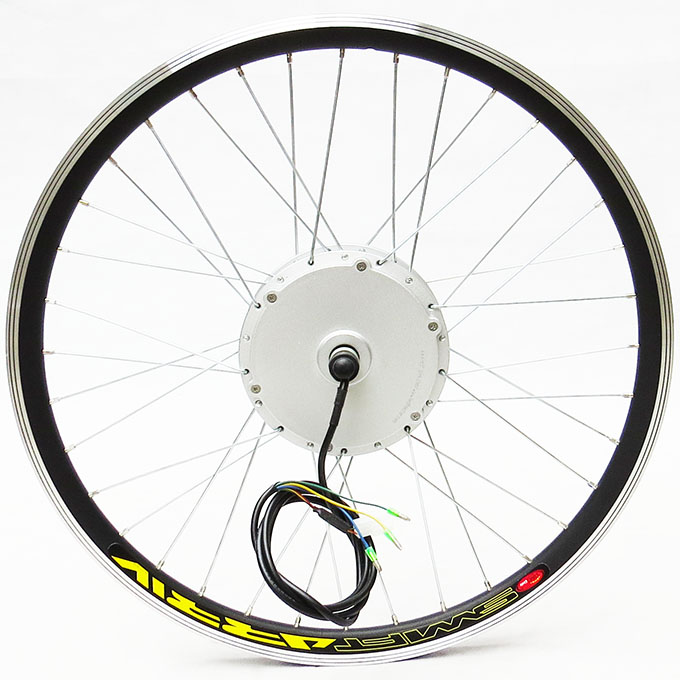

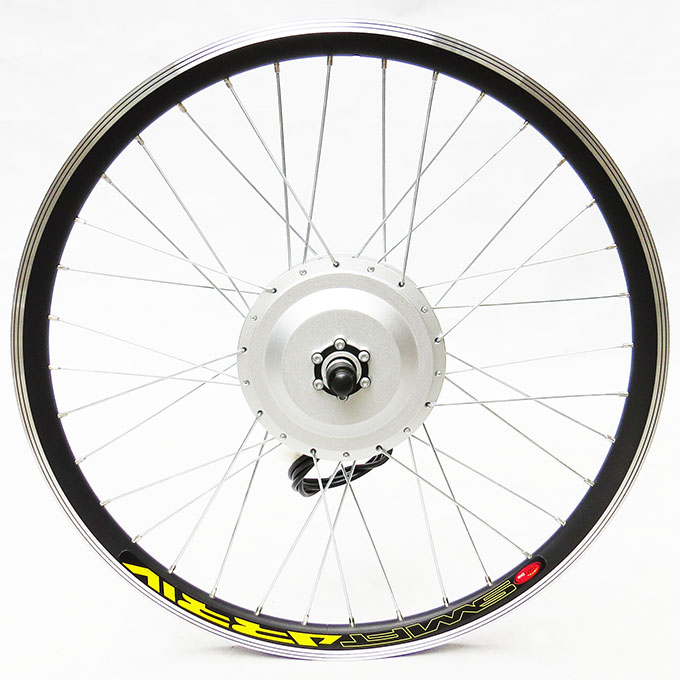

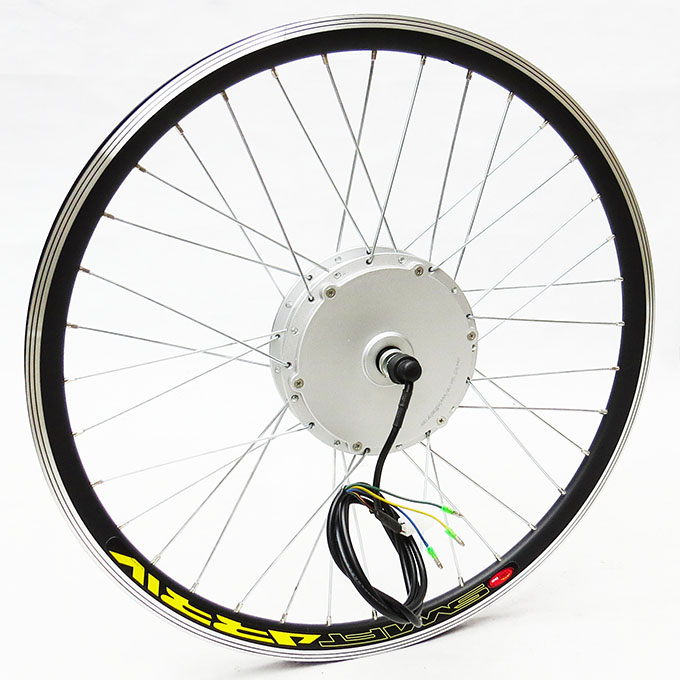

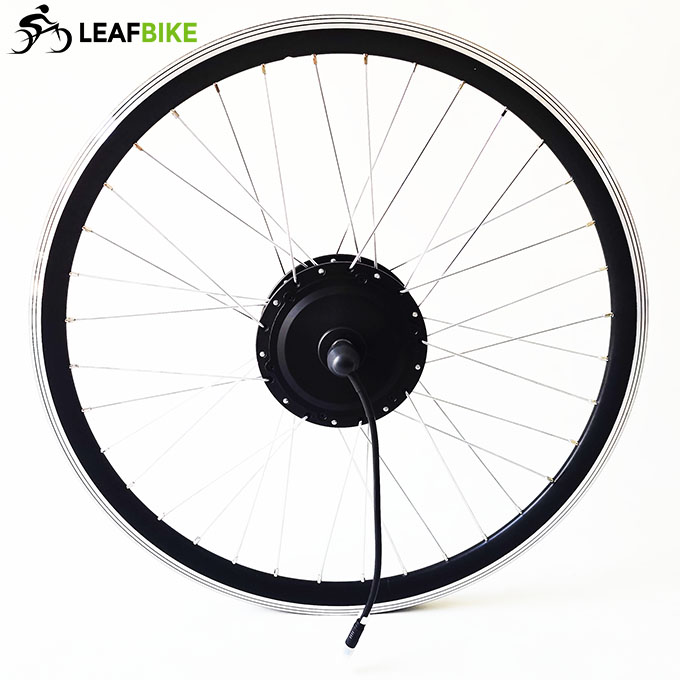

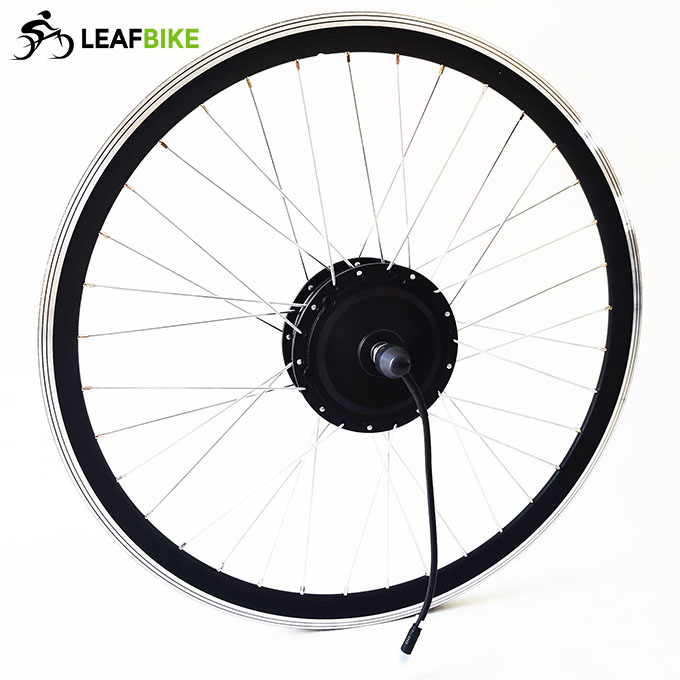

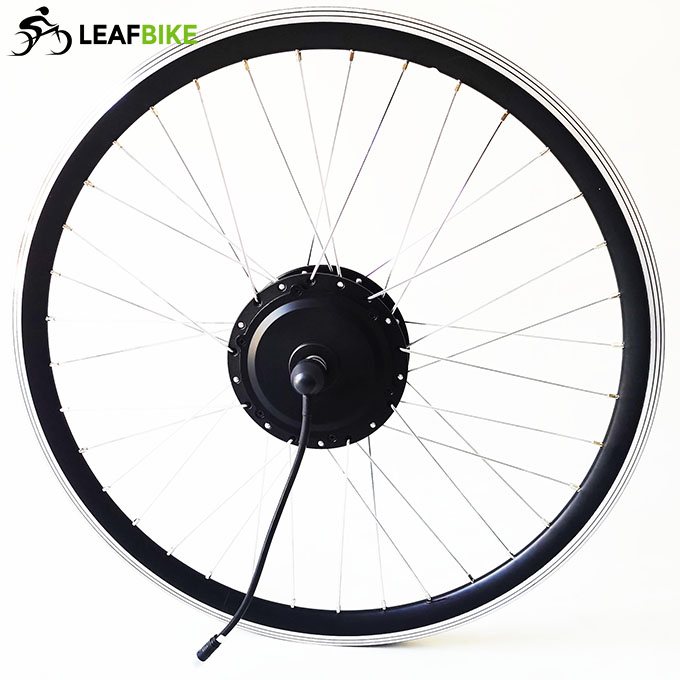

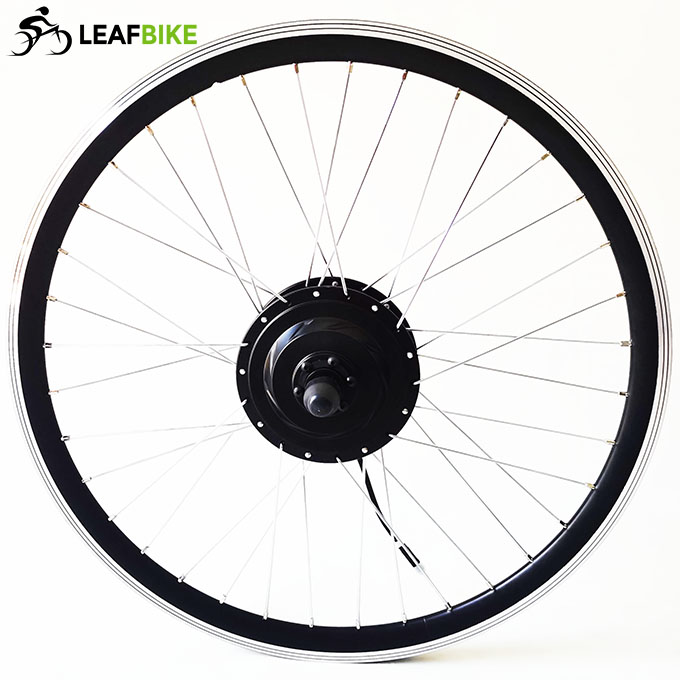

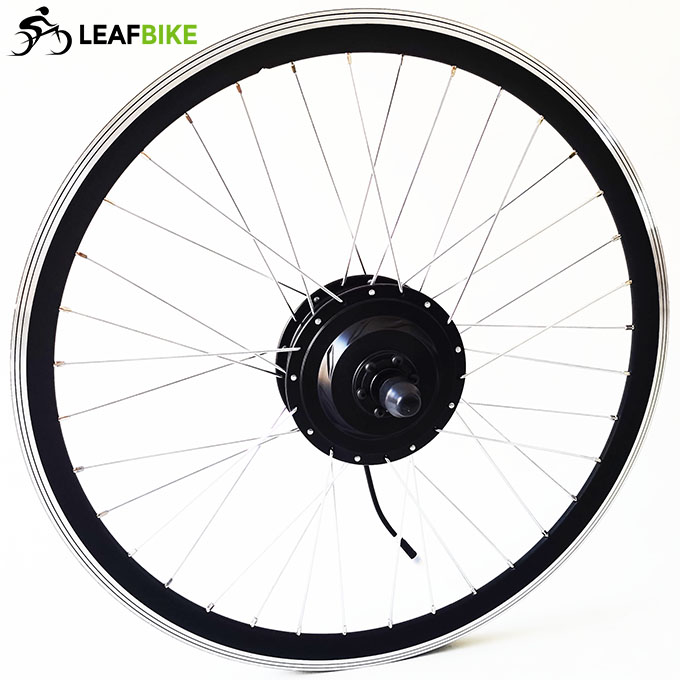

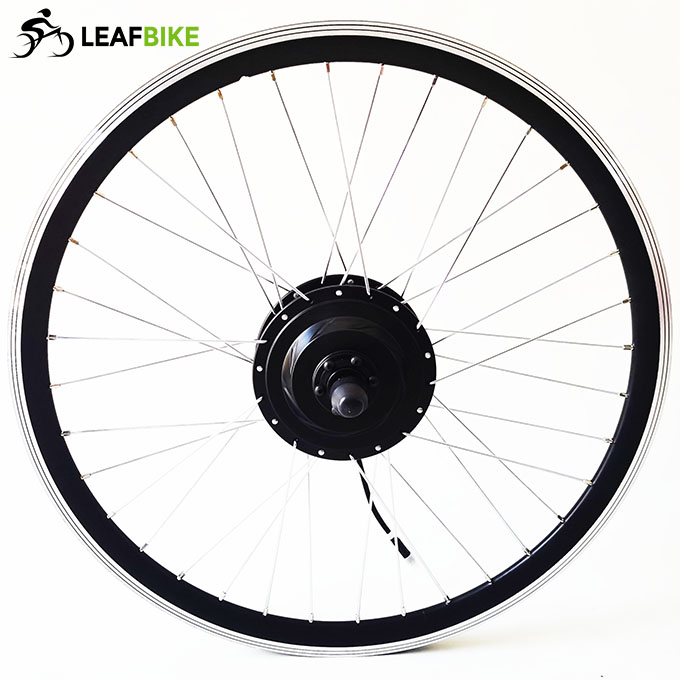

1 x 26 inch 36V 400W front bldc hub motor wheel
1 x 36V 6-MOSFET motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake lever
1 x Three button switches
1 x Pedal assist

Net Weight: 6.0 kg / 13.2 lbs
Package Size: 62cm L x 62cm W x 25cm H
Package Type: Cardboard Box

Wire Diagram:

Geared Hub Motor Drw.

36V front brushless geared hub motor drawing
