26 inch 24V 250W - 300W rear hub motor - electric bike kit

This 26 inch 24V 250W - 300W rear hub motor electric bike conversion kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

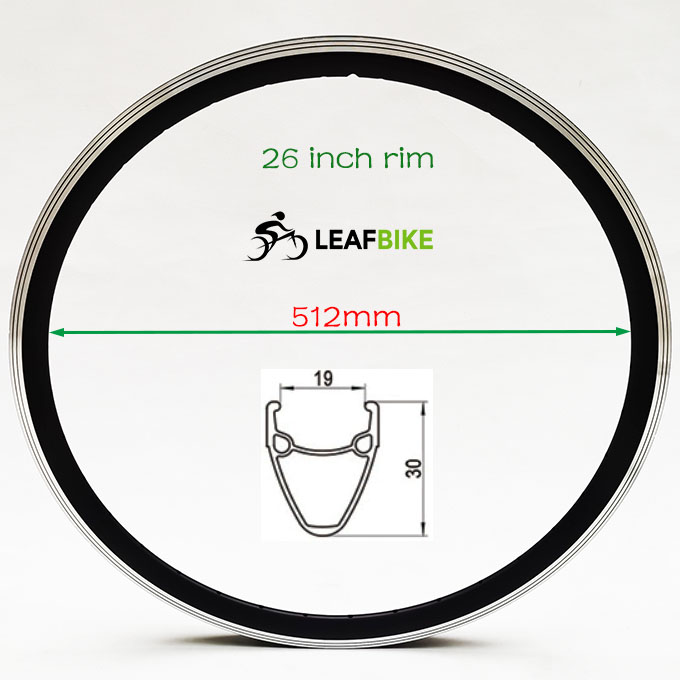

Rim: 26 inch Alloy (Rim Fit For: 26 × 1.5" / 1.75" / 1.95" tire)
Hub motor: brushless geared dc motor
Controller: LCD display
Max speed: 31.5 kmh -- 19.5 mph
Mechanical brake: V or Disk
Install: spacing of 135mm fork

LCD-003, More Function:
* Cruise
* Regen brake
* Kmh / mph
* Set max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

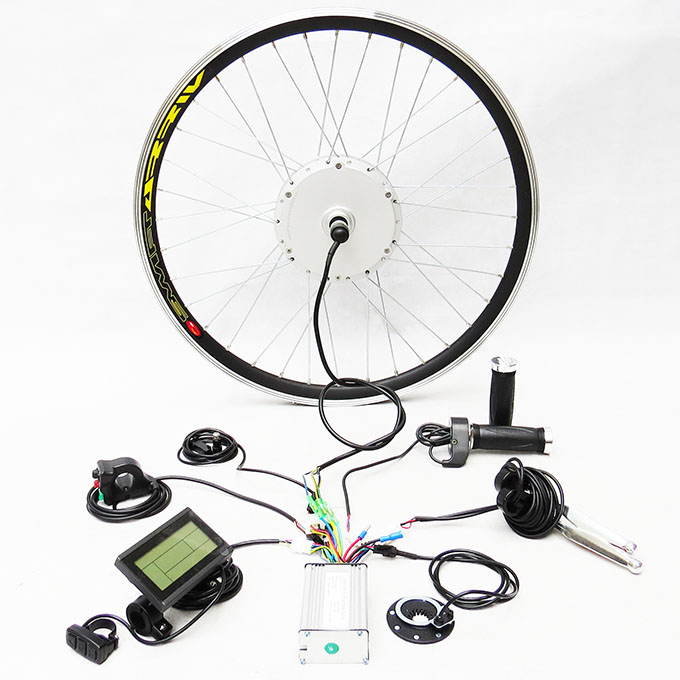

Package Content:

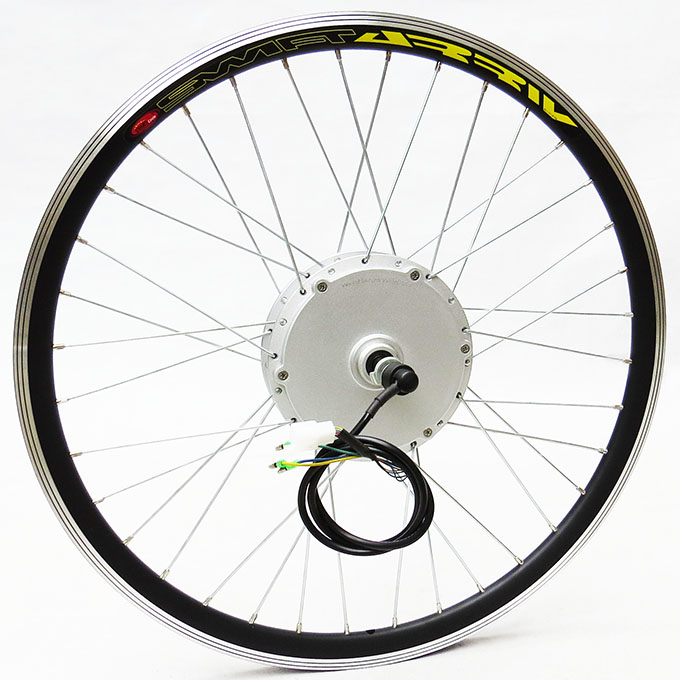

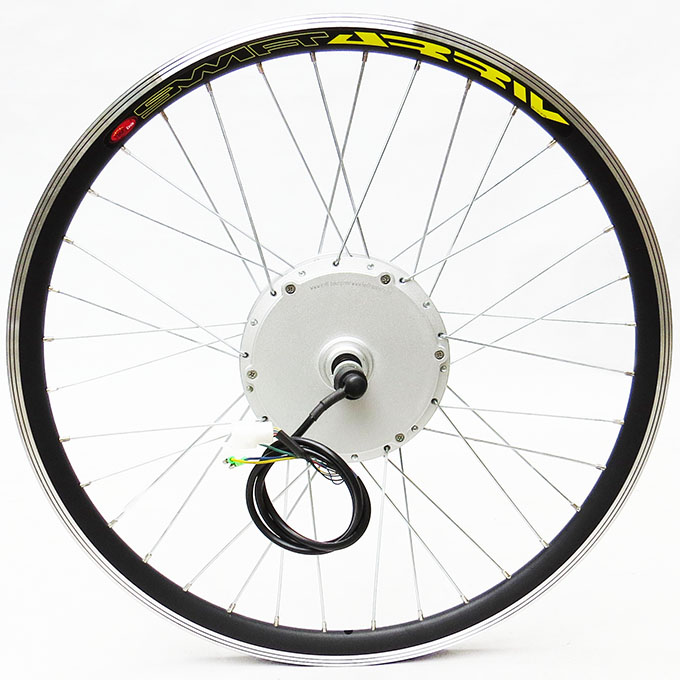

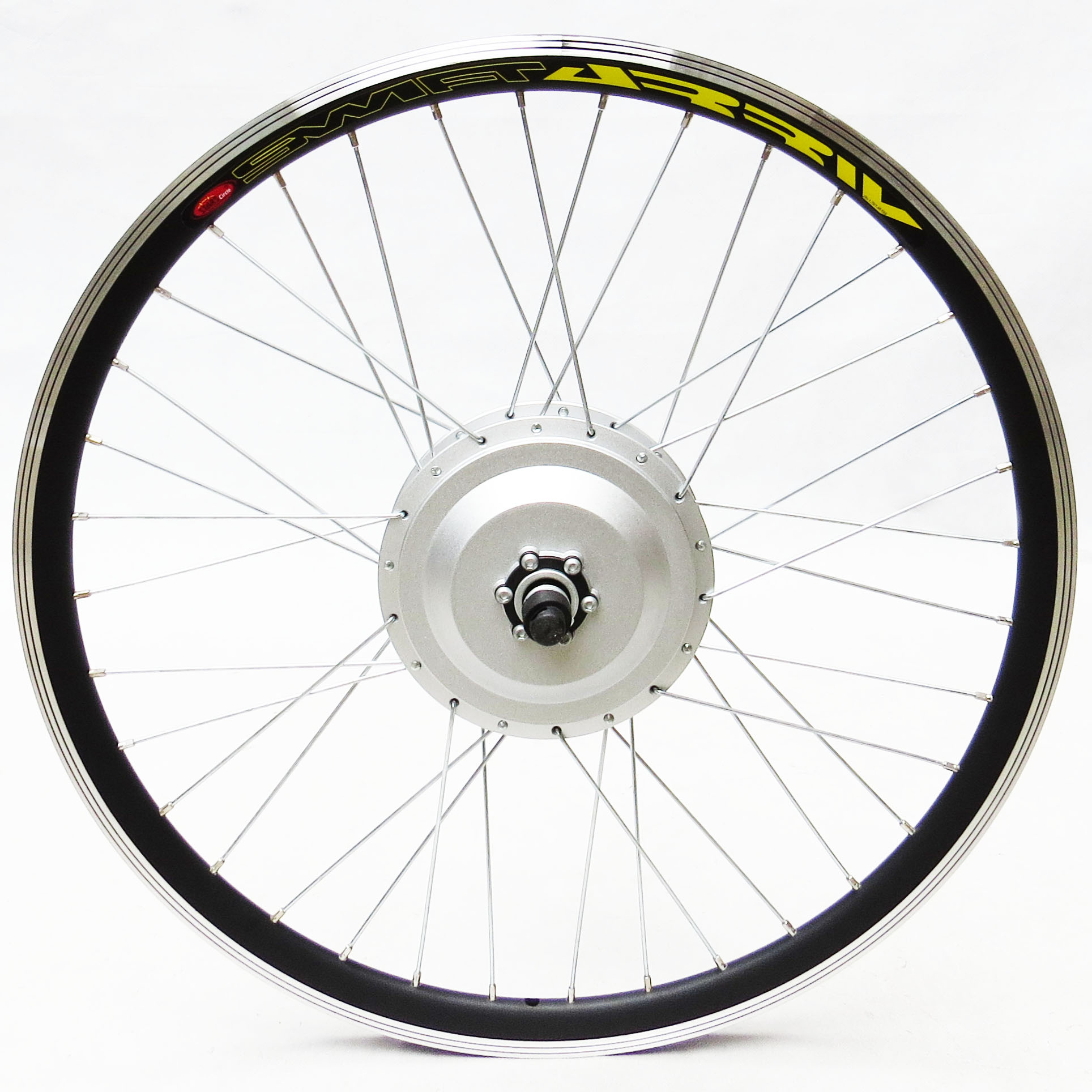

1 x 26 inch 24V 250W - 300W rear hub motor wheel
1 x 24V 250W 6-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Standard twist throttle
1 x Brake levers
1 x Three button switches ( control cruise, regen brake, reverse .. )
1 x Pedal assist

Net Weight: 5.94kg / 13.1 lbs
Package Size: 58cm L × 23cm W × 58cm H  /  22.8" L x 9.0" W x 22.8" H
Package Type: Cardboard Box

Share Video:

Wire Diagram:

250W Rear Drw.

Performance Data:
