20 inch 60V 2000W front hub motor - bike conversion kit

Name: 20 inch 60V 2000W front hub motor - bike conversion kit
Brand: Leaf Bike
SKU: LBCK20602000FNK
Price: 391 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK20602000FNK

$391.00 ~~$440.00~~

Maybe You Need These

Description

The 20 inch bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 20 inch bike conversion kit works with a 60V battery.

Main Features:

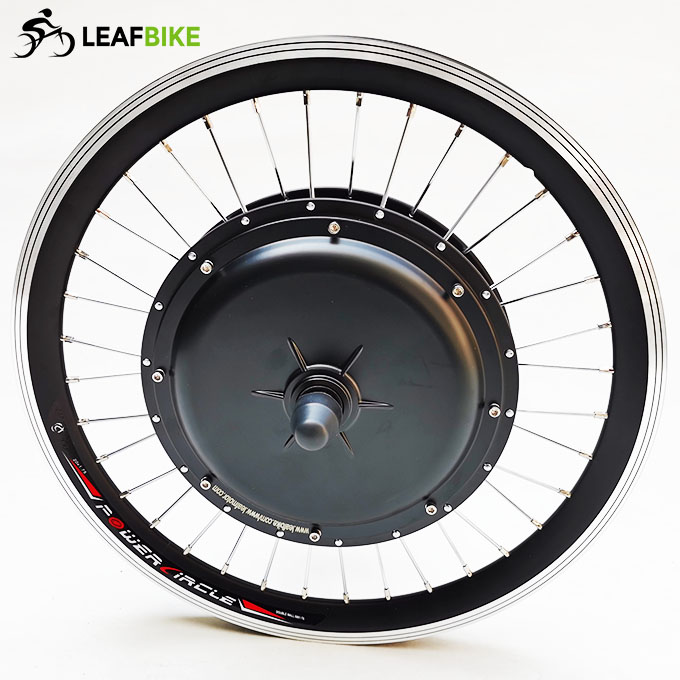

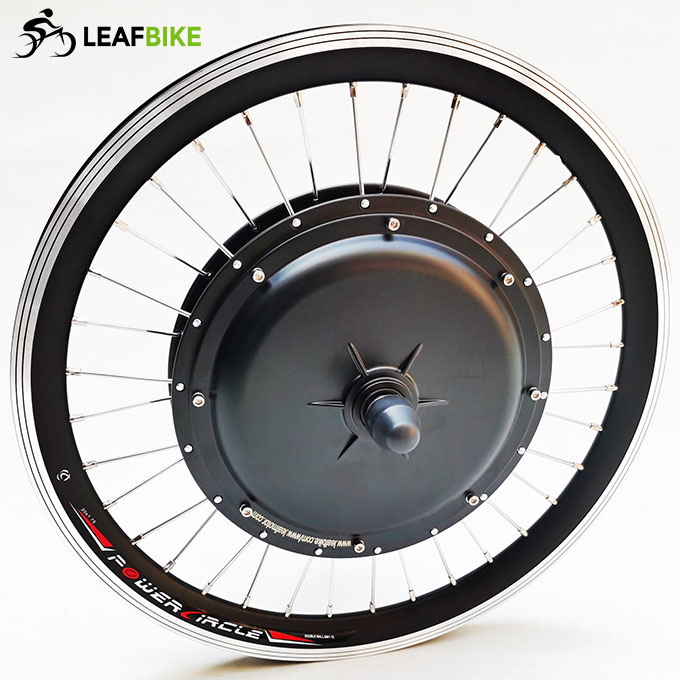

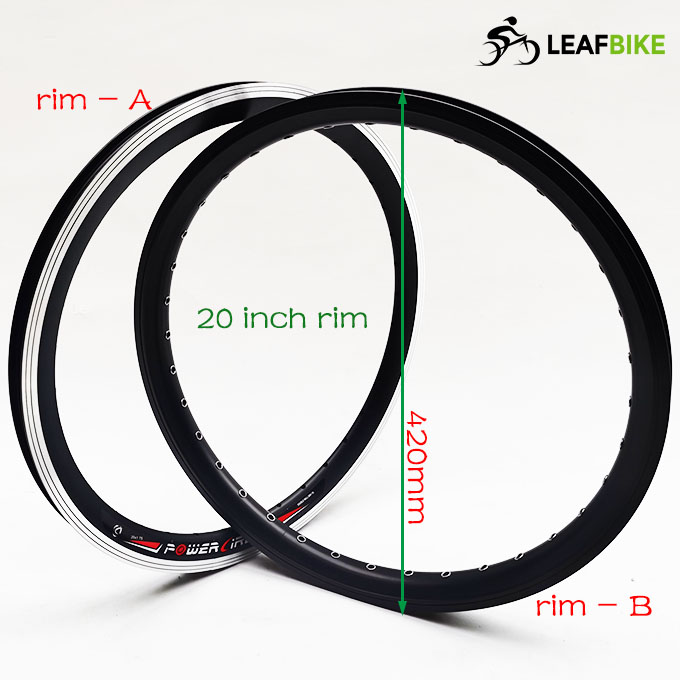

>. Rim A: 20 inch double wall Alloy (Rim Fit For: 20 x 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 68mm Length x 36 pcs

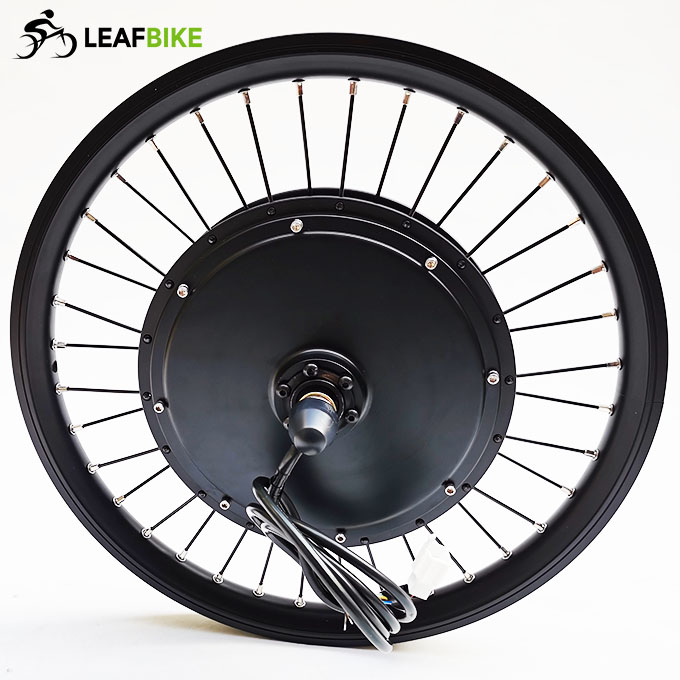

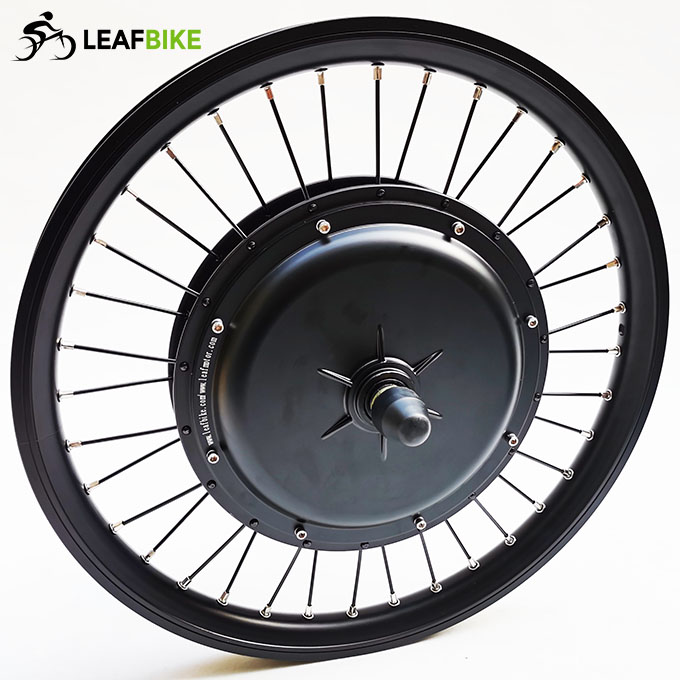

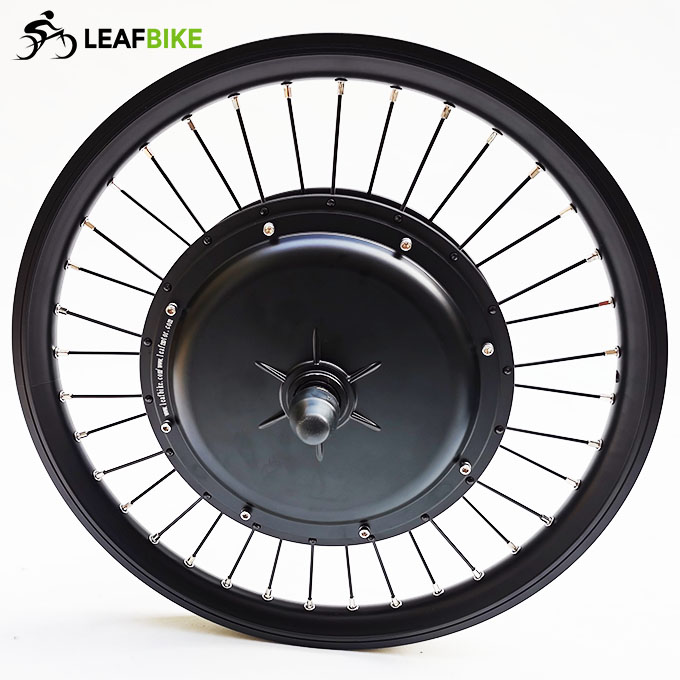

>. Rim B: 20 inch double wall Alloy (Rim Fit For: 20 x 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 72mm Length x 36 pcs

>. Engine: Hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 68.9 kmh -- 42.7 mph
>>. Mechanical brake: V
>>. Cable location: shaft end, LEFT
>>. Cable length: 150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: square wave controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 50 ± 0.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 55 A ± 2 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L x 82 mm W x 42 mm H

With LCD, More Function:
* Cruise -- Green button Control (While motor is working, press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward" -- "Right side / backward")
* Kmh / mph
* Pedal assist ( 1 - 5 )
* ...

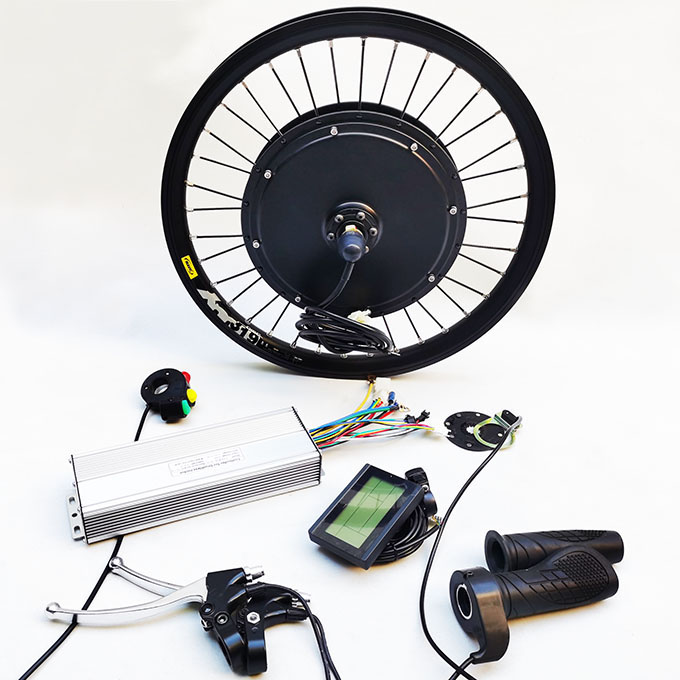

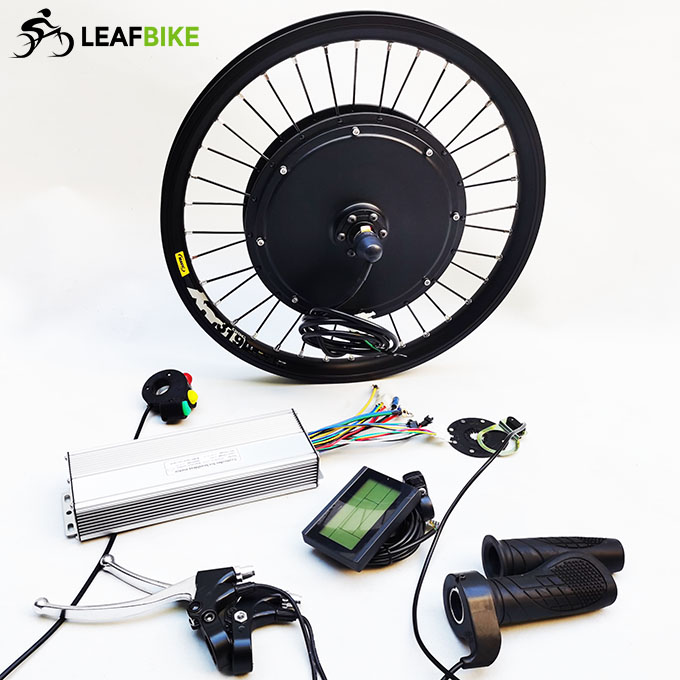

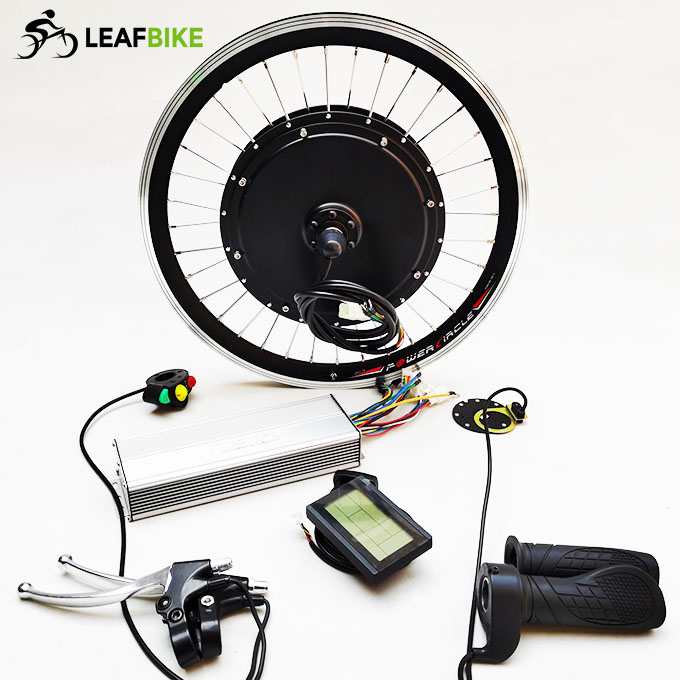

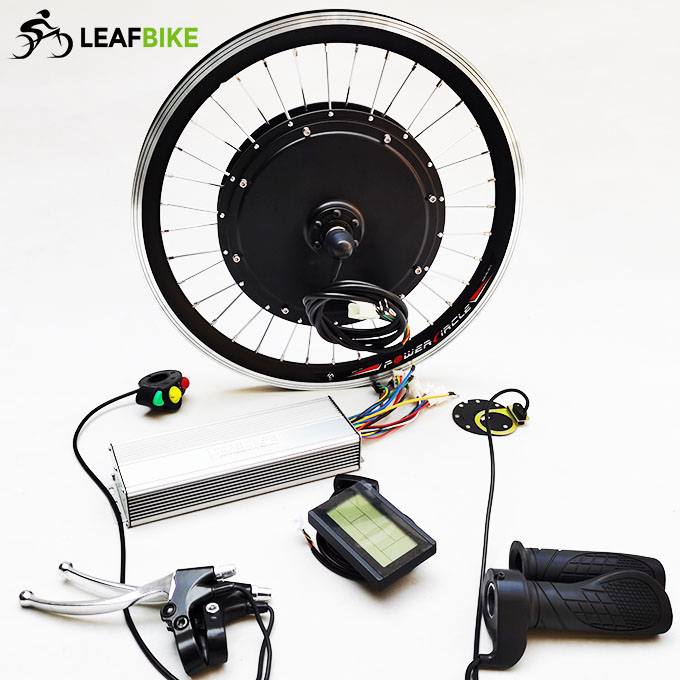

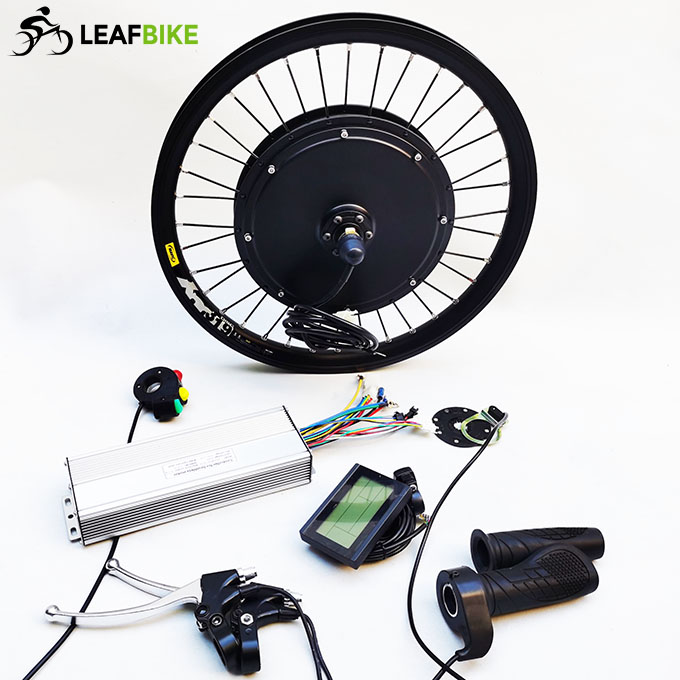

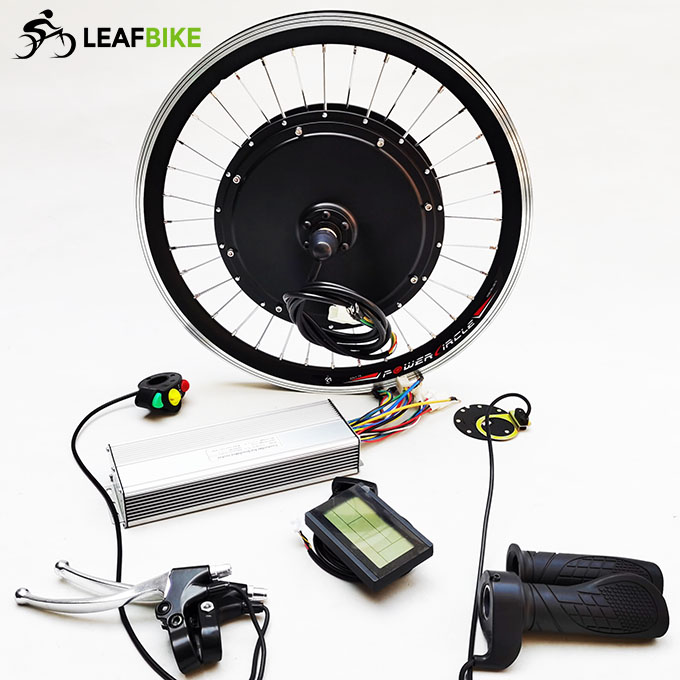

Package Content:

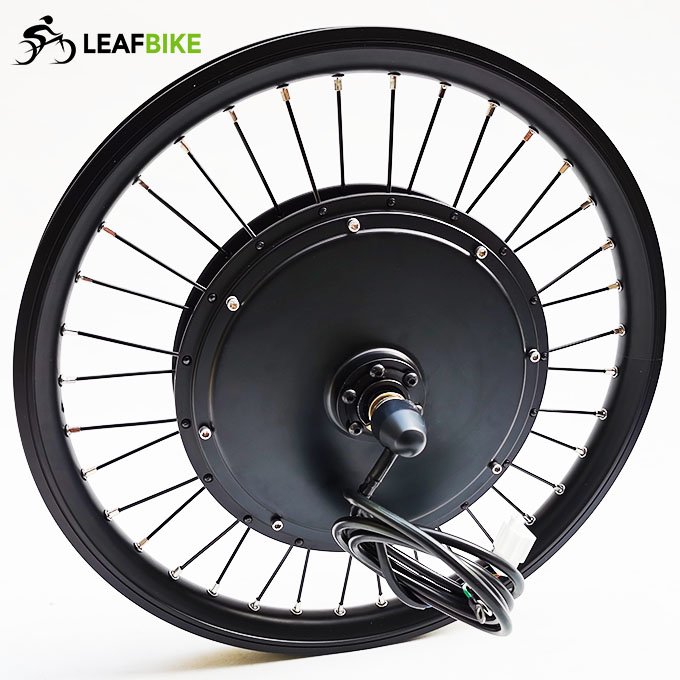

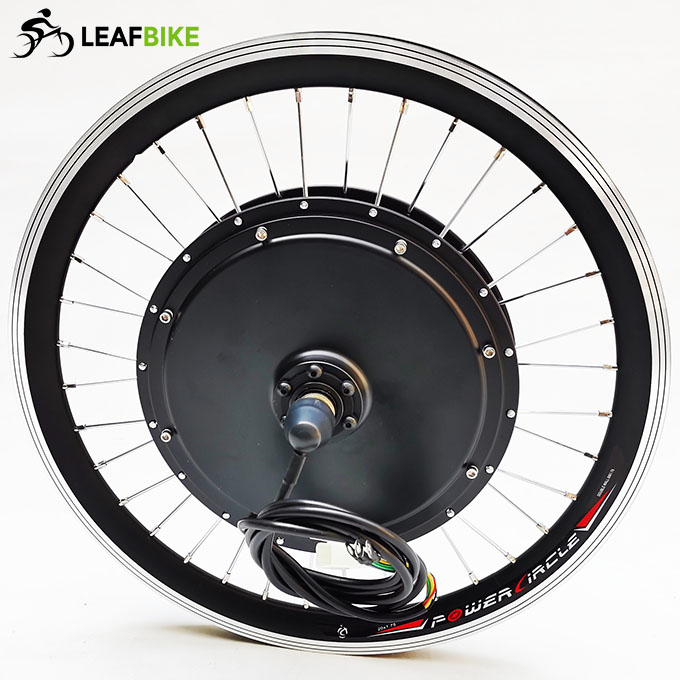

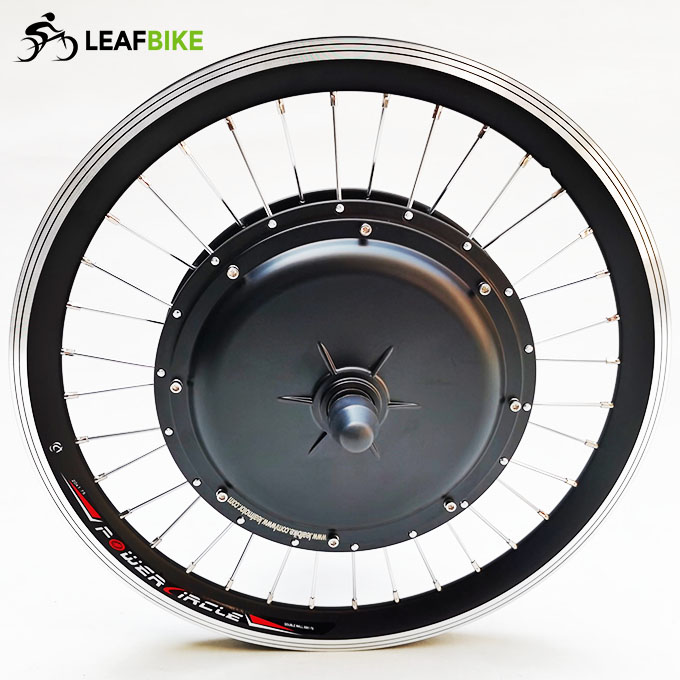

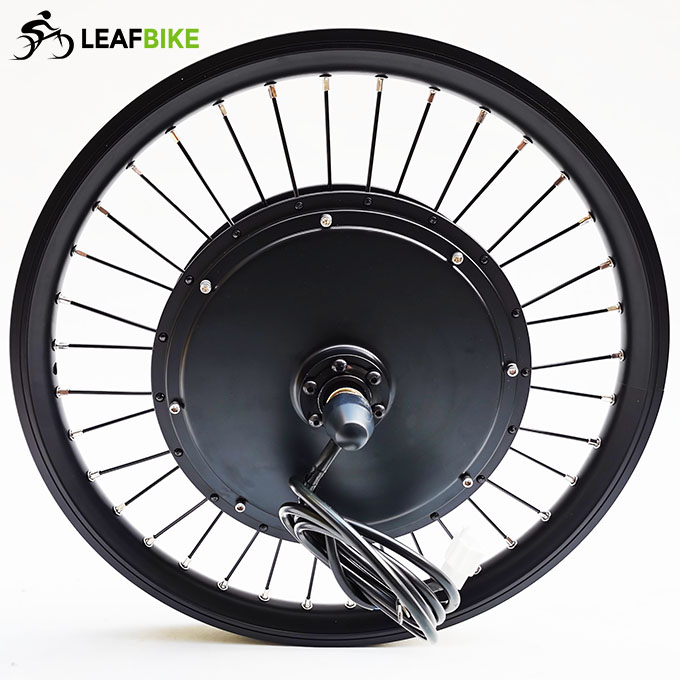

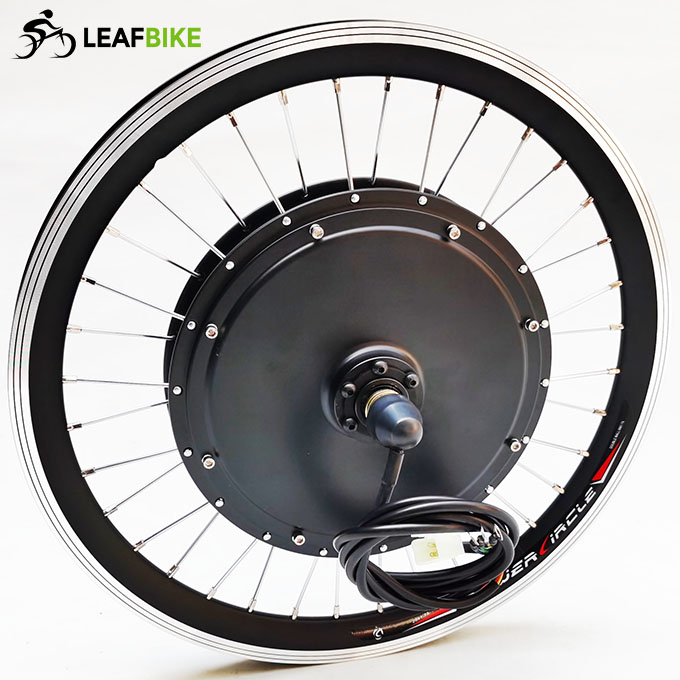

1 x 20 inch 60V 2000W front hub motor wheel
1 x 60V 2000W motor controller
1 x LCD-003
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.0 kg
Package Size: 48cm L x 48cm W x 25cm H
Package Type: Cardboard Box

Share Video:

20 inch 60V 2000W front hub motor electric bike conversion kit video

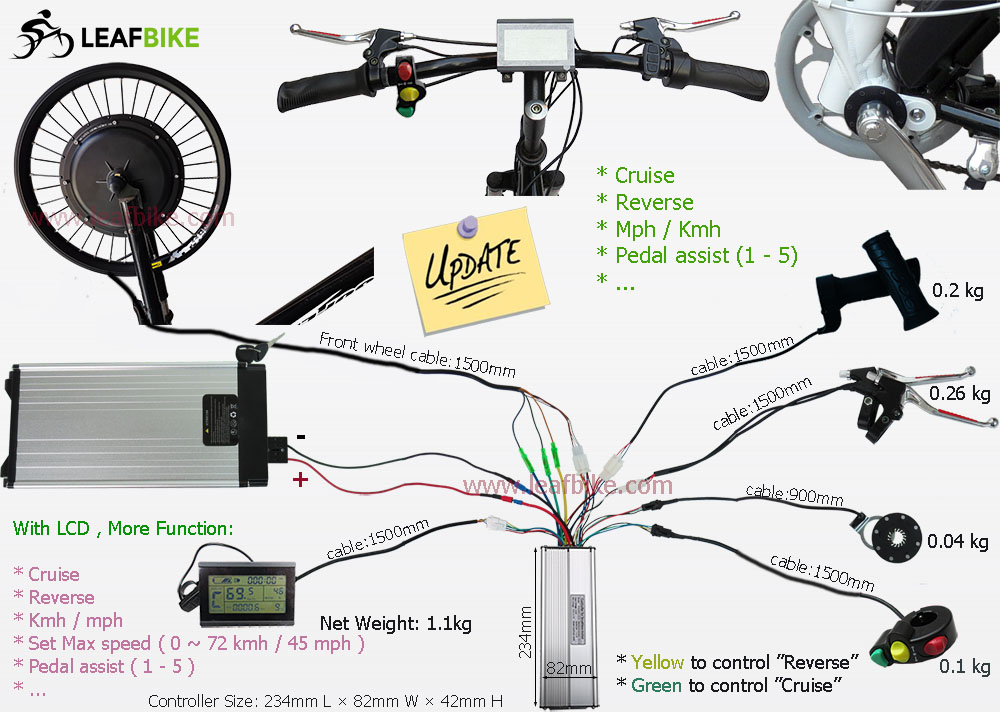

Wire Diagram:

Front Motor Drw.
