20 inch 48V / 52V 1500W front hub motor - bike conversion kit

Item ID #LBCK20481500FN
$351.00 $428.00
    Please select the information you wantX
  • Tyre Size :
    20 x 1.5" / 1.75" / 1.95"
    20 x 1.95" / 2.0" / 2.1" ~ 2.5"
  • LCD :
    S830
    SW900
    08HU
    08SU
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
* This 20 inch 48V / 52V 1500W front bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

This Brand New 18 - Mosfet electric motor controller with Sine wave, Square wave, No hall, three modes compatible.

What are three modes?
* First mode: Sine Wave Status - Motor without noise,Very quiet !
If one of motor hall sensor is broken, controller still can work in Sine Wave Status.

* Second mode: Square Wave Status - Motor with a little noise, < 60db, speed is about 8% faster than Sine Wave Status.
If two of motor hall sensors are broken, controller can work in Square Wave Status.

* Third mode: No Hall Status - Motor with a little noise, < 60db, speed is about 8% faster than Sine Wave Status.
If all of three hall sensors are broken, controller can work in No hall Status.


Main Features:
>. Rim A: 20 inch double wall Alloy (Rim Fit For: 20 × 1.5" / 1.75" / 1.95" tire)
>. Spoke: Silver 12 gauge / 68mm Length × 36 pcs

>. Rim B: 20 inch double wall Alloy (Rim Fit For: 20 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 72mm Length × 36 pcs


>. Engine : Hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 60.9 kmh -- 37.8mph (No load speed)
>>. Max riding speed: 32mph @48V Default (Optional other speed: 26mph or 20mph,15mph,Other speed: please leave message) -- If work with 52v battery, a little faster

>>. Mechanical brake: V
>>.  Cable location: shaft end, LEFT
>>.  Cable length:150cm / 60"
>>.  Install: spacing of 100mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: sine wave brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1500 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 45 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise?-- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse?-- Yellow button Control ("Left side & mid / forward -- "Right side / backward")
* Regen brake?-- Red button Control ("Left side / Regen ON -- Right side / Regen off ")
* Kmh / mph
* Set Max speed ( 0 ~ 100 kmh / 60 mph )?--  If set be "32", Max speed will be 20mph / 32kmh
* Speed ( 0 - 5 )?-- "0" is off. "1" is the slowest. "5" is the fastest.
* ...

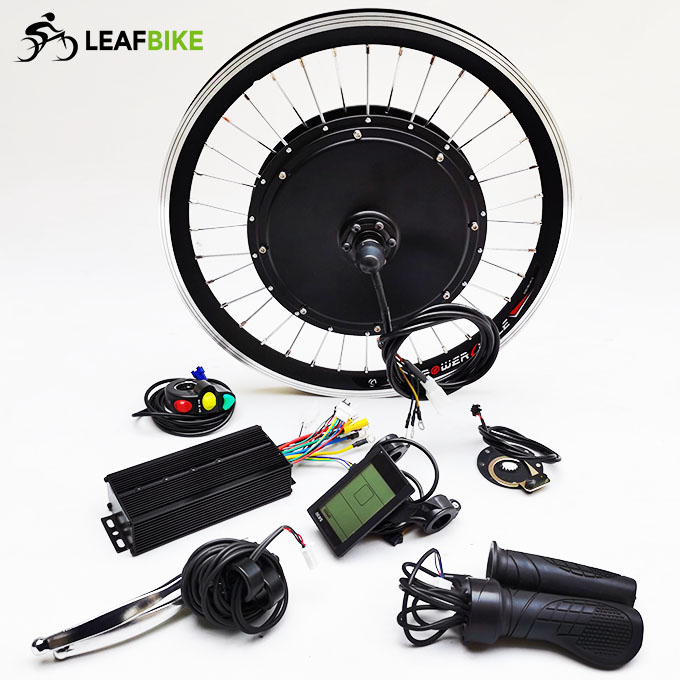

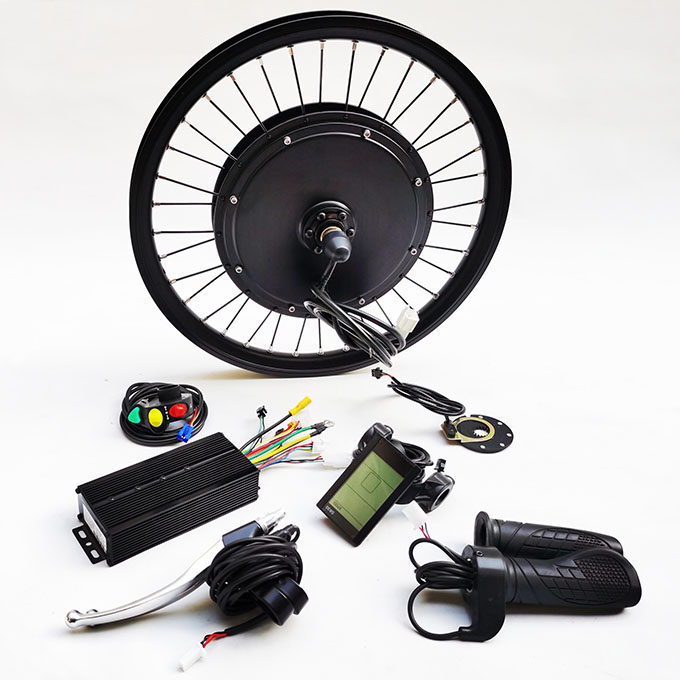

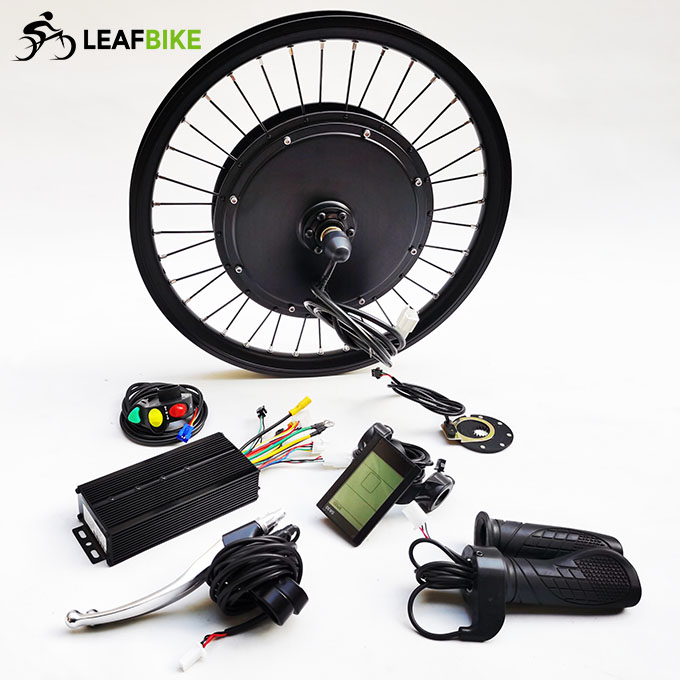

Package Content:
1 x 20 inch 48V / 52V 1500W front hub motor wheel
1 x 48V / 52V 1500W 18-MOSFET sine wave controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1500mm

Net Weight: 11.0 kg   /  24.2 lbs
Package Size: 50cm L x 50cm W x 23cm H  /  19.7"  L x 19.7" W x 8.7" H
Package Type: Cardboard Box

* This motor & 18 - Mosfet sine wave controller system handle a 48V / 52V (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).

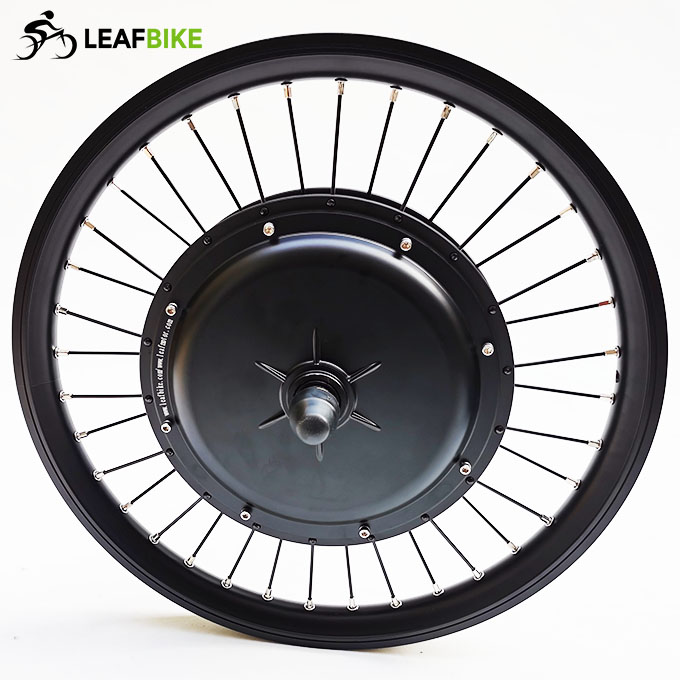

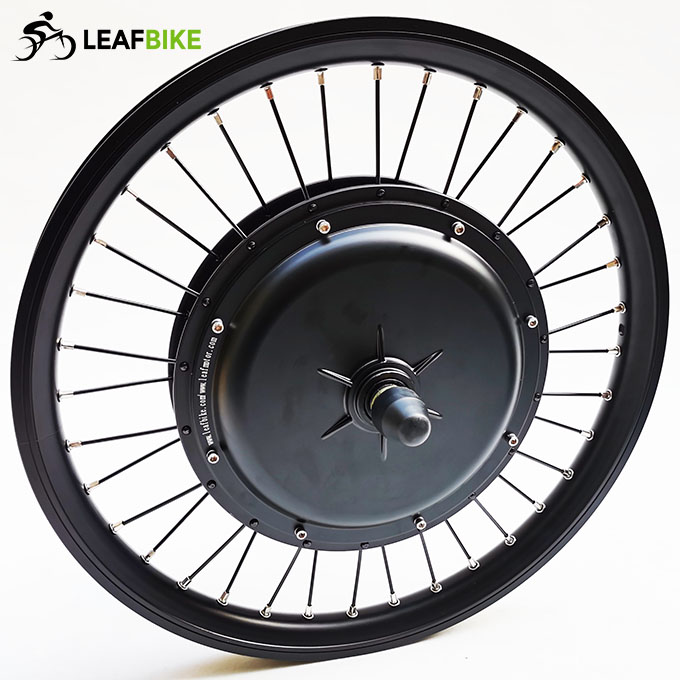

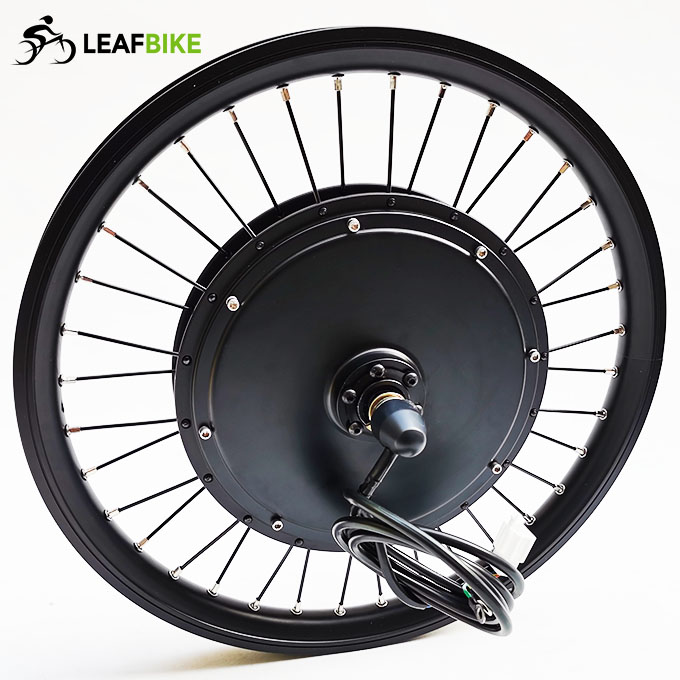

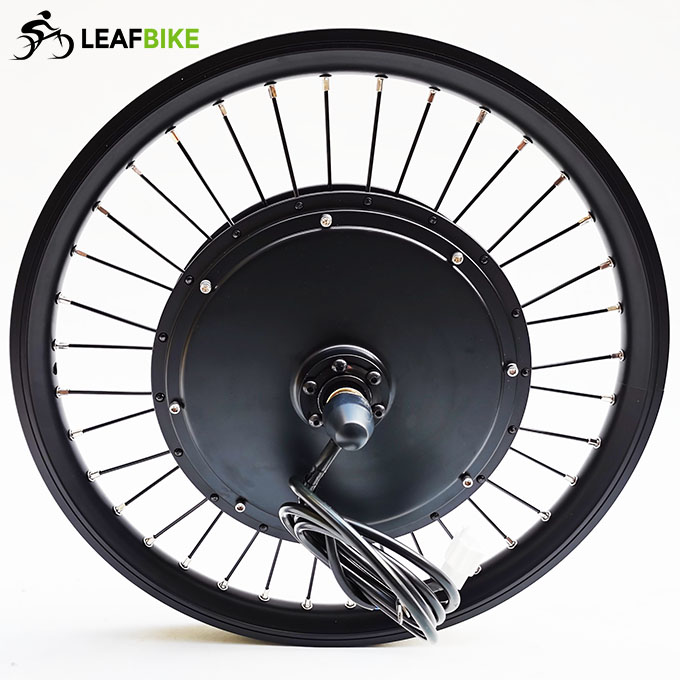

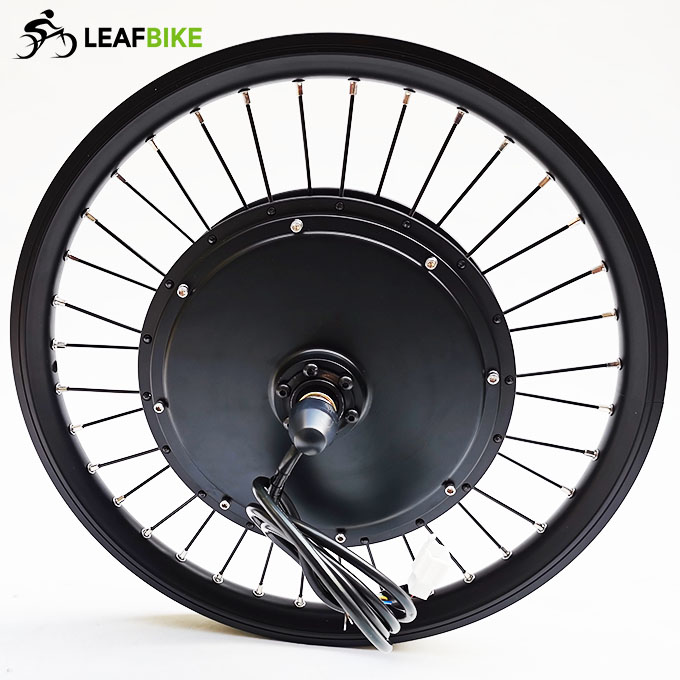

Rim B:

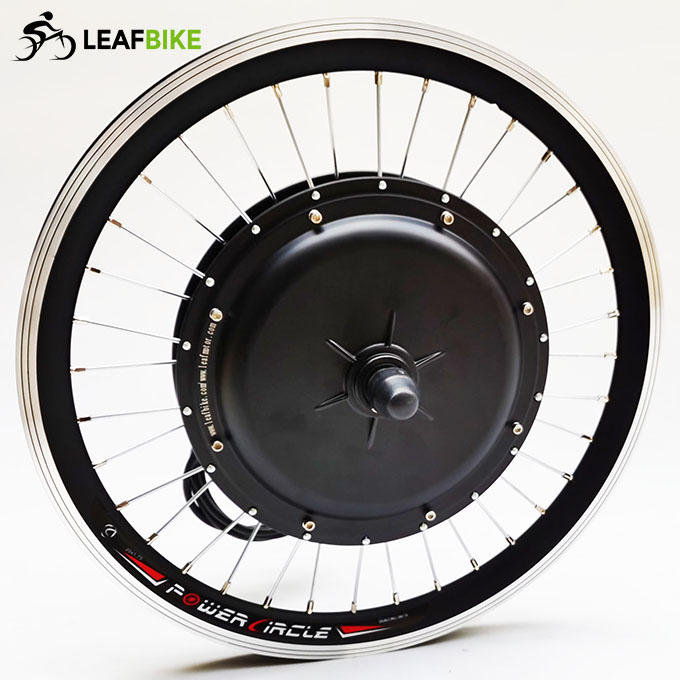

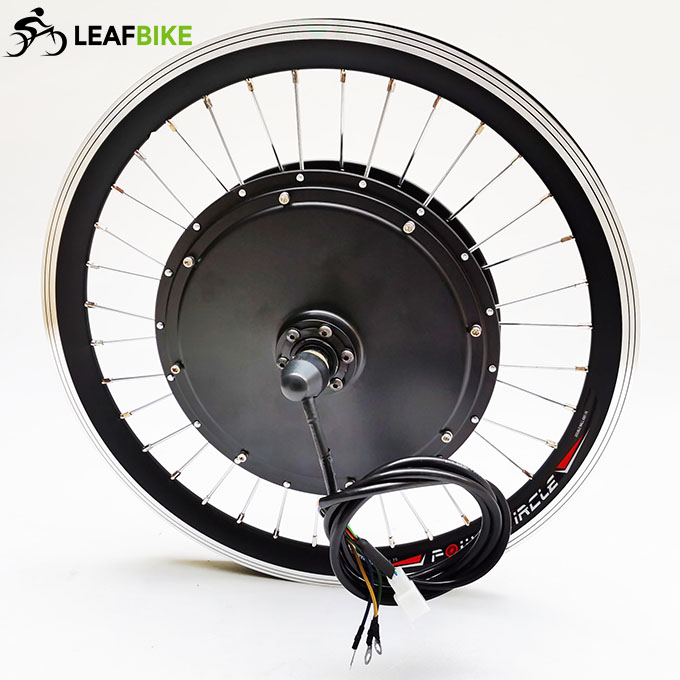

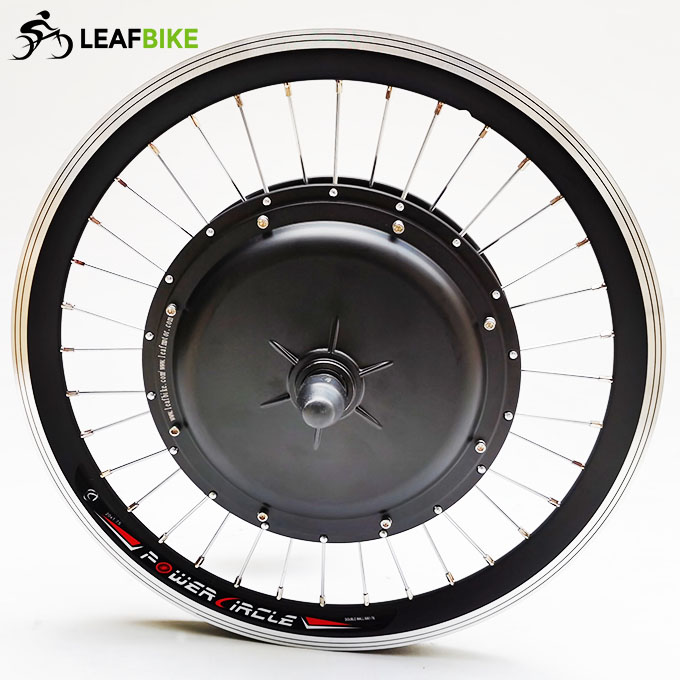

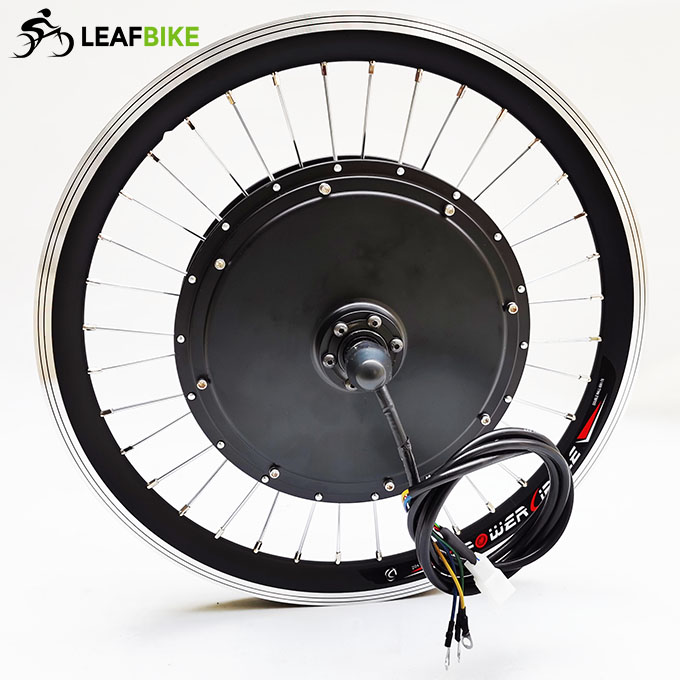

Rim A:
Wire Diagram:
1500w Front Drw.
48v 1500w front bike motor drawing
Performance Data:
48v-1500w-hub-motor-curve
Share Video:
20 inch 48V 1500W front hub motor - bike conversion kit
