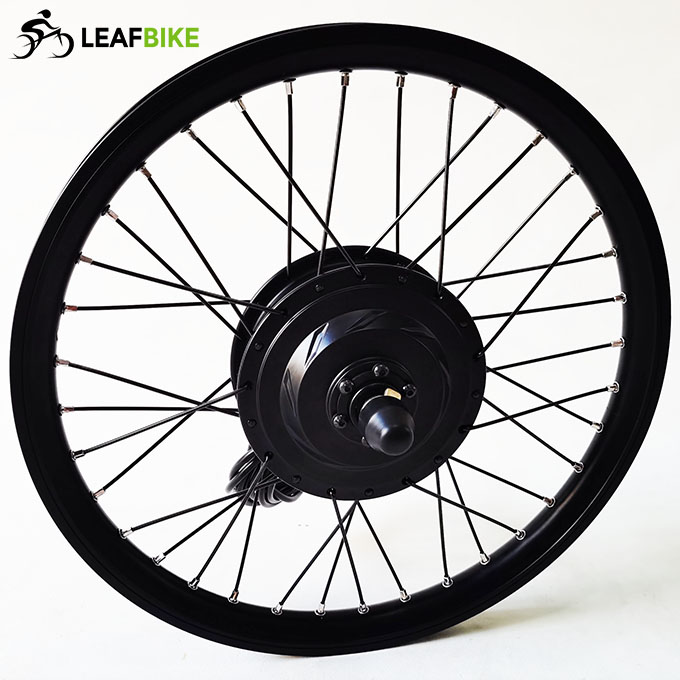

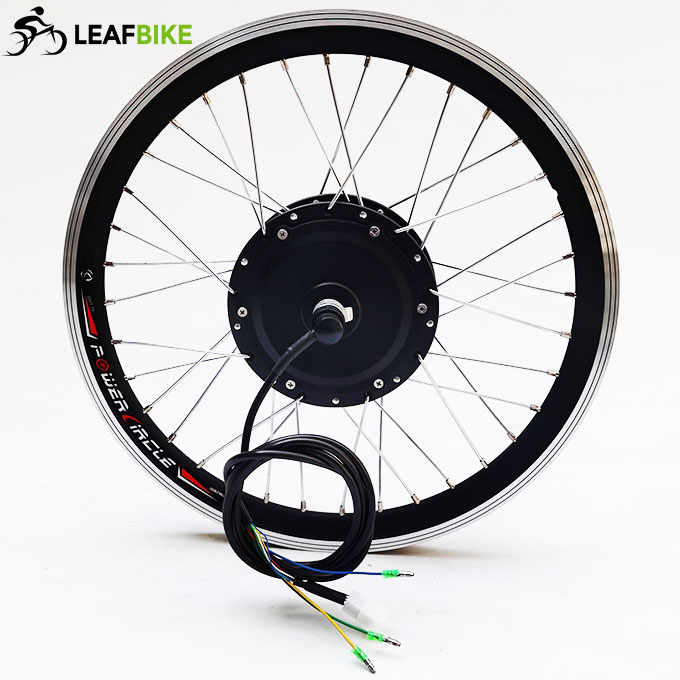

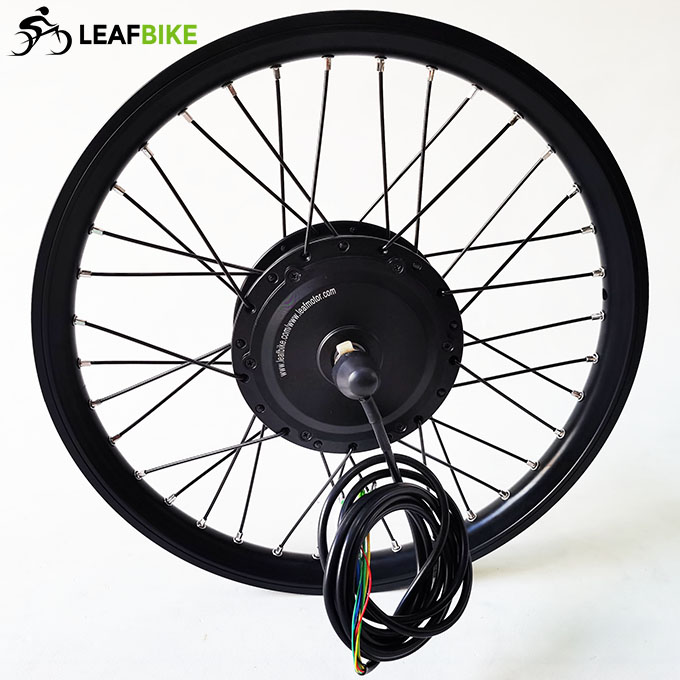

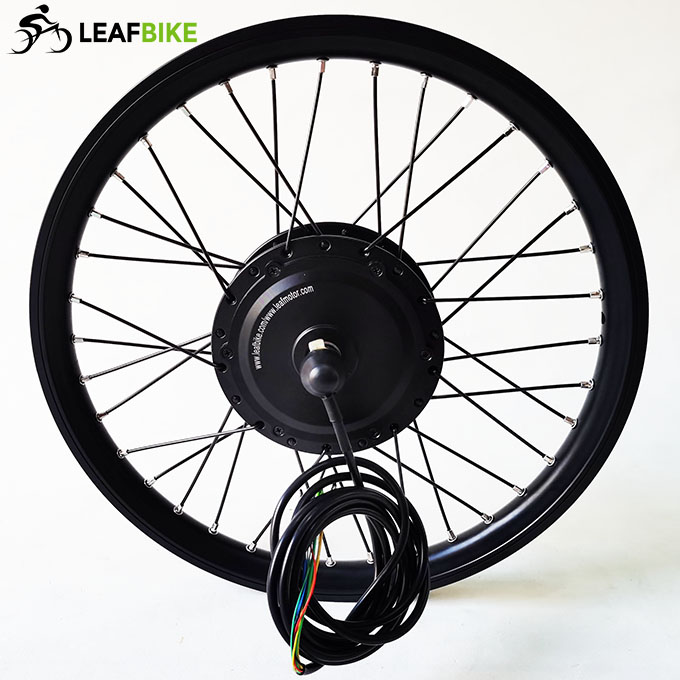

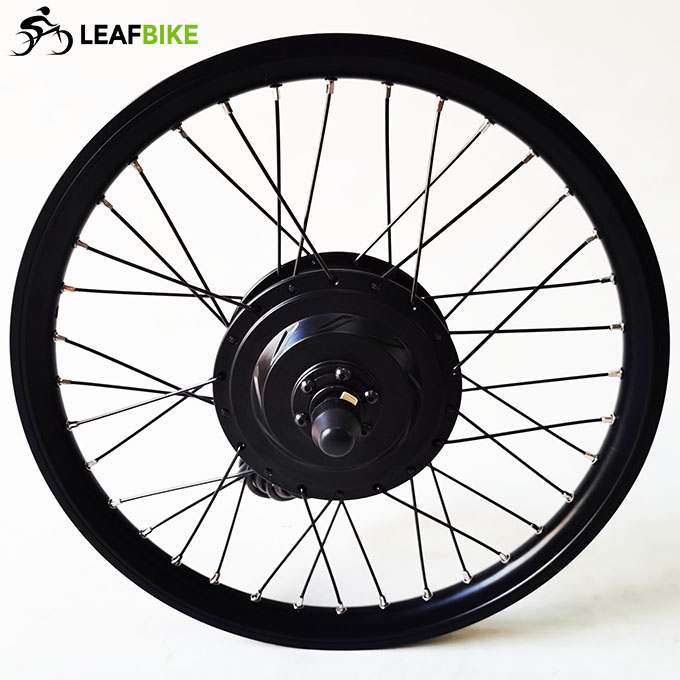

20 inch 48V 500W front brushless geared hub motor - electric bike kit

Item ID #LBCK2048500FG
$298.00 $360.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
This 20 inch 48V 500W brushless geared hub motor kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
Rim: Ø420mm Alloy (Rim Fit For: 20 × 1.5" / 1.75" / 1.95" tire)
Spoke: silver 12 gauge / 120mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V
>>. Power: 500W
>>. Efficiency: 90.5%
>>. Max speed: 32 kmh -- 20mph

>>. Mechanical brake: V or Disk
>>. Freewheel:
>>. Cable location: shaft end, Right
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm front fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 20 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 94.5 mm L × 61 mm W × 35 mm H

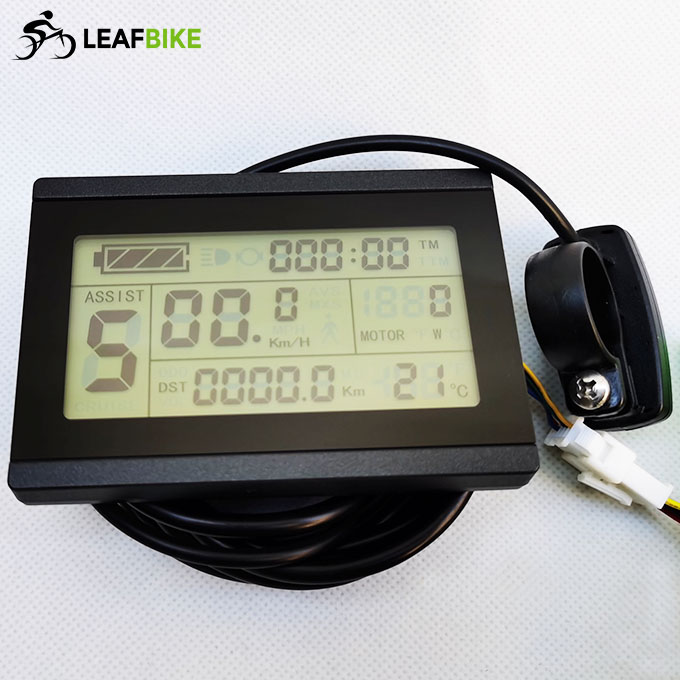

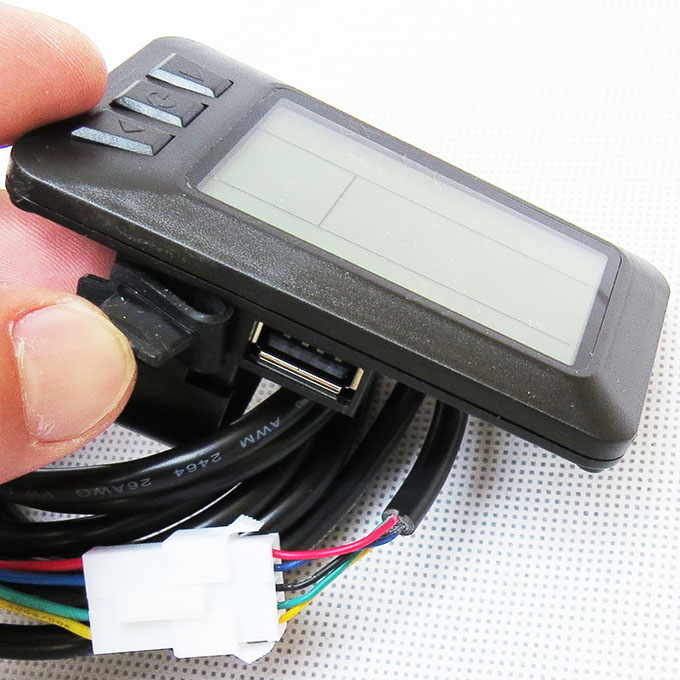

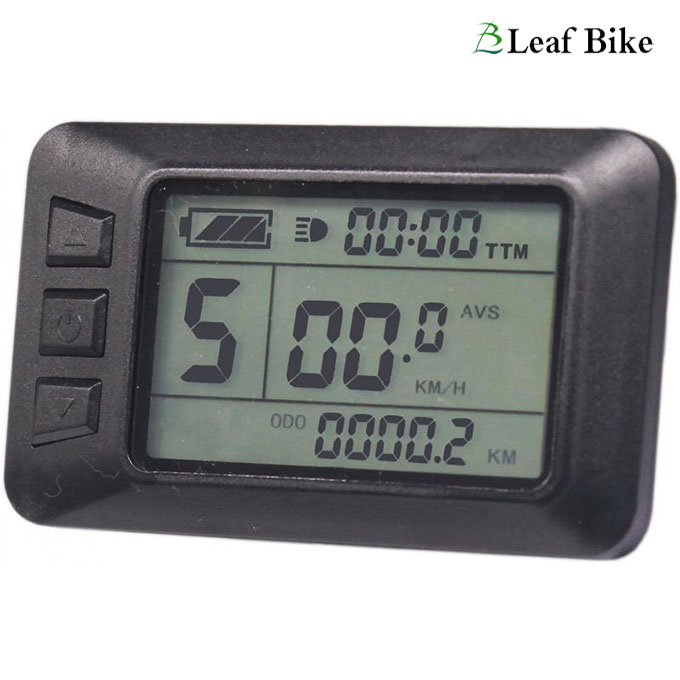

LCD-007U With USB Port, More Function:
* Cruise?-- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse?-- Yellow button Control ("Left side & mid / forward -- "Right side / backward") (Motor can't work in reverse)
* Regen brake?-- Red button Control ("Up / Regen ON -- Down / Regen off ")
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph )?--  If set be "32", Max speed will be 20mph / 32kmh
* Pedal assist ( 0 - 5 )?-- "0" is off PAS. "1-5" is on PAS. "5" is the strongest.
* ...

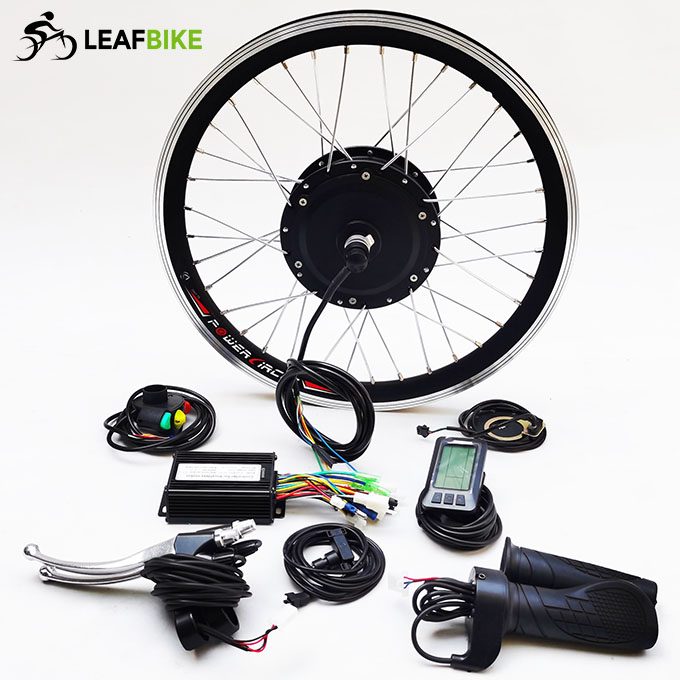

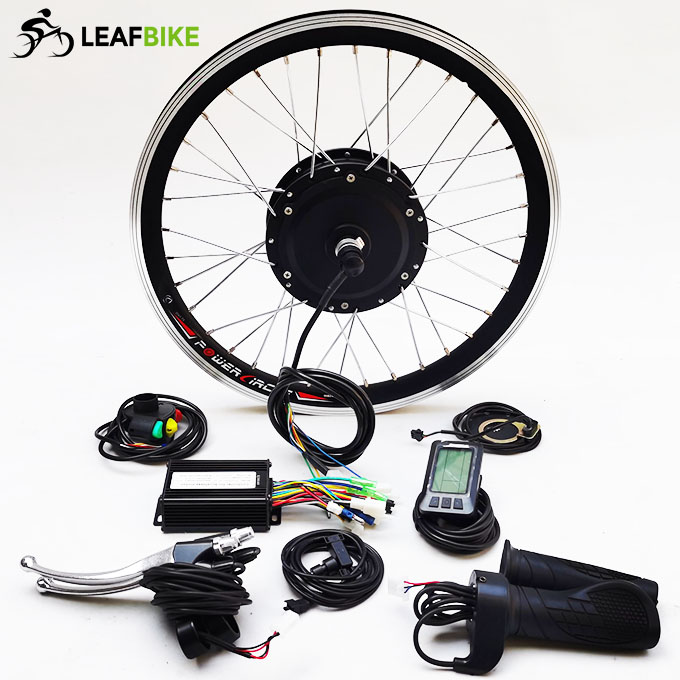

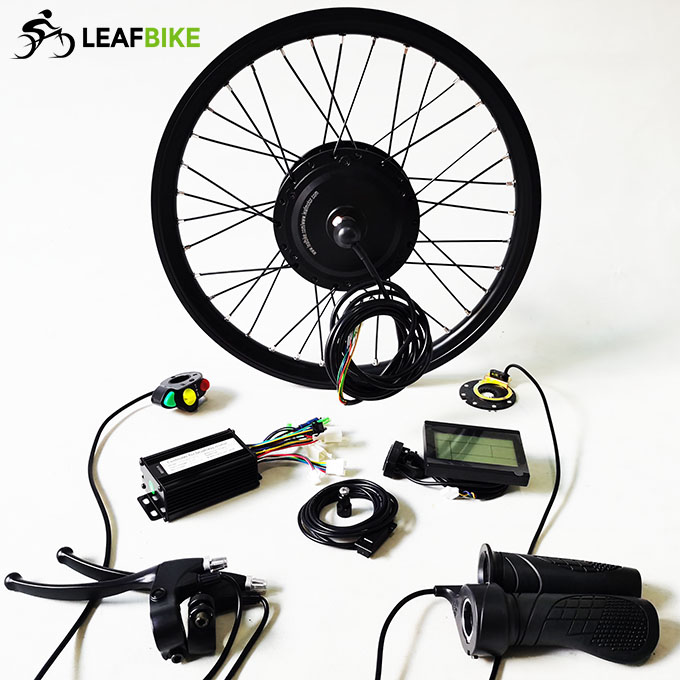

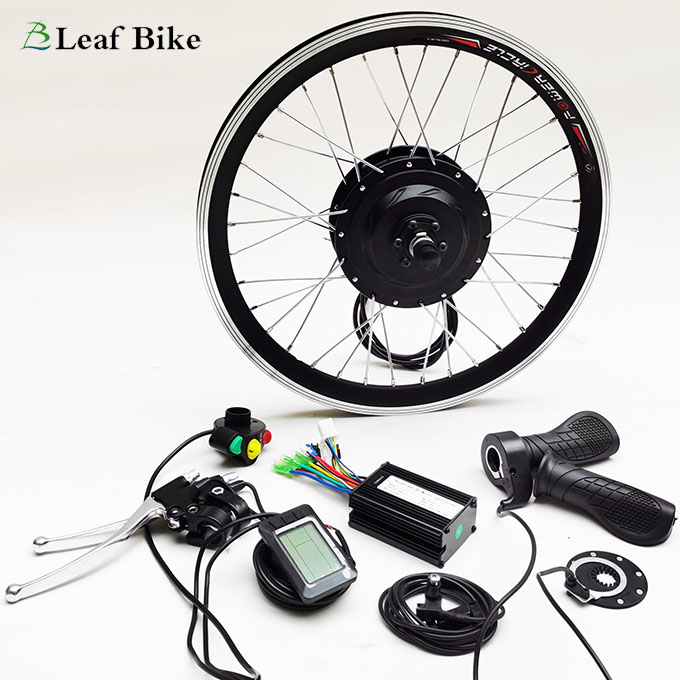

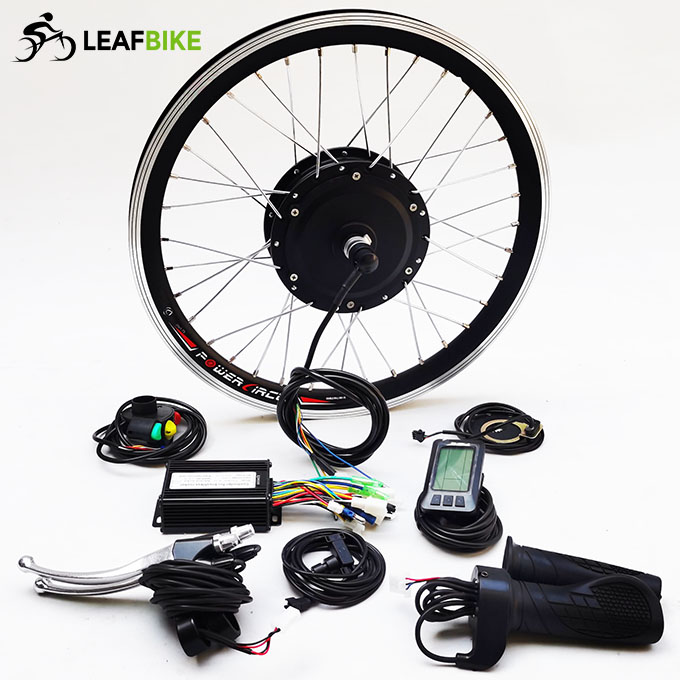

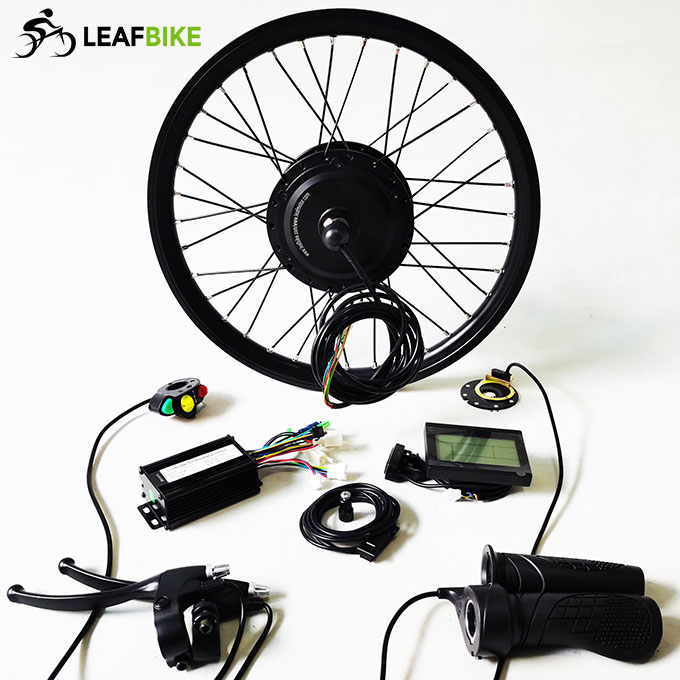

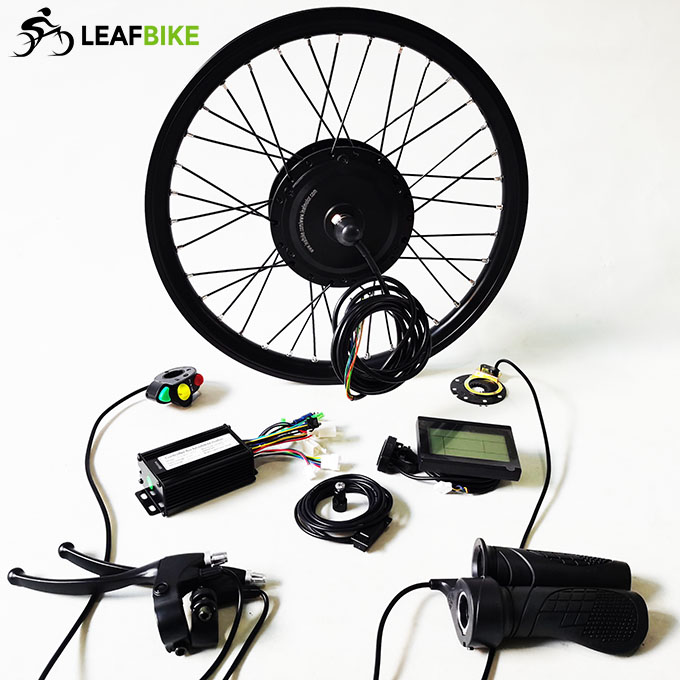

Package Content:

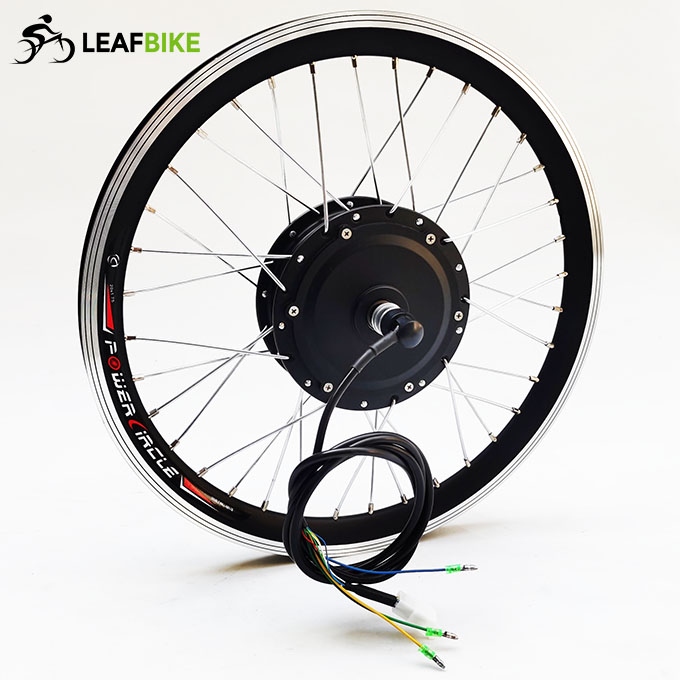

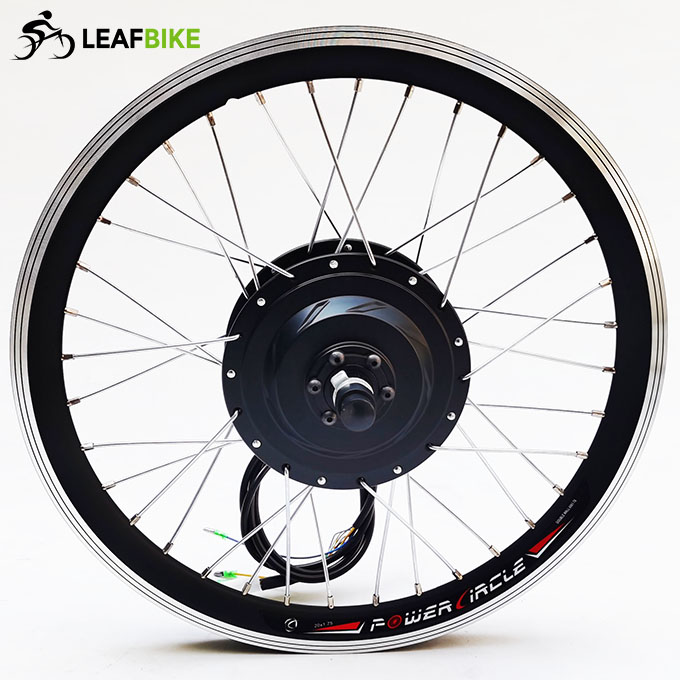

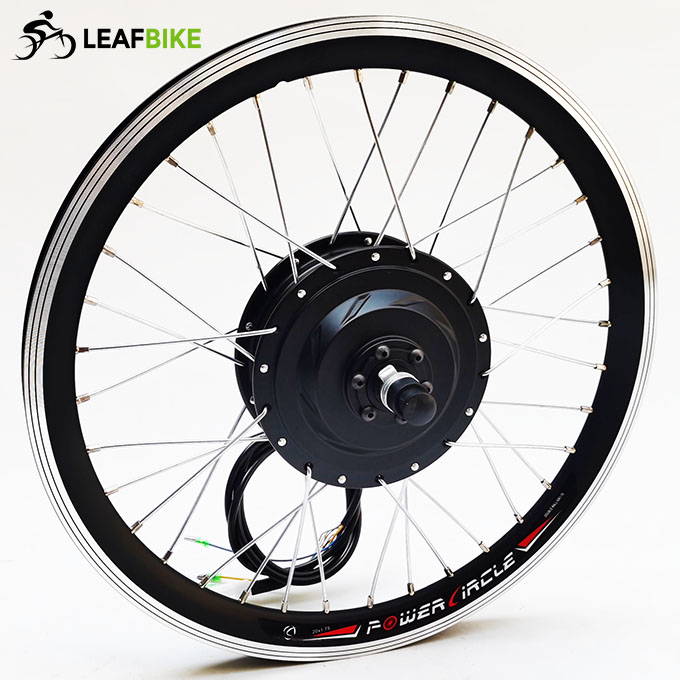

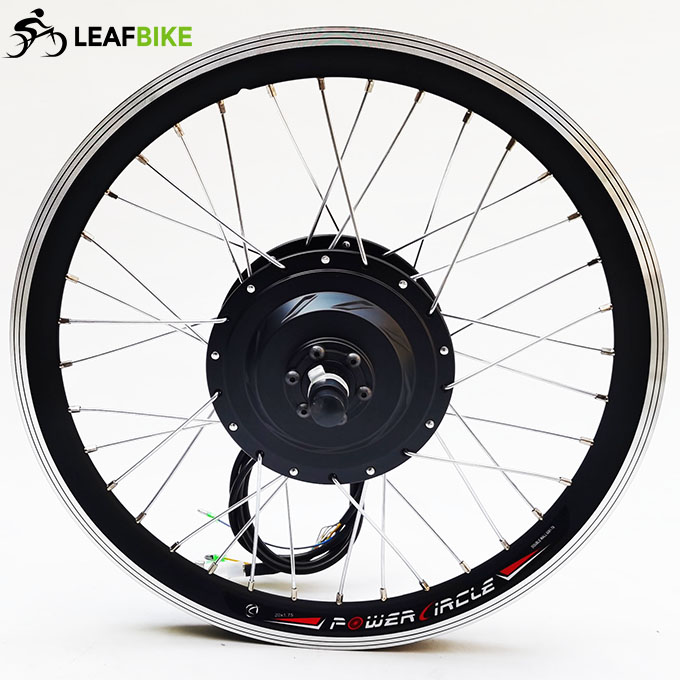

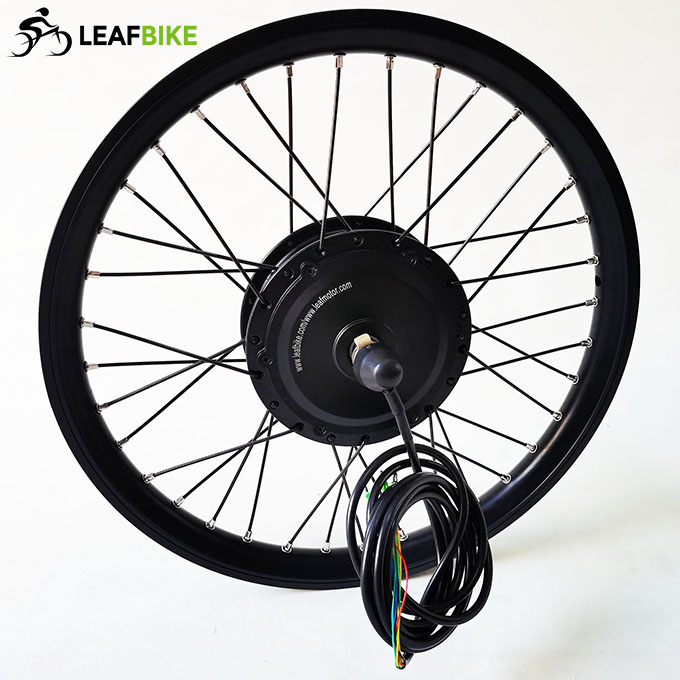

1 x 20 inch 48V 500W front brushless geared hub motor wheel
1 x 48V 500W 6-MOSFET 20A motor controller
1 x LCD-007U ( display speed, mileage, battery gauge.. )
1 x Speed signal wire
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise,reverse,regen brake..)
1 x Pedal assist

Net weight: 5.1 kg   /  11.2 lbs
Package Size: 50cm L x 50cm W x 25cm H  /  19.7"  L x 19.7" W x 9.8" H
Package Type: Cardboard Box

* This motor & controller system handle a 48V battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).

Share Video:
20 inch geared hub motor kit

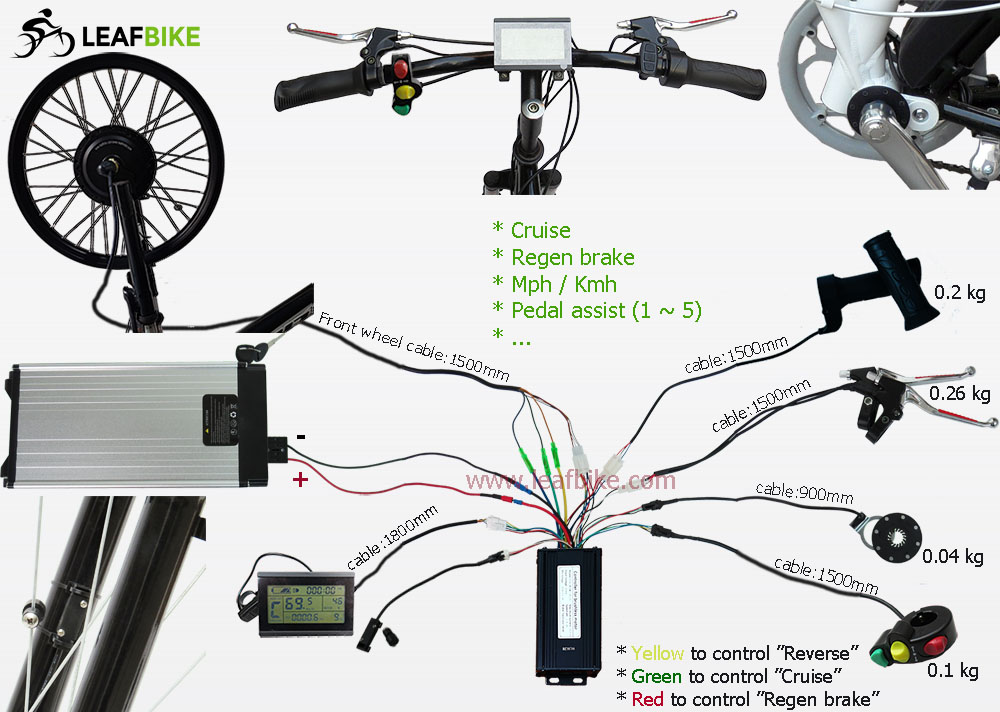

Wire Diagram:
geared hub motor electric bike conversion kit wire diagram

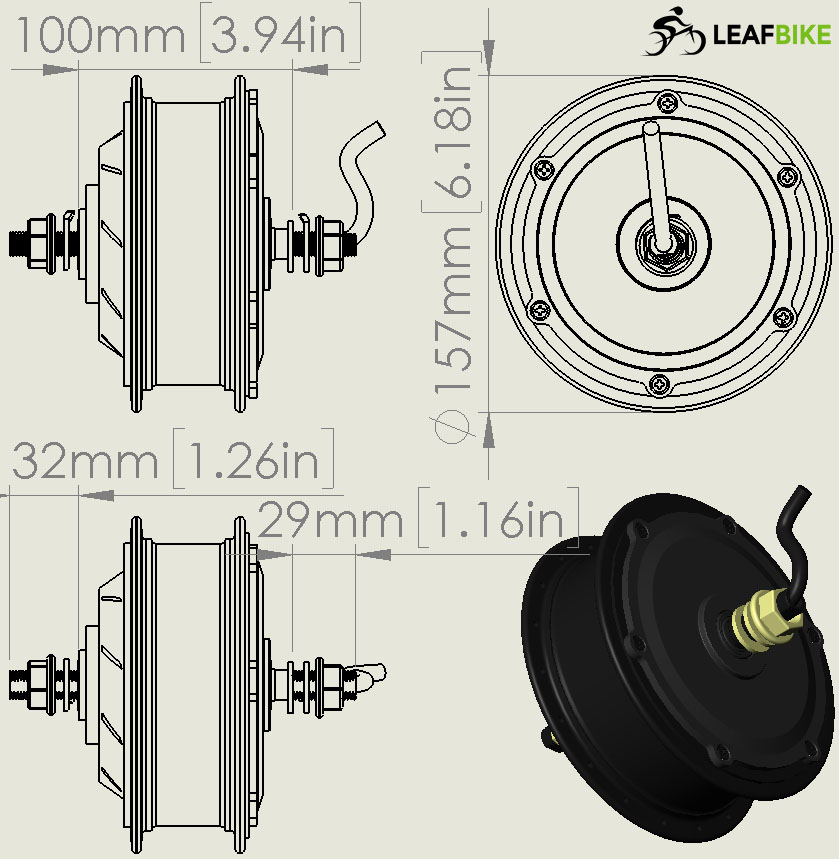

Freewheel Motor Drw.
geared hub motor drawing

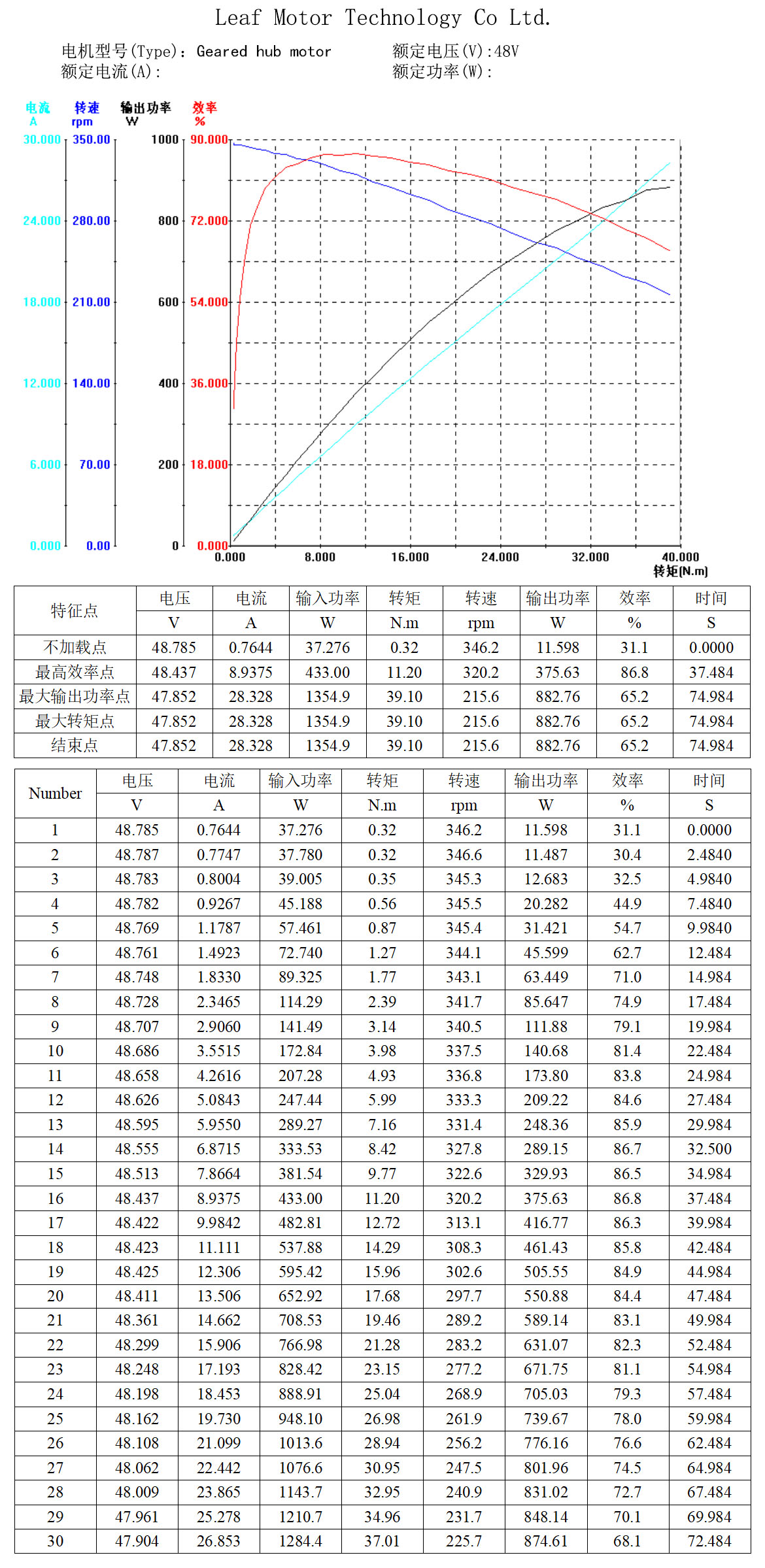

Performance Data:
geared hub motor performance data
