20 inch 36V 750W rear hub motor - bike conversion kit

Item ID #LBCK2036750RN
$381.00 $470.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description

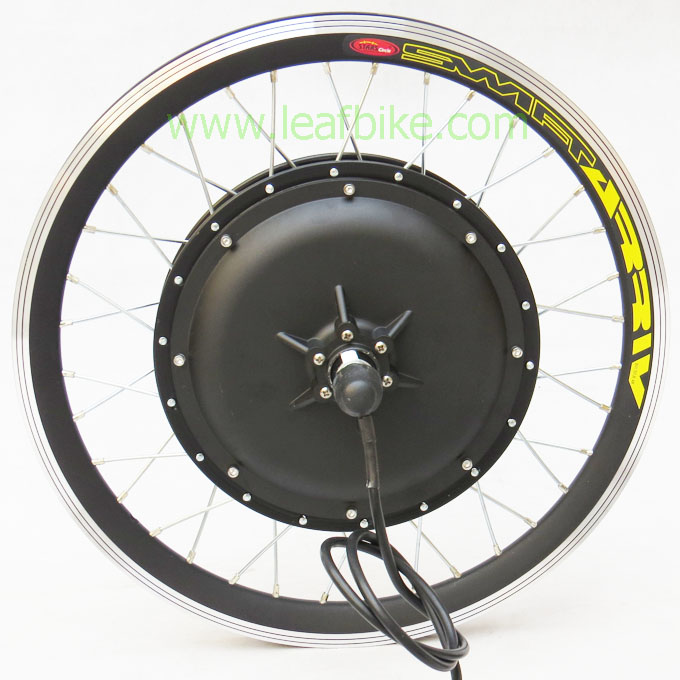

The 20 inch 36V 750W rear hub motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

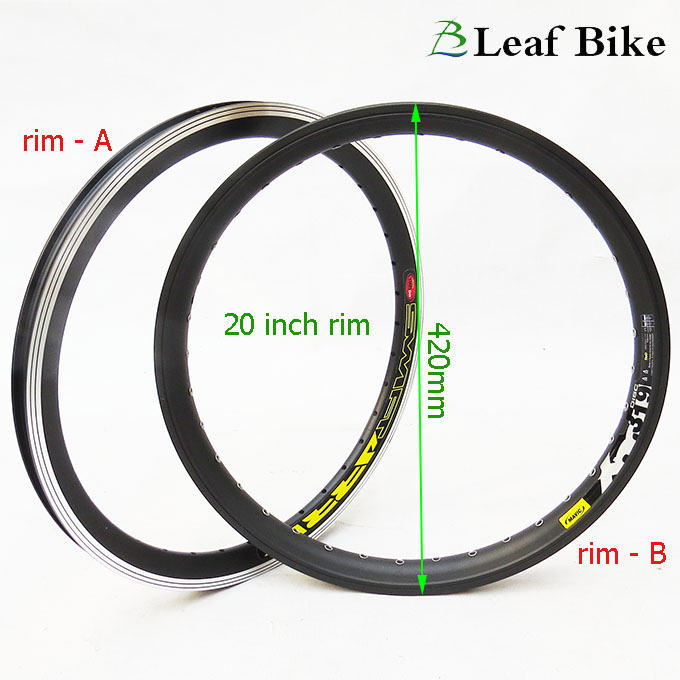

>. Rim: 20 inch double wall Alloy (Rim Fit For: 20 × 1.5" / 1.75" / 1.95" tire) -- Default: Rim A / Optional Rim B
If the width of your tire / tyre is 2.1, 2.5 inch…(bigger than 1.95 inch)
Please note tire/tyre size when you place an order so that we can send a wider rim & fit for your wider tire/tyre.

>. Spoke:12 gauge / 72mm Length × 36 pcs
>. Default: Silver spokes
>. Optional: Black spokes -- Please leave message.

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 59.7 kmh – 37 mph
>>. Mechanical brake: Disk or  V
>>. Freewheel: space for 6 or 7 gears
>>. Cable location: shaft end , LEFT
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

LCD-003, More Function:
* Cruise
* Forward & Backward (Optional)
* Regen brake
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

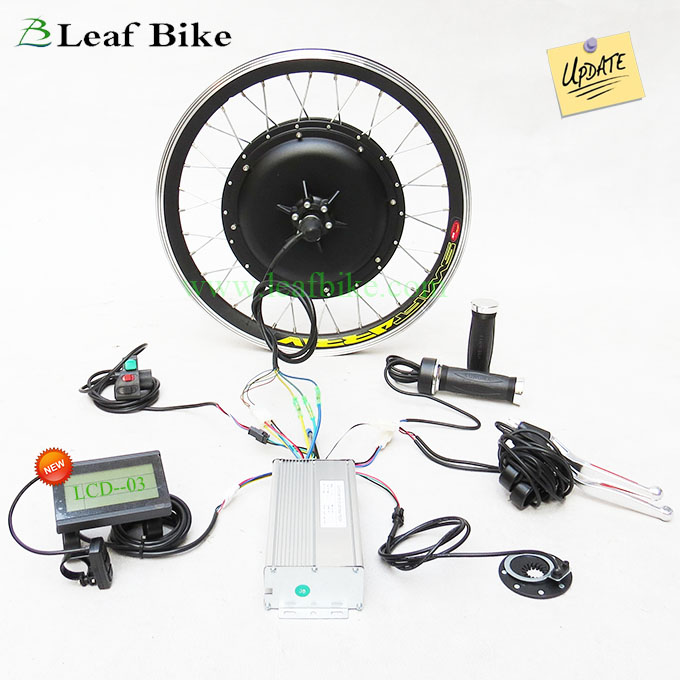

Package Content:

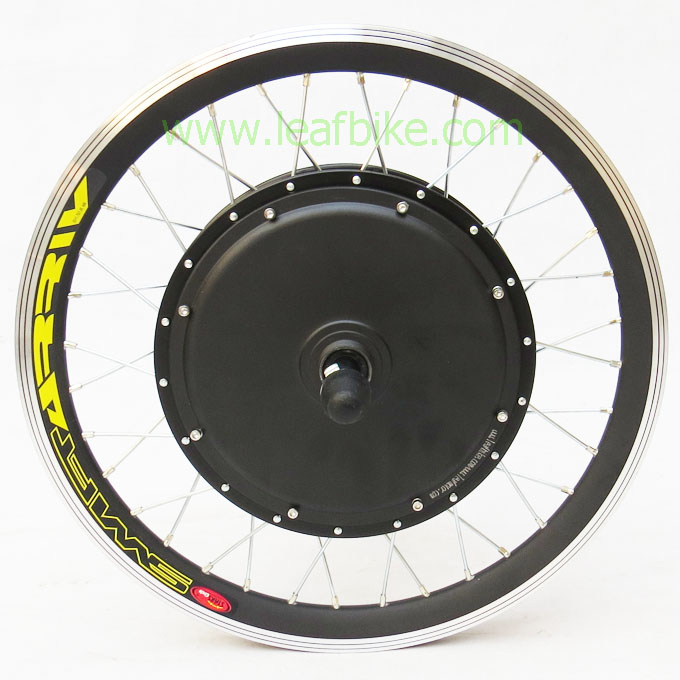

1 x 20 inch 36V 750W rear hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise, regen brake, reverse .. )
1 x Pedal assist

Net Weight: 9.6 kg   /  21.1 lbs
Package Size: 52cm L x 22cm W x 51cm H  /  20.5"  L x 8.7" W x 20" H
Package Type: Cardboard Box
Share Video:
20 inch 36v 750w rear electric bike motor kit

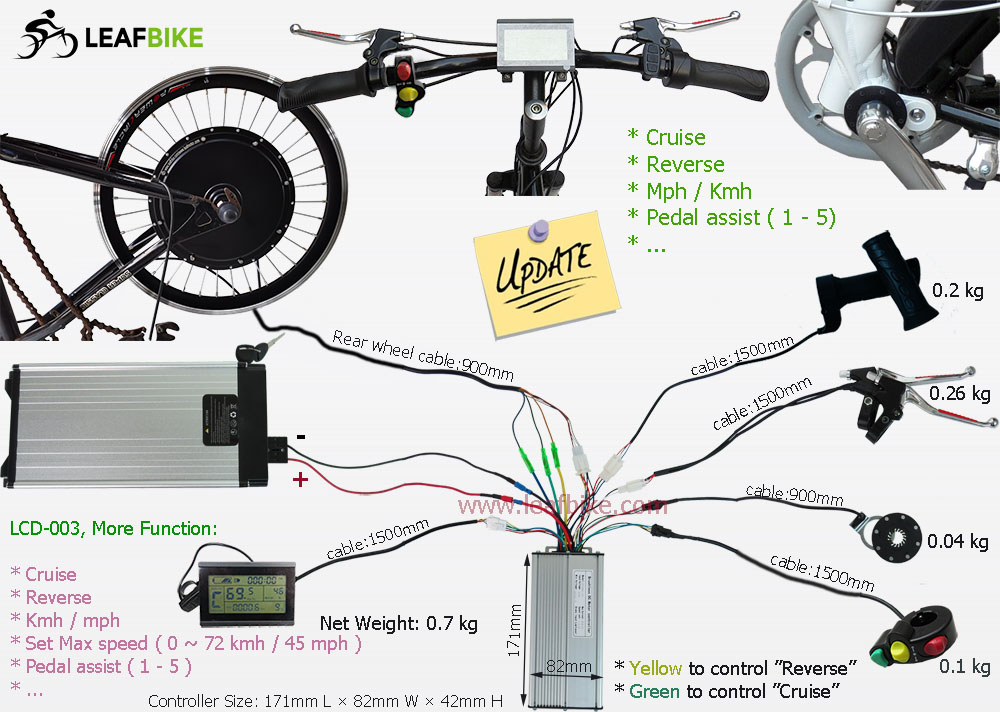

Wire Diagram:
20-24-26-27-28-29-inch-700c-rear-hub-motor-electric-bike-conversion-kit
750W Rear Drw.
750w-1000w-rear-electric-bike-motor-drawing
Performance Data:
750w-electric-hub-motor-performance-data-curve
