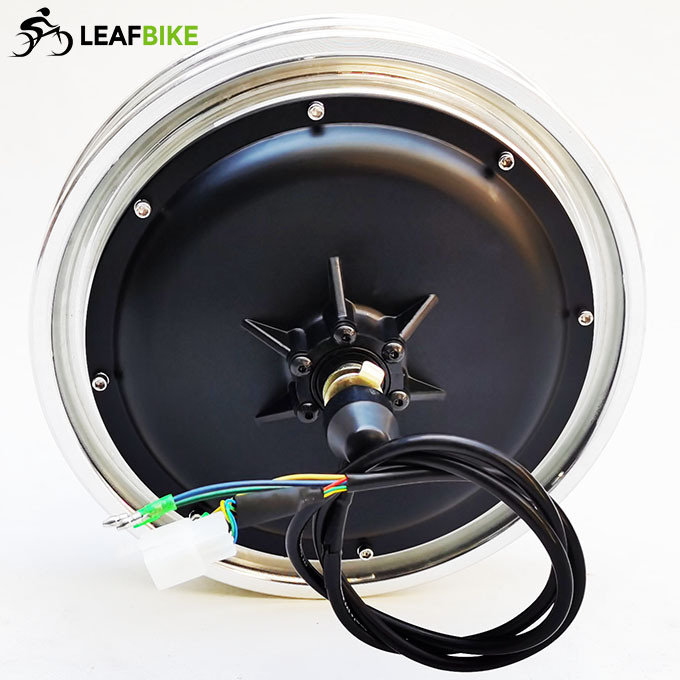

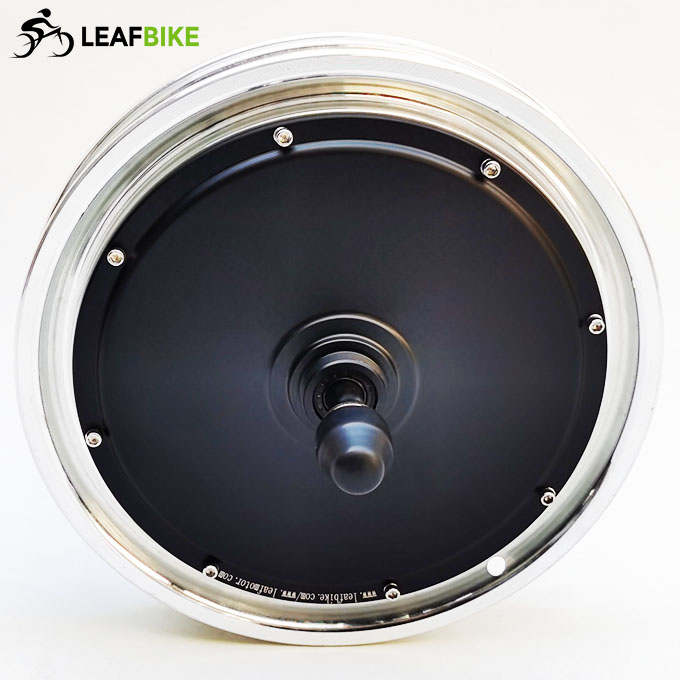

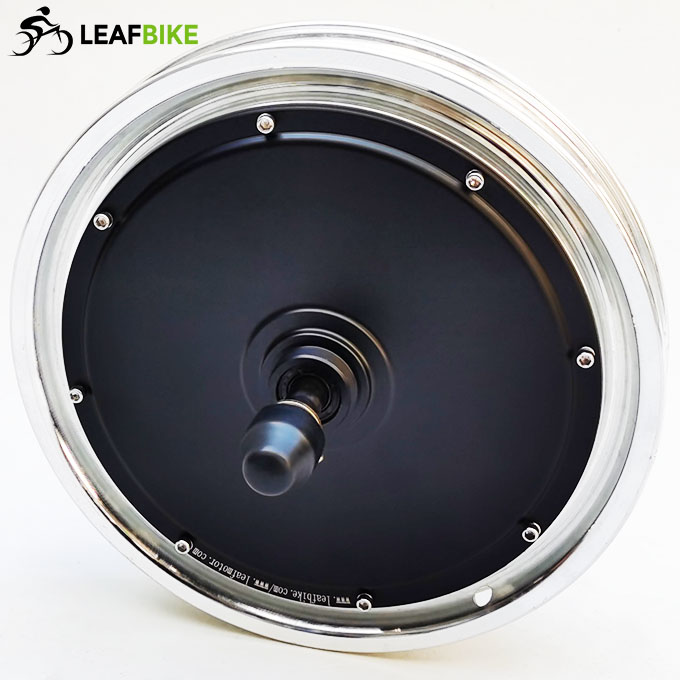

14 inch 36V 750W rear casted hub motor electric bike conversion kit

Item ID #LBCK1436750RN
$298.00 $390.00
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These
Please watch videos for 14 inch 36V 750W rear casted hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
S830 Video:
14 inch rear hub motor kit
SW900 Video:
14 inch rear hub motor kit

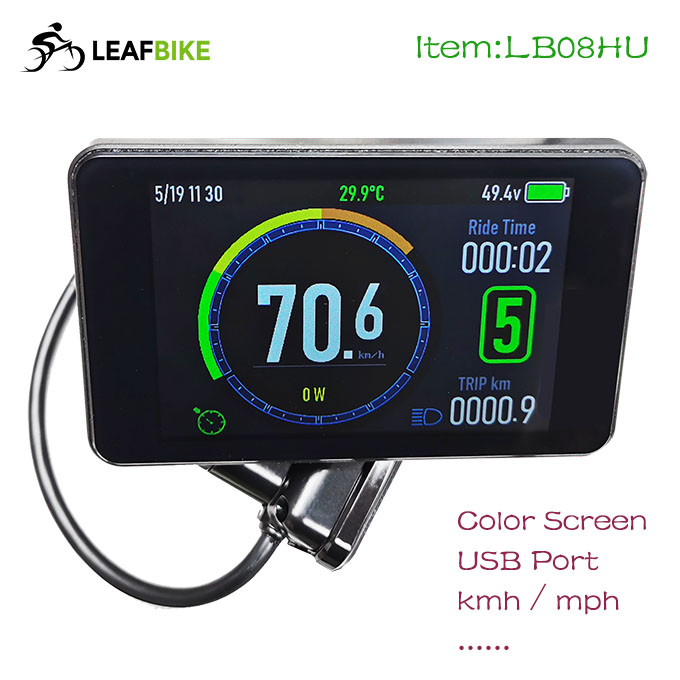

08HU Video:
14 inch rear hub motor kit
Share Video:
14 inch 48v 1000w rear casted hub motor

This 14 inch scooter motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

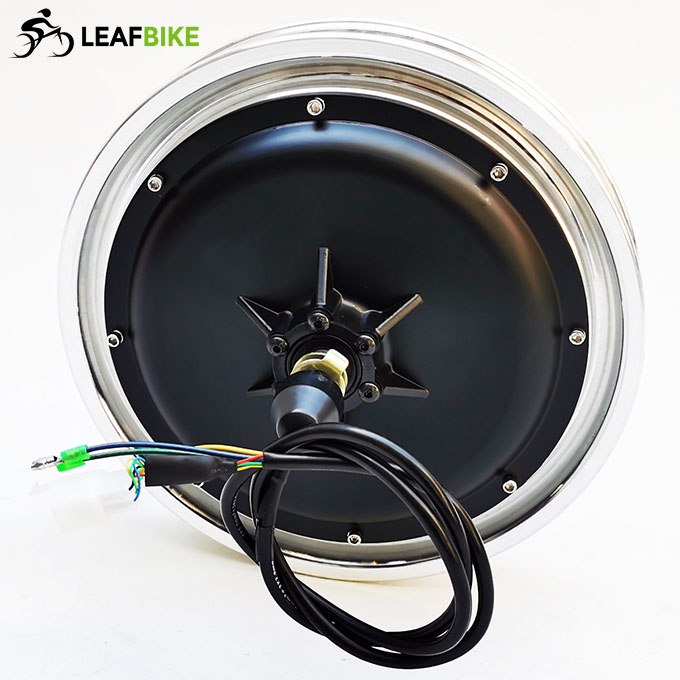

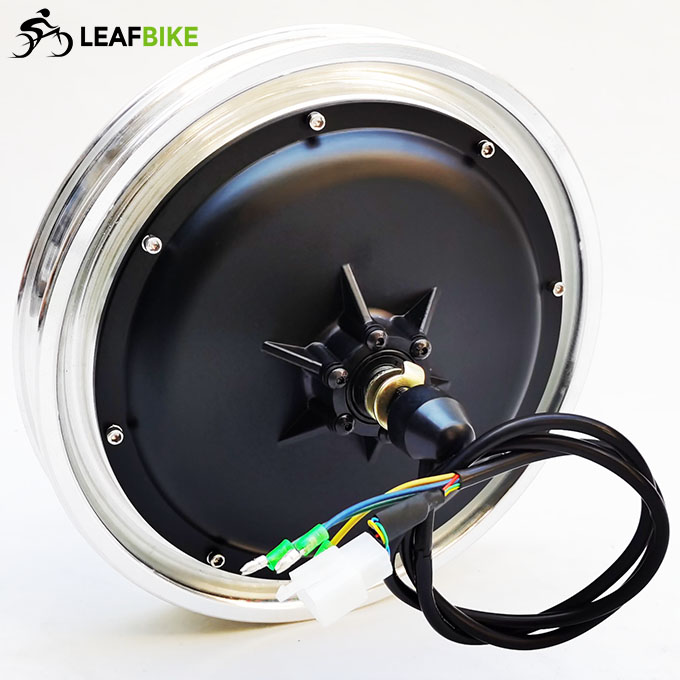

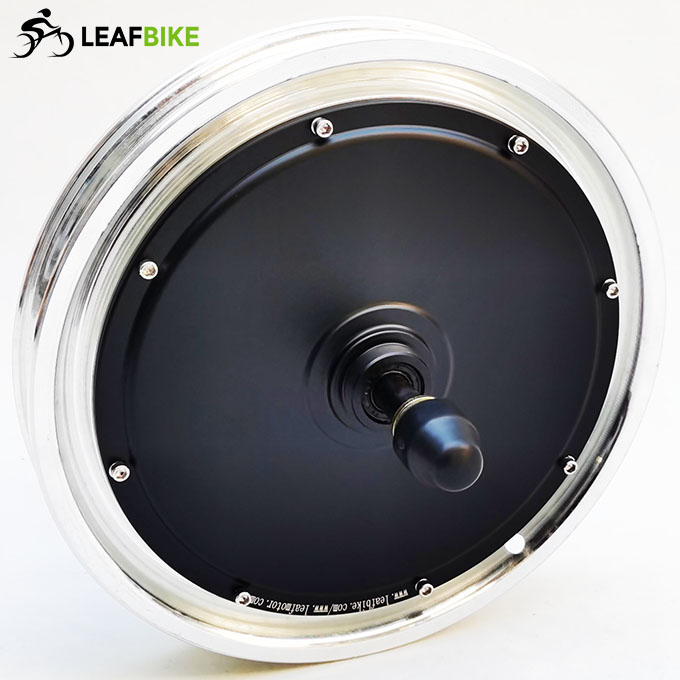

Hub: Ø271mm Alloy casted hub (Hub Fit For: 14 × 2.125" ~ 2.5" tire)
>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 90.5%
>>. Max speed: 32kmh Default (Optional other speed: 15mph...)
>>. Mechanical brake: Disk or  V
>>. Freewheel / Cassette: space for 1 ~ 7 speed Default: install screw thread Sprocket (If install Cassette Sprocket,please leave message)
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

LCD-S830, More Function:
* Cruise -- Green switch to control
* Forward & Backwards (Optional) -- Yellow switch to control
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

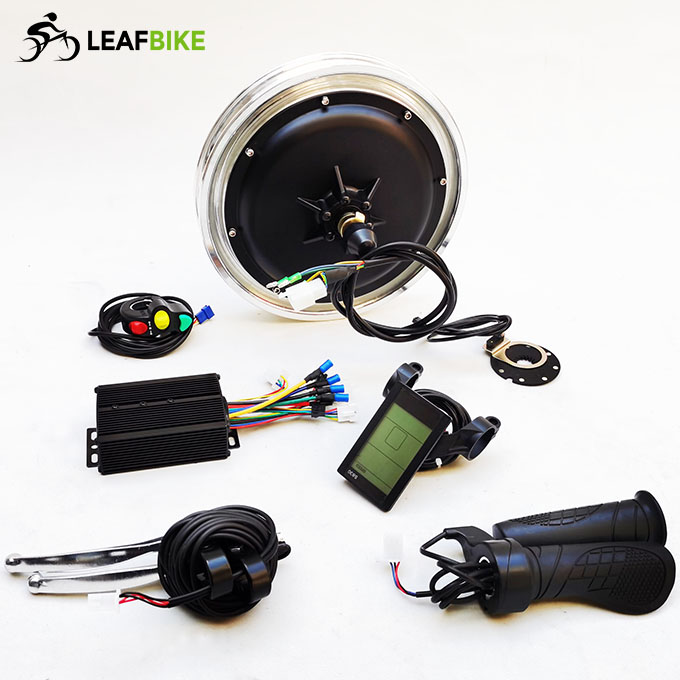

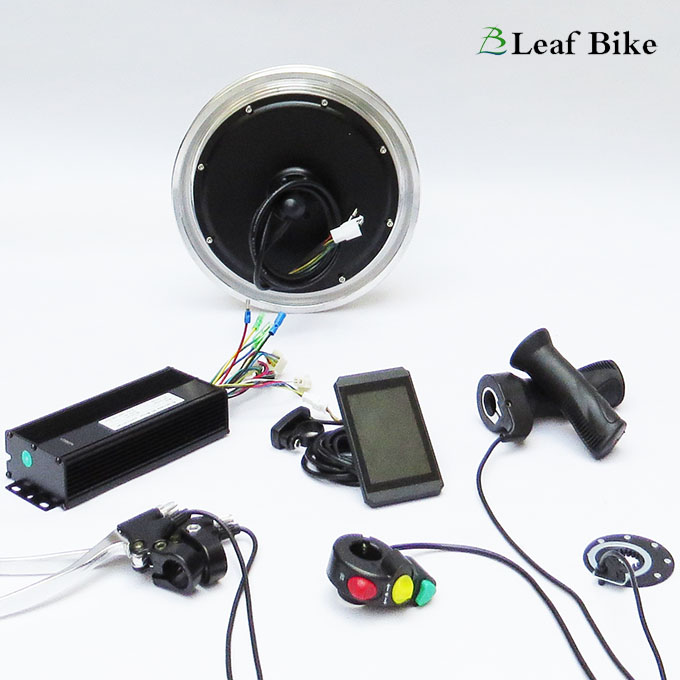

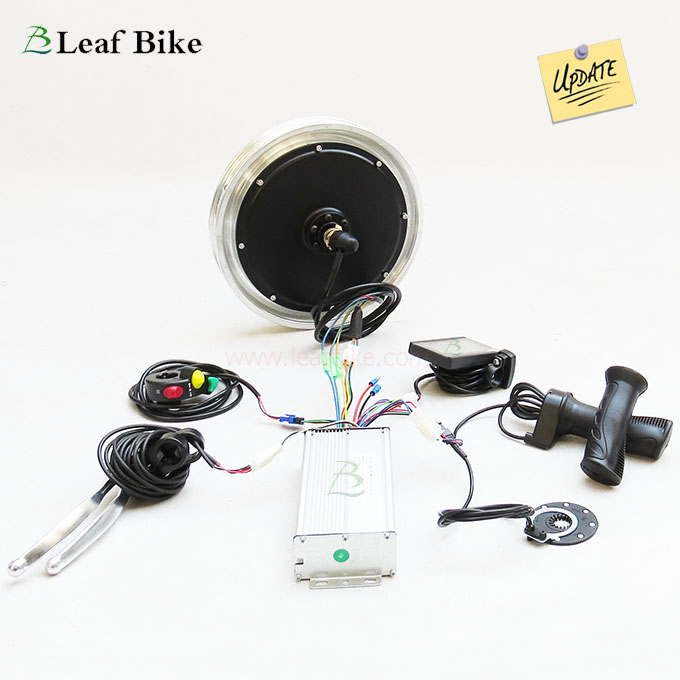

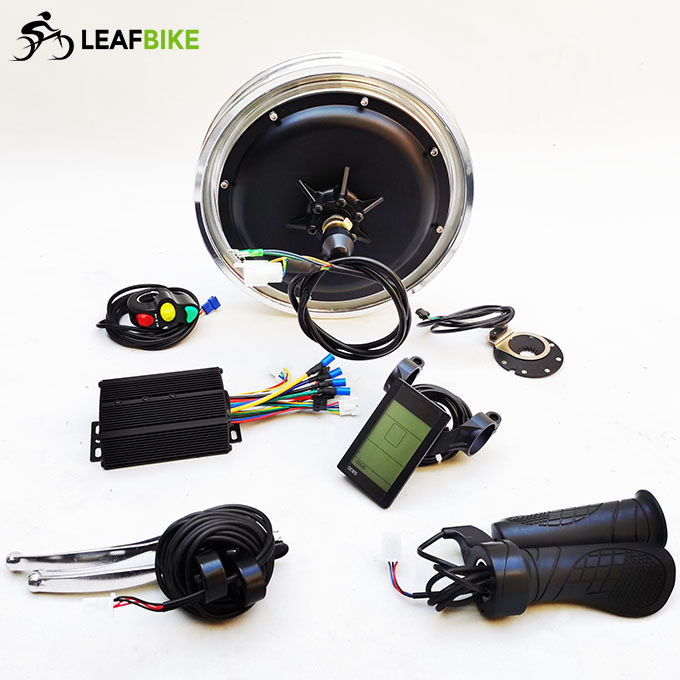

Package Content:
1 x 14 inch 36V 750W rear hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD-S830
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 9.0 kg   /  19.8 lbs
Package Size: 42cm L x 42cm W x 25cm H
Package Type: Cardboard Box
Wire Diagram:
14 inch rear bike motor kit wire diagram

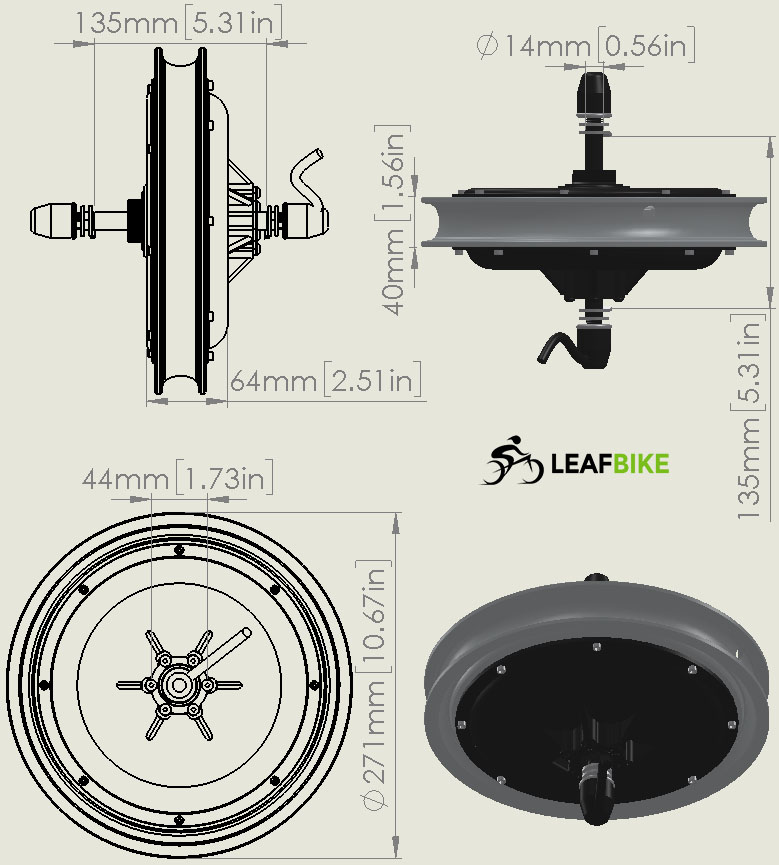

14 inch rear Drw.
14 inch rear hub motor drawing
Performance Data:
