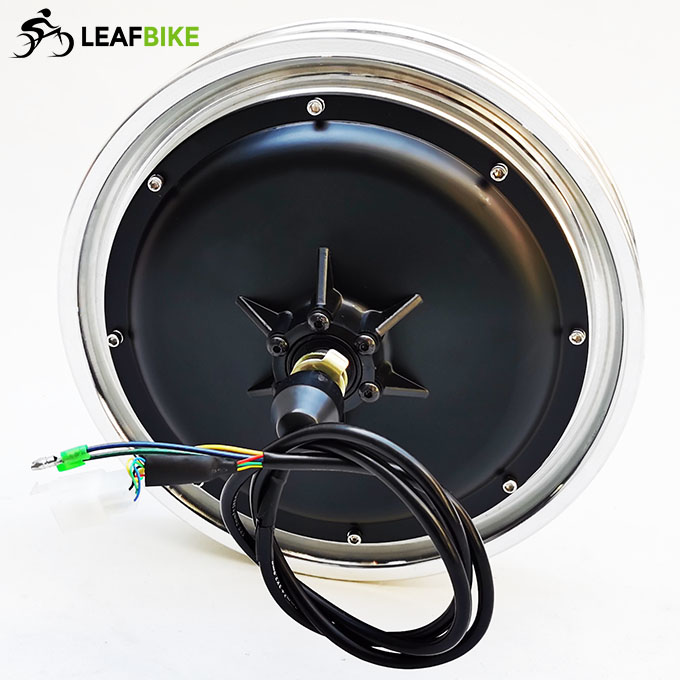

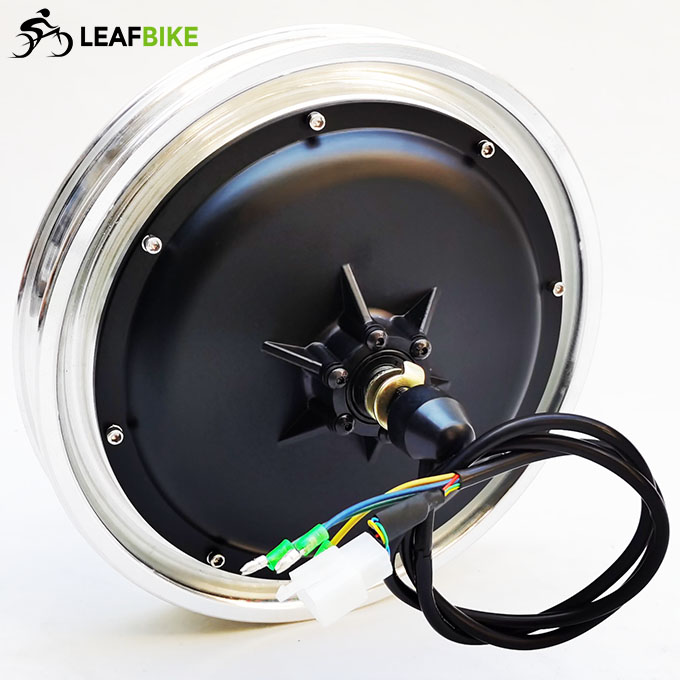

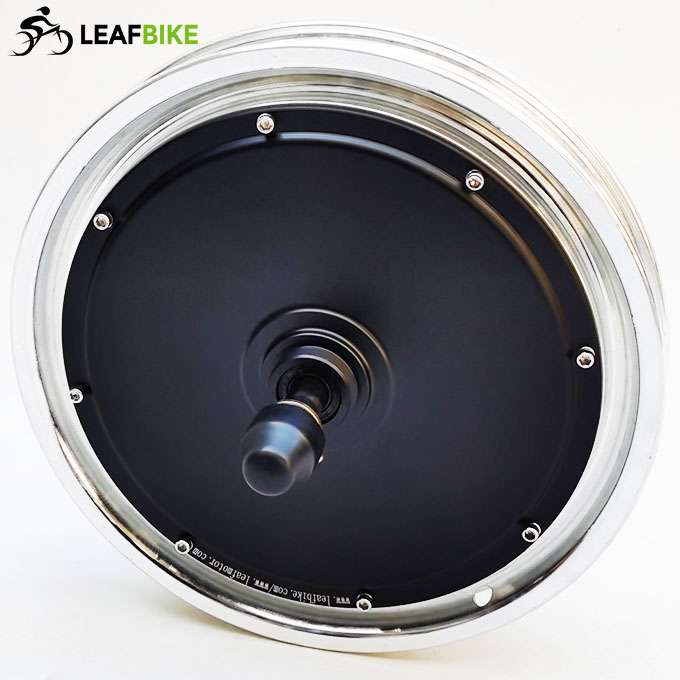

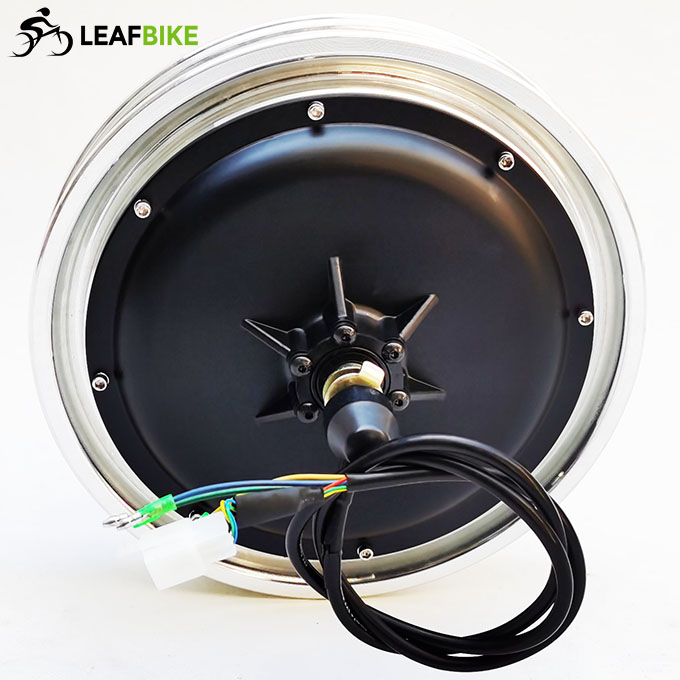

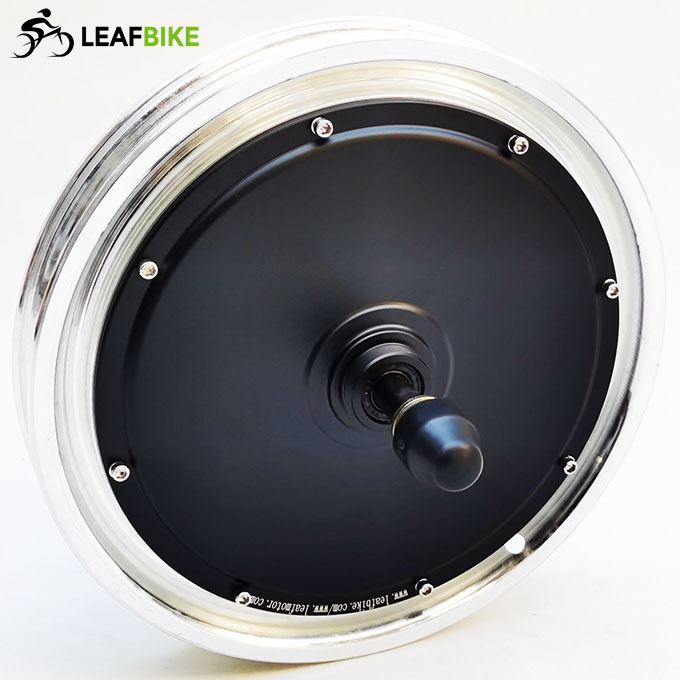

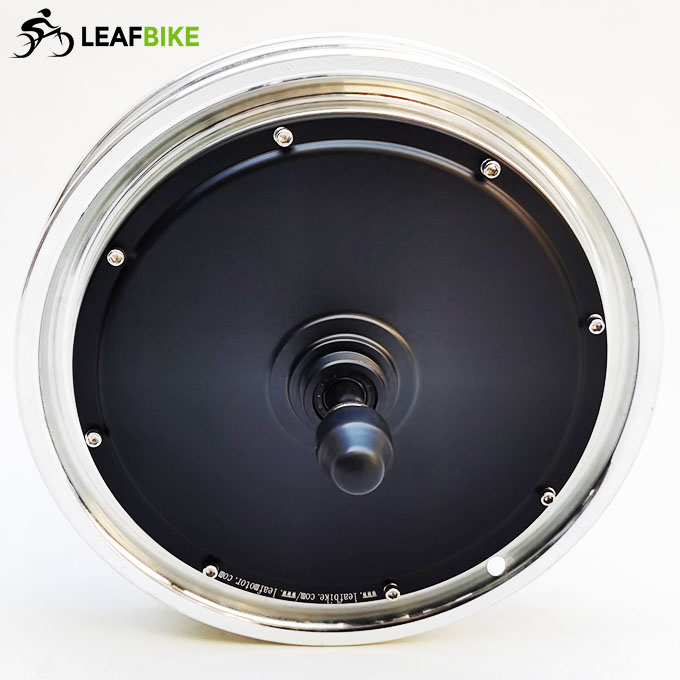

14 inch 36V 750W rear casted hub motor - bike conversion kit

Name: 14 inch 36V 750W rear casted hub motor - bike conversion kit
Brand: Leaf Bike
SKU: LBCK1436750RNK
Price: 313 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK1436750RNK

$313.00 ~~$357.00~~

Maybe You Need These

Description

This 14 inch scooter motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
Hub: Ø271mm Alloy casted hub (Hub Fit For: 14 × 2.125" ~ 2.5" tire)

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 90.5%
>>. Max speed: 37.3 kmh -- 23.1 mph Default (Optional other speed: 15mph...)
>>. Mechanical brake: Disk or V
>>. Freewheel / Cassette: space for 1 ~ 7 speed Default: install screw thread Sprocket (If install Cassette Sprocket,please leave message)
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise -- Green switch to control
* Forward & Backwards (Optional) -- Yellow switch to control
* Kmh & mph (Optional)
* Pedal assist ( 0 - 5 )
* Battery gauge
* ...

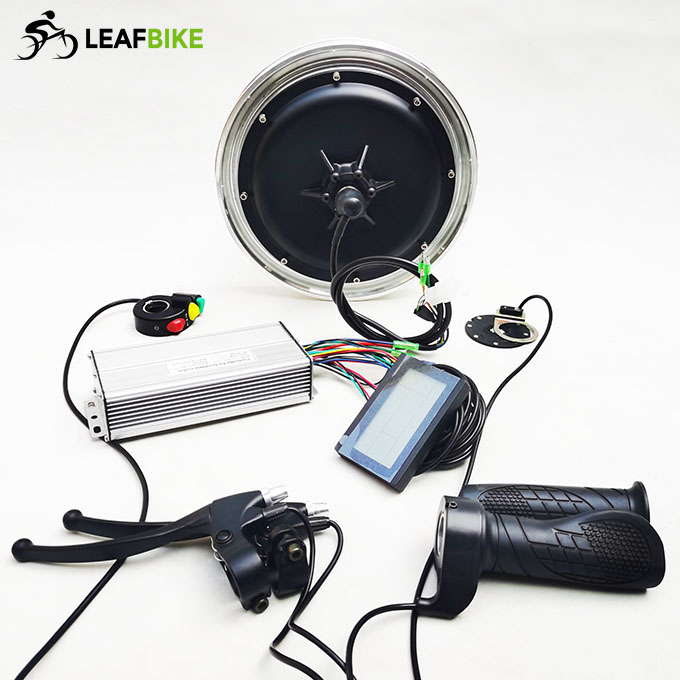

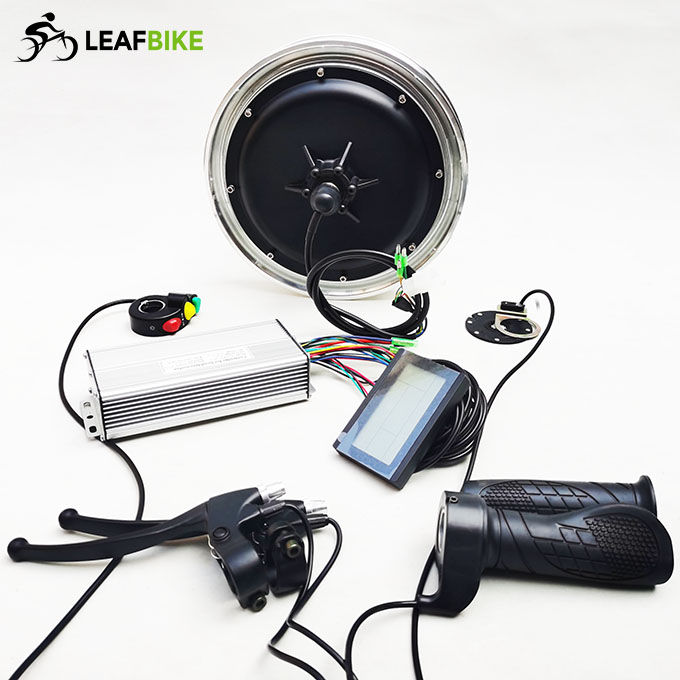

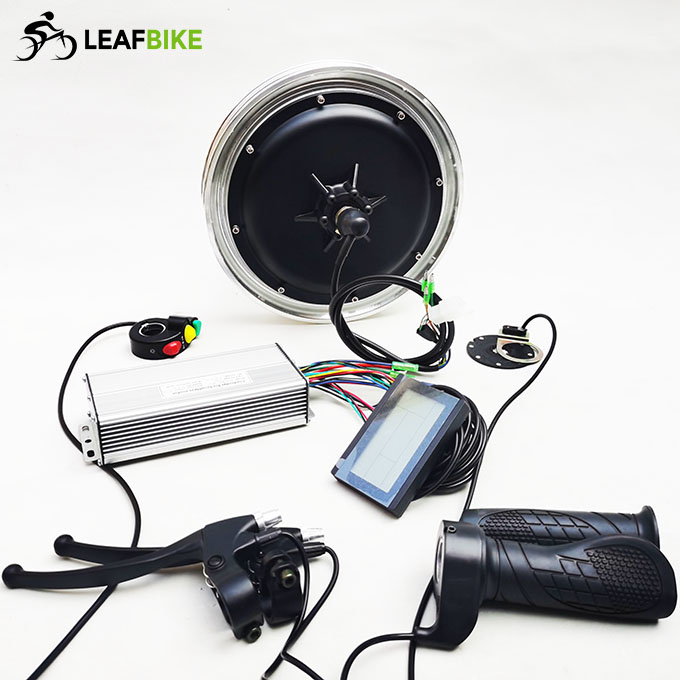

Package Content:
1 x 14 inch 36V 750W rear hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 9.1 kg
Package Size: 42cm L x 42cm W x 25cm H
Package Type: Cardboard Box

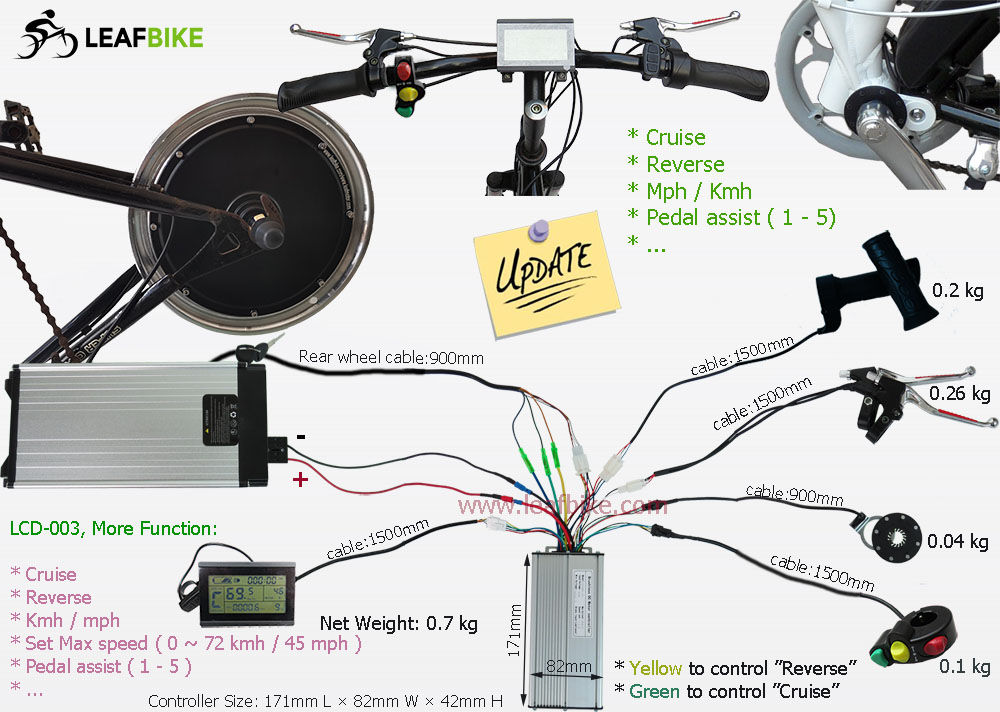

Wire Diagram:

14 inch rear Drw.
