12 inch 36V 400W front scooter motor kit

Item ID #LBCK1236400FL
$381.00 $470.00
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These

This 12 inch scooter motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

** This 12 inch front system can work forward & Backward.

Main Features:
Hub: Ø218mm Casted Alloy (Hub Fit For: 12 × 2.125" ~ 2.5" tire)
Motor: electric scooter motor
Controller: With LCD - 008HU
Max speed: 25.9kmh / 16 mph
Mechanical brake: V or Disk
Install: spacing of 100mm front fork (Min.100mm ~ Max.115mm)

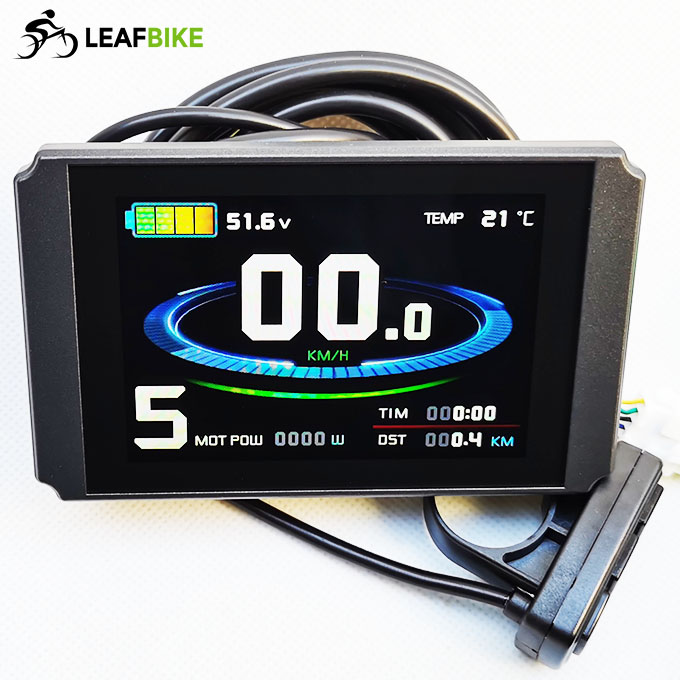

LCD-008HU With USB Port & Color screen , More Function:
* Cruise
* Reverse
* Regen brake
* Kmh / mph
* Set Max speed
* Pedal assist ( 1 - 5 )
* ...

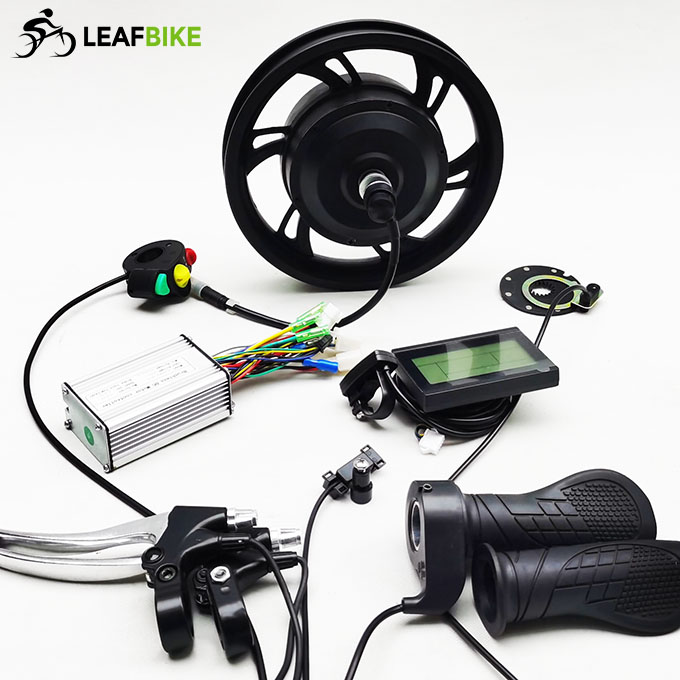

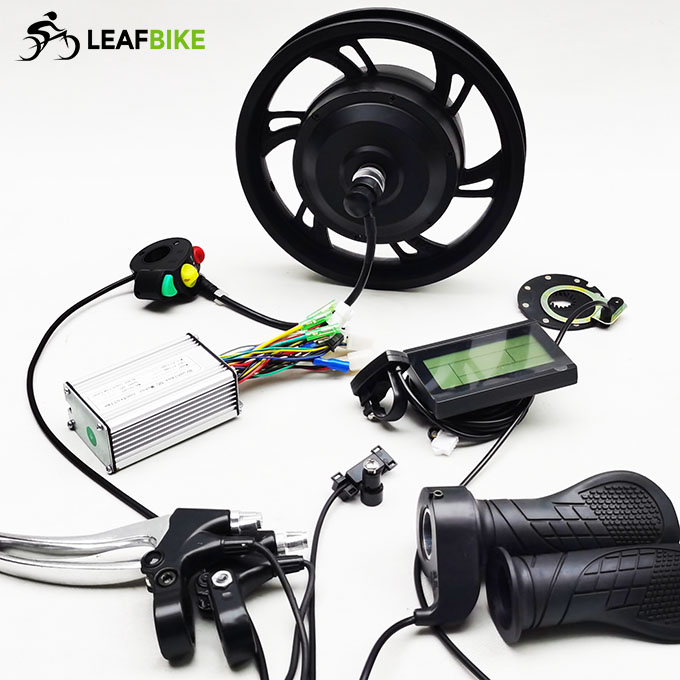

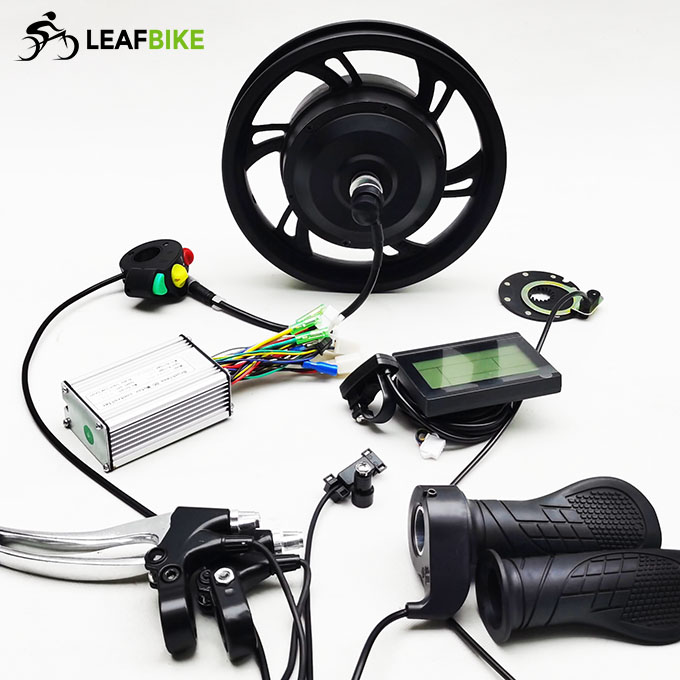

Package Content:

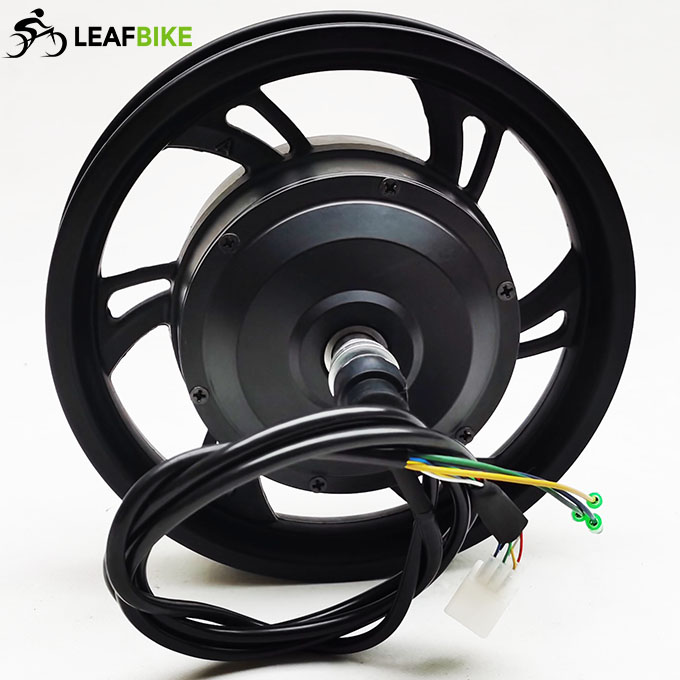

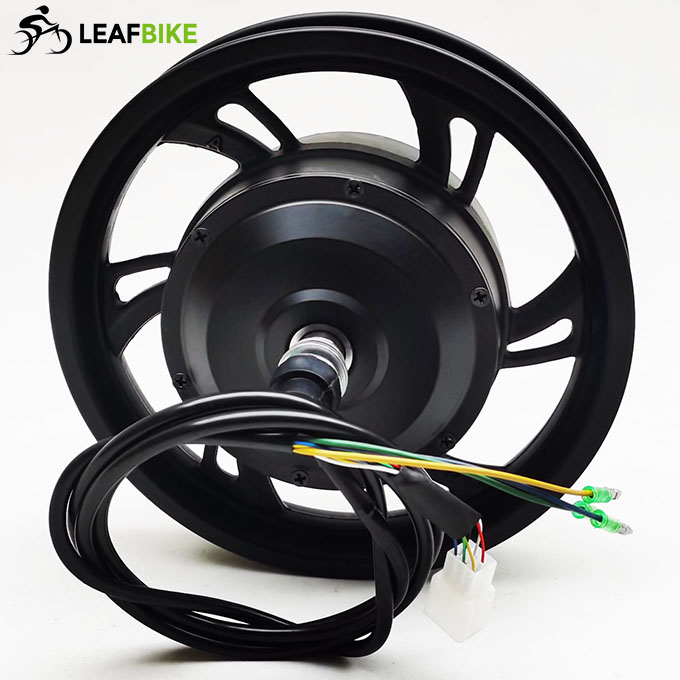

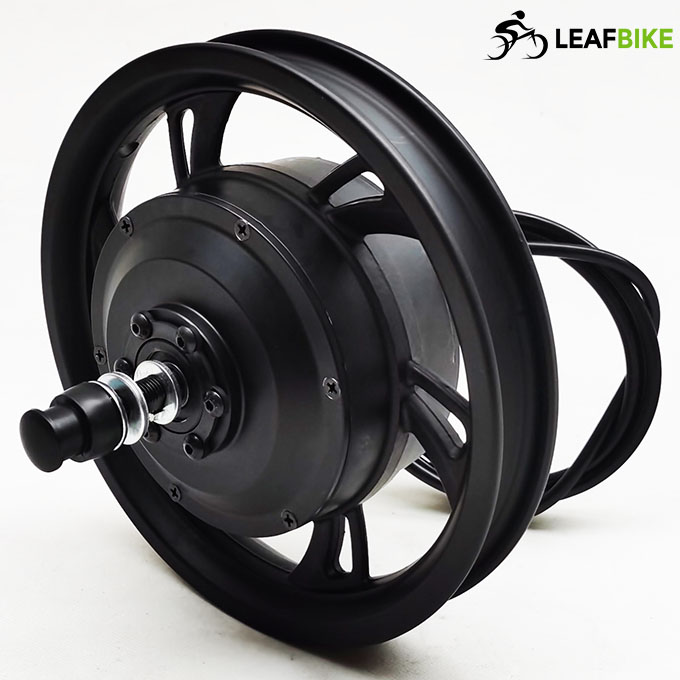

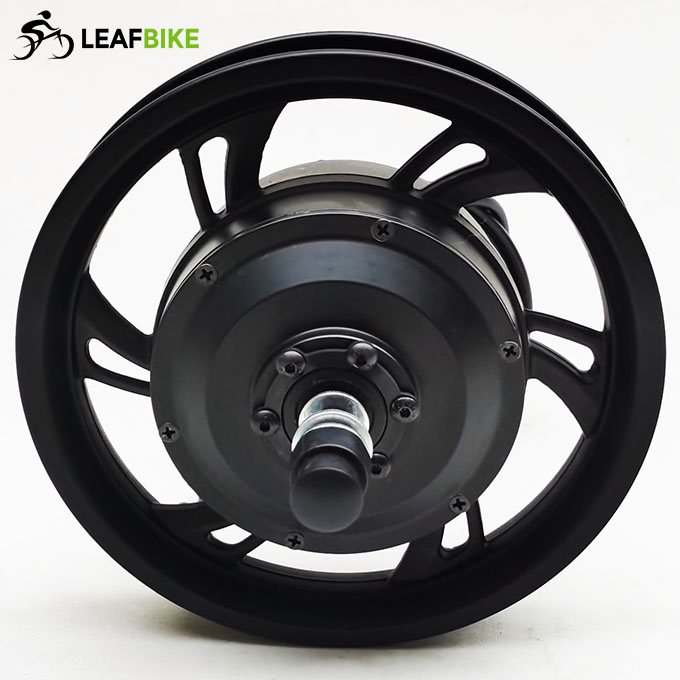

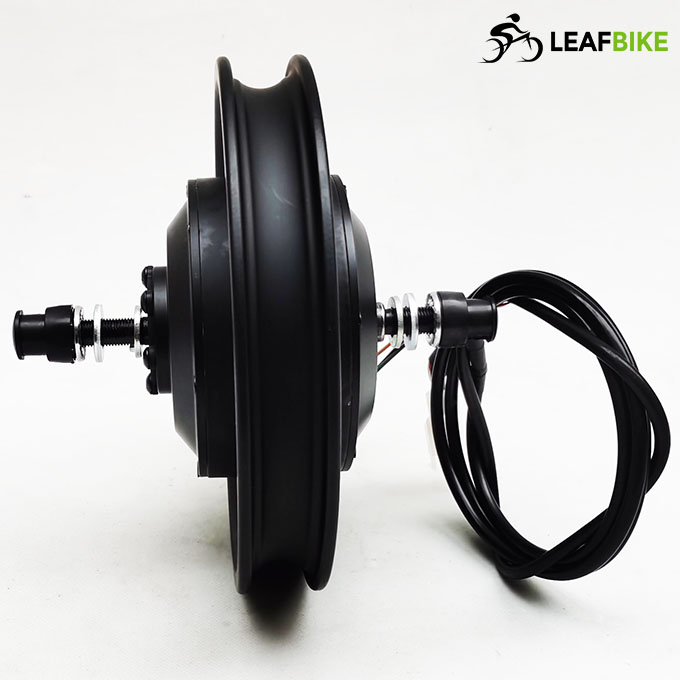

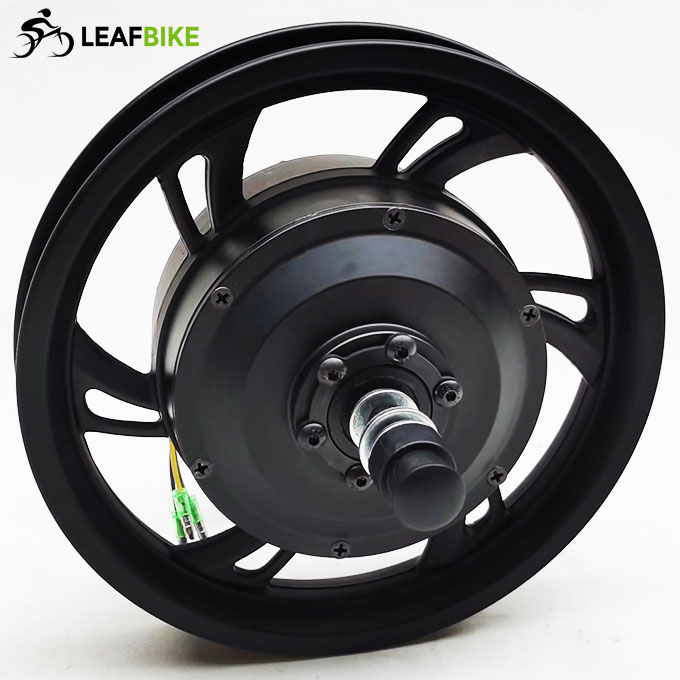

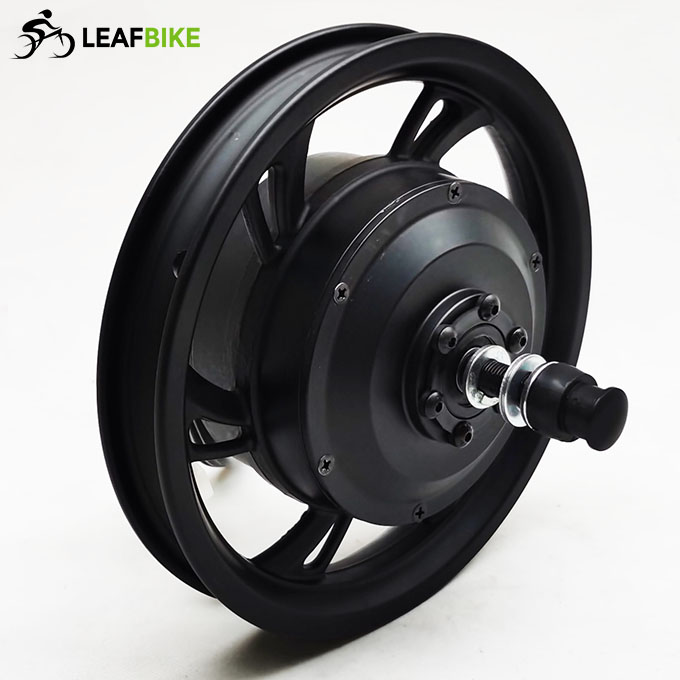

1 x 12 inch 36V 400W front hub motor wheel
1 x 36V
6-MOSFET motor controller
1 x LCD-008HU With USB Port & Color screen
1 x Twist throttle
1 x Brake lever
1 x Three button switches ( control cruise, regen brake, reverse .. )
1 x Pedal assist

Net Weight: 6.6 kg / 14.5 lbs
Package Size: 27mm L x 20mm W 40mm H
Package Type: Cardboard Box

Share Video:
12 inch electric scooter motor kit video
Wire Diagram:
12 inch front electric scooter motor drawing
12 inch Front Drw.
