26 inch 72V 2500W rear hub motor - Beach Snow Fat bike conversion kit

Name: 26 inch 72V 2500W rear hub motor - Beach Snow Fat bike conversion kit
Brand: Leaf Bike
SKU: LBCK26722500RSK
Price: 478 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK26722500RSK

$478.00 ~~$527.00~~

Maybe You Need These

Description

The 26 inch fat bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun. Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
This 26 inch fat bike conversion kit works with a 72V battery.

Main Features:

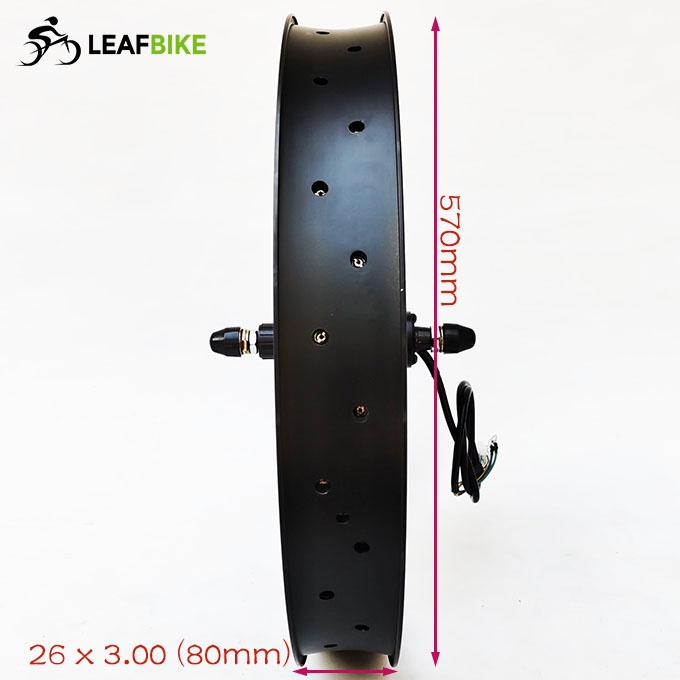

>. Rim: 26 × 3 inch double wall Alloy (Rim Fit For: 26 × 4.00" tire)
>. Spoke: 12 gauge / 159mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 72V
>>. Power: 2500W
>>. Efficiency: 90.5%
>>. Max speed: 72.9 kmh -- 45.2 mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Sprocket: Freewheel or Cassette
>>. Cable location: shaft end, LEFT
>>. Cable length: 100cm / 40"
>>. Rear frame fork / Install: spacing of 170mm or 190mm
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 72 Volts
>>. Min. Voltage: DC 60 ± 0.5 V
>>. Rated power: 2500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 55A ± 2 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H

With LCD-007, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 72 kmh / 45mph )
* Pedal assist ( 0 - 5 )
* Battery gauge
* ...

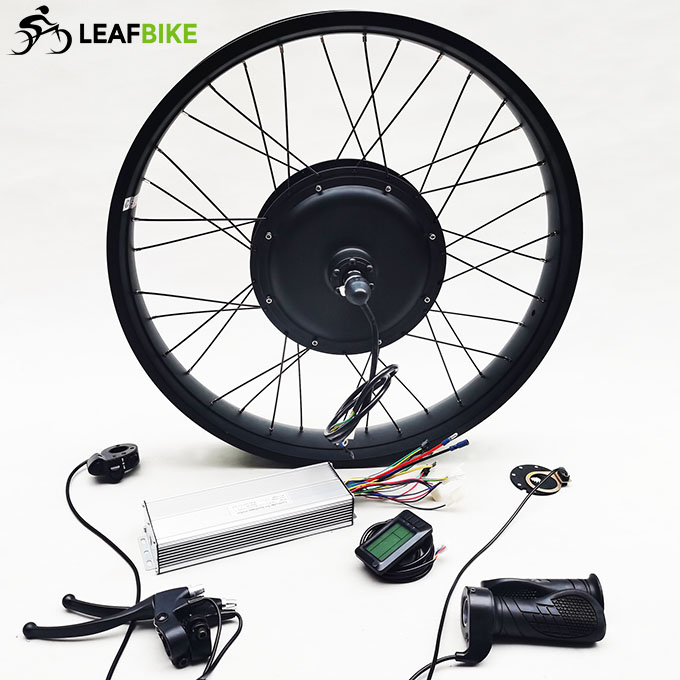

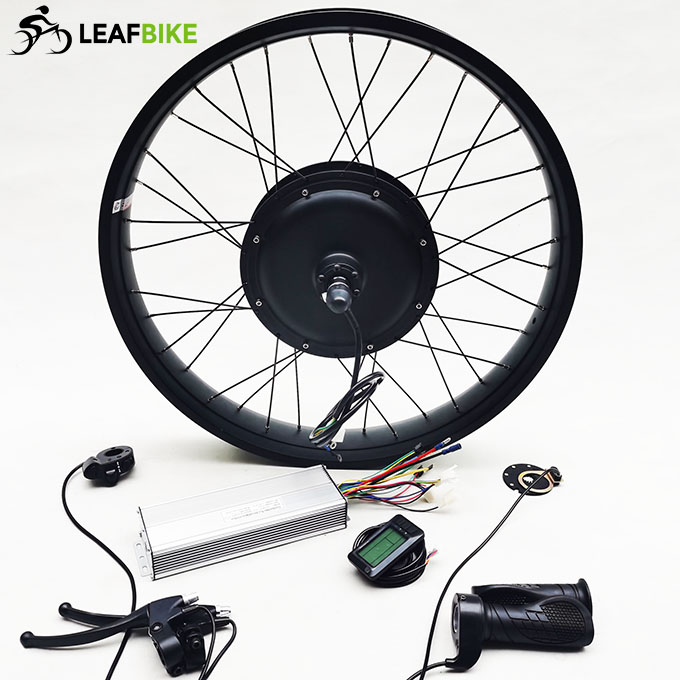

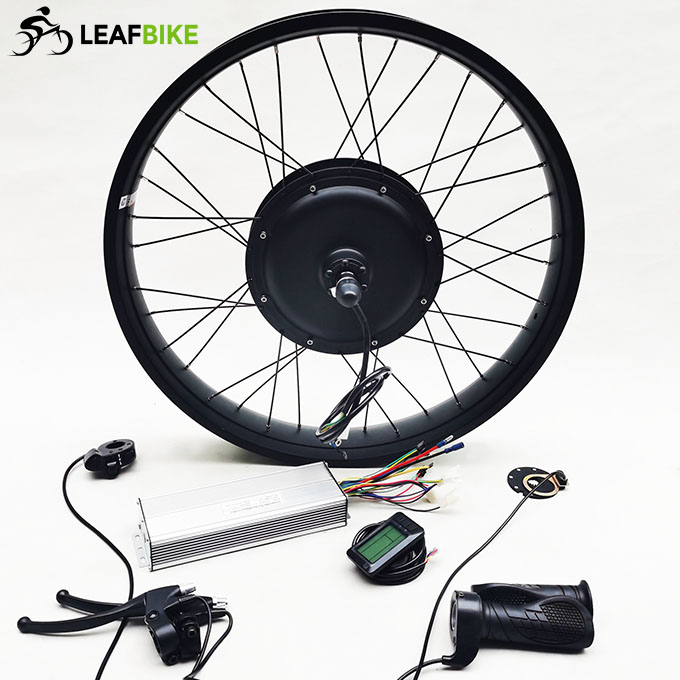

Package Content:

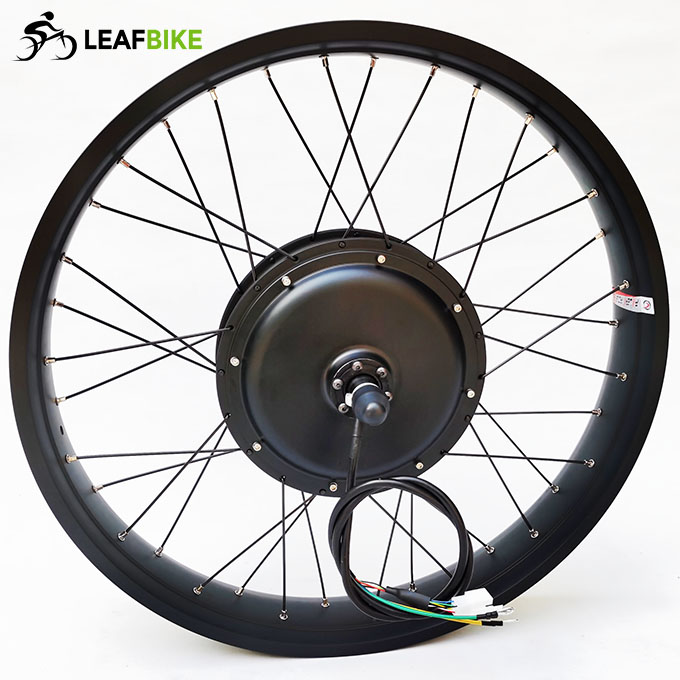

1 x 26 inch 72V 2500W rear fat hub motor wheel - (Fit for 26 × 4.00" fat tire / snow / beach)
1 x 60V 18-MOSFET motor controller
1 x LCD-007
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 12.2 kg
Package Size: 62cm L x 62cm W x 28cm H
Package Type: Cardboard Box

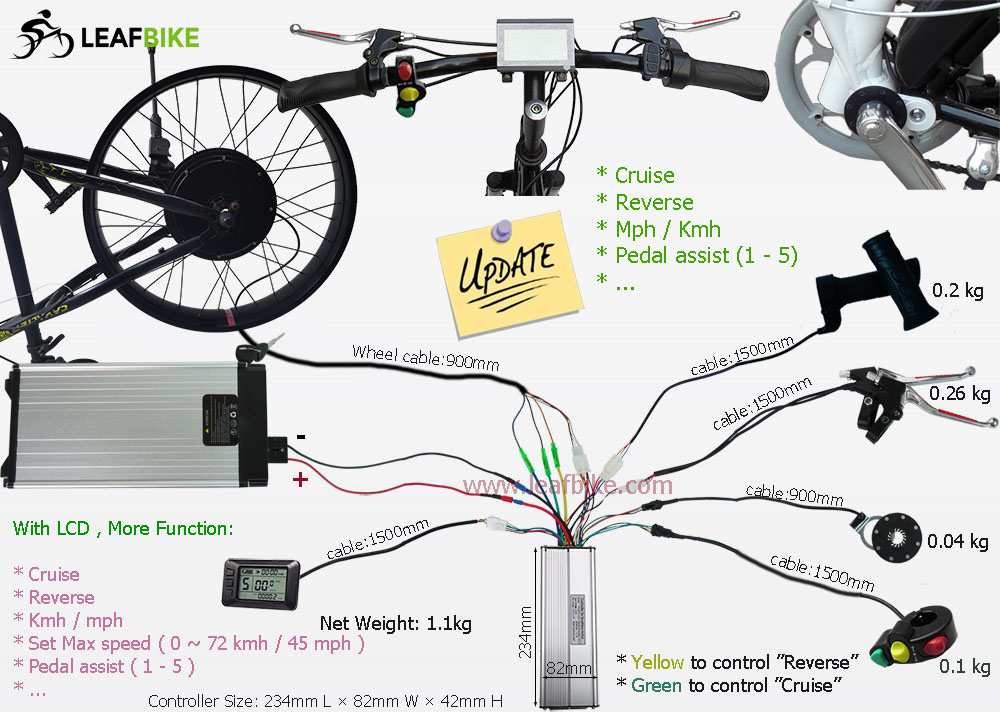

Wire Diagram:

170mm Freewheel:

170mm Cassette:

190mm dropout Drw.

190mm dropout beach snow fat bike motor drawing
