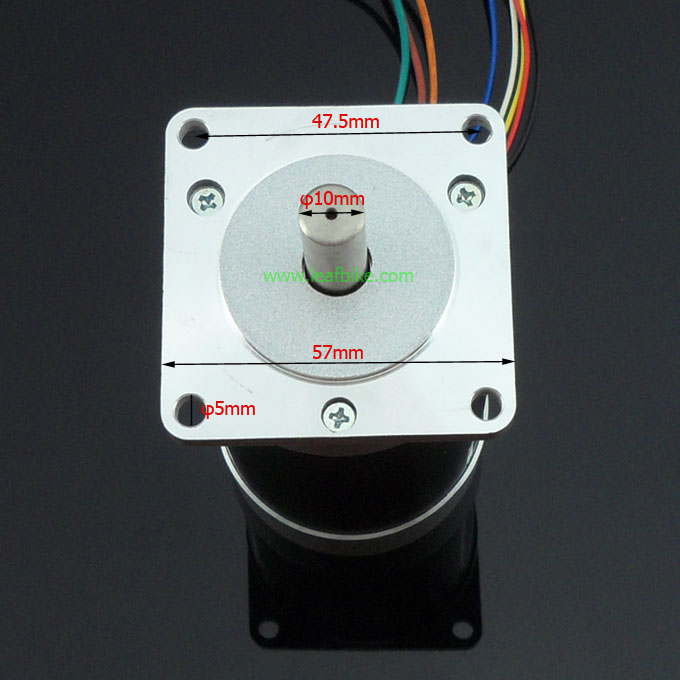

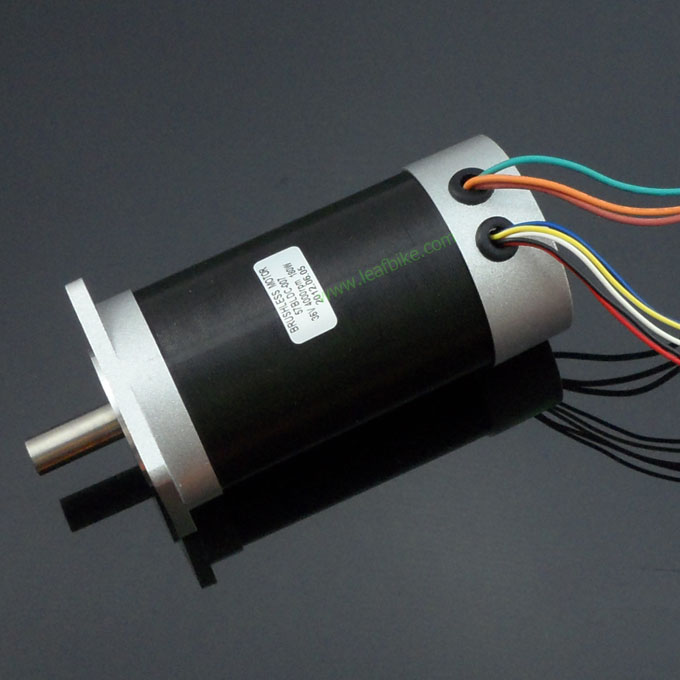

| Item | Specification |
| Winding type | Delta |
| Hall effect angle | 120 degree electriacl angle |
| Shaft run out | 0.025mm |
| Radial play | [email protected] |
| End play | [email protected] |
| Max.radial force | [email protected] from the flange |
| Max.axial force | 15N |
| Insulation class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation resistance | 100MΩMin.500VDC |
| Lead No. | Lead Color | Lead Gauge | Function | Description |
| 1 | Red | UL1007/26AWG | VCC | Supply voltage for all sensors |
| 2 | Black | GND | Ground for hall sensors | |
| 3 | Yellow | Hall A | ------ | |
| 4 | White | Hall B | ------ | |
| 5 | Blue | Hall C | ------ | |
| 6 | Orange | UL1007/20AWG | Phase U | ------ |
| 7 | Green | Phase V | ------ | |
| 8 | Brown | Phase W | ------ |
| Model No. | No.of Phase |
Rated Voltage VDC |
Line to line resistance Ohms |
Rated Speed RPM |
Rated Torque N.m |
Max Torque N.m |
Rated Power W |
Back W.M.F V/KRPM |
Mass Kg |
Body Length mm |
| BL57001 | 3 | 36 | 4.1 | 4000 | 0.055 | 0.16 | 23 | 5.55 | 0.35 | 42 |
| BL57002 | 3 | 12 | 1.0 | 2945 | 0.02 | 0.13 | 6 | 3.0 | ||
| BL57003 | 3 | 24 | 1.9 | 1600 | 0.188 | 0.28 | 31 | 4.5 | 0.5 | 52 |
| BL57004 | 3 | 36 | 1.05 | 6000 | 0.08 | 0.25 | 50 | 3.35 | ||
| BL57005 | 3 | 36 | 0.7 | 4000 | 0.22 | 0.7 | 92 | 6.6 | 0.75 | 72 |
| BL57006 | 3 | 36 | 0.45 | 4000 | 0.32 | 1.0 | 133 | 6.6 | 1.0 | 92 |

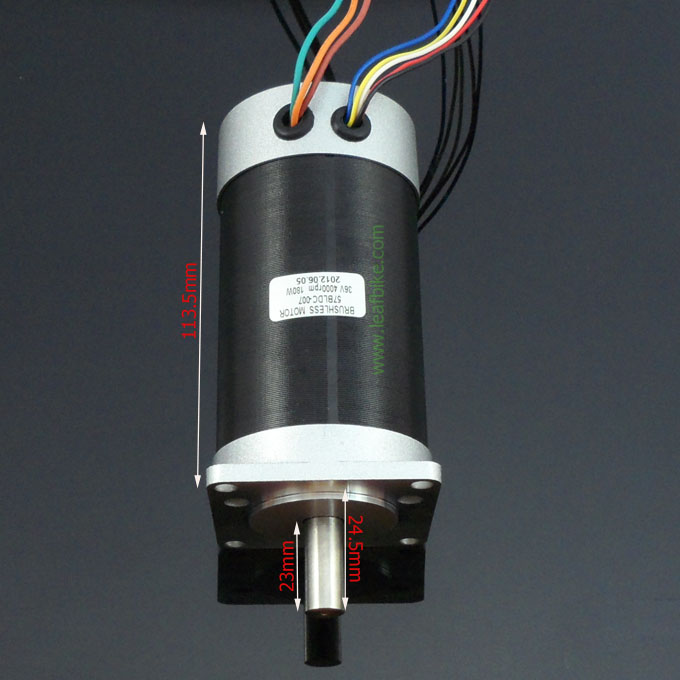

| BL57007 | 3 | 36 | 0.35 | 4000 | 0.43 | 1.27 | 180 | 6.6 | 1.25 | 112 |
