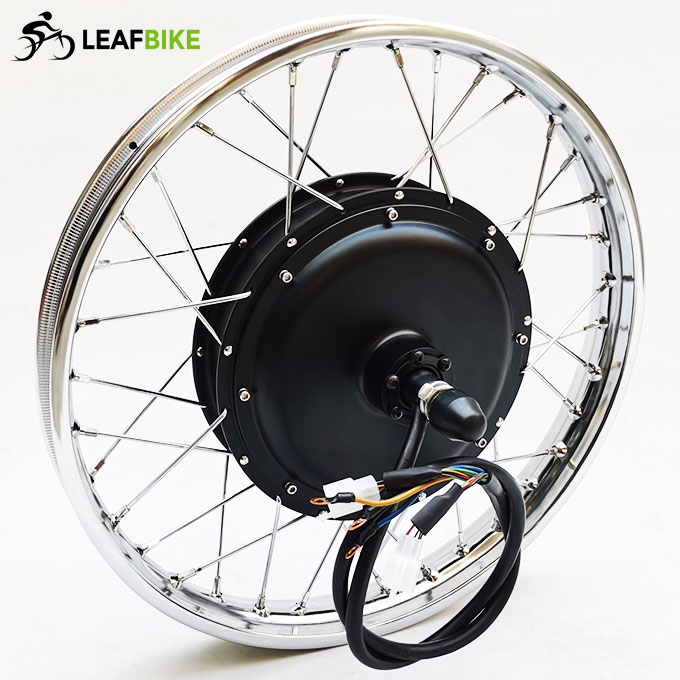

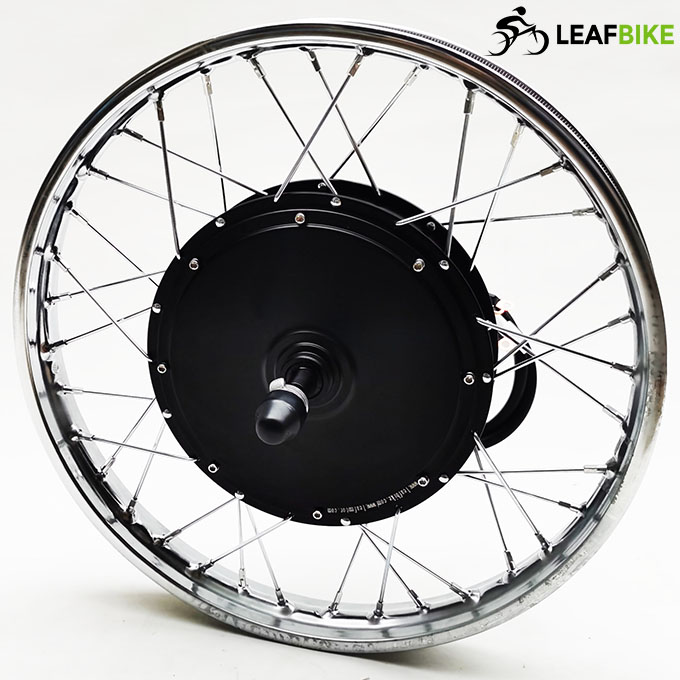

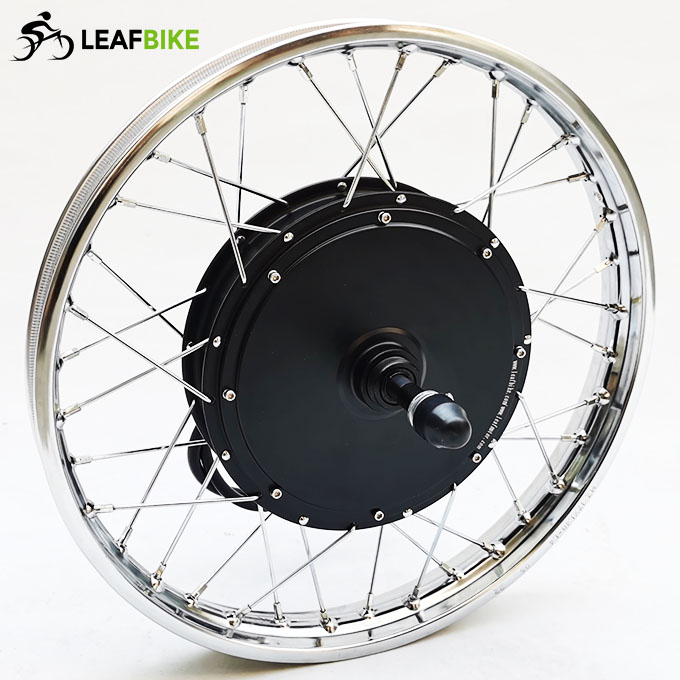

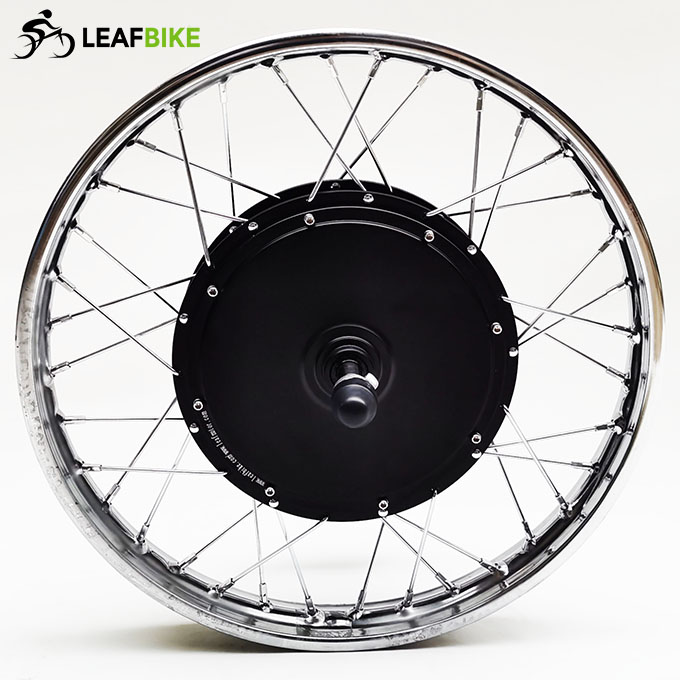

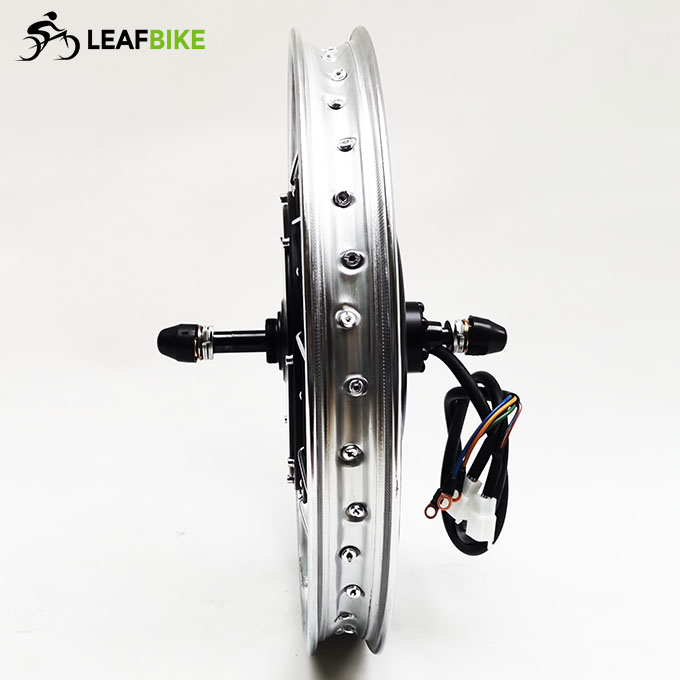

1.4 - 17 inch 48V 52V 2000W rear electric motorcycle motor kit

Item ID #LBCK482000R1.4-17
$550.00 $580.00
    Please select the information you wantX
  • Dropouts :
    190mm
    170mm
    135mm
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
Please watch videos for 17 inch 48V 52V 2000W rear electric motorcycle motor kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
2000w 170mm:
2000w 190mm:
135mm dropout:

* The 1.4 - 17 inch electric motorcycle motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
>. Rim: 1.4 × 17" wall Alloy
>. Spoke: 105mm 10 gauge × 36 pcs
>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 2000W
>>.  Efficiency: 90.5%
>>.  Max speed: 67.4 kmh -- 42 mph @ 48V Default (Optional other speed: 30mph or 25mph,15mph...)
>>.  Mechanical brake: Disk
>>.  Freewheel: Single speed
>>.  Cable location: shaft middle, Right disc side / 6mm phase wire with 2 sets of hall sensor
>>.  Cable length:100cm / 40"
>>. Rear frame fork / Install: spacing of 190mm or 170mm or 135mm (190mm version Default or 170mm,135mm version optional)
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 2000 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 40 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 75 mm W × 38 mm H

LCD-S830, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

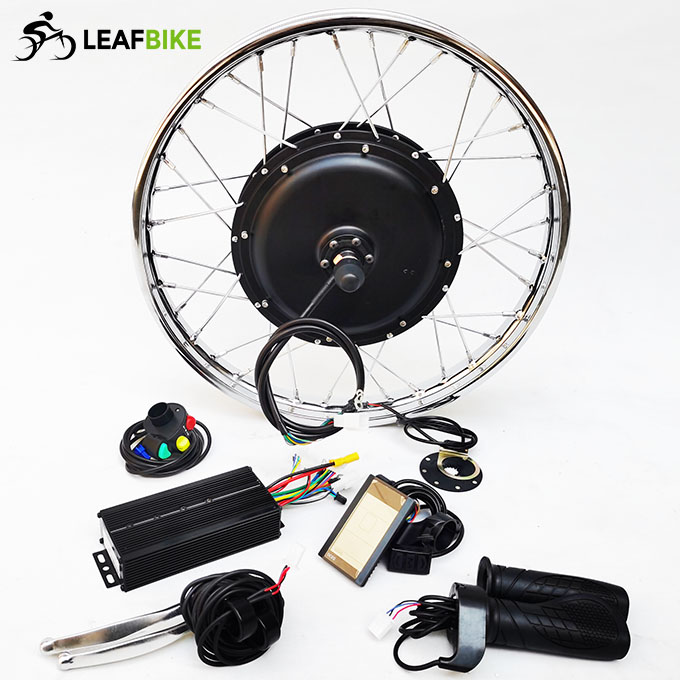

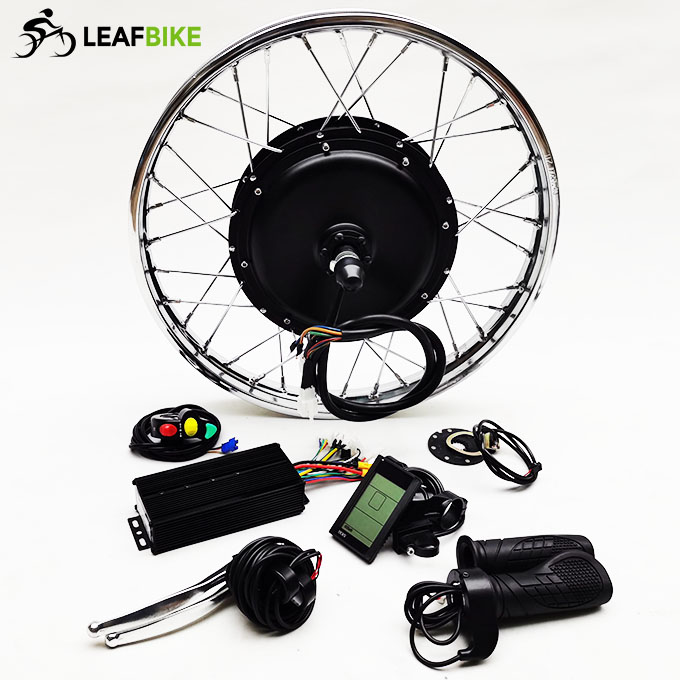

Package Content:

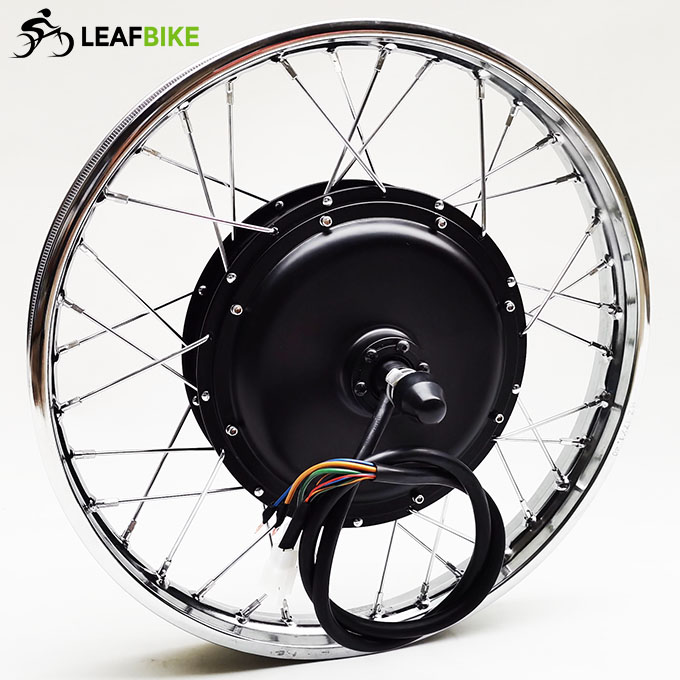

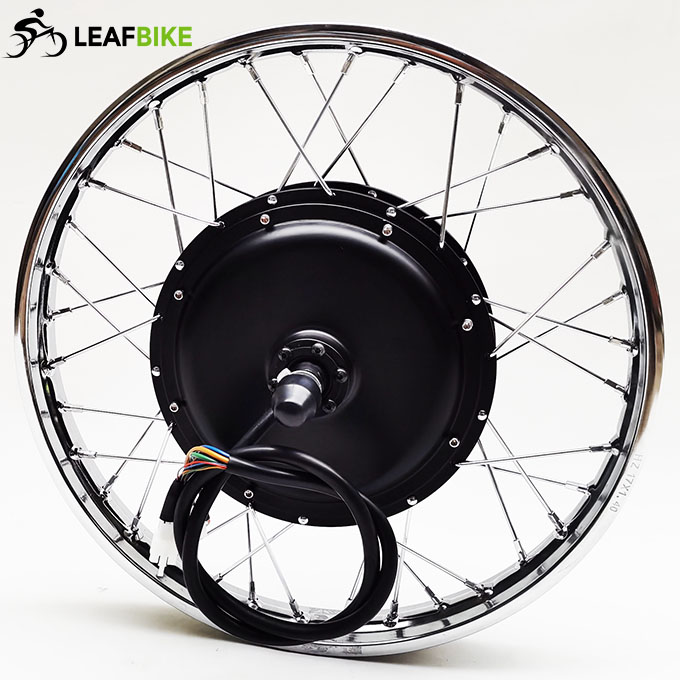

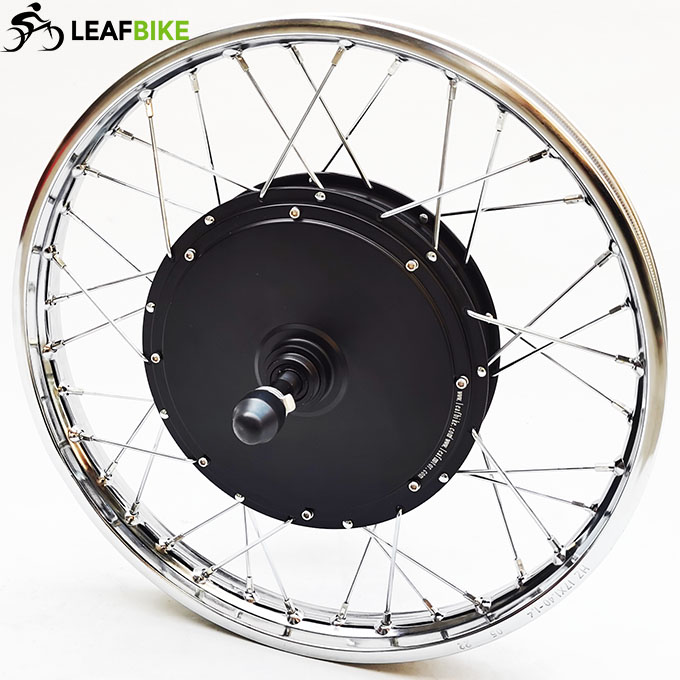

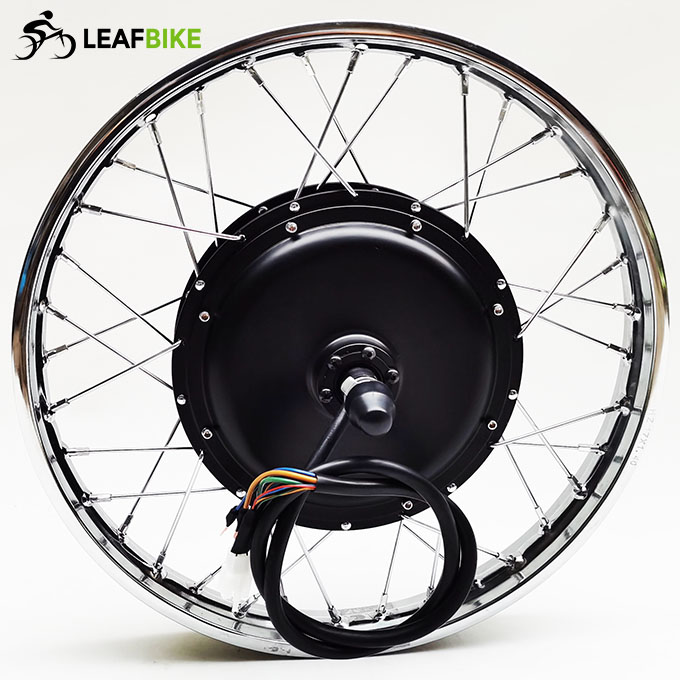

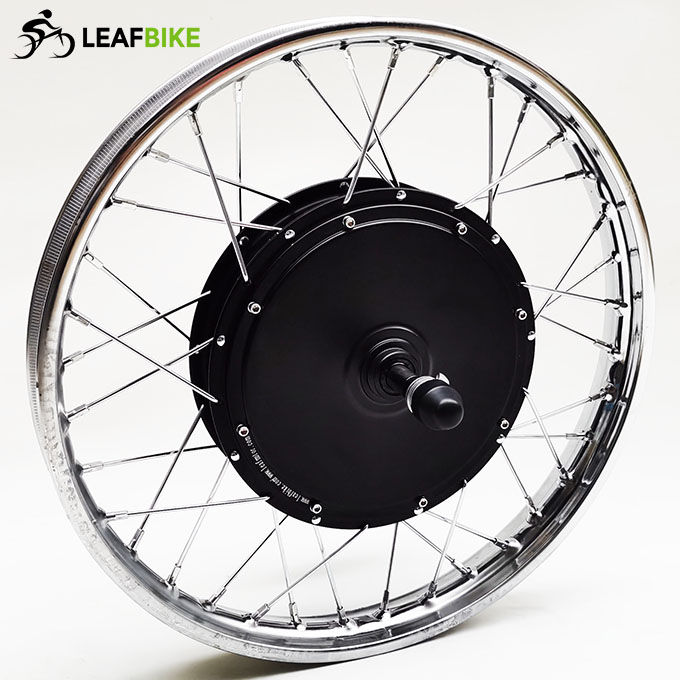

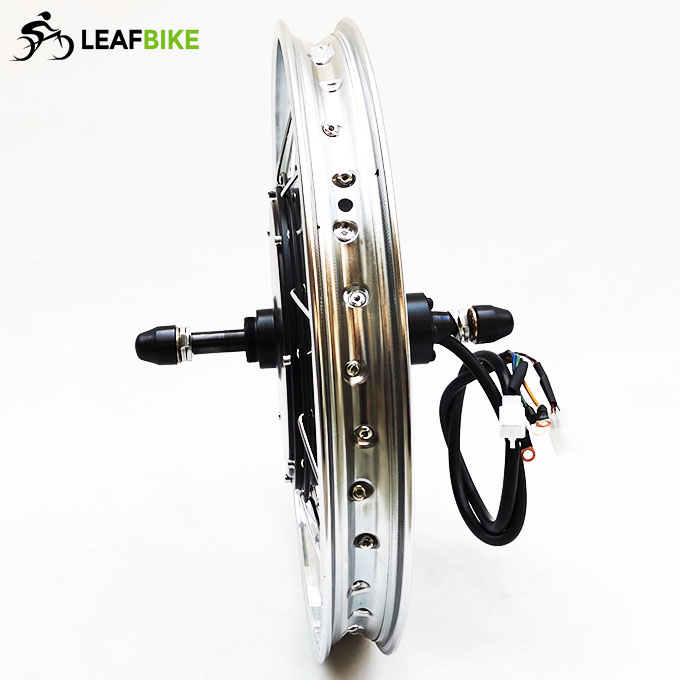

1 x 1.4 - 17 inch 48V / 52V 2000W rear electric motorcycle motor wheel
1 x 48V / 52V 18-MOSFET  motor controller
1 x LCD-S830 ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 14 kg   /  30.8 lbs
Package Size: 53cm L x 53cm W x 27cm H  /  20.9"  L x 20.9" W x 10.6" H
Package Type: Cardboard Box
Wire Diagram:
135mm Dropout Motor.2000w front electric motorcycle motor drawing
170mm Dropout Motor:170mm electric motorcycle motor drawing
190mm Dropout Motor:190mm electric motorcycle motor drawing
