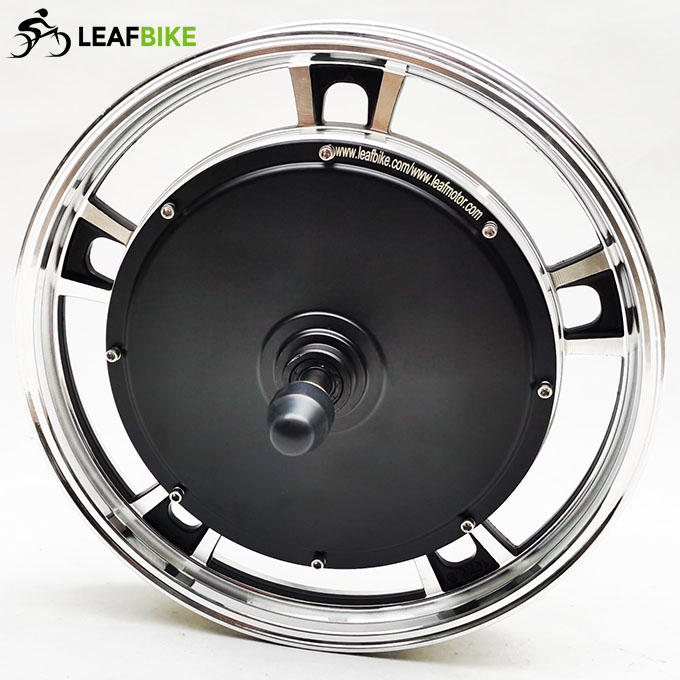

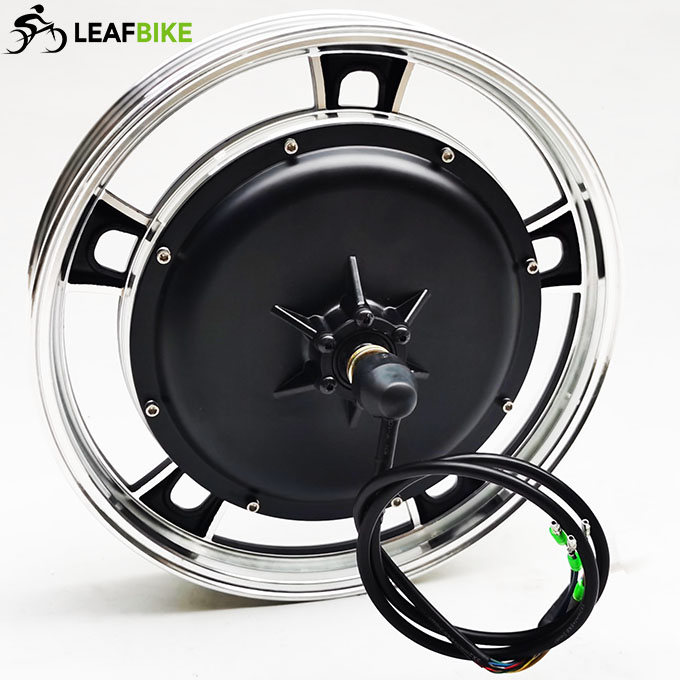

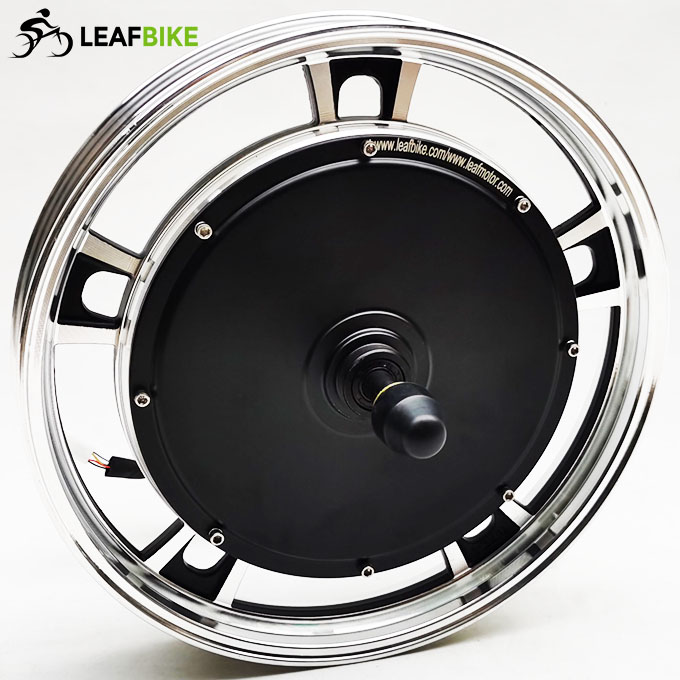

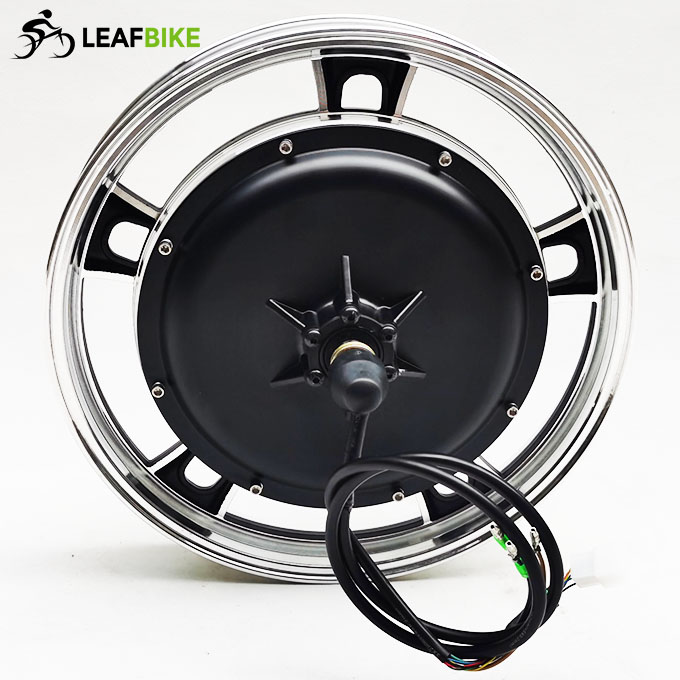

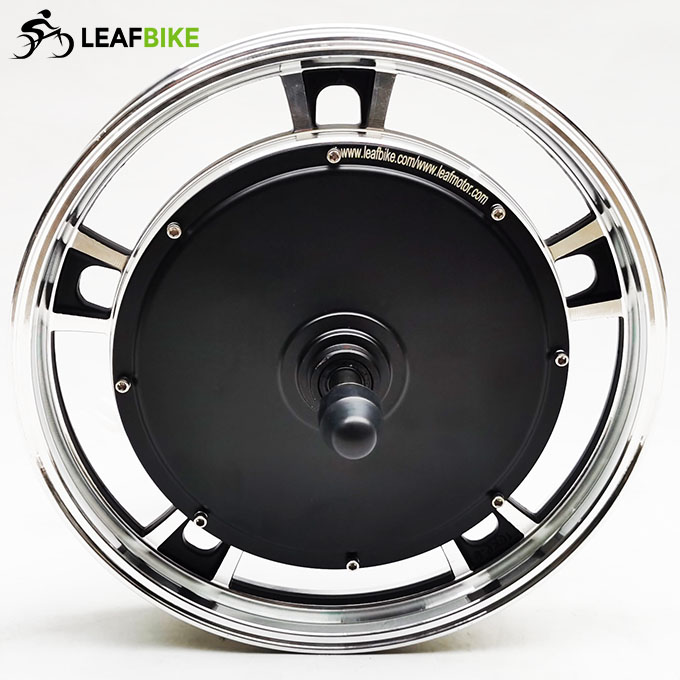

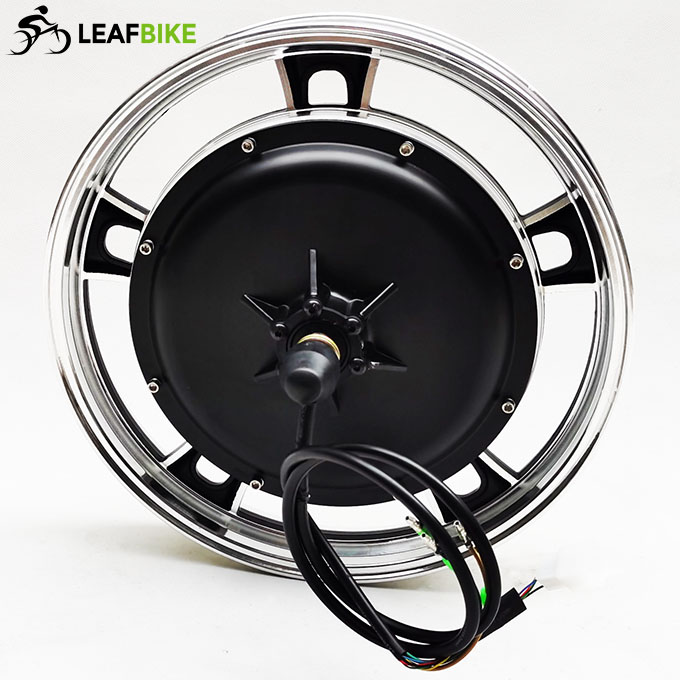

16 inch 48V / 52V 1000W rear hub motor wheel

Item ID #LBM16481KRN
$288.00 $340.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
Hub: Ø321mm Casted Alloy (Hub Fit For: 16 × 2.125" / 2.5" tire)
Motor Type: brushless gearless motor
Voltage: 48V
Power: 1000W
Efficiency: ≥ 90%
Max speed: 56.5 kmh -- 35.0 mph
Mechanical brake: V or Disk
Cable location: shaft end ,left
Cable length:100cm / 40"
Install: spacing of Min. 135mm ~ Max. 155mm fork
Noise: < 60 db
Surface: Black painted
Net weight: 7.35Kg / 16.2 lbs
Gross weight: 8.85Kg ( after packing )

Package Content:
1 x 16 inch 48V / 52V 1000W rear brushless hub motor
Package Size: 46cm L x 46cm W x 31cm H
 Package Type: Cardboard Box

Share Video:
16 inch 48v 1000w rear hub motor - electric bike conversion kit
Wire Diagram:
wire-diagram-16-inch-electric-hub-motor-kit
16 inch Rear Drw.
16-inch-rear-casted-electric-bike-motor-wheel-drawing
Performance Data:
1000w-hub-motor-curve-data
Share Video:
16 inch 48v 1000w rear electric bike kit
Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards,  your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
torque arm
