26 inch 48V 52V 1000W rear hub motor - bike conversion kit

This 26 inch bike motor kit combines the full Electric bike technology: direct drive Brushless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

 Main Features:
Rim: 26 inch Alloy (Rim Fit For: 26 × 1.5" / 1.75" / 1.95" tire)
Hub motor: brushless gearless dc motor
Controller: LCD display
Max speed: 35mph
Mechanical brake:  V or Disk
Install: spacing of 135mm fork

LCD-S830 , More Function:
* Cruise
* Reverse
* Kmh / mph
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Speed ( 0 - 5 ) -- "0" is off. "1" is the slowest. "5" is the fastest.
* ...

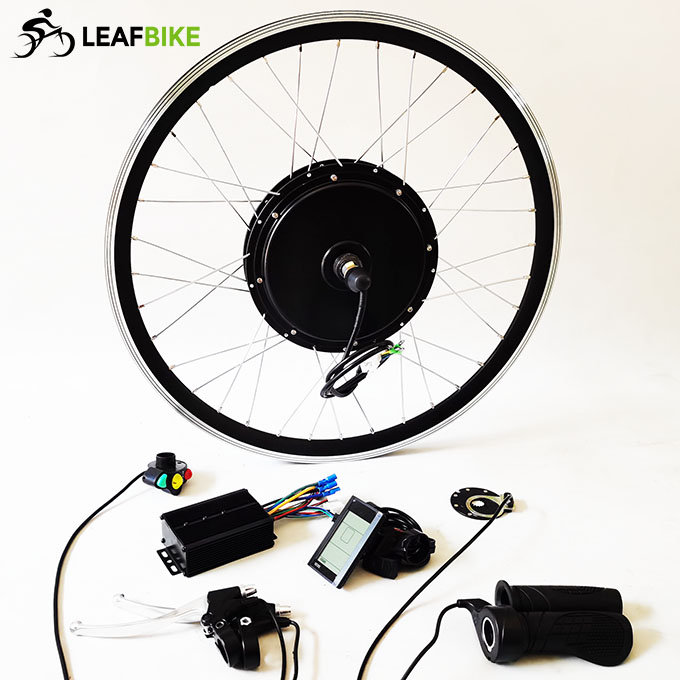

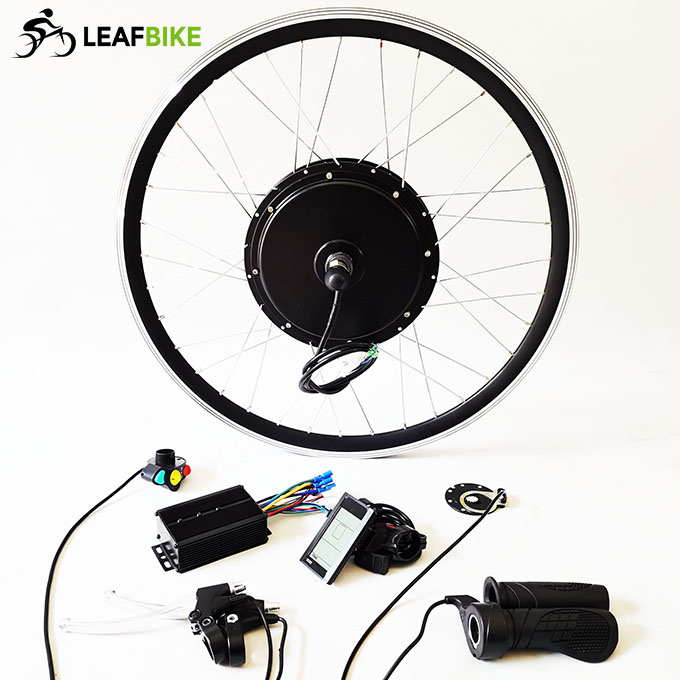

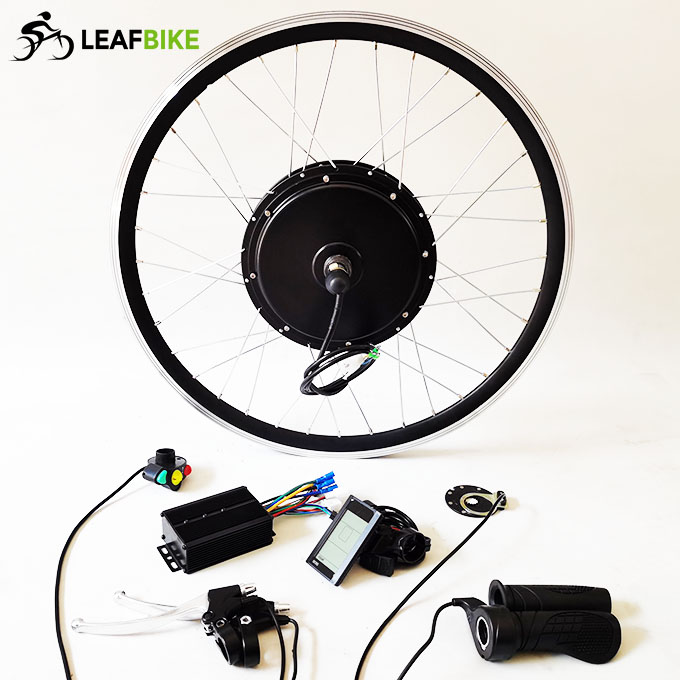

Package Content:

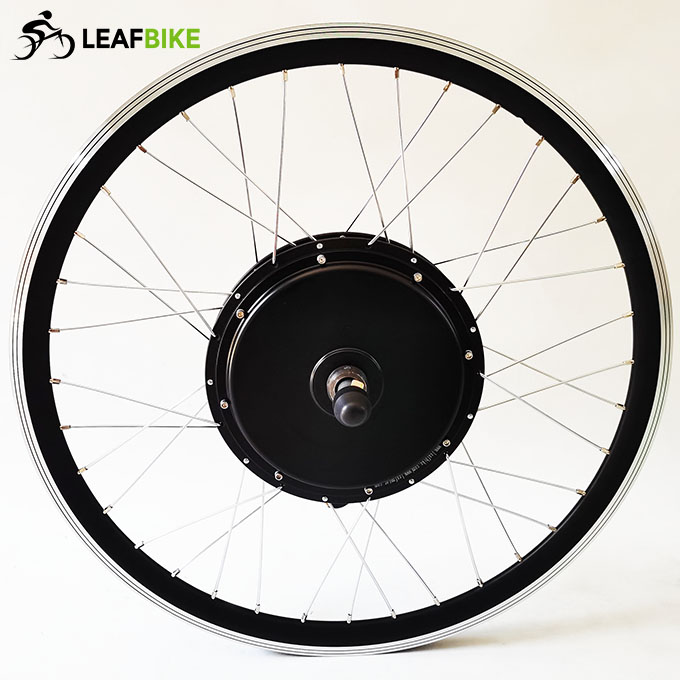

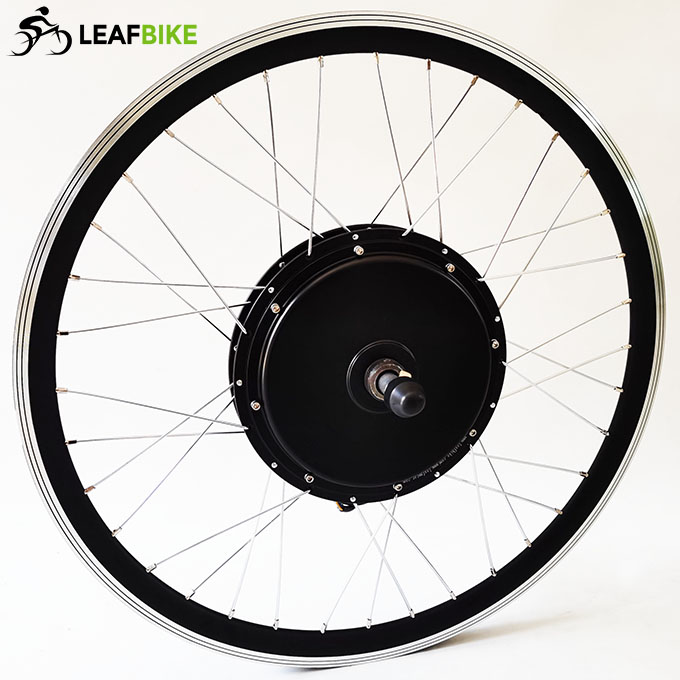

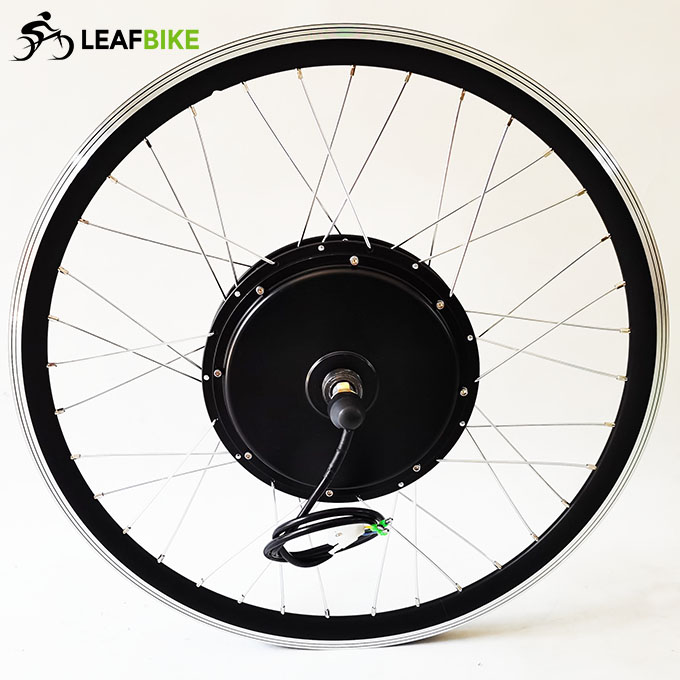

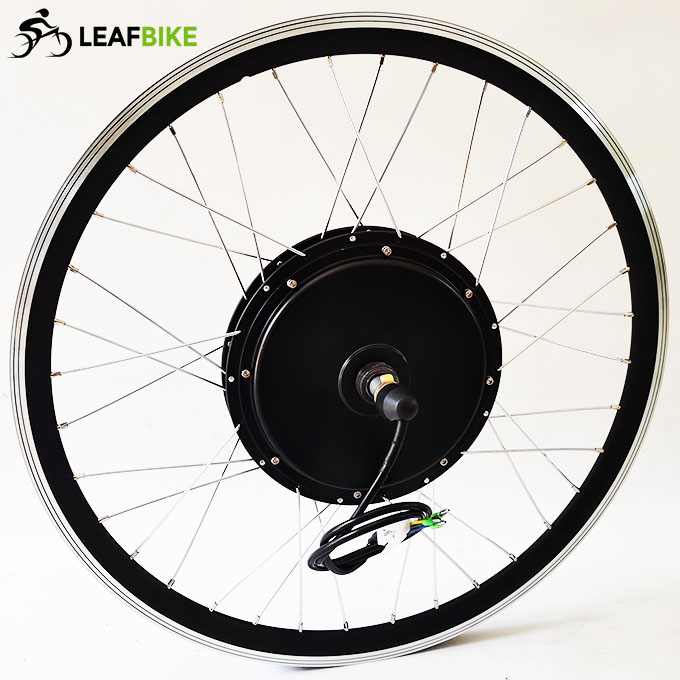

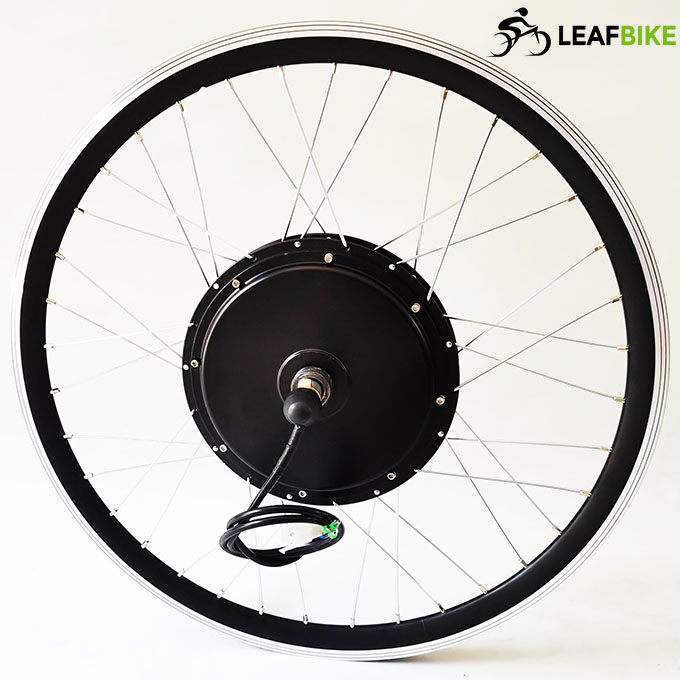

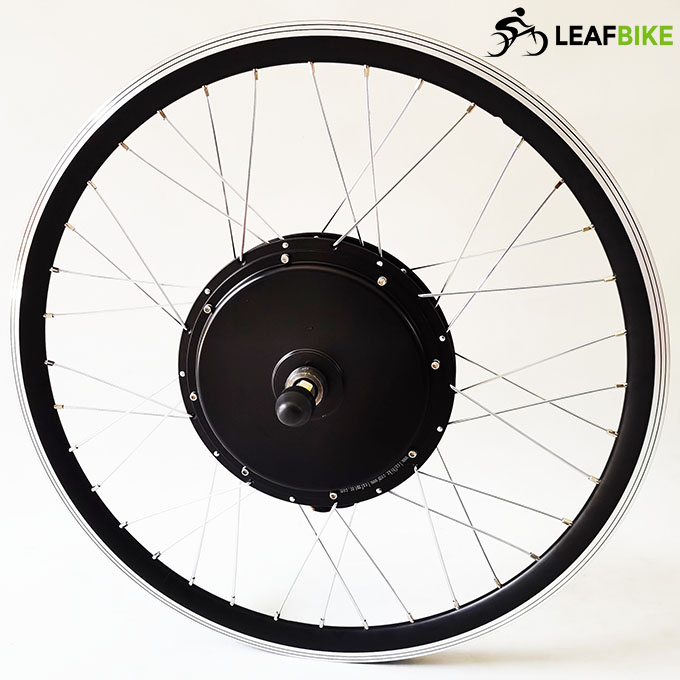

1 x 26 inch 48V / 52V 1000W rear hub motor wheel

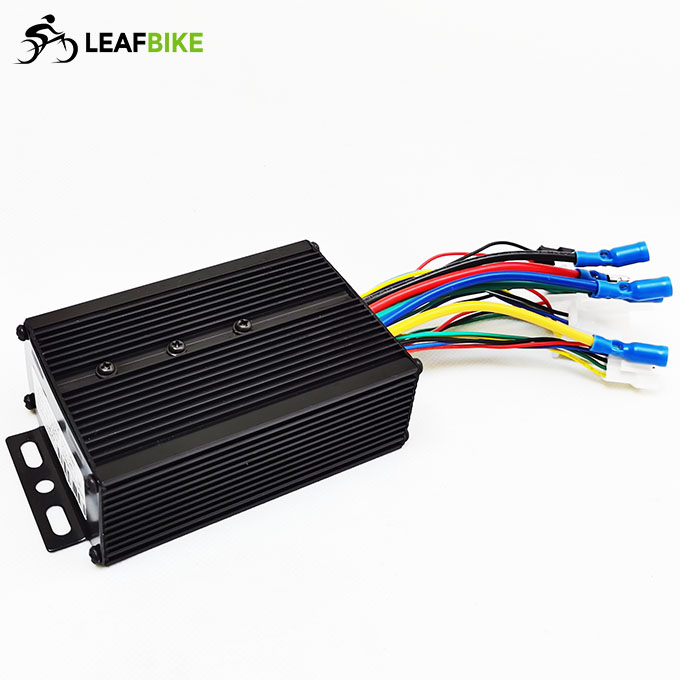

1 x 48V / 52V 1000W 12-MOSFET motor controller
1 x LCD-S830
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist

Net Weight: 24.0 lbs
Package Size: 62cm L × 62cm W × 25cm H  /  24.4" L x 24.4" W x 9.8" H
 Package Type: Cardboard Box

Share Video:

Wire Diagram:

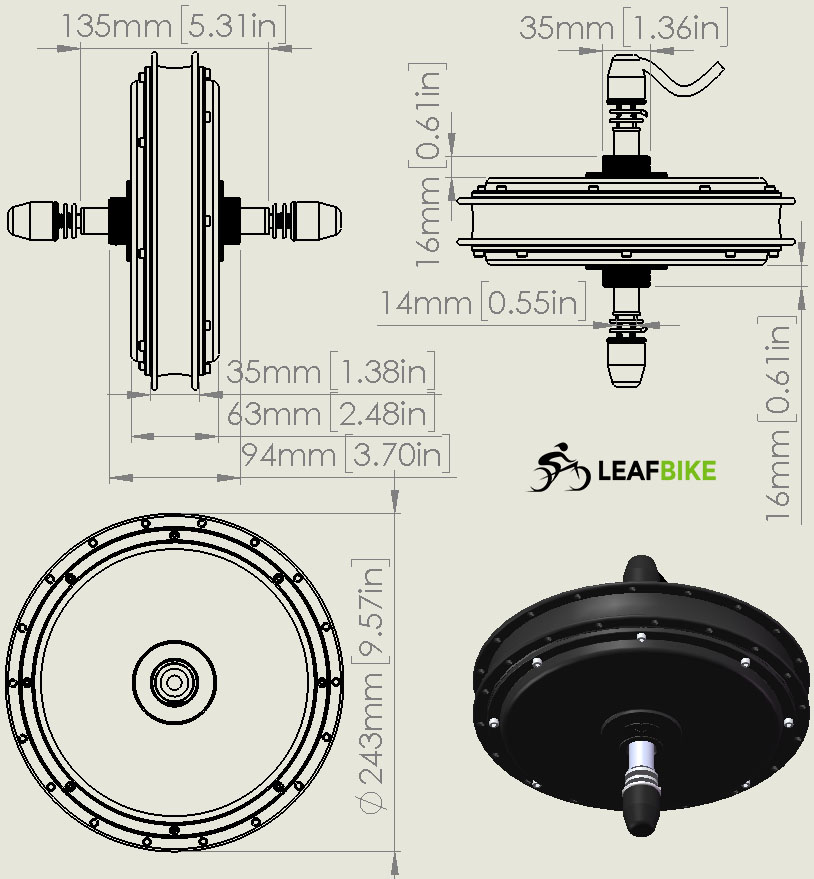

1000W Rear Drw.

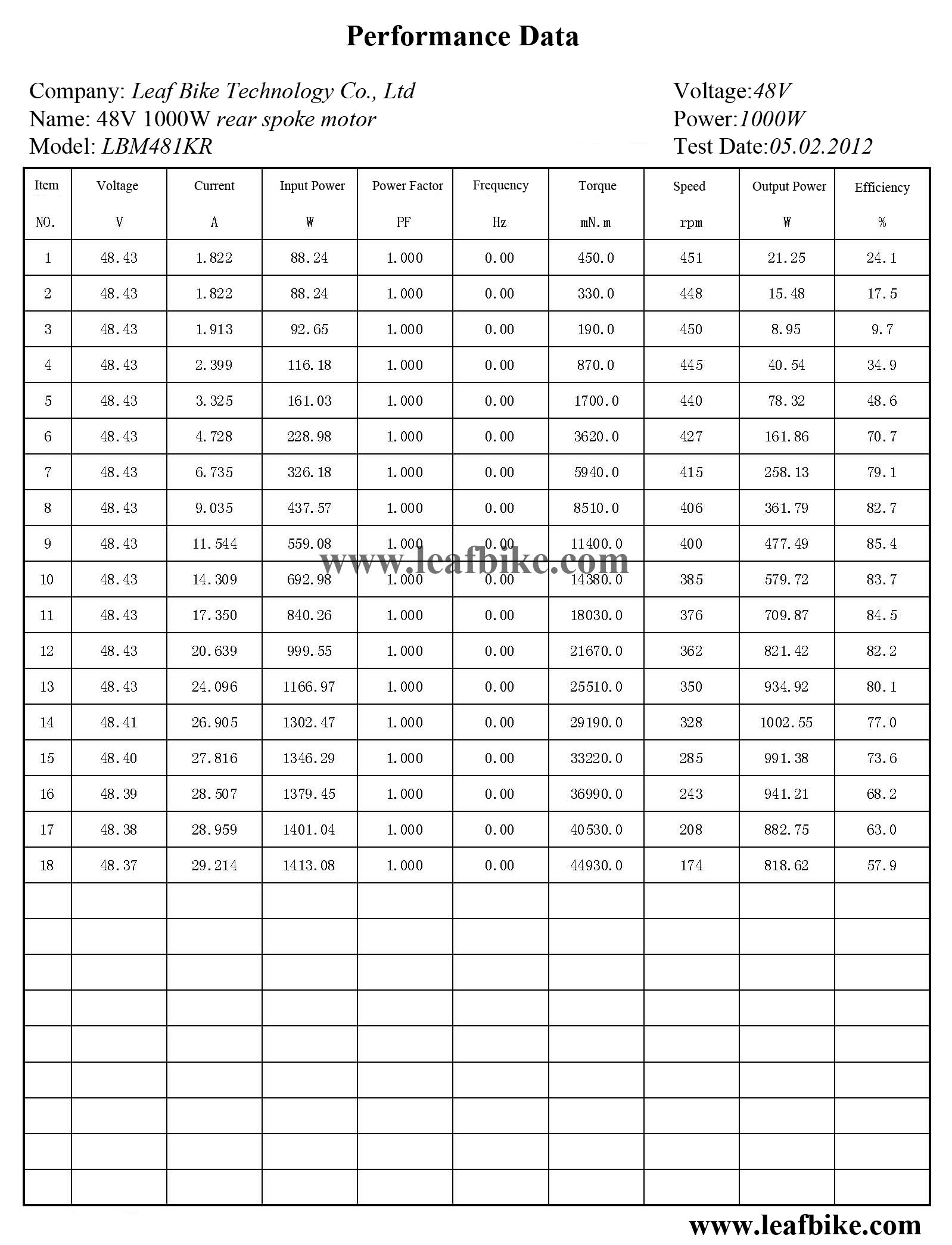

Performance Data:

Share Video:
