DC DC Power Supply Step Down Buck Module Technical Specification:
Input Voltage: DC 28V~80V (36V 48V 60V)
Output Voltage: DC 12V
Output Current: 1A
Output Power: 12W
Conversion Efficiency: >93%
No Load Voltage Range: Set voltage ±3%
Load Regulation: ±3%
Quiescent Power Dissipation: <10mA
Operating Temperature: -25~65?
Storage Temprature: -40~80?
Operating Humidity: 10%~90%
Over-current Protection: Yes
Over-temperature Protection: Yes
Dimension: 65mm x 31mm x 28mm
Material:ABS plastic shell
Note:
1. Connect the wiring in strict according with the wiring instruction.
2. Use short and thick input & output wire to ensure output enough voltage and power.
3. If there are multiple output wire, do not combine the load.
4. Leave a margin for the power supply to ensure it can long-term stably working.
Package Included:

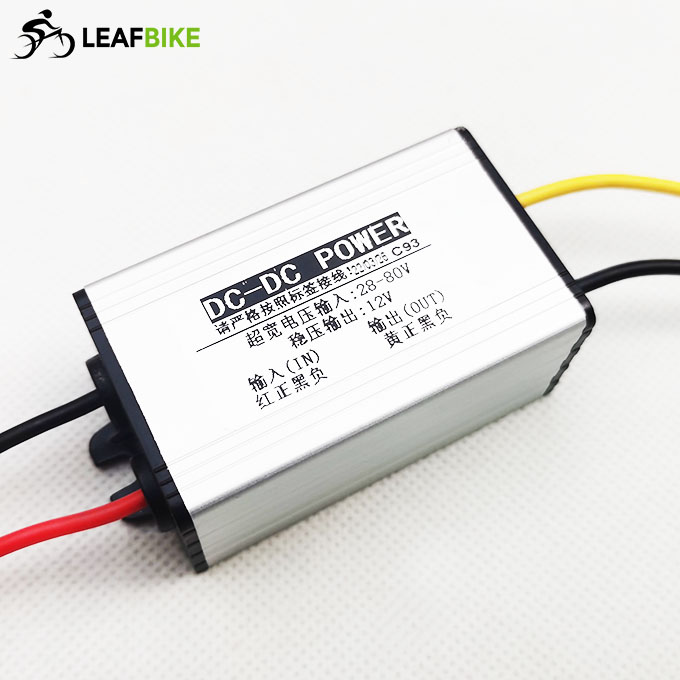

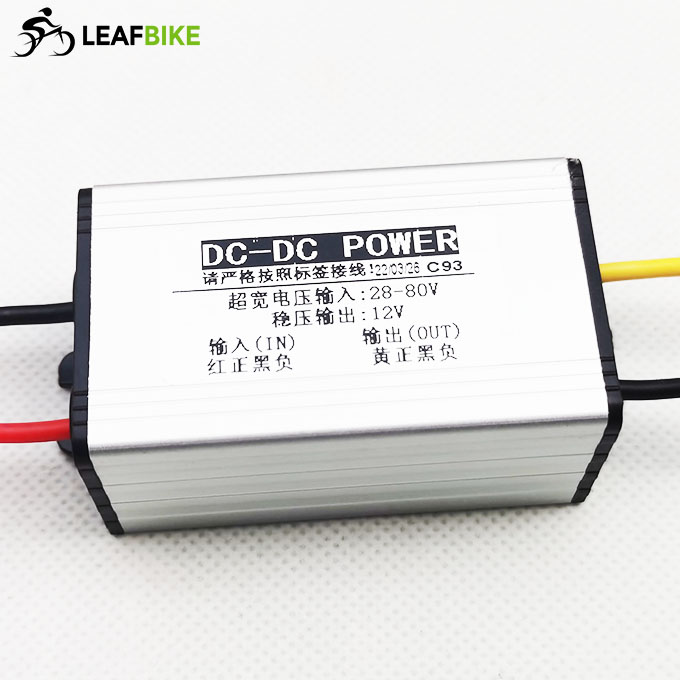

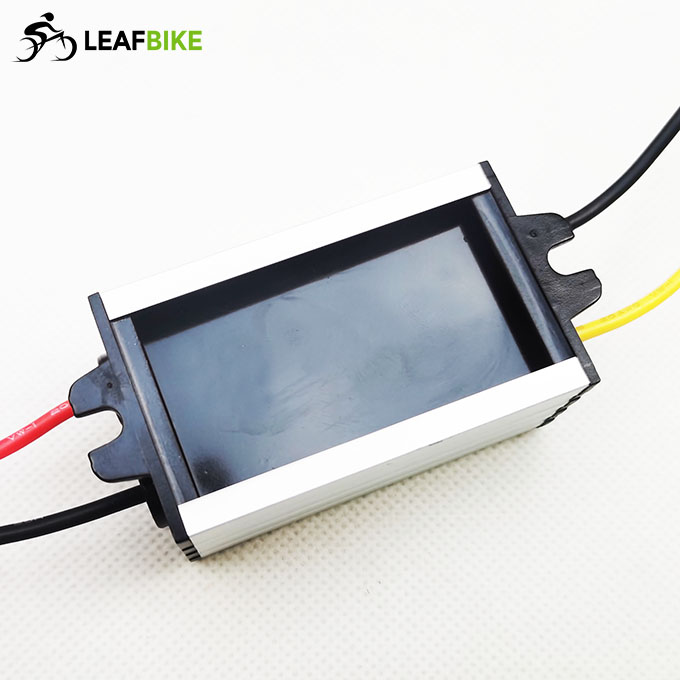

1 x DC DC Converter Reducer 28-80V
