The 26 inch bike kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 26 inch bike motor kit works with a 48V or 52V battery.
Main Features:

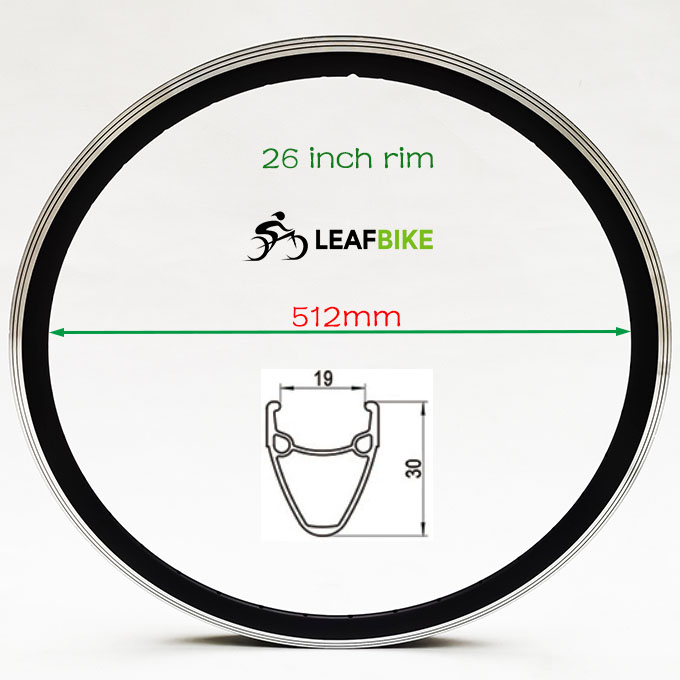

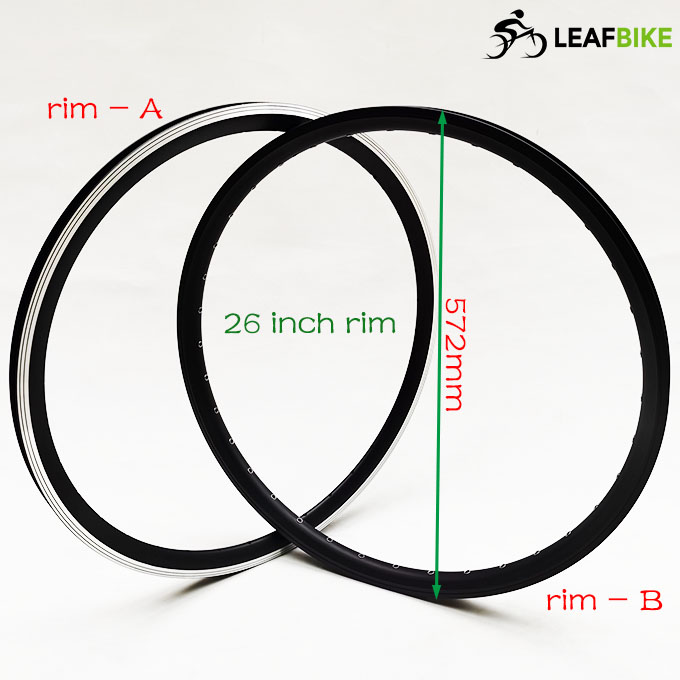

>. Rim A: 26 inch double wall Alloy (Rim Fit For: 26 × 1.5" / 1.75" tire)
>. Spoke: 12 gauge / 192 mm Length × 36 pcs
>. Rim B: 26 inch double wall Alloy (Rim Fit For: 26 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: 12 gauge / 197 mm Length × 36 pcs

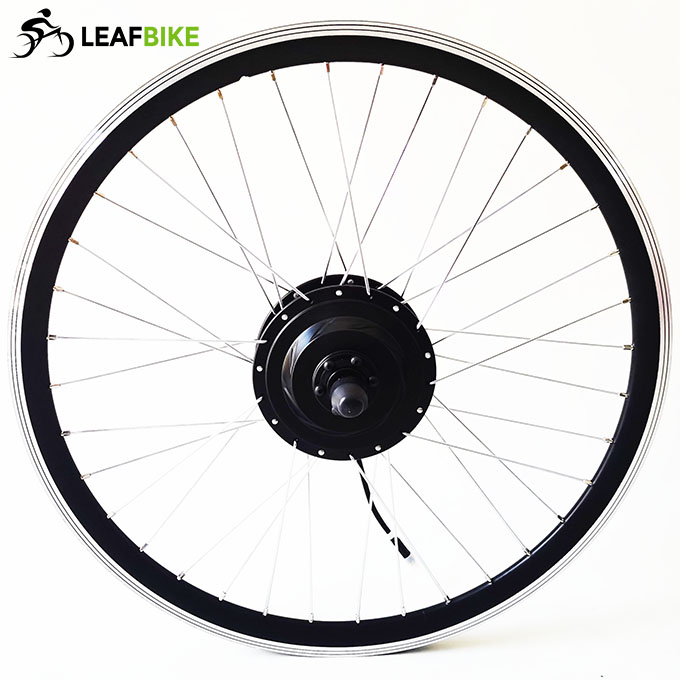

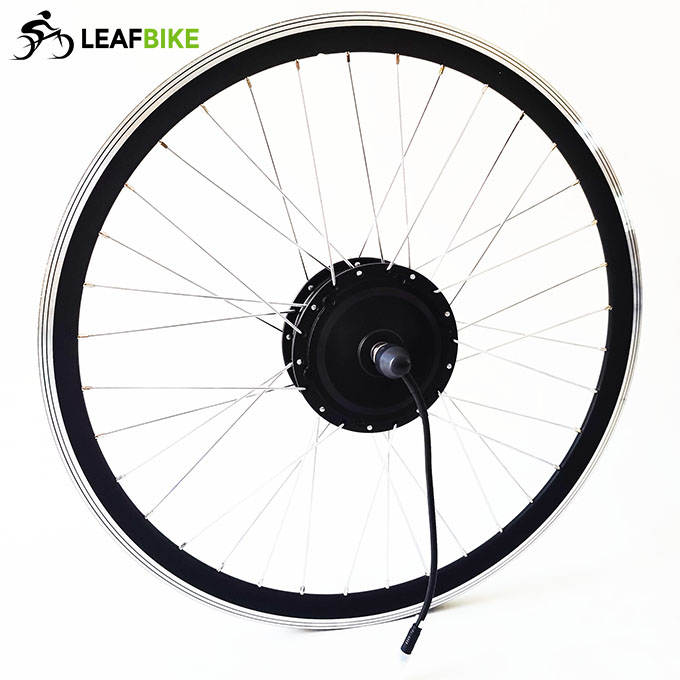

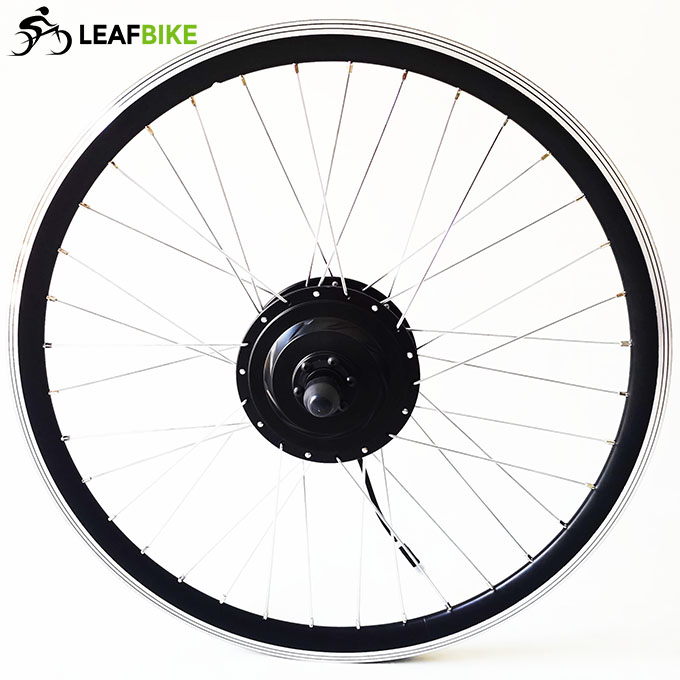

>. Engine : Bldc hub motor -- Brushless Geared
>>. Voltage: 48V / 52V
>>. Power: 500W
>>. Efficiency: 78%
>>. Max speed: 25 kmh -- 15 mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, RIGHT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Bright silver
>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

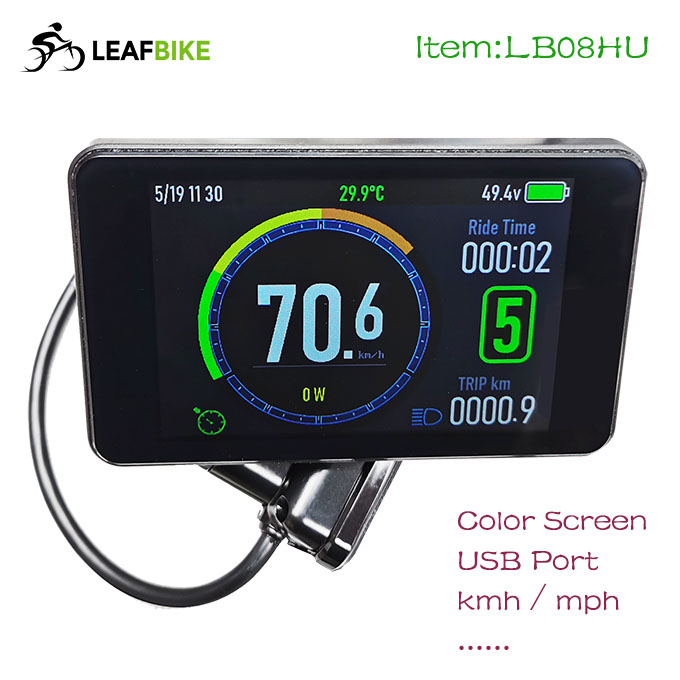

With LCD, More Function:
* Cruise
* Kmh / mph
* Throttle speeds ( 0 - 5 ) -- "0" is off throttle. "1" is the slowest. "5" is the fastest.
* Pedal assist speed ( 0 - 5 ) -- "0" is off pedal assist. "1 ~ 5" is the fastest. ONLY one max speed.
* ..

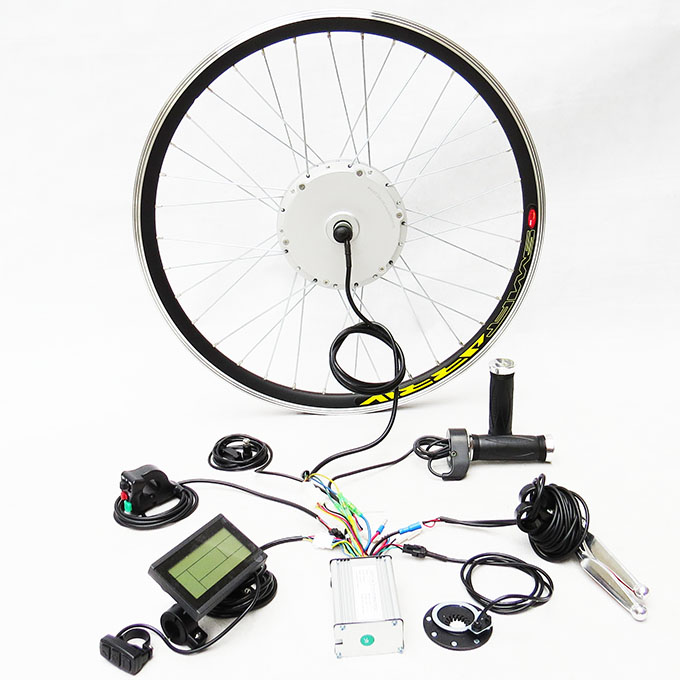

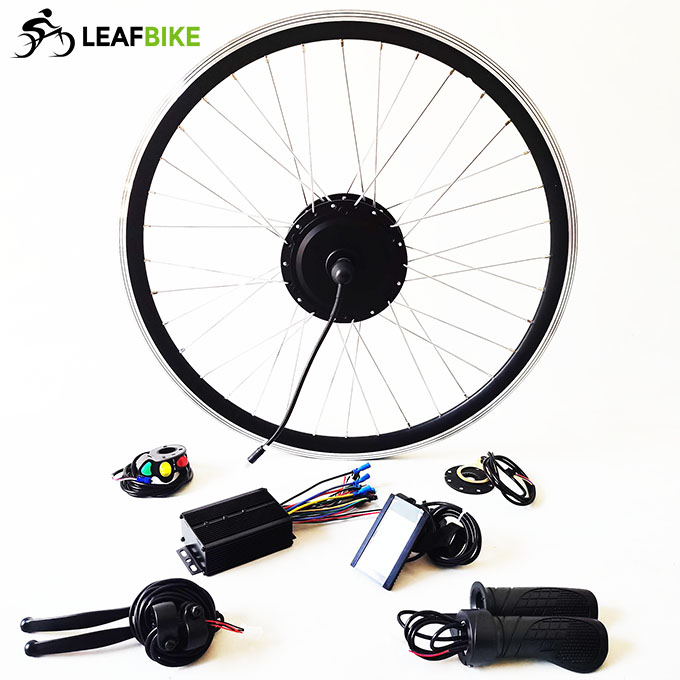

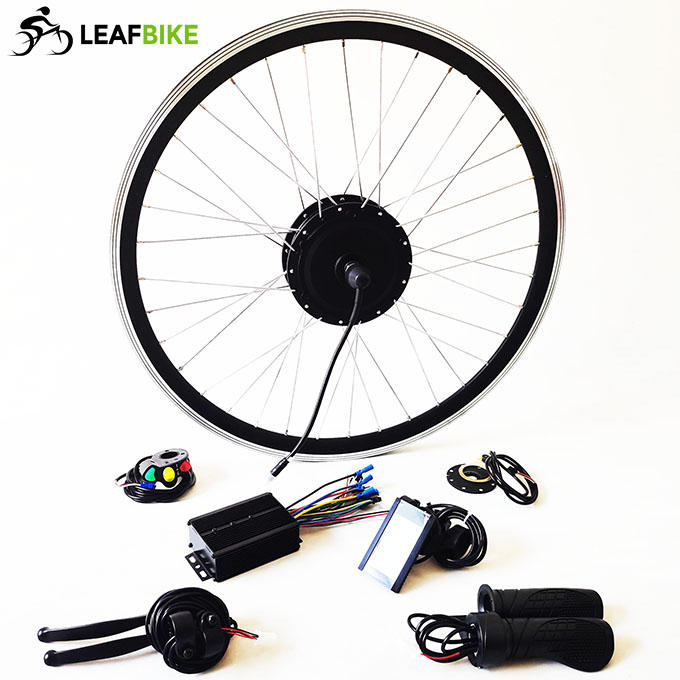

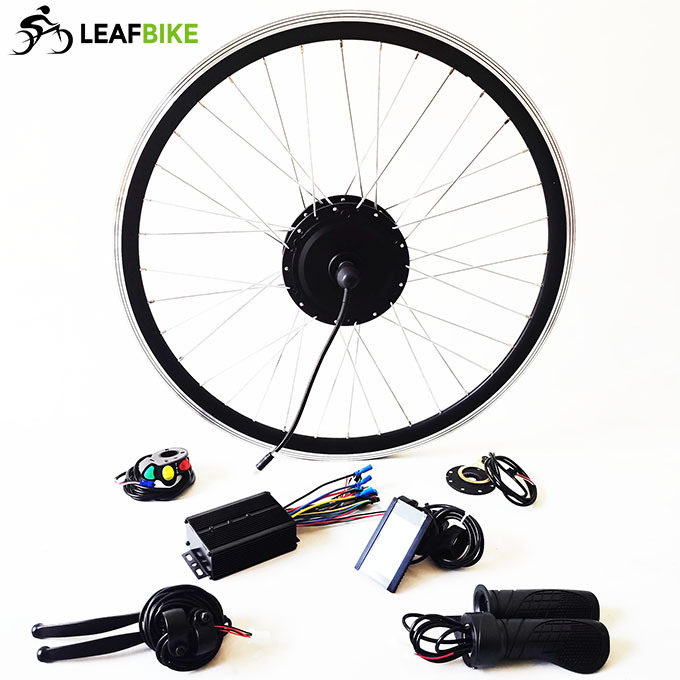

Package Content:

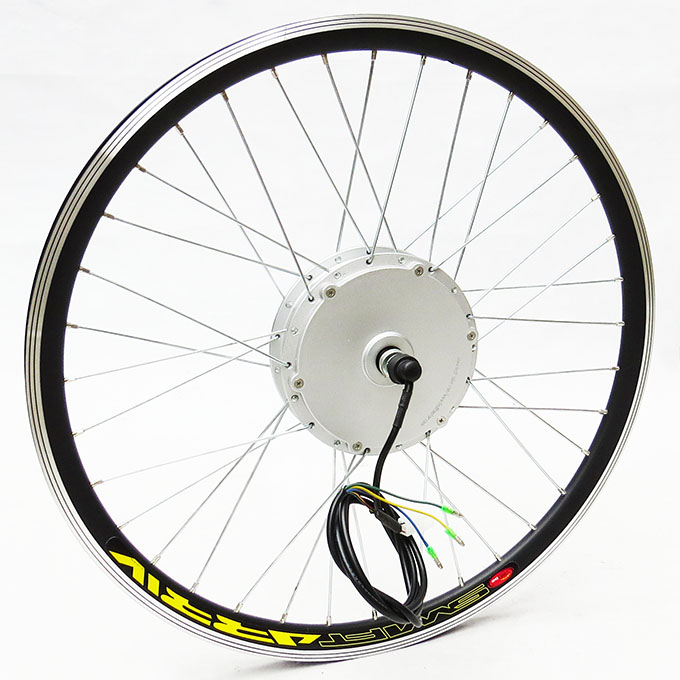

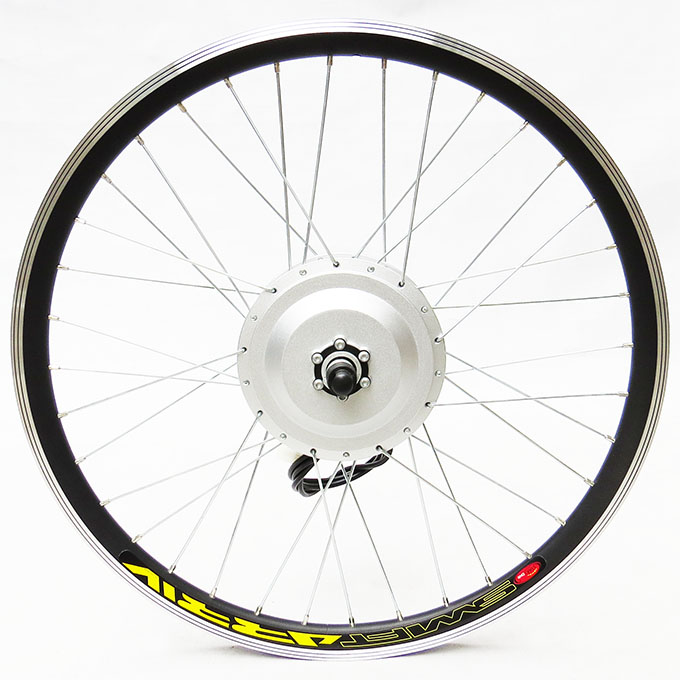

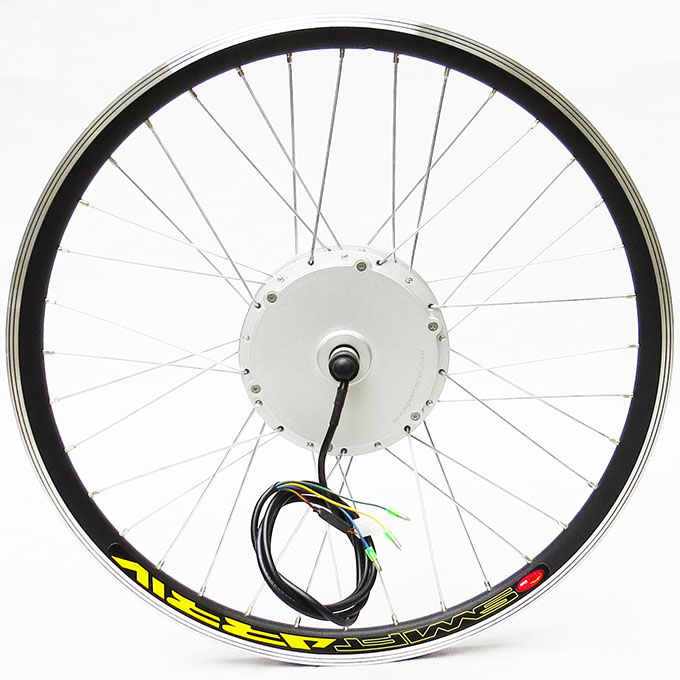

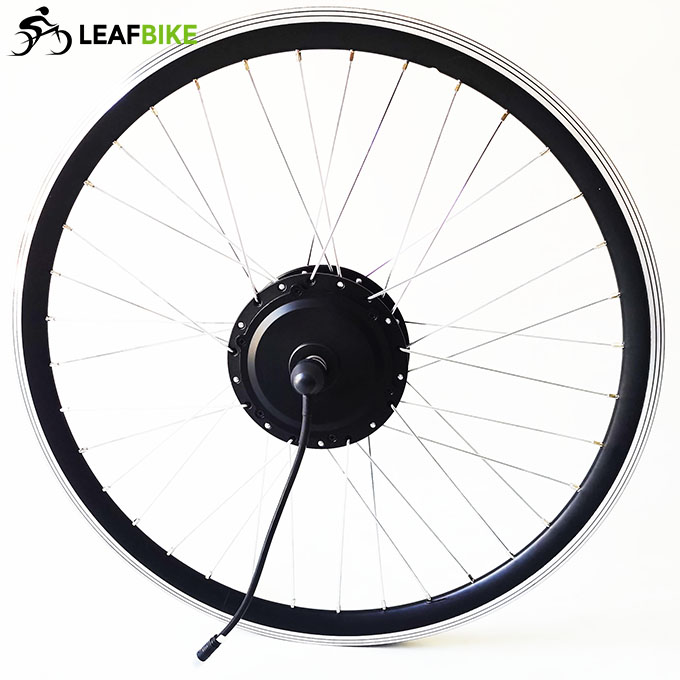

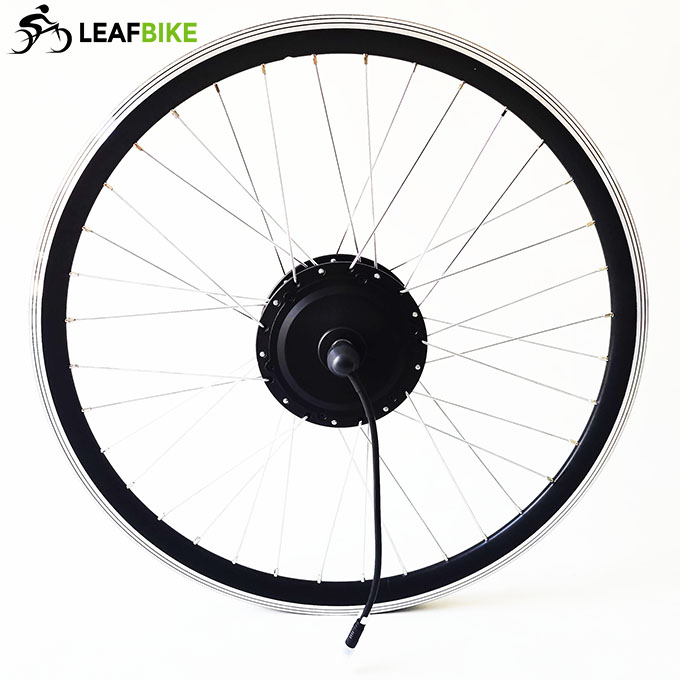

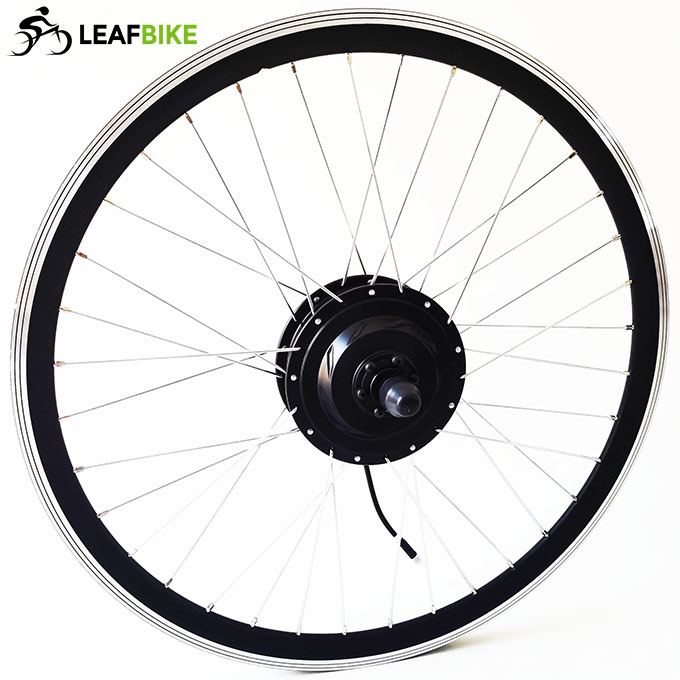

1 x 26 inch 48V 52V 500W front bldc hub motor wheel
1 x 48V 52V 12-MOSFET motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake lever
1 x Three button switches
1 x Pedal assist
Net Weight: 6.0 kg / 13.2 lbs
Package Size: 62cm L × 62cm W × 25cm H
Package Type: Cardboard Box
Wire Diagram:
