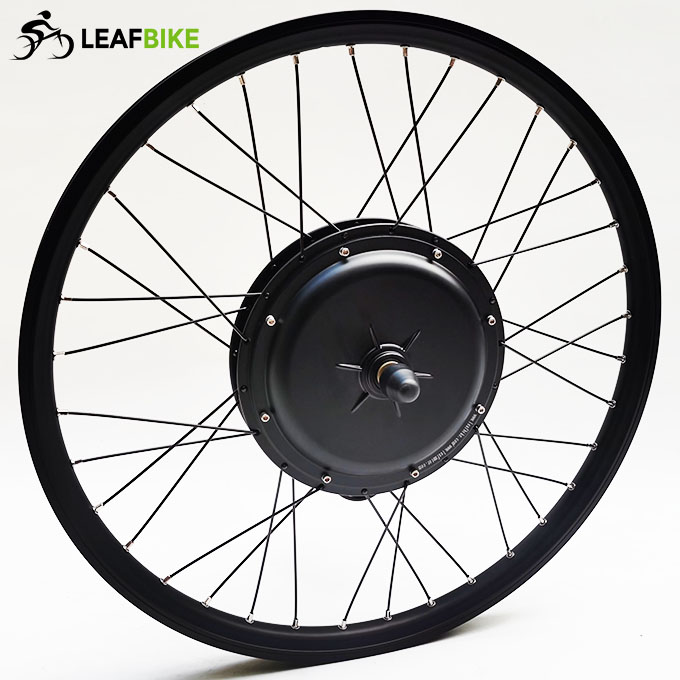

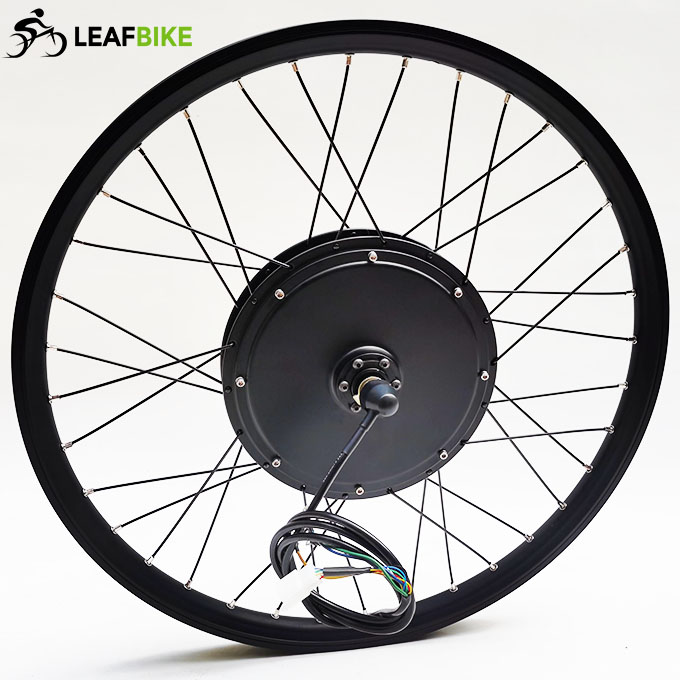

26 inch 48V 1500W front electric hub motor kit

Item ID #LBCK26481500FNK
$387.00 $431.00
    Please select the information you wantX
  • Tyre Size :
    26 x 1.5" / 1.75"
    26 x 1.95" / 2.0" ~ 2.5"
  • LCD :
    LCD-003
    LCD-005
    LCD-07U
    LCD-08HUP
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
Please watch videos for 26 inch 48V 1500W front hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, max 32kmh, max 45kmh..
Share Video:
26 inch 48V 1500W front electric hub motor kit video
Share Video:
26 inch 48V 1500W front electric bike motor kit video

* This 26 inch bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

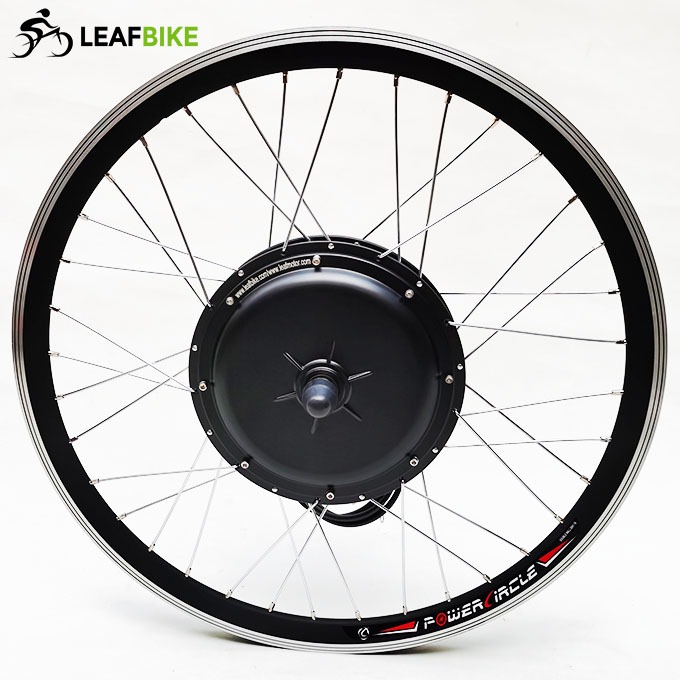

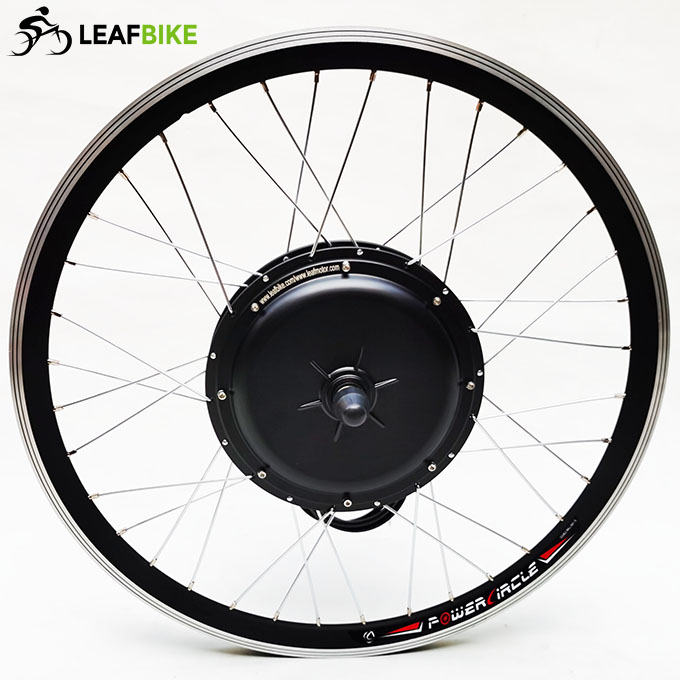

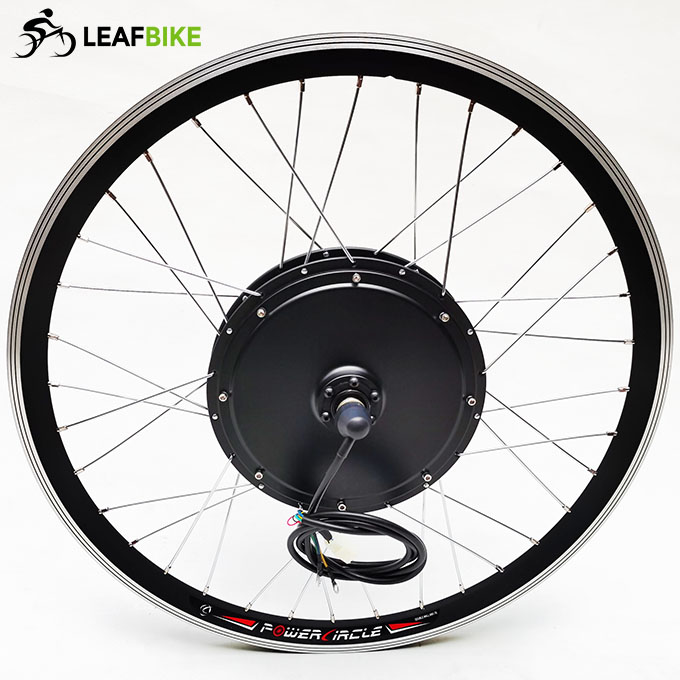

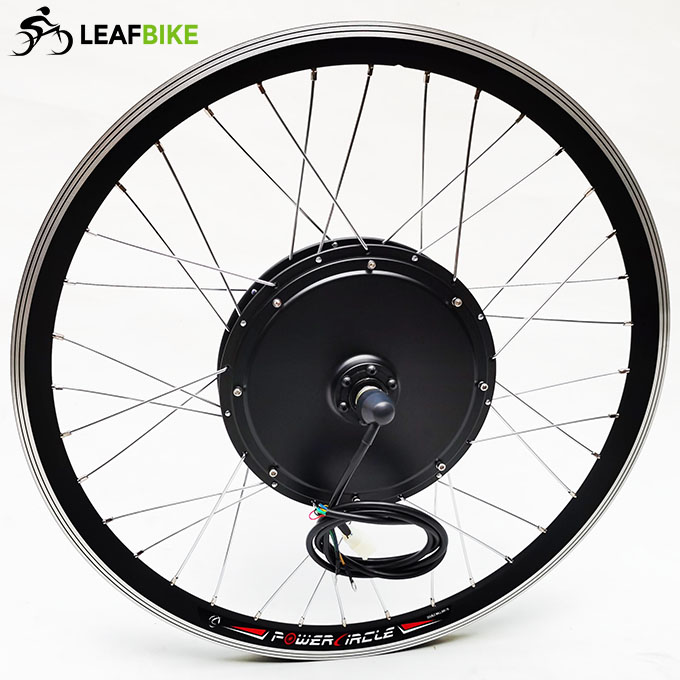

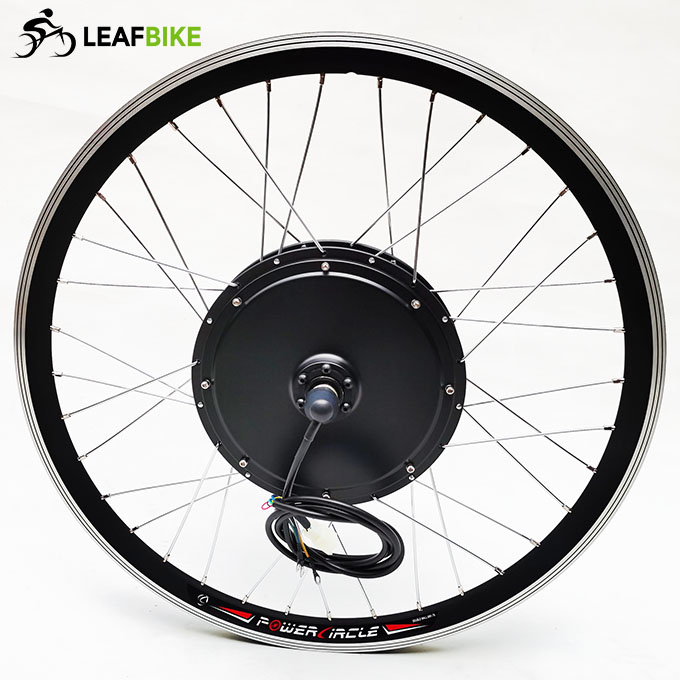

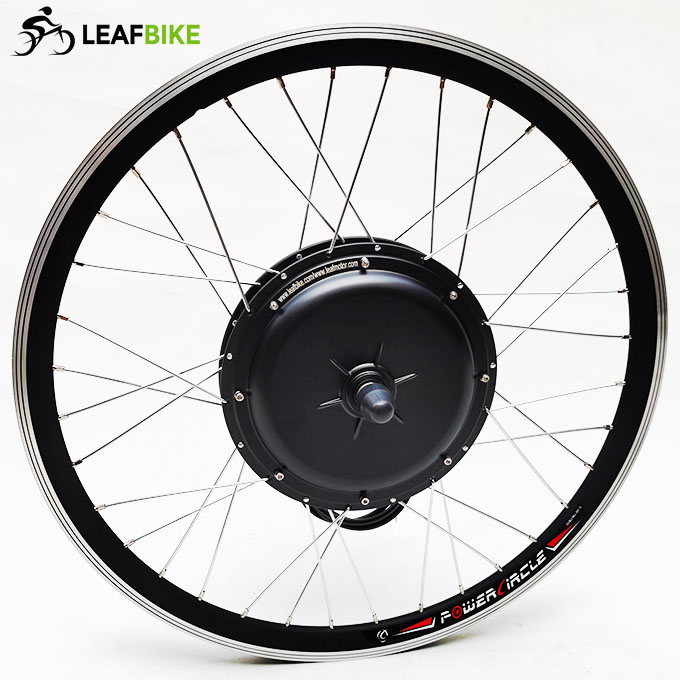

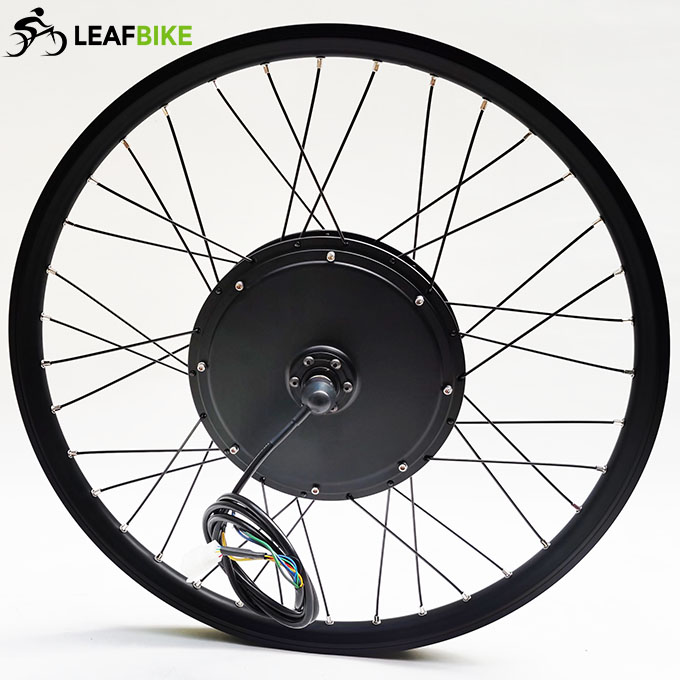

>. Rim A: 26 inch double wall Alloy (Rim Fit For: 26 × 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 154mm Length × 36 pcs

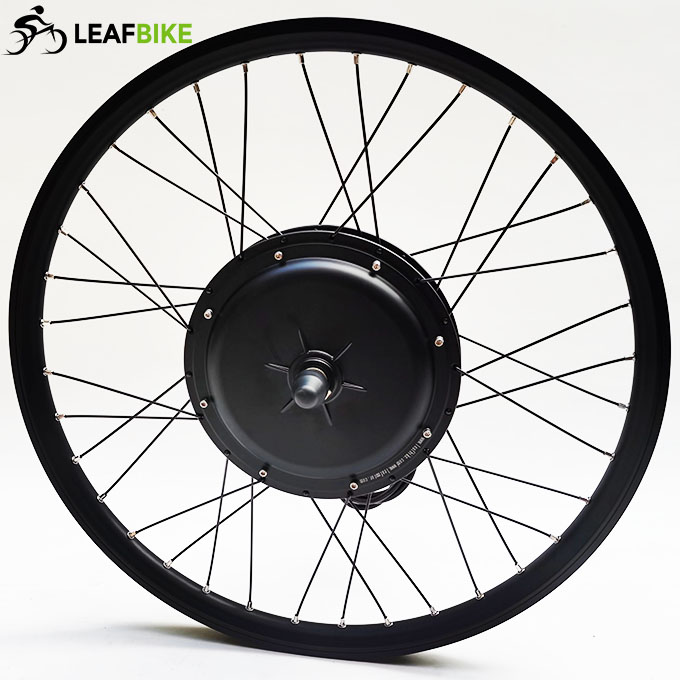

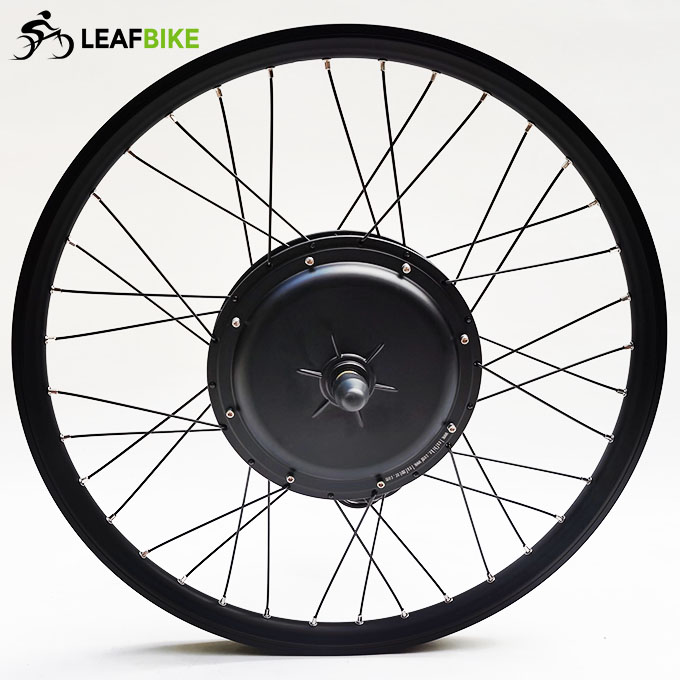

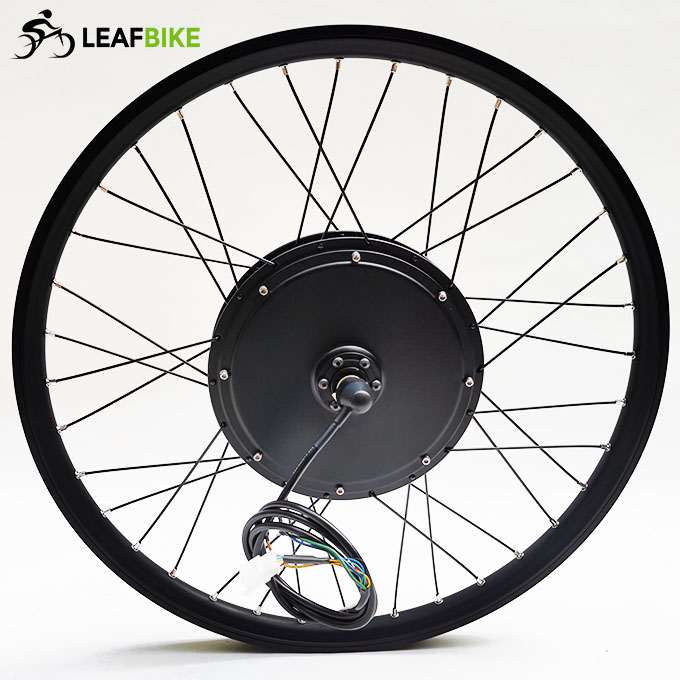

>. Rim B: 26 inch double wall Alloy (Rim Fit For: 26 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 159mm Length × 36 pcs


>. Engine : Bldc hub motor
>>. Voltage: 48V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 69.5 kmh -- 43.1 mph Default (Free customization other speeds: 35mph or 30mph, 25mph, 20mph, 15mph...)
>>.  Mechanical brake: V
>>.  Cable location: shaft end, LEFT
>>.  Cable length:150cm / 60"
>>.  Install: spacing of 100mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1500 Watts
>>.  Casing material: aluminum
>>.  Maximum Current: 40 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

With LCD, More Function:
* Cruise
* Reverse
* Kmh / mph
* Set max speed ( 0 ~ 72 kmh)
* Pedal assist ( 0 - 5 )
* ...

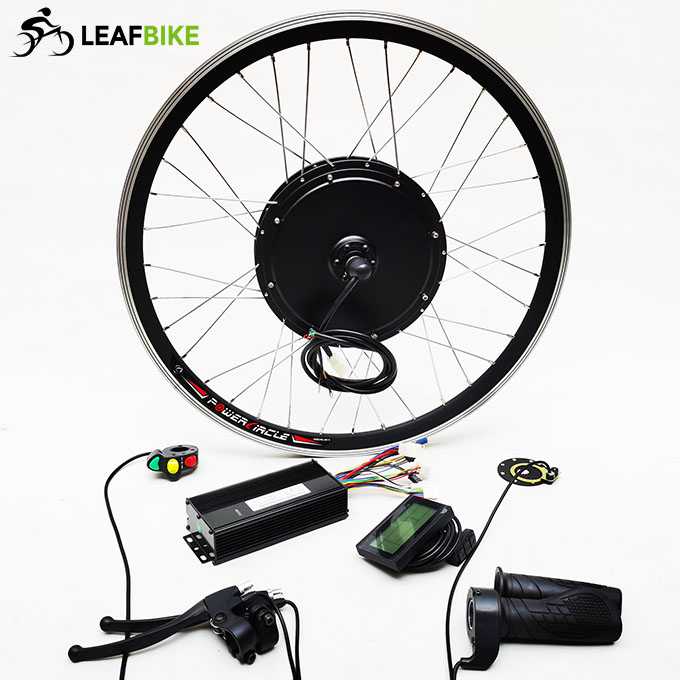

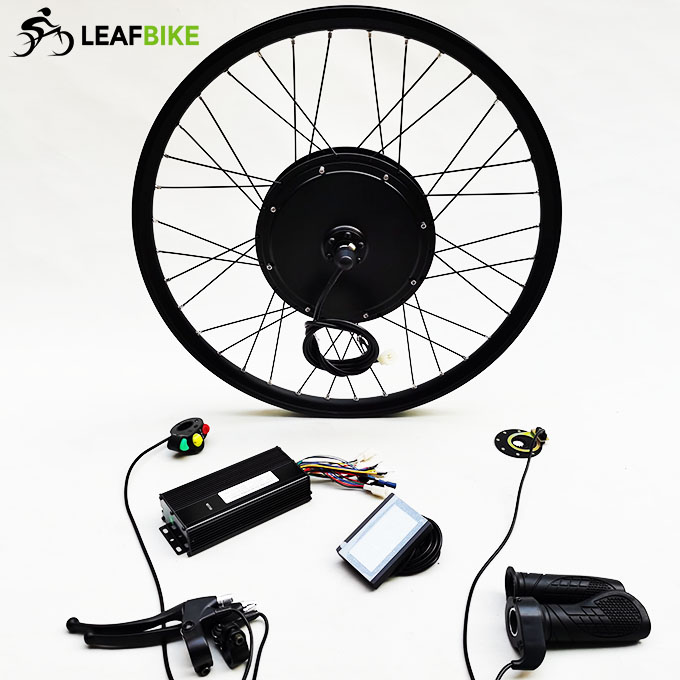

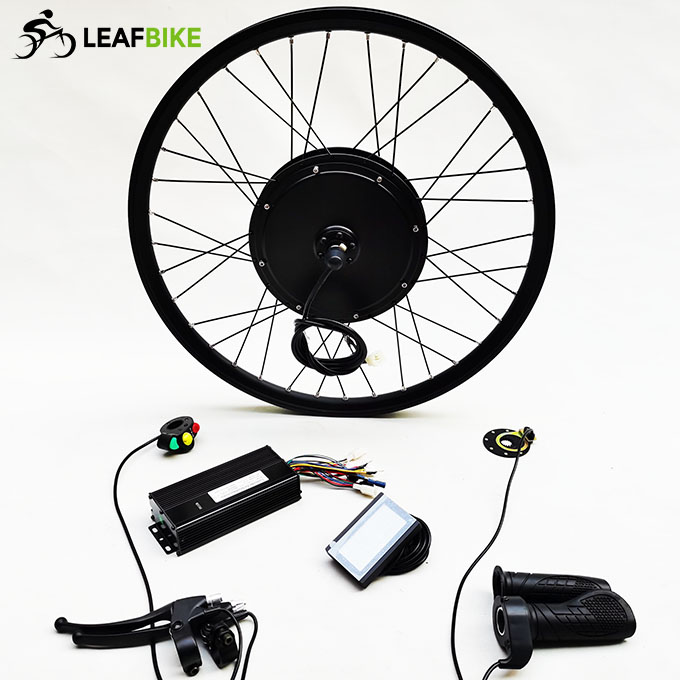

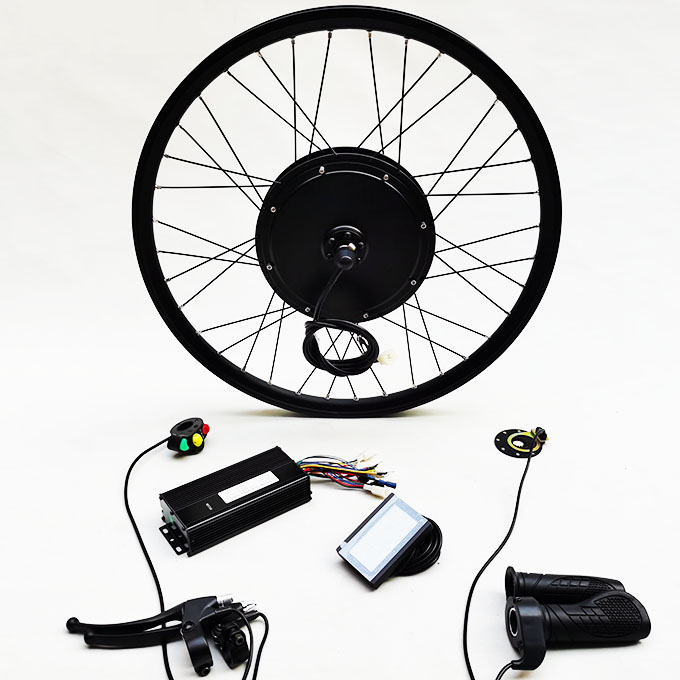

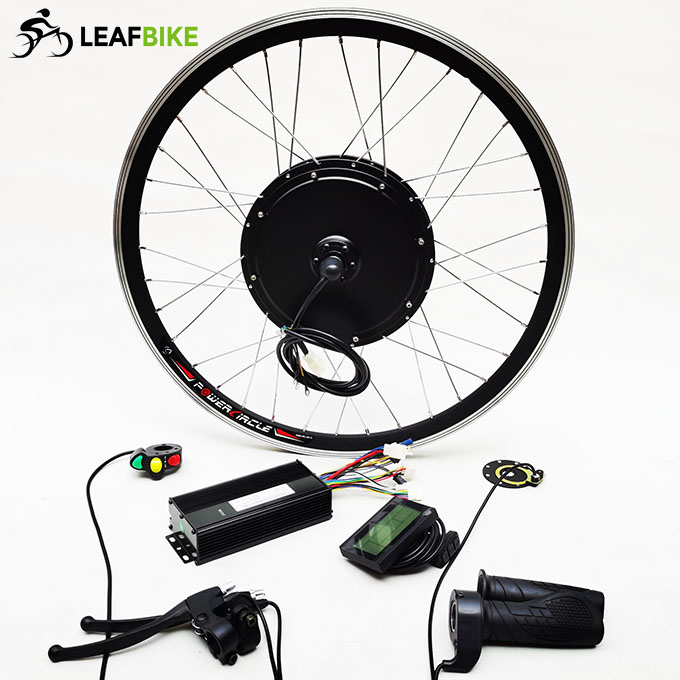

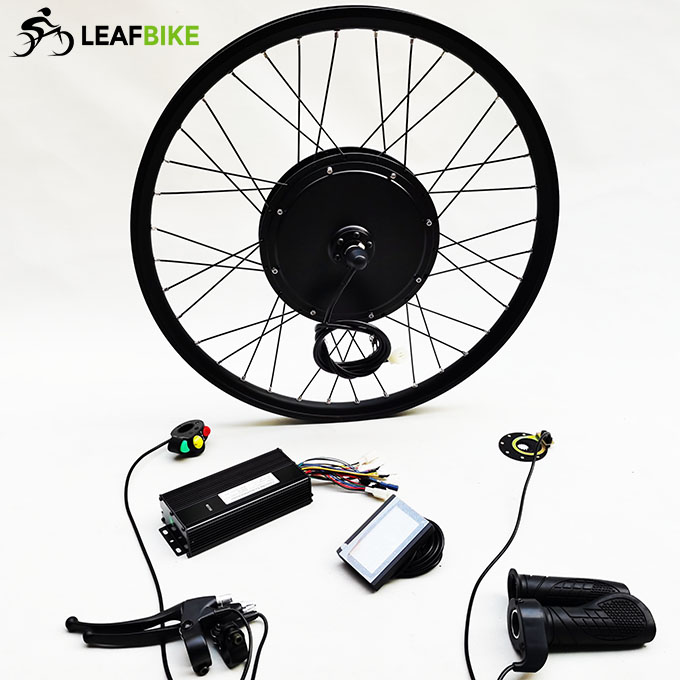

Package Content:
1 x 26 inch 48V 1500W front hub motor wheel
1 x 48V 1500W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise... ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

 Net Weight: 25.6 lb
Package Size: 62cm L × 62cm W × 25cm H
Package Type: Cardboard Box

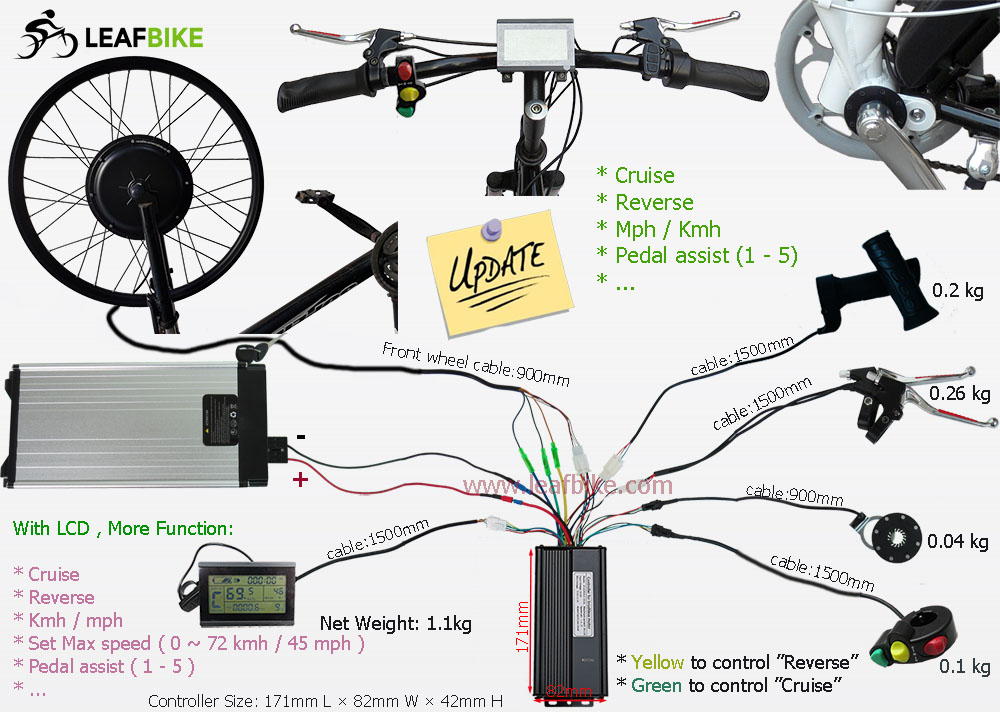

Wire Diagram:
26 inch 48V 1500W front electric hub motor kit wire diagram
1500w Front Drw.
1500w front hub motor drawing
Performance Data:
1500w-hub-motor-curve
