16 inch 48V 1500W front electric motorcycle motor kit

Name: 16 inch 48V 1500W front electric motorcycle motor kit
Brand: Leaf Bike
SKU: LBCK481500FK16
Price: 443 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK481500FK16

$443.00 ~~$487.00~~

Quantity :

Maybe You Need These

Description

The 16 inch motorcycle kit combines the full E-motorcycle technology: direct drive Brushless Gearless high torque hub Motor to change almost every motorcycle into a personal electric motorcycle. Save energy, protect environment and save money with a lot of fun. Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
This 16 inch motorcycle motor kit works with a 48V battery.

Main Features:
>. Rim: 1.6 - 16 or 1.85 - 16
>. Spoke: 93mm 10 gauge × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 60.9 kmh -- 37.8 mph @ 48V Default (Optional other speed: 30mph or 25mph,15mph...)
>>. Mechanical brake: Disk
>>. Freewheel: Single speed
>>. Cable location: shaft end, Left
>>. Cable length:100cm / 40"
>>. Front frame fork / Install: spacing of 135mm
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 0 - 5 )
* Battery gauge
* ...

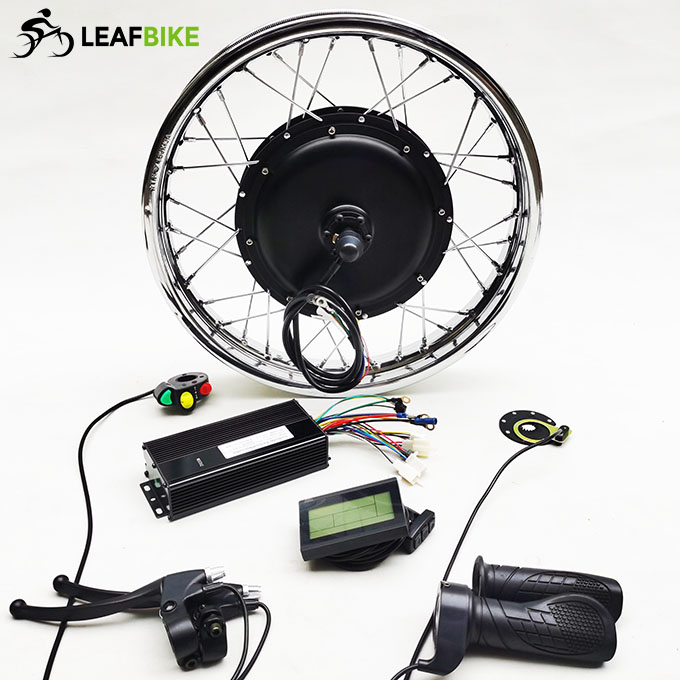

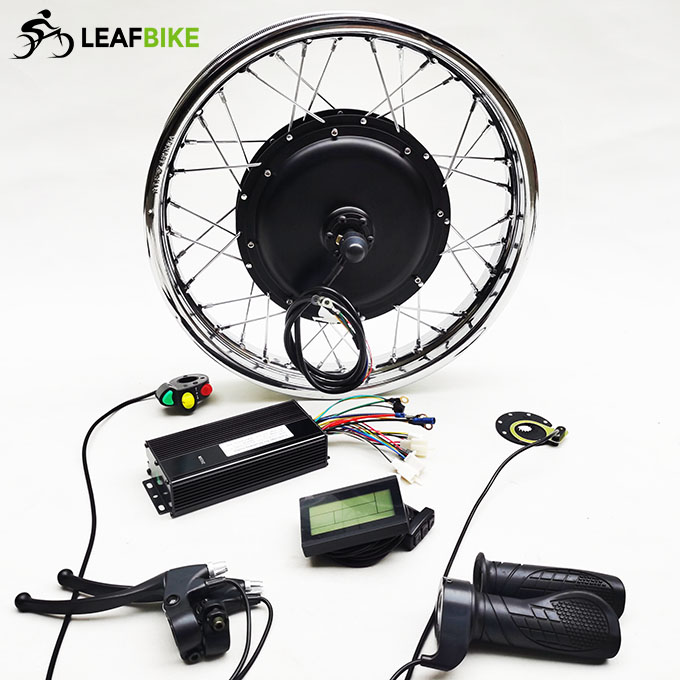

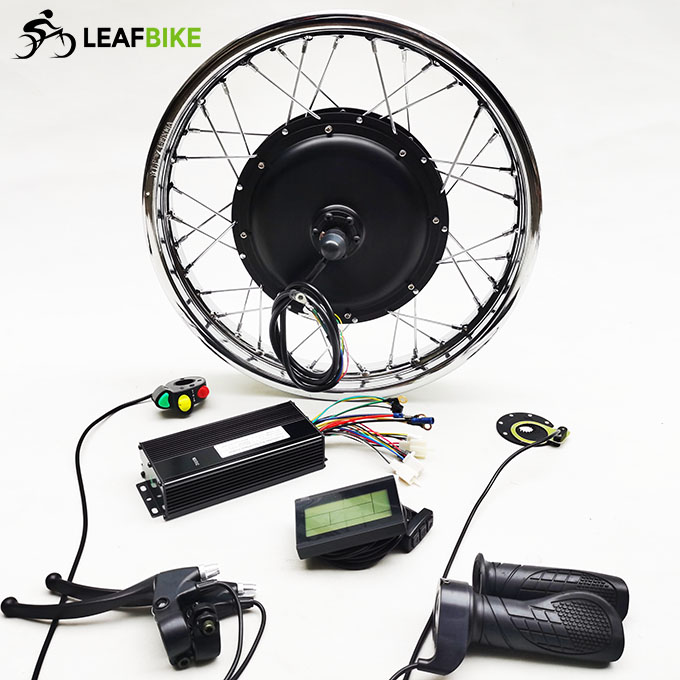

Package Content:

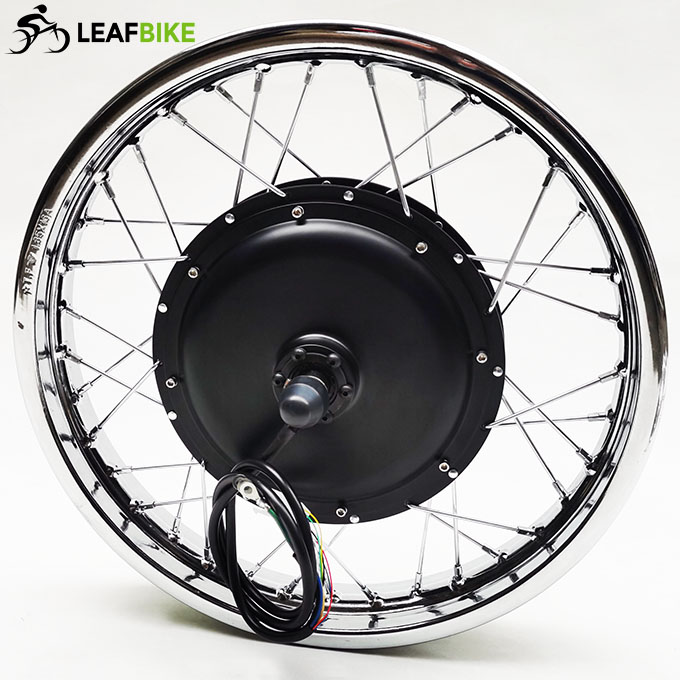

1 x 16 inch 48V 1500W front electric motorcycle motor wheel
1 x 48V 12-MOSFET motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.1 kg
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box

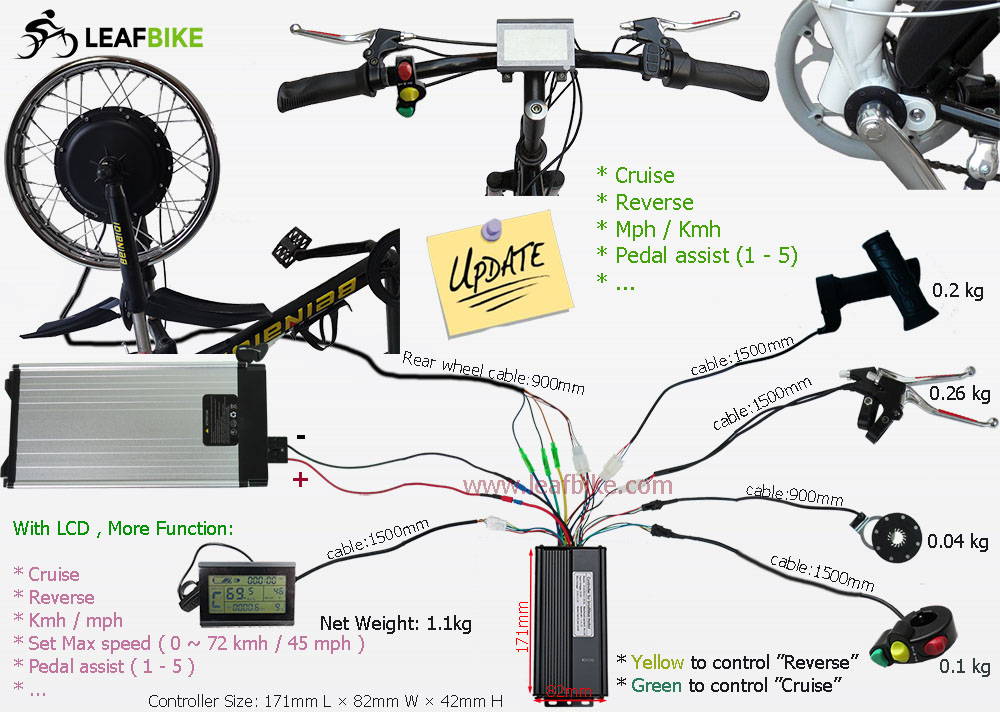

Wire Diagram:

135mm Dropout Motor.

Performance Data:
