BMX 20 inch 48V 52V 500W 750W 1000W rear geared hub motor - electric bike kit

Item ID #LBCK2052GRNB
$377.30 $383.00
Promotion Time Remaining
    Please select the information you wantX
  • Tyre Size :
    20 x 1.95" / 2.0" ~ 2.5"
    20 x 1.5" / 1.75"
  • LCD :
    S830
    SW900
    08HU
    08SU
  • Power :
    48V 500W
    48V 750W
    48V 1000W
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
Please watch video for BMX 20 inch 48V 52V 500W 750W 1000W rear geared hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh ..
48V 52V 750W:
BMX 20 inch 48V 750W rear hub motor electric bike conversion kit video

* The 20 inch BMX bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.


Main Features:

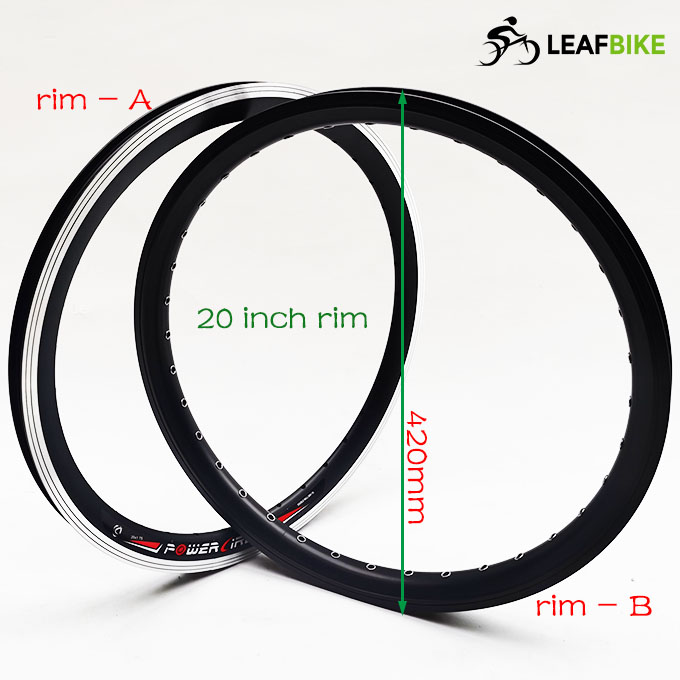

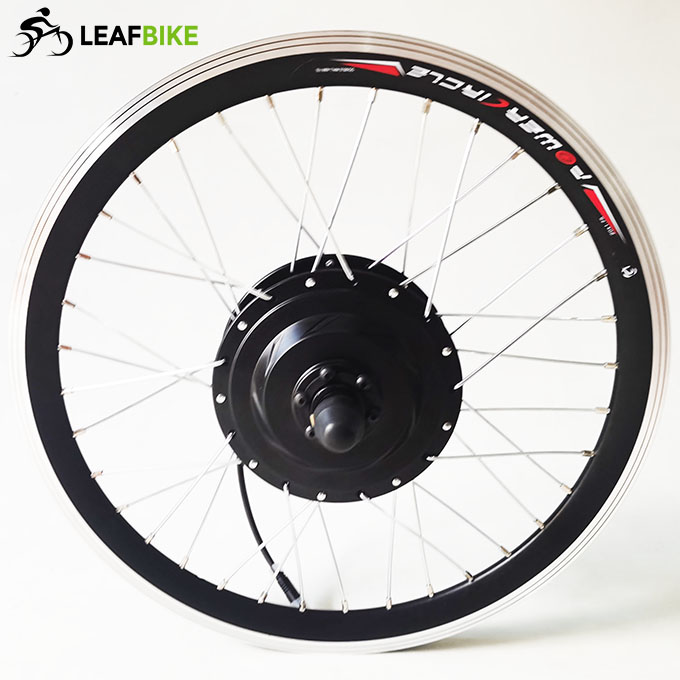

>. Rim A: 20 inch double wall Alloy (Rim Fit For: 20 × 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 118mm Length × 36 pcs

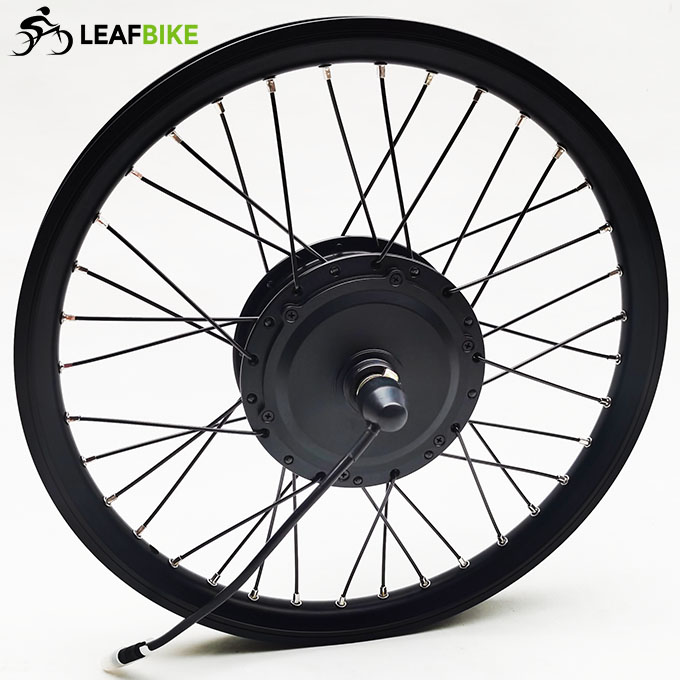

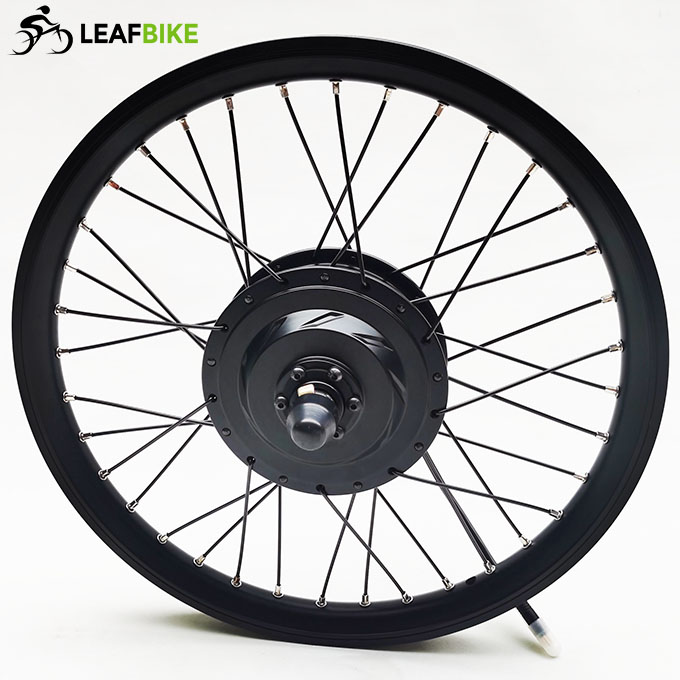

>. Rim B: 20 inch double wall Alloy (Rim Fit For: 20 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 123mm Length × 36 pcs

>. Engine : BMX rear geared hub motor
>>. Voltage: 48V / 52V
>>.  Power: 500W / 750W / 1000W
>>.  Efficiency: 86.8%
>>.  Max speed: 27.1 kmh - 16.9 mph Default (Optional other speed:25mph or 15mph...please leave message)
>>.  Mechanical brake: Disk or V
>>.  Freewheel: space for single speed
>>.  Cable location: shaft end, RIGHT
>>.  Cable length:100cm / 40"
>>.  Install: spacing of 110mm rear fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: 48V 52V controller & LCD
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 500 / 750 / 1000 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 26 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise -- Green switch to control
* Forward & Backward (Optional) -- Yellow switch to control
* Kmh & mph (Optional)
* Throttle speeds ( 0 - 5 ) -- "0" is off throttle. "1" is the slowest. "5" is the fastest.
Pedal assist speed ( 0 - 5 ) -- "0" is off pedal assist. "1 ~ 5" is the fastest. ONLY one max speed. If hope pedal with 5 kinds of max speeds, please choose the other controller of ours.
https://www.leafbike.com/products/diy-bike-conversion-kit/bmx-20-inch-48v-500w-750w-1000w-rear-geared-hub-motor-electric-bike-kit-1517.html
* ...

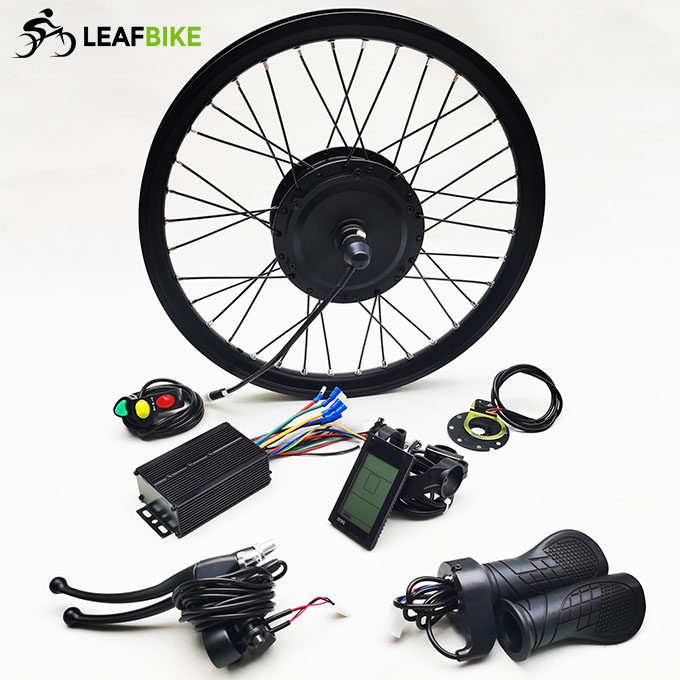

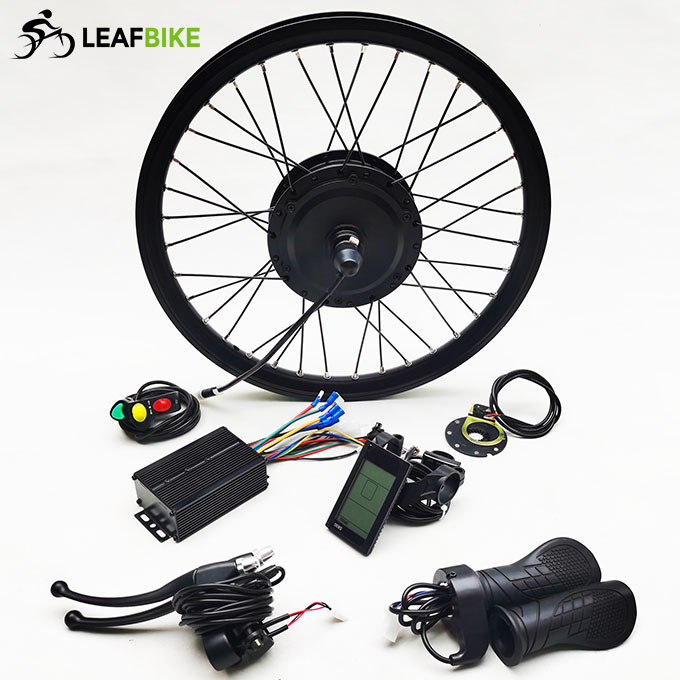

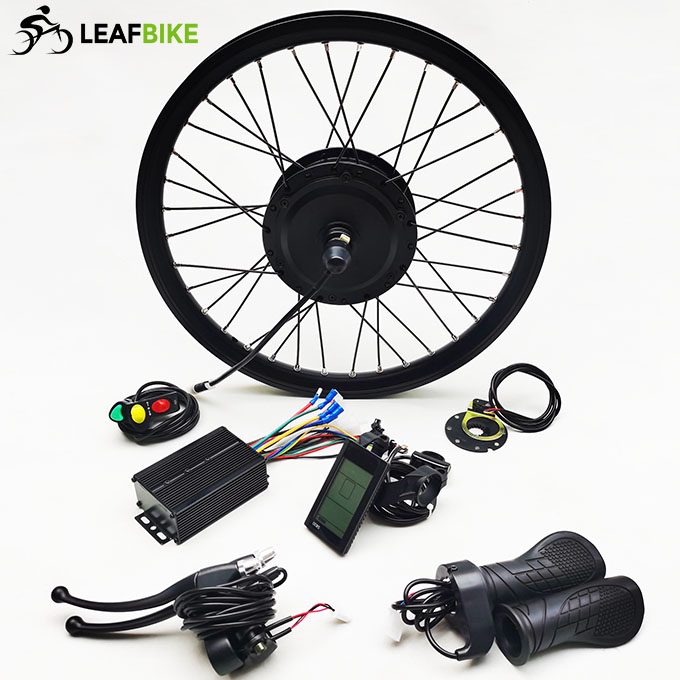

Package Content:

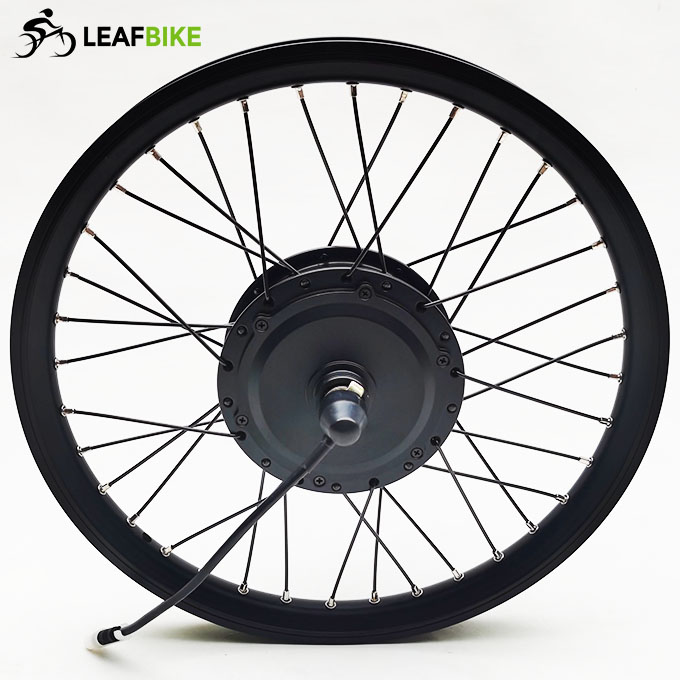

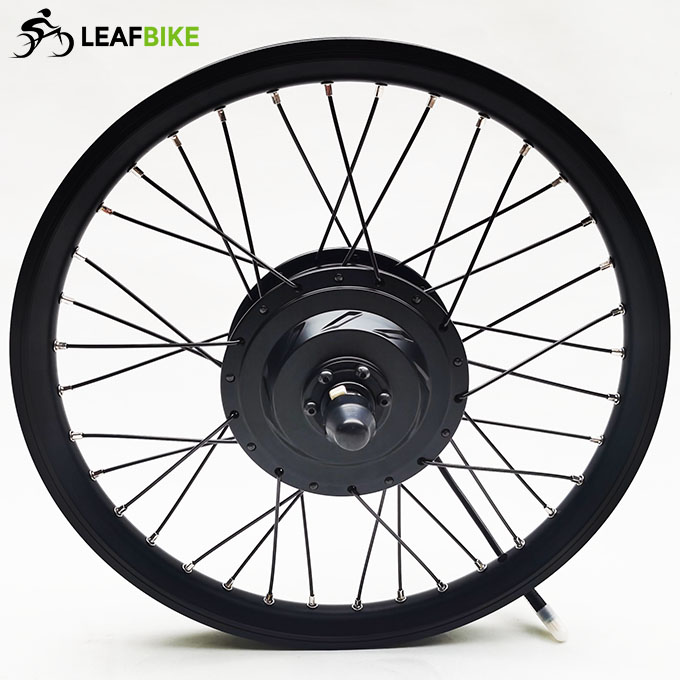

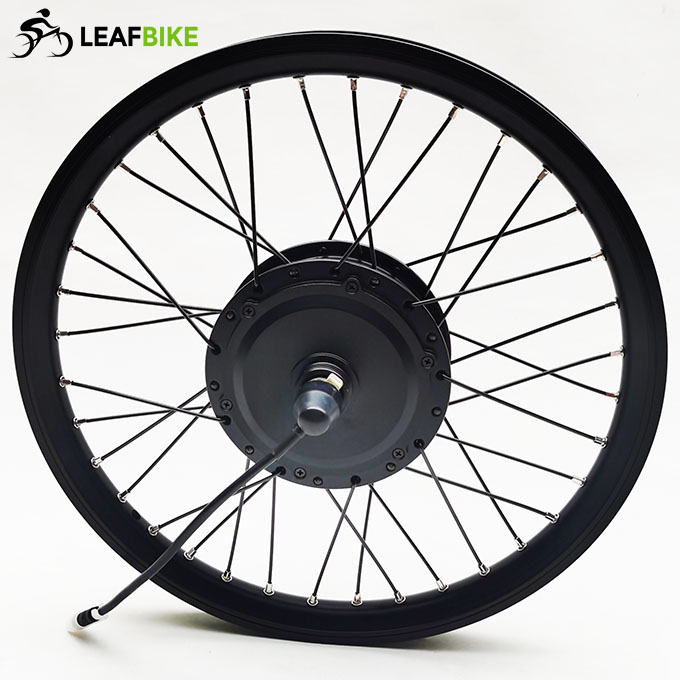

1 x 20 inch 48V 52V rear BMX geared hub motor wheel
1 x 48V 52V motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 5.7 kg
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box

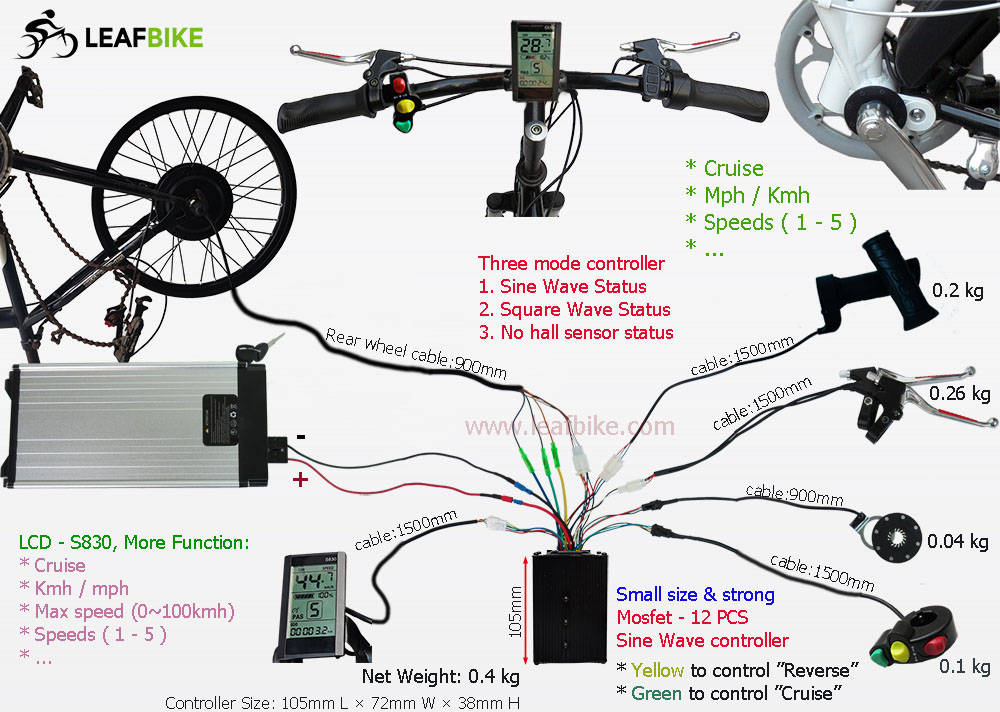

Wire Diagram:
BMX 20 inch 48V 52V 500W 750W 1000W rear hub motor electric bike conversion kit wire diagram

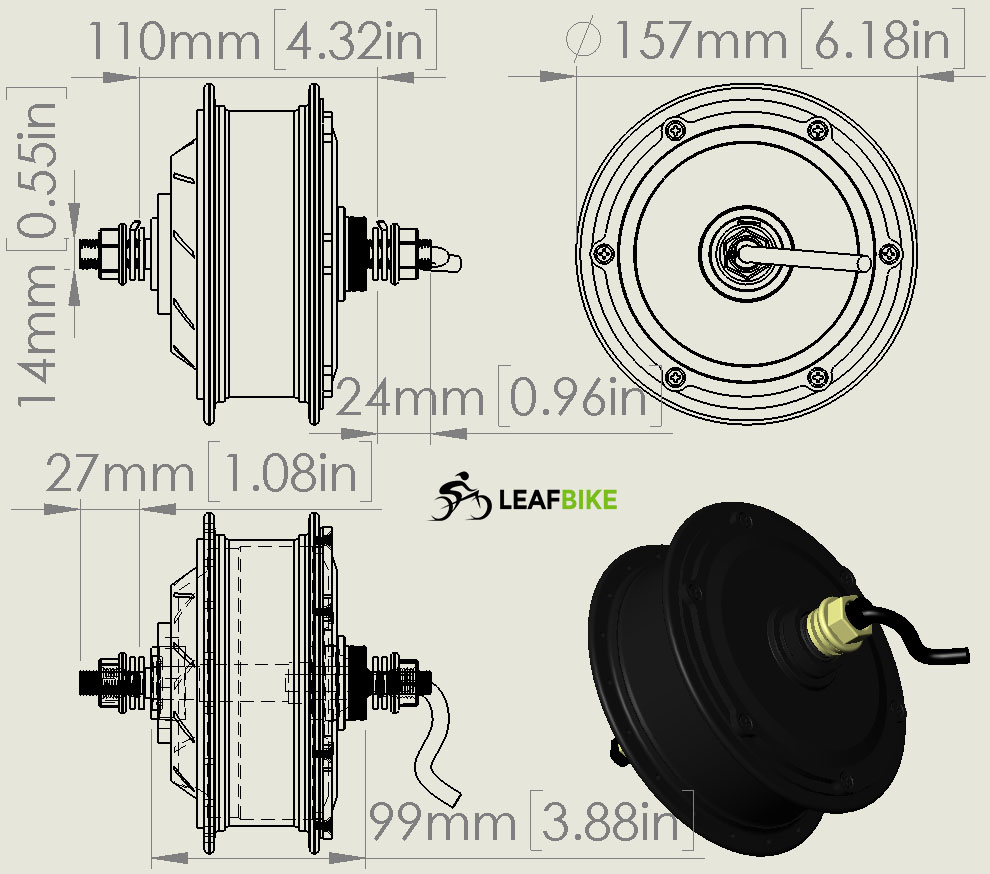

BMX Geared Motor Drw.
BMX 48V 500W 750W 1000W rear geared hub motor drawing
Performance Data:
