16 inch front wheel 750 watt 5 inch electric hub motor kit 700c 36V 750W front wheel twist 26x1.95 48v front mountain bike hub wheel

700c 48V 52V 1500W rear Cassette wheel - electric hub motor kit

Name: 700c 48V 52V 1500W rear Cassette wheel - electric hub motor kit
Brand: Leaf Bike
SKU: LBCK700C481500RNC1
Price: 495 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

Item ID #LBCK700C481500RNC1

$495.00 ~~$528.00~~

undefined

Description

This 700c electric bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

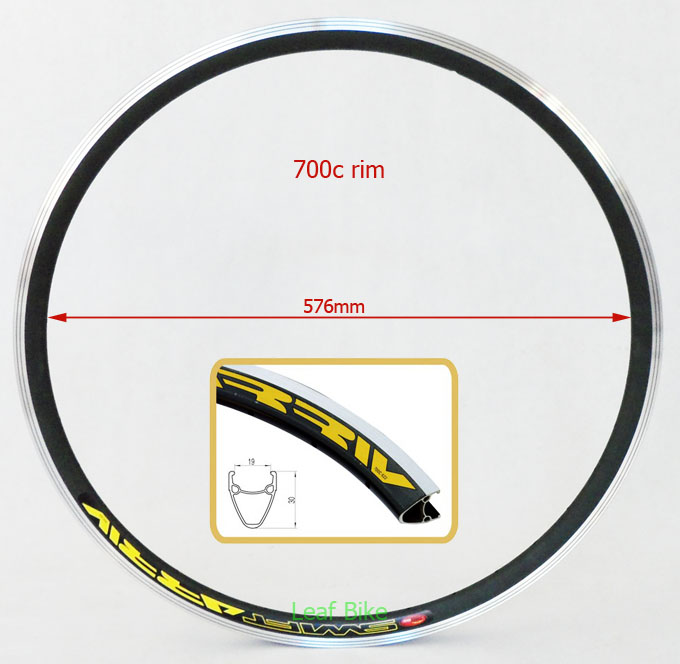

>. Rim: 700c double wall Alloy (Rim Fit For: 700 × 18C / 20C / 23C / 25C / 28C / 32C / 35C / 40C - 29er tire)
>. Spoke: 12 gauge / 184mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.

>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V / 60V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 80 kmh -- 50 mph @48V Default (Free customization other speeds: 35mph or 30mph, 25mph, 20mph, 15mph...)
>>. Mechanical brake: Disk or V
>>. Cassette: space for single speed ...6 speed or max 7 speed
>>. Cable location: shaft end , LEFT
>>. Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>. Install: spacing of Min 135mm to Max 155mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminum
>>. Maximum Current: 45 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

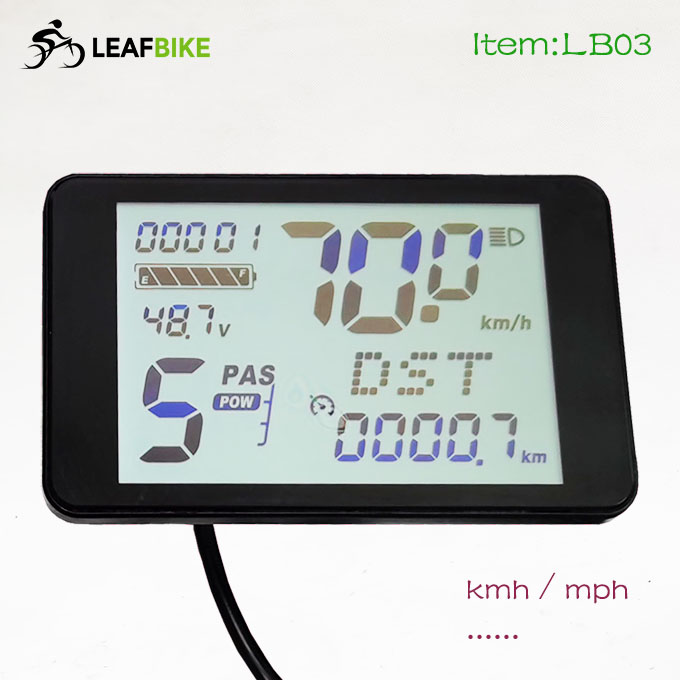

LCD Color Screen with USB Port , More Function:
* Cruise - Yes
* Reverse (Optional: On/Off)
* Headlights - Yes
* Kmh / mph
* Max speed ( 0 ~ 100 kmh / 60 mph ) -- If hope riding max speed 25kmh, just set LCD to be "25"
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* ...

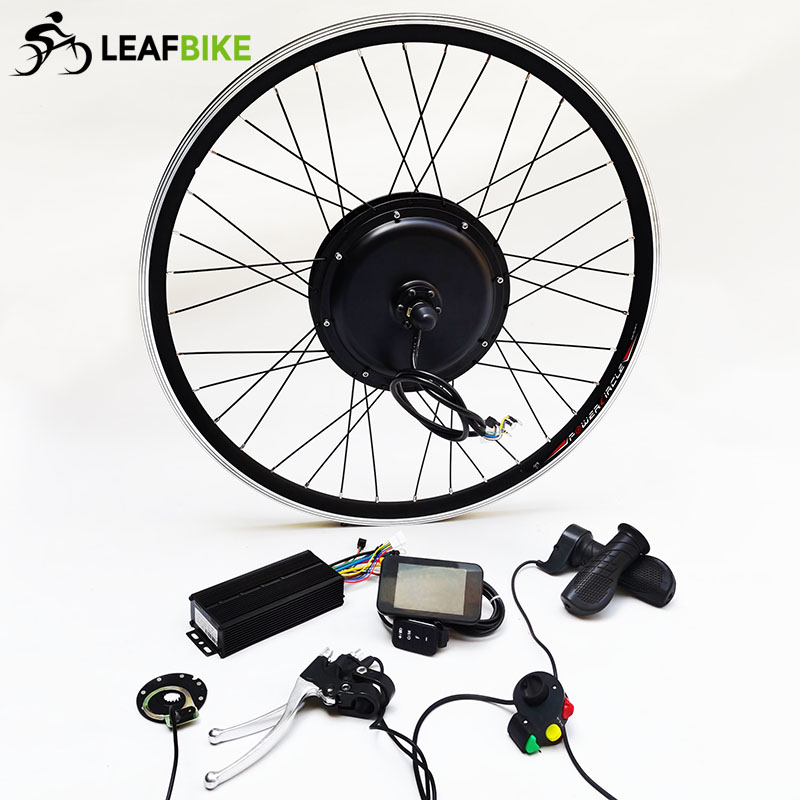

Package Content:
1 x 700c 48V / 52V 1500W rear cassette hub motor wheel
1 x 48V / 52V 1500W 18-MOSFET motor controller
1 x LCD Color Screen with USB port
1 x Twist throttle -- Cable length: 1800mm
1 x Brake levers -- Cable length: 1800mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1800mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.7 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

* This motor & controller system can handle with a 48V or 52V or 60V battery.

Wire Diagram:

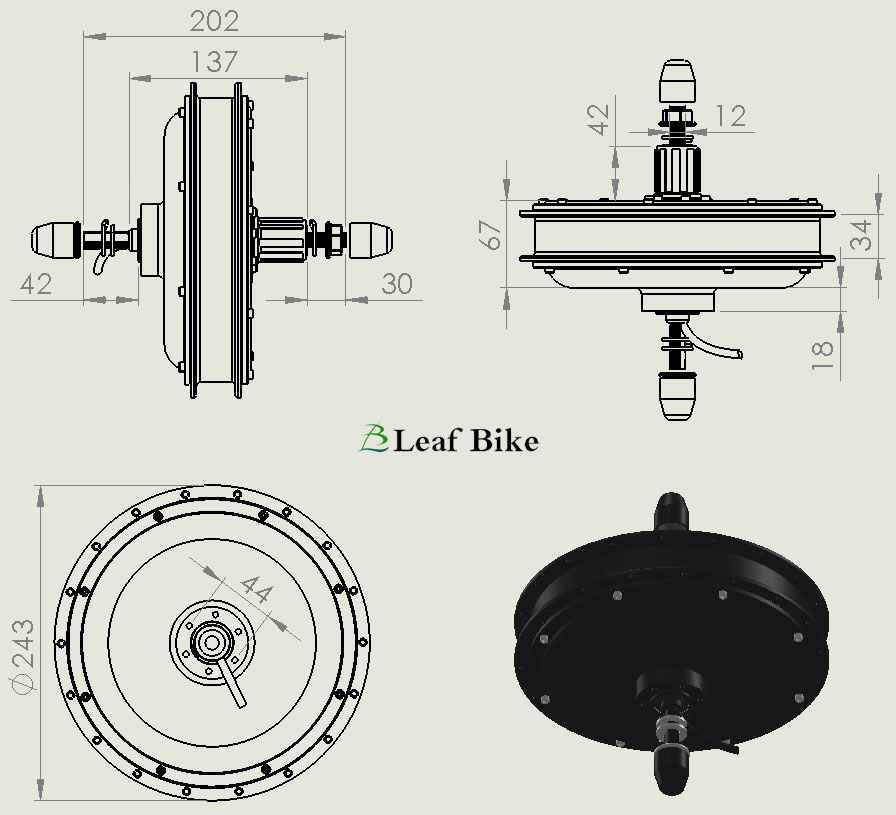

1500w rear Motor Drw.

Performance Data:

Recommended Products: Hydraulic Mechanical Brake Cut Off Sensor Switch Cable
Brake sensor for either hydraulic or mechanical brakes where you would like to keep your existing brake levers.
For front or rear brakes. Very simple to install, very easy to use. Will allow you to cut off the electric system on your electric vehicle.
