This 700c electric bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:

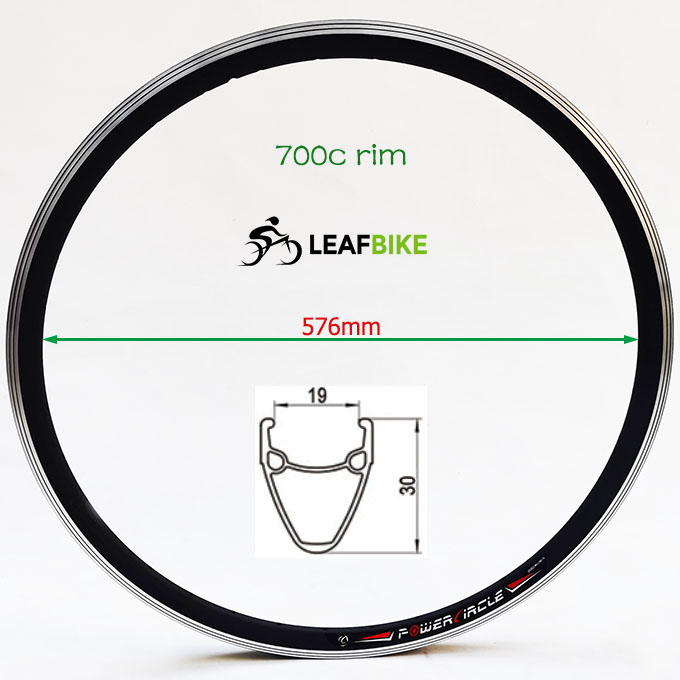

Rim: 700c Alloy (Rim Fit For: 700c × 18C / 20C / 23C / 25C / 28C / 32C / 35C / 40C tire)

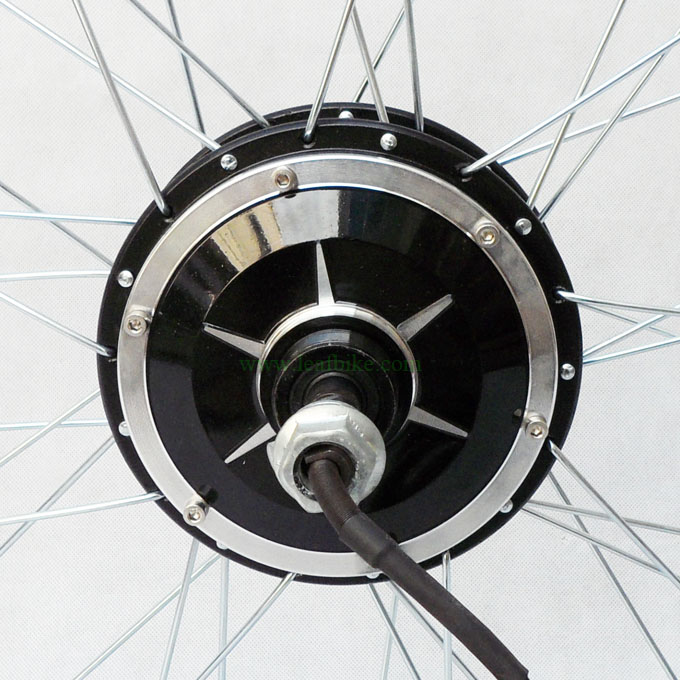

Hub motor: brushless gearless dc motor
Controller: LCD display
Max speed: 25 km/h
Mechanical brake: Disk / Drum
Install: spacing of 135mm fork

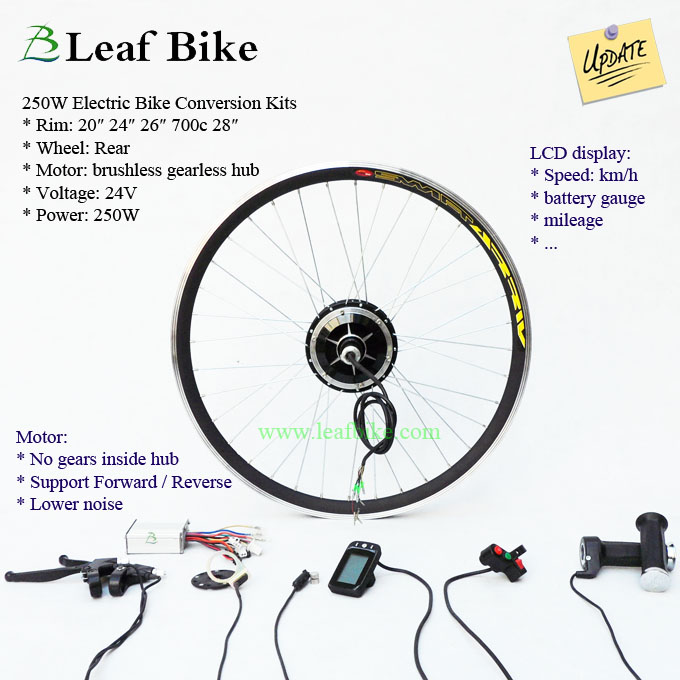

Package Content:
1 x 700c 24V 250W rear bldc hub motor wheel
1 x 24V 250W 6-MOSFET brushless motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake lever
1 x Three button switches
Net Weight: 6.85 kg / 15.1 lbs
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box
Wire Diagram:

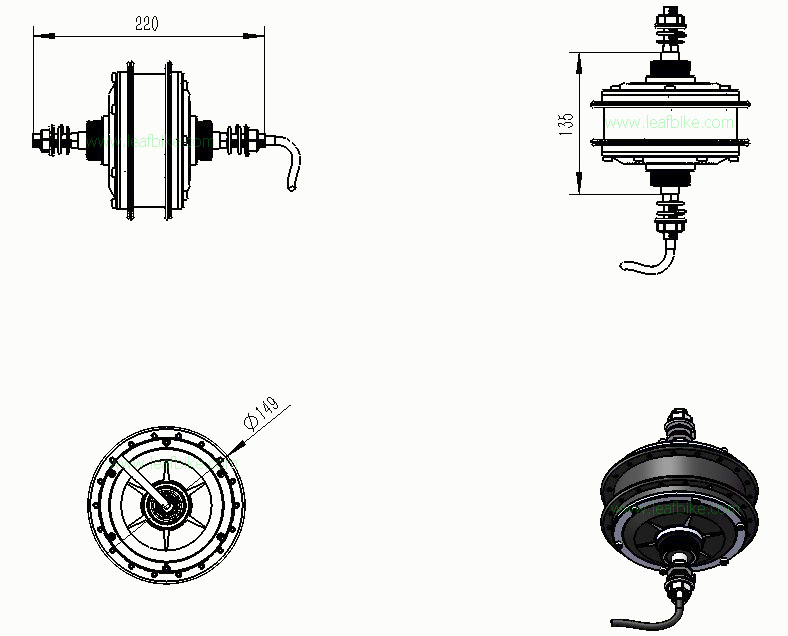

Rear Hub Motor Drw.
