28 inch 36V 750W front wheel - electric hub motor kit

Name: 28 inch 36V 750W front wheel - electric hub motor kit
Brand: Leaf Bike
SKU: LBCK2836750FN
Price: 316 USD
Availability: InStock
Rating: 5 (3 reviews)

Item ID #LBCK2836750FN

$316.00 ~~$378.00~~

Inquiry Now

Description

This 28 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun. Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
This 28 inch bike conversion kit works with a 36V battery.

Main Features:

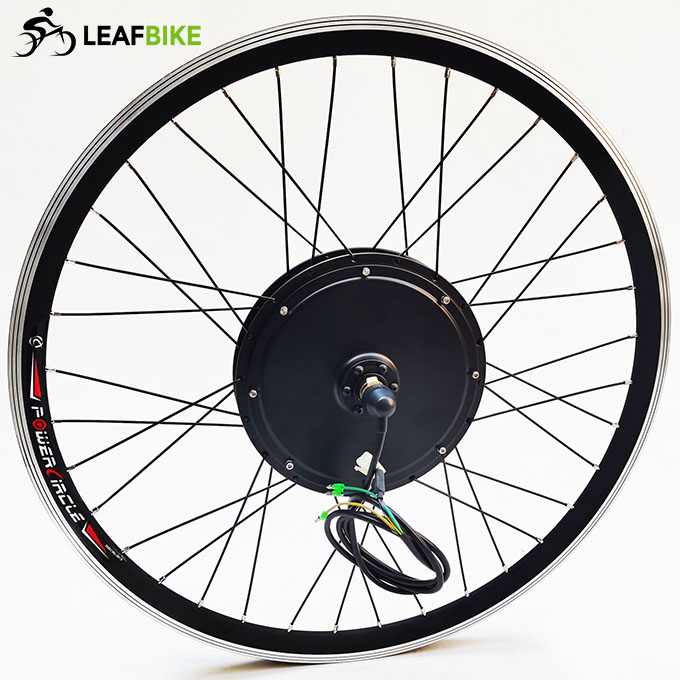

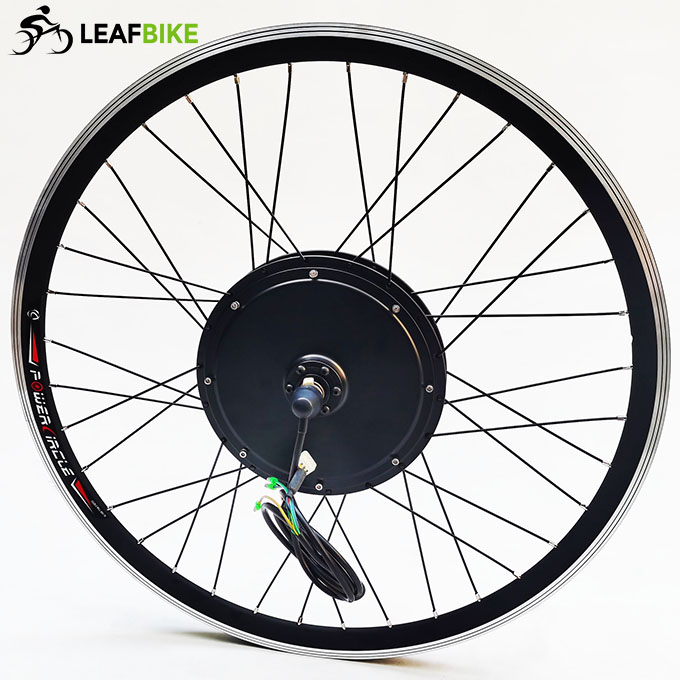

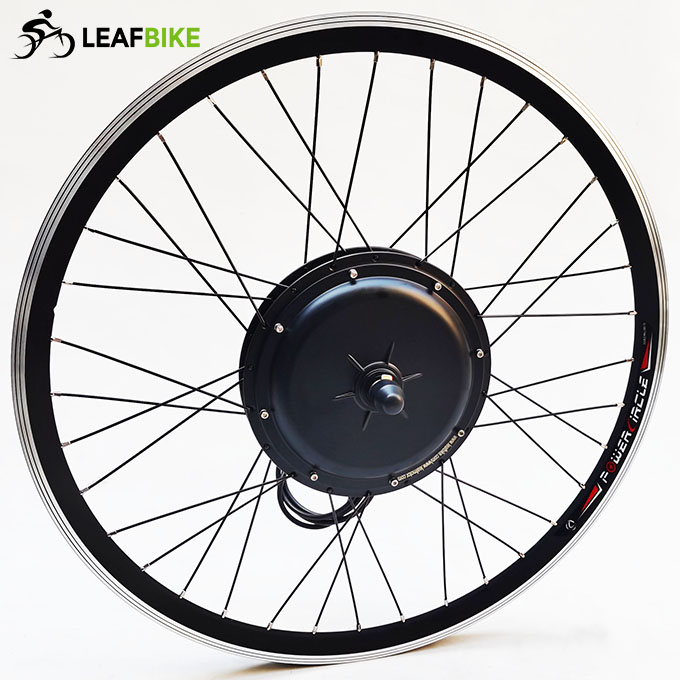

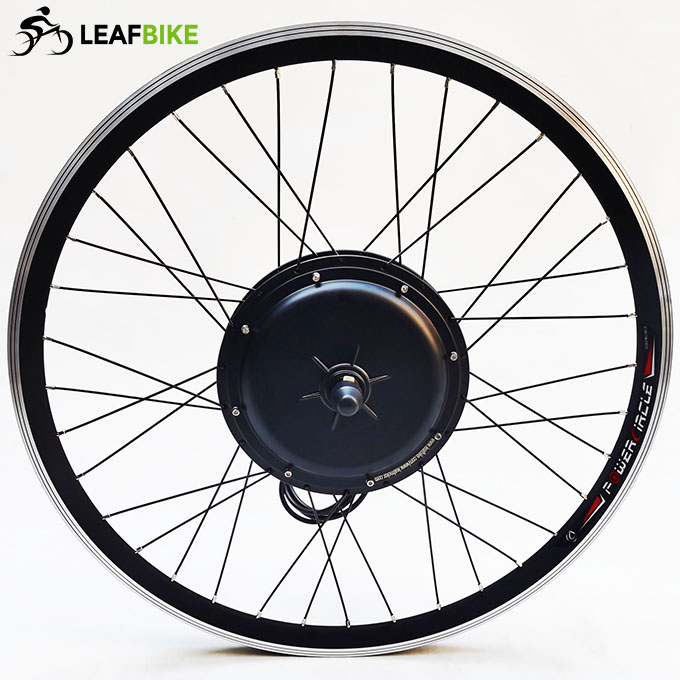

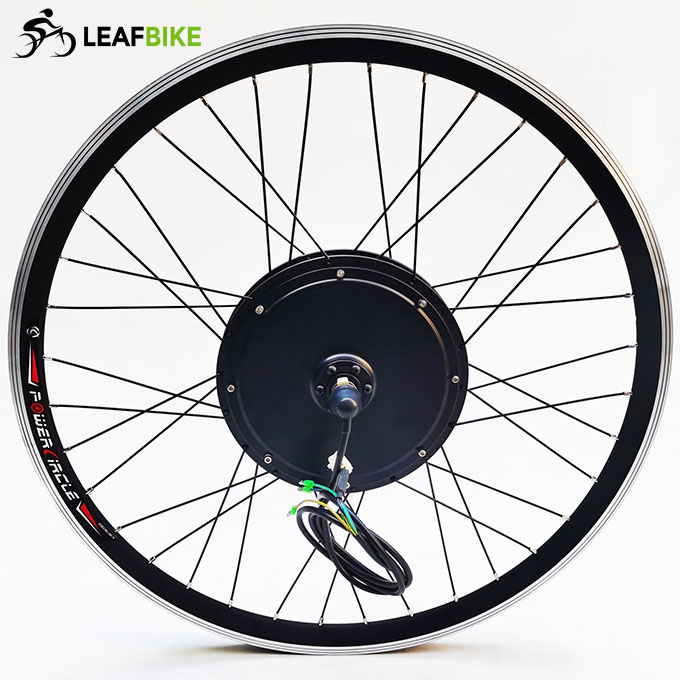

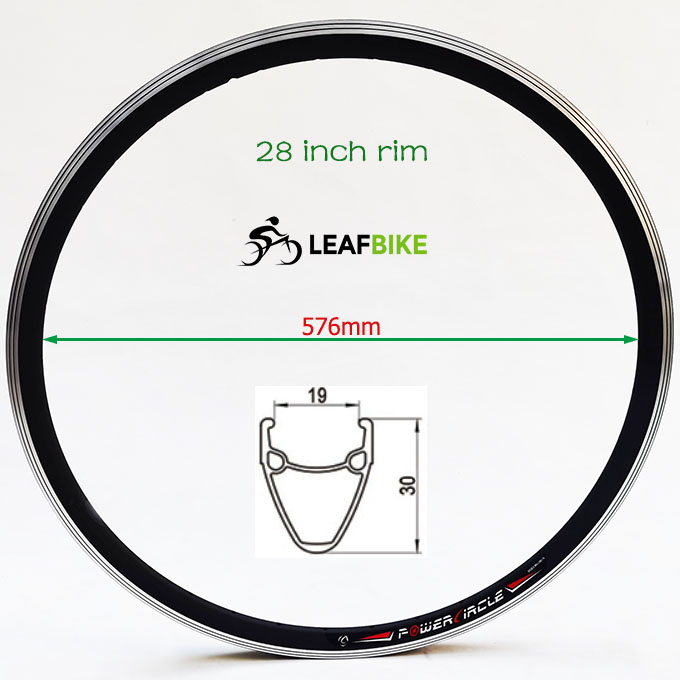

>. Rim: 28 inch double wall Alloy (Rim Fit For: 28 × 1-1/2" tire)
>. Spoke: 12 gauge / 184mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 67.5 kmh -- 41.8 mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise - Yes
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" if off. "1" is the slowest. "5" is the fastest.
* ...

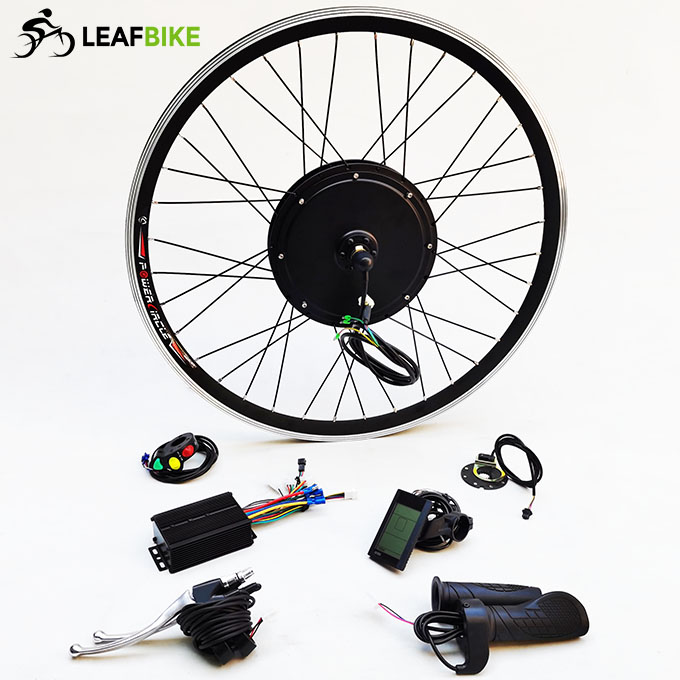

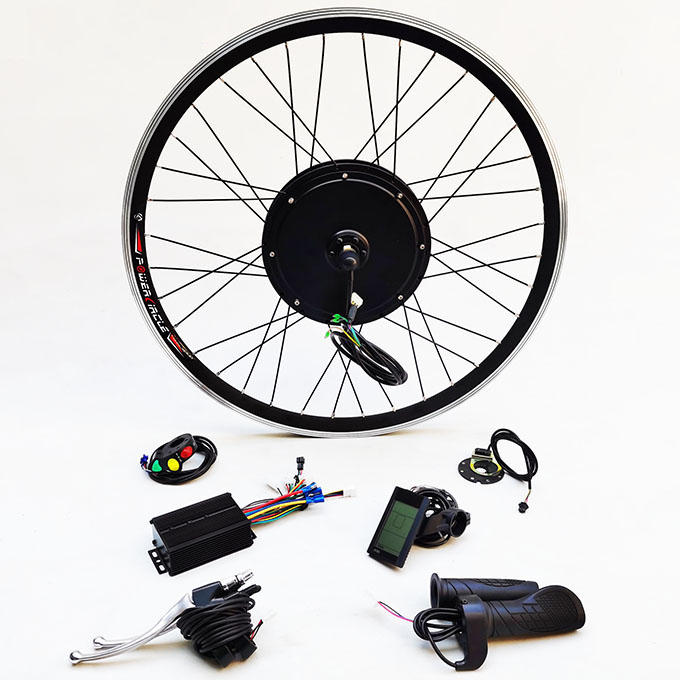

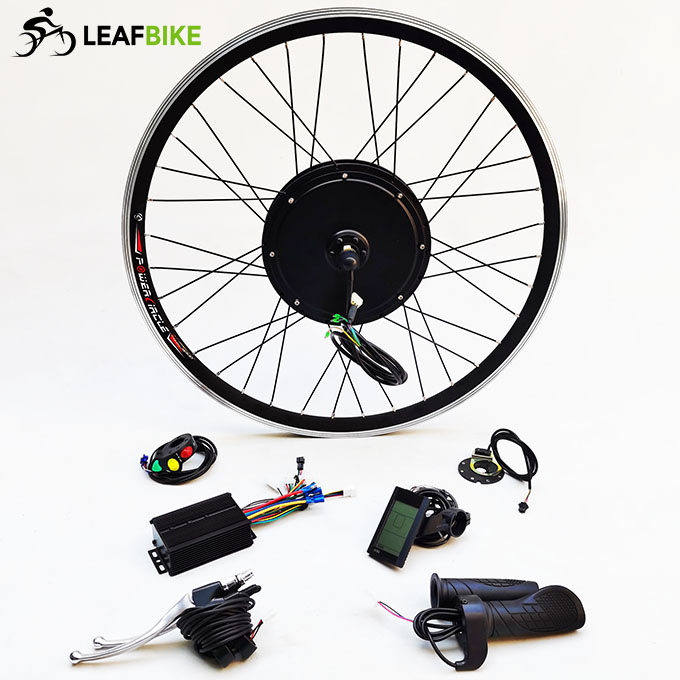

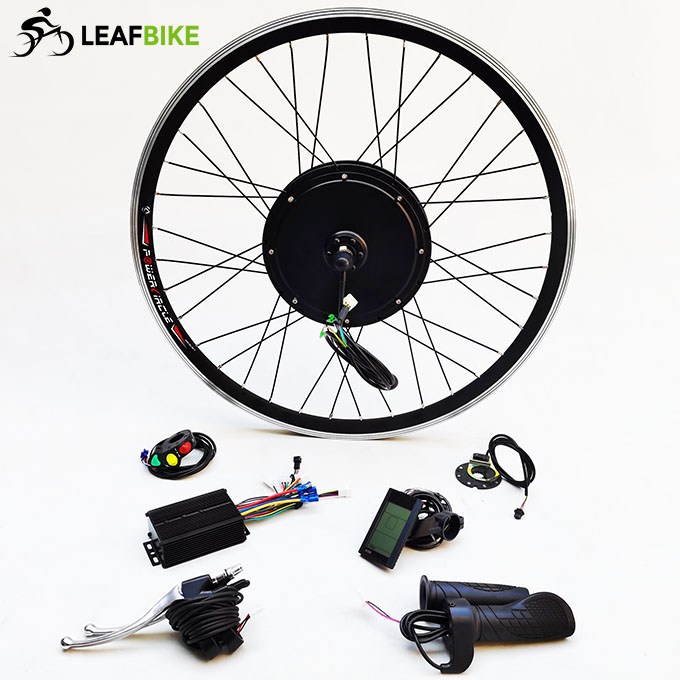

Package Content:

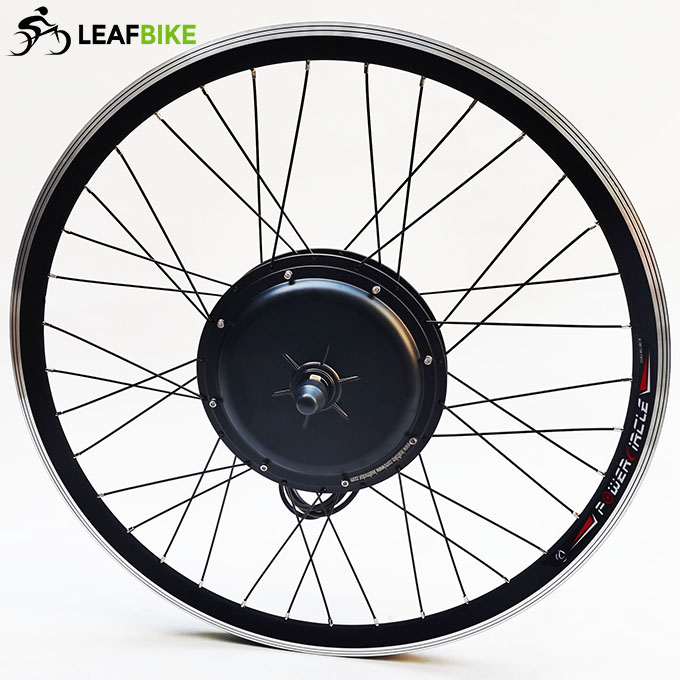

1 x 28 inch 36v 750w front hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle Default (Optional: thumb throttle)
1 x Brake levers
1 x Three button switches ( control cruise... )
1 x Pedal assist

Net weight: 10.9 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

Wire Diagram:

750W Front Drw.

Performance Data:
