27 inch 60V 2000W rear hub motor - bike conversion kit

Name: 27 inch 60V 2000W rear hub motor - bike conversion kit
Brand: Leaf Bike
SKU: LBCK27602000RNK
Price: 414 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK27602000RNK

$414.00 ~~$458.00~~

Maybe You Need These

Description

The 27 inch bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 27 inch bike conversion kit works with a 60V battery.

Main Features:
>. Rim: 27 inch double wall Alloy (Rim Fit For: 27× 1-1/4 or1-3/8 tire)
>. Spoke: 12 gauge / 198mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 72.9kmh -- 45.2mph Default (Optional other speed: 35mph or 25mph,15mph...please leave message)
>>. Mechanical brake: Disk or V
>>. Freewheel: space for single speed... 6 speed or 7 speed
>>. Cable location: shaft end, Left
>>. Cable length: 100cm / 40"
>>. Install: spacing of Min.135mm(6 speed) to Max.155mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 50 ± 0.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 55 A ± 2 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42mm H

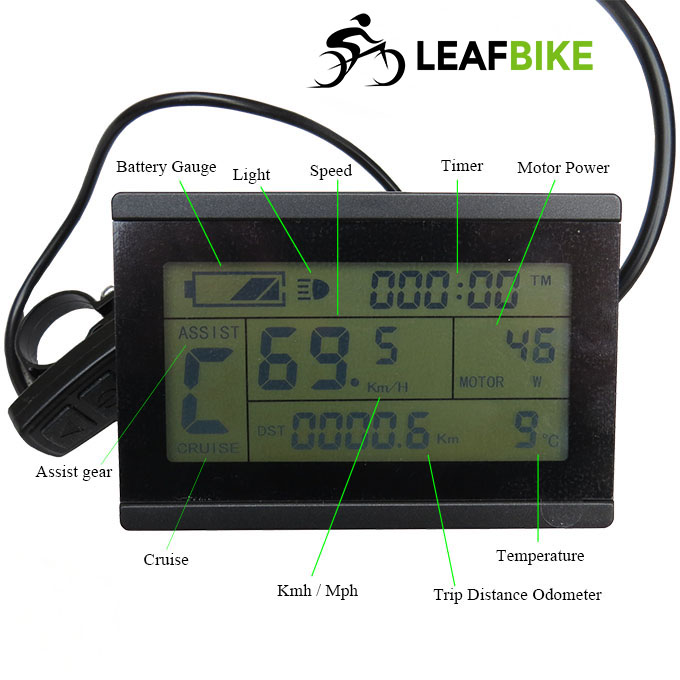

With LCD, More Function:
* Cruise
* Reverse
* Kmh / mph
* Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 0- 5 )
* ...

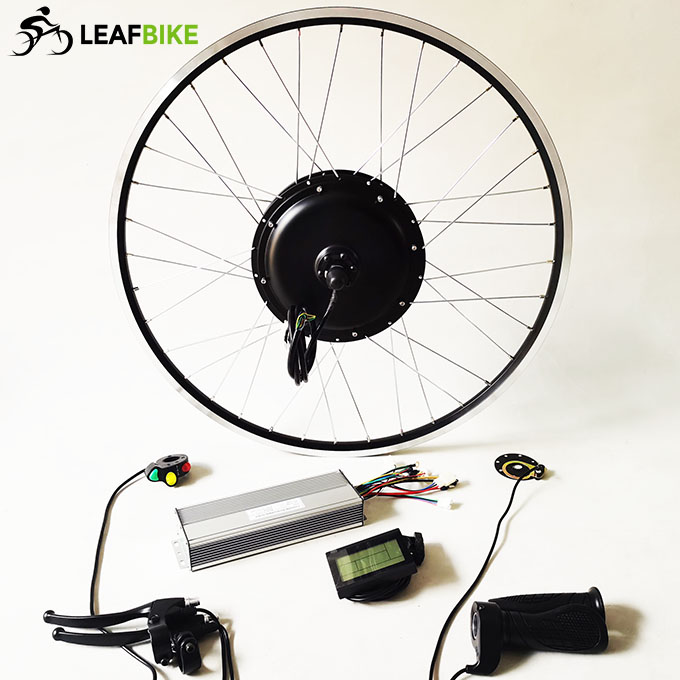

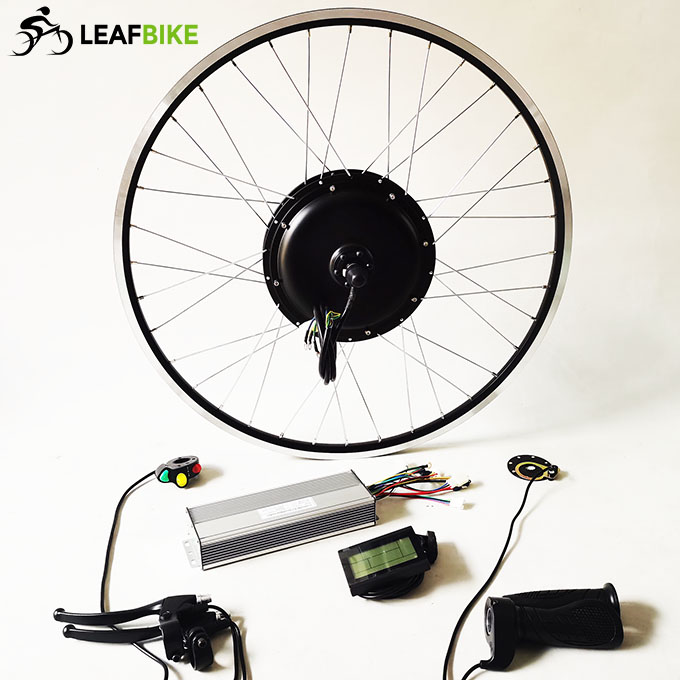

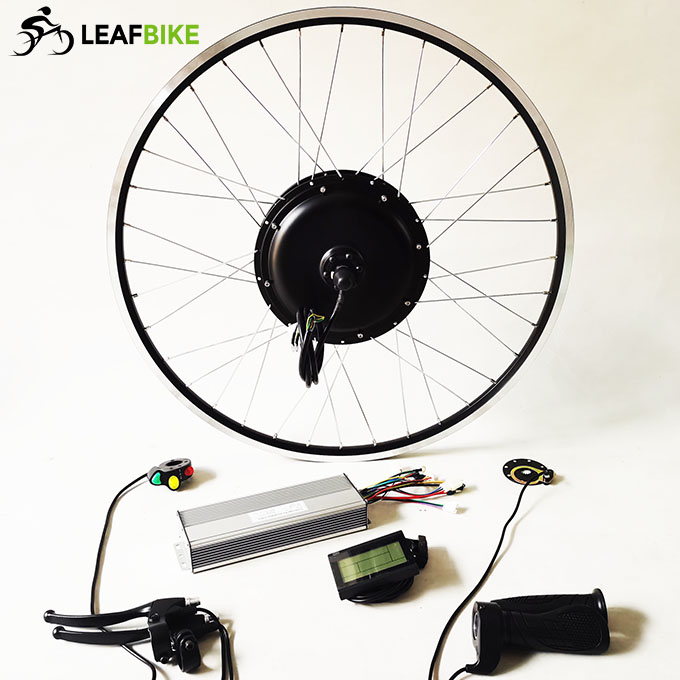

Package Content:

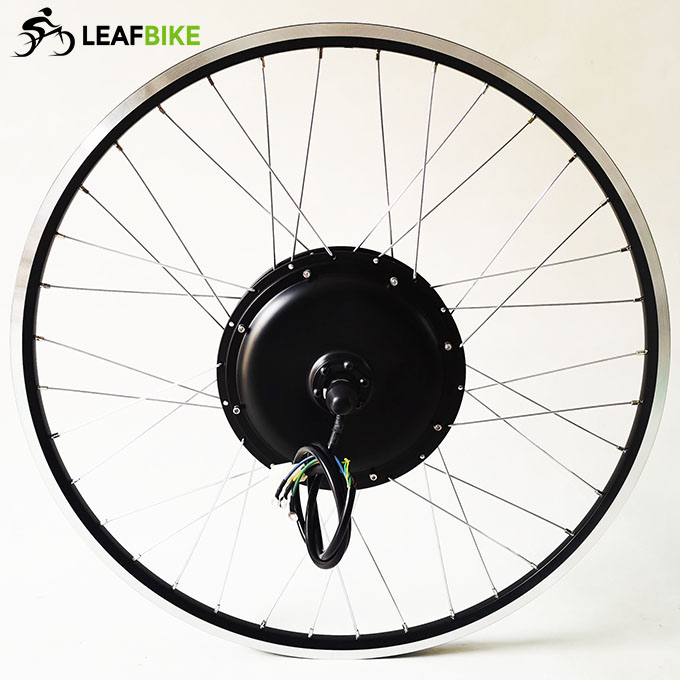

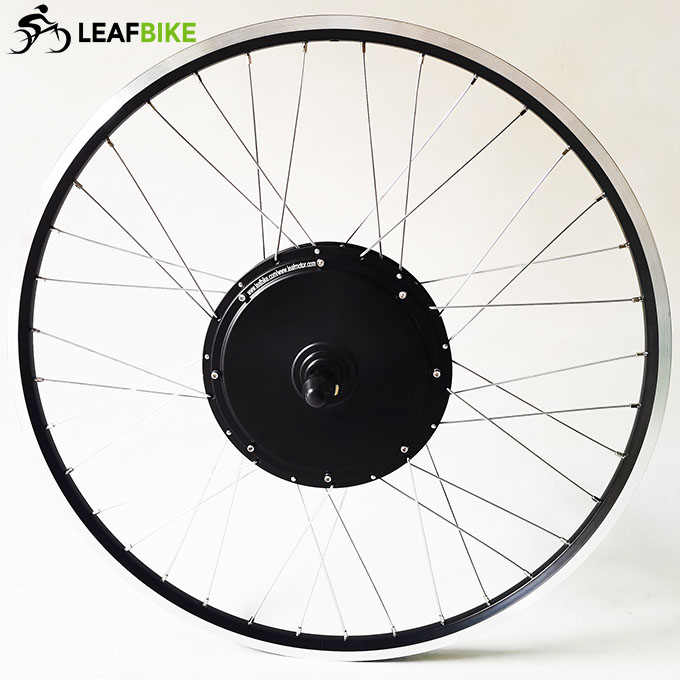

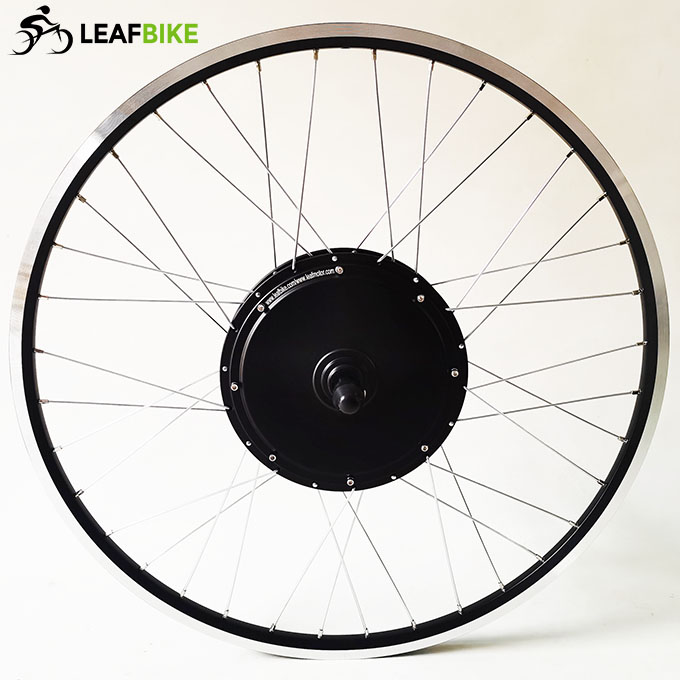

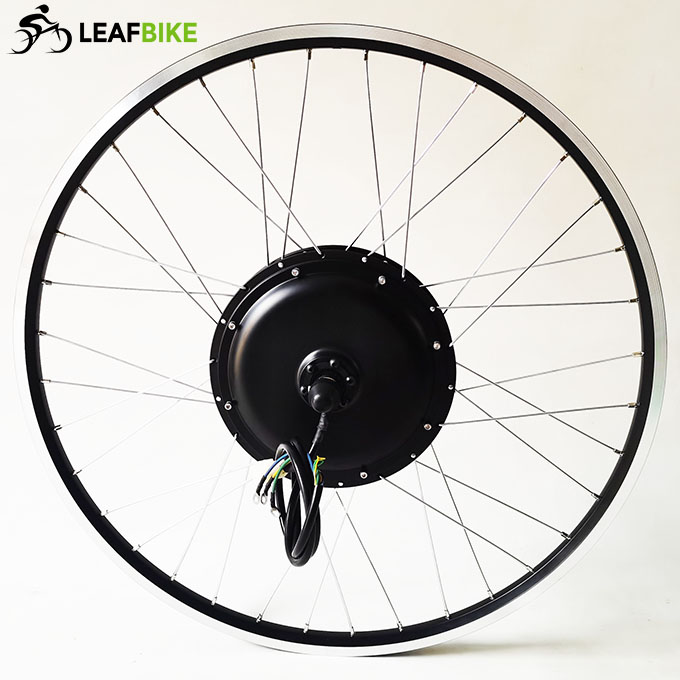

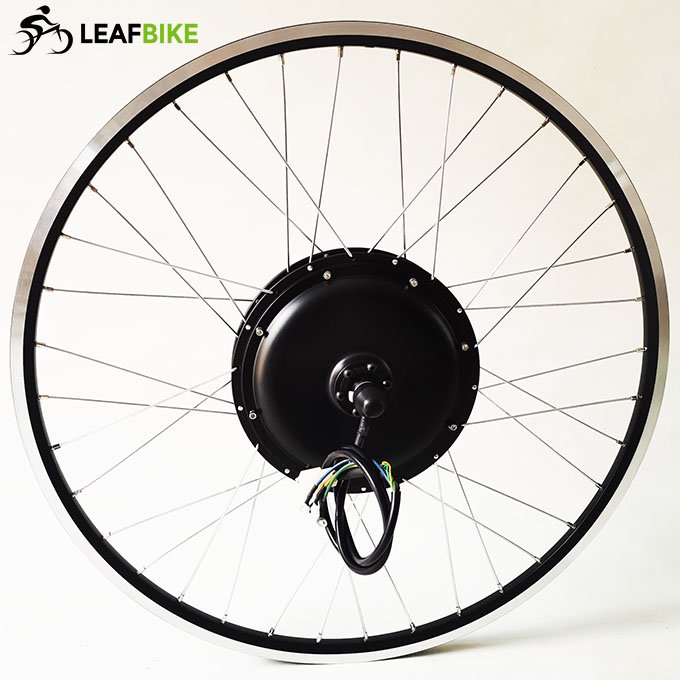

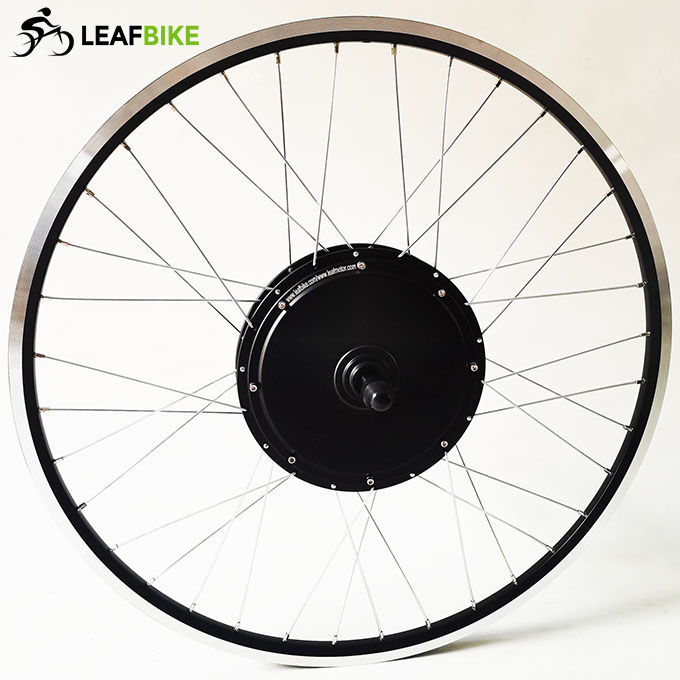

1 x 27 inch 60V 2000W rear hub motor wheel
1 x 60V 2000W motor controller

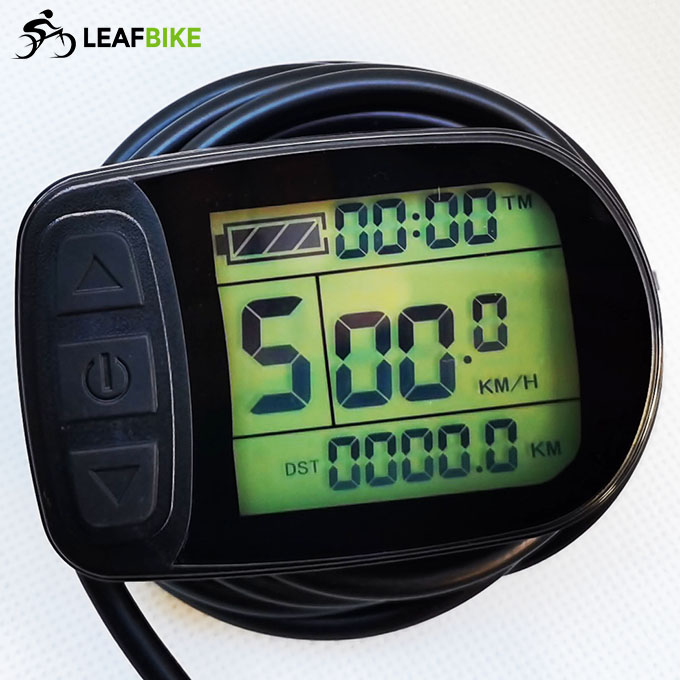

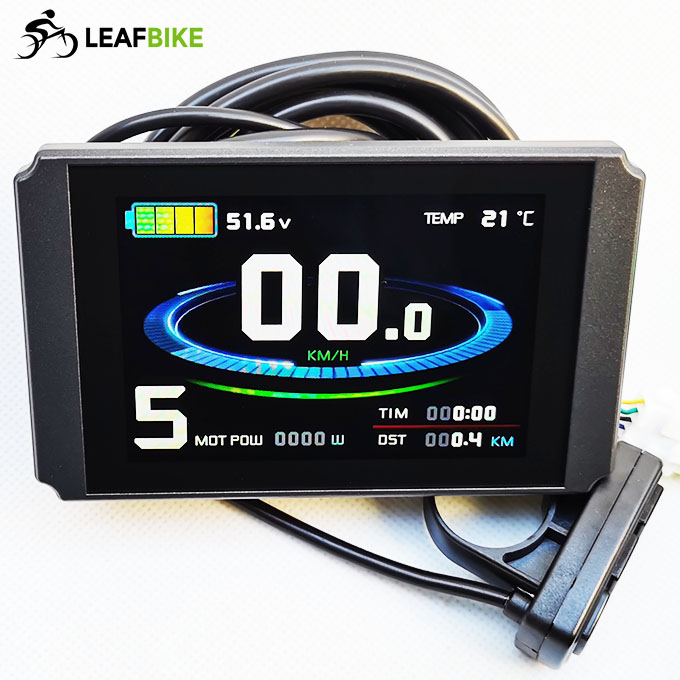

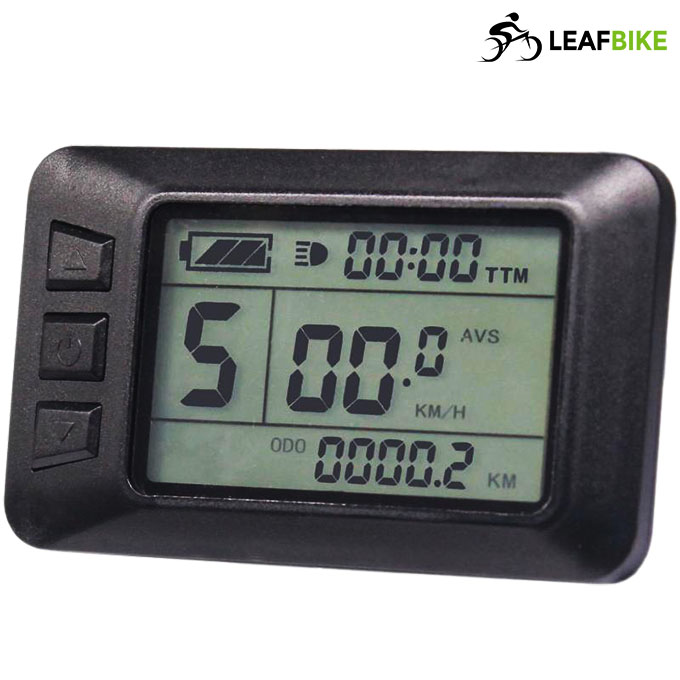

1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.9 kg
Package Size: 68cm L x 68cm W x 25cm H
Package Type: Cardboard Box

Share Video:

27 inch 60V 2000W rear hub motor electric bike conversion kit video

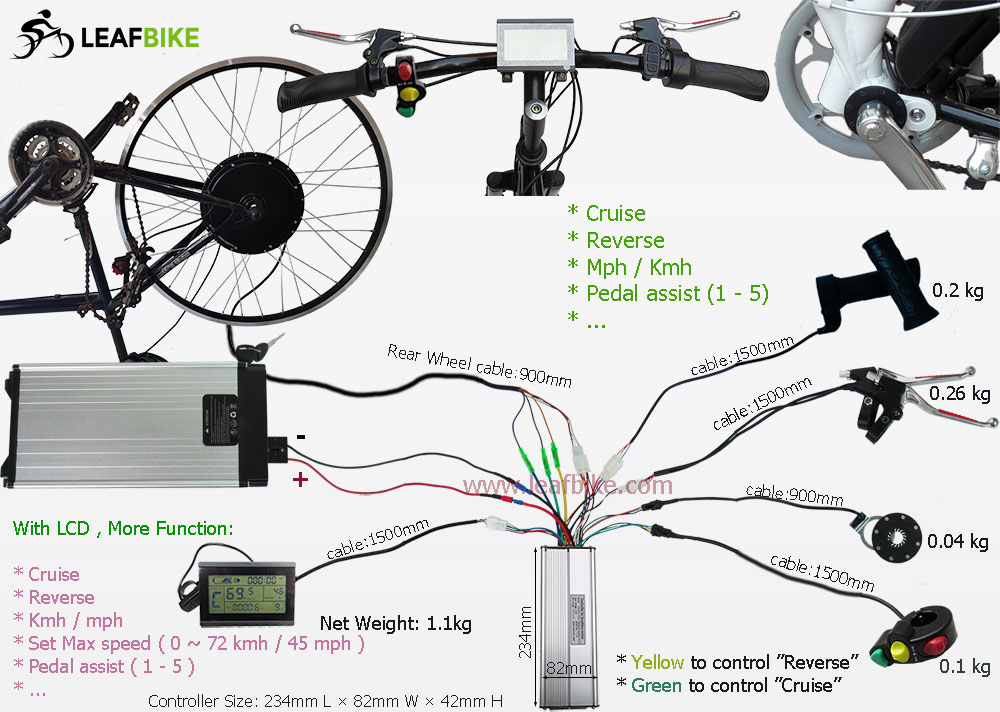

Wire Diagram:

2000W rear Motor Drw.

Recommended Products: Hydraulic Mechanical Brake Cut Off Sensor Switch Cable
Why do you need this external brake sensor cable?
Brake sensor for either hydraulic or mechanical brakes where you would like to keep your existing brake levers.
For front or rear brakes. Very simple to install, very easy to use. Will allow you to cut off the electric system on your electric vehicle.
