The conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:
>. Rim: 20 inch double wall Alloy (Rim Fit For: 20 × 1.5" / 1.75" / 1.95" tire)
>. Spoke: 13 gauge / 120mm Length × 36 pcs
>. Engine
: Bldc hub motor
>>. Voltage: 36V
>>.
Power: 250W
>>.
Efficiency: 78%
>>.
Max speed: 40.9 kmh -- 25.4 mph
>>.
Mechanical brake: Disk/Drum or V
>>.
Cable location: shaft end , LEFT
>>.
Cable length:100cm / 40"
>>.
Install: spacing of 135mm fork
>>.
Noise: < 60 db
>>.
Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>.
Rated power: 250 Watts
>>.
Casing material: aluminium
>>.
Maximum Current: 16 A ± 1 Amps
>>.
Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 95 mm L × 61 mm W × 35 mm H

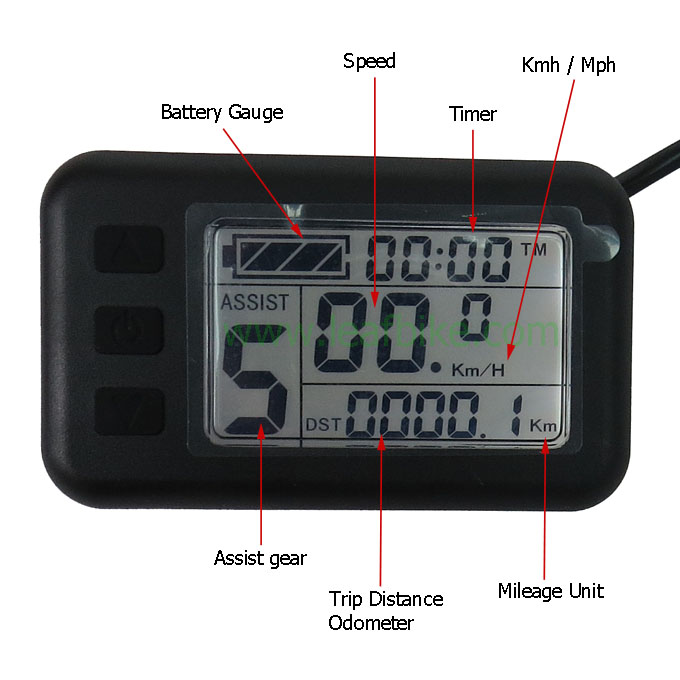

LCD-003, More Function:
* Cruise
* Reverse
* Regen brake
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

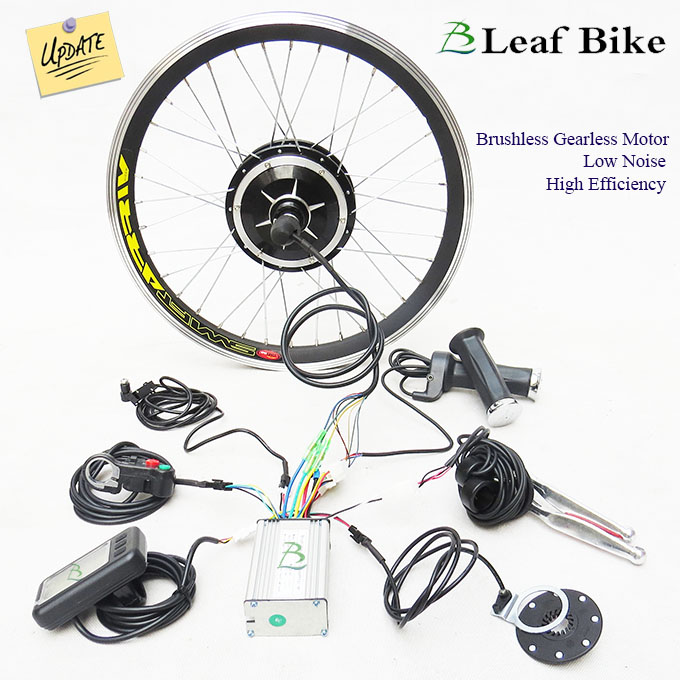

Package Content:

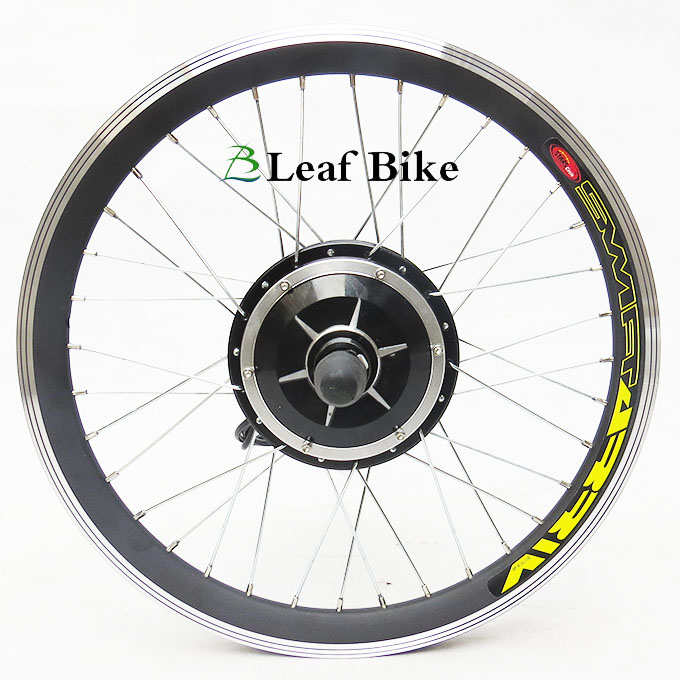

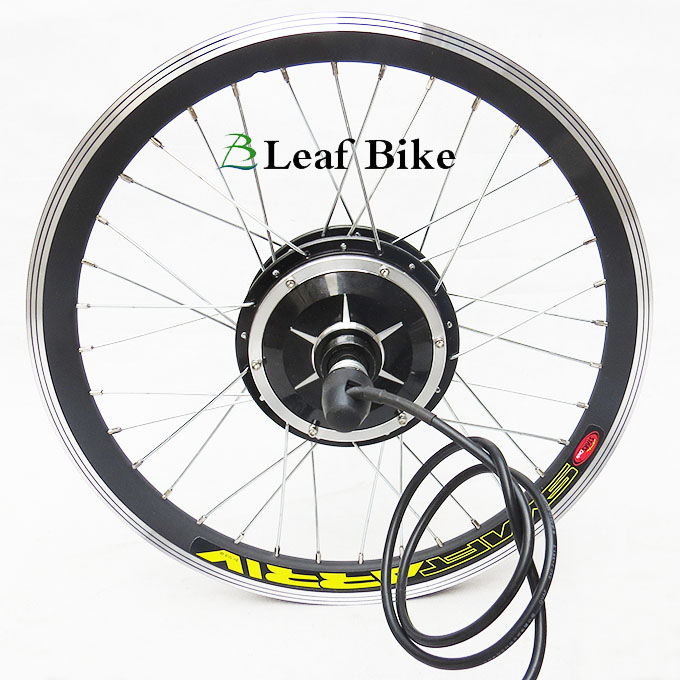

1 x 20 inch 36V 250W rear hub motor wheel
1 x 36V 250W 6-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake lever
1 x Three button switches
1 x Pedal assist
Net Weight: 6.71 kg / 14.8 lbs
Package Size: 52cm L x 22cm W x 51cm H / 20.5" L x 8.7" W x 20" H
Package Type: Cardboard Box
