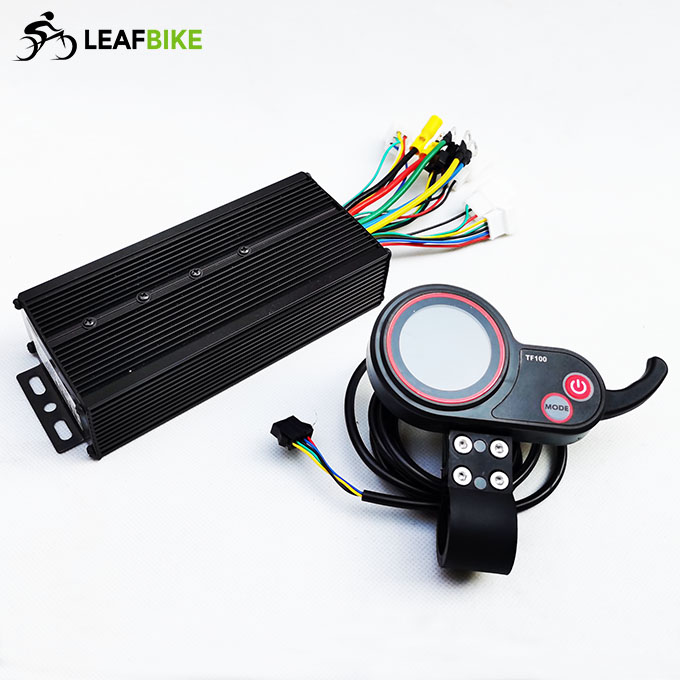

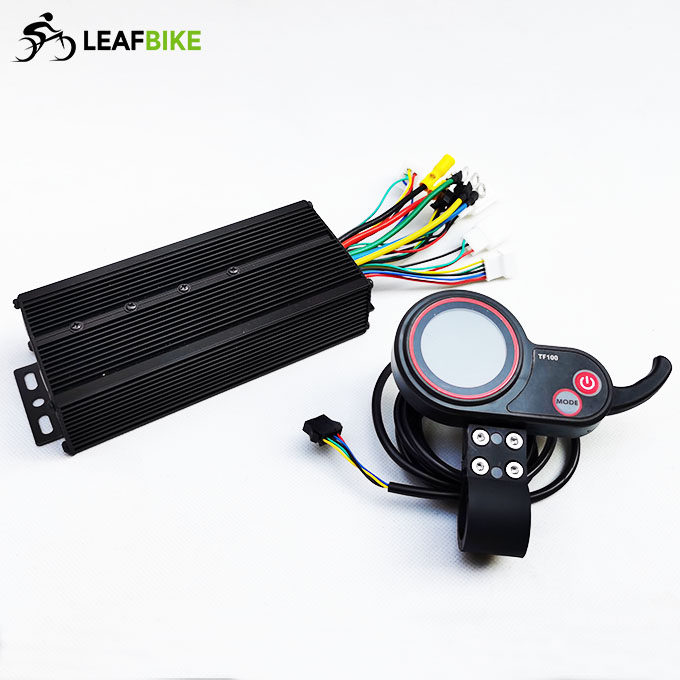

48V 52V 1500W ~ 1800W 60V 2000W electric hub motor controller with TF100 screen

Item ID #LBC48601845TF100
$146.00 $146.00
    Please select the information you wantX
Quantity :
-
+
CONTACT US
Maybe You Need These
Maybe You Need These
Description

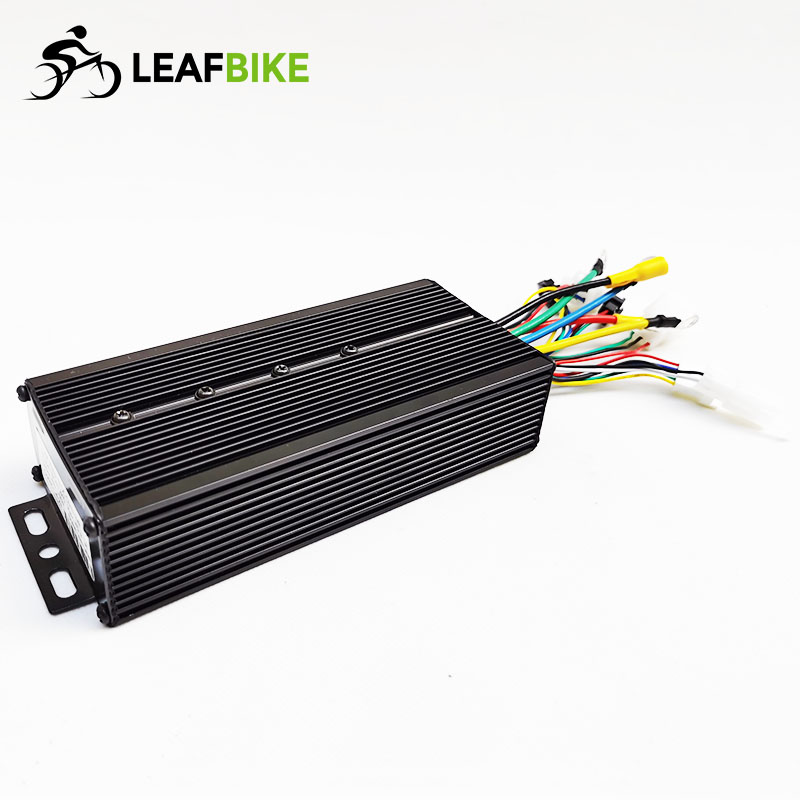

48V 52V 60V Electric Bicycle Brushless Motor Controller For E-bike & Scooter -- 18-MOSFET
It's fit to drive 48V / 52V 1500W ~ 1800W brushless with hall sensor hub motor.
It's fit to drive 60V 2000W brushless with hall sensor hub motor.

Features:
Suitable for Electric for electric bike & scooter
Rated Voltage: DC 48 / 52 / 60Volts (set 48V or 52 or 60V by screen)
Casing material: aluminium
Maximum Current: 45 A ± 1 Amps
Thermal: aluminum shell and the substrate - Black color

3 phase 120° brushless motor
Operating Conditions: -20~45 °C
Waterproof design
Size: 155 mm L × 72 mm W × 38 mm H
Weight: 0.7 kg

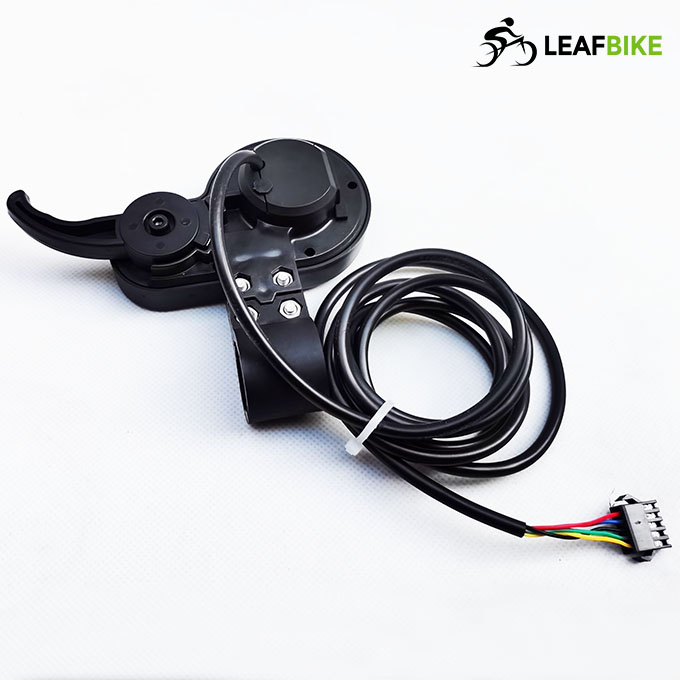

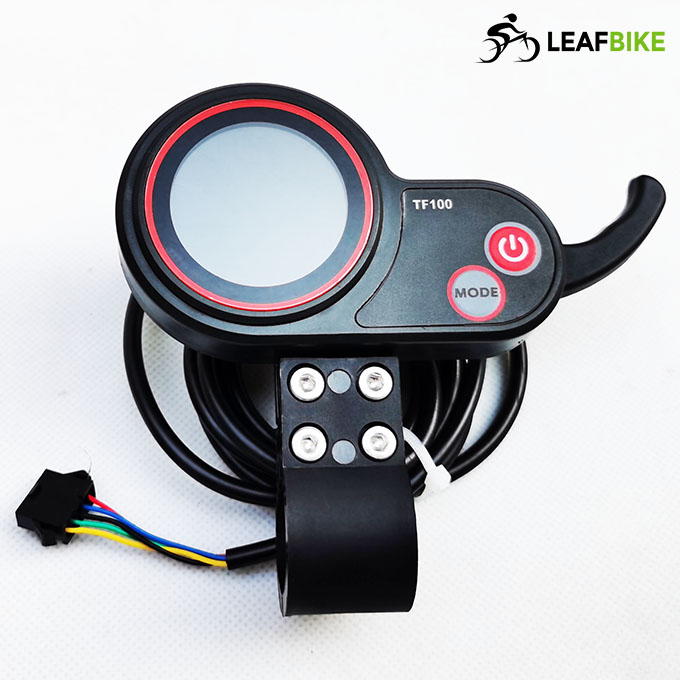

Working with TF100 screen

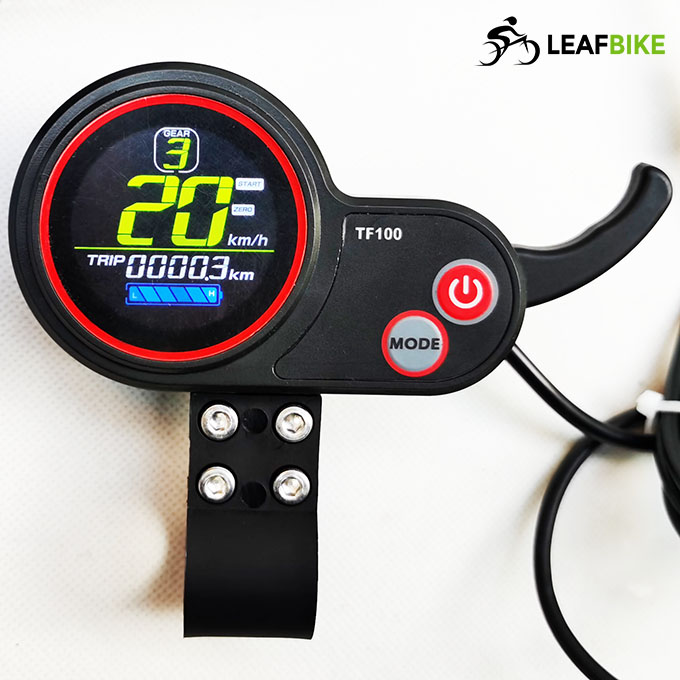

Display: speed, mileage, battery gauge...

Functions:
Mute when start
Speed limit
Power cut brake
Blockage protection
Current limit protection
E-ABS brake
Short circuit protection
Avoid out of control
1:1 pedal assist function
Undervoltage protection

Additional features:
* Cruise
* Reverse
* Speeds ( 1 - 5 )
* Mph / kmh
* ....
