26 inch 48V 52V 1500W rear hub motor - Beach Snow Fat Tire bike conversion kit

Name: 26 inch 48V 52V 1500W rear hub motor - Beach Snow Fat Tire bike conversion kit
Brand: Leaf Bike
SKU: LBCK26481500RS
Price: 418 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK26481500RS

$418.00 ~~$467.00~~

Quantity :

Maybe You Need These

Description

Please watch videos for 26 inch 48V 52V 1500W rear hub motor electric bike conversion Beach Snow Fat Tire kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, max 32kmh, max 45kmh..

170mm Cassette:

Share Video:

26-inch-1500w-beach-snow-fat-hub-motor-electric-bike-conversion-kit

* This 26 inch fat bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

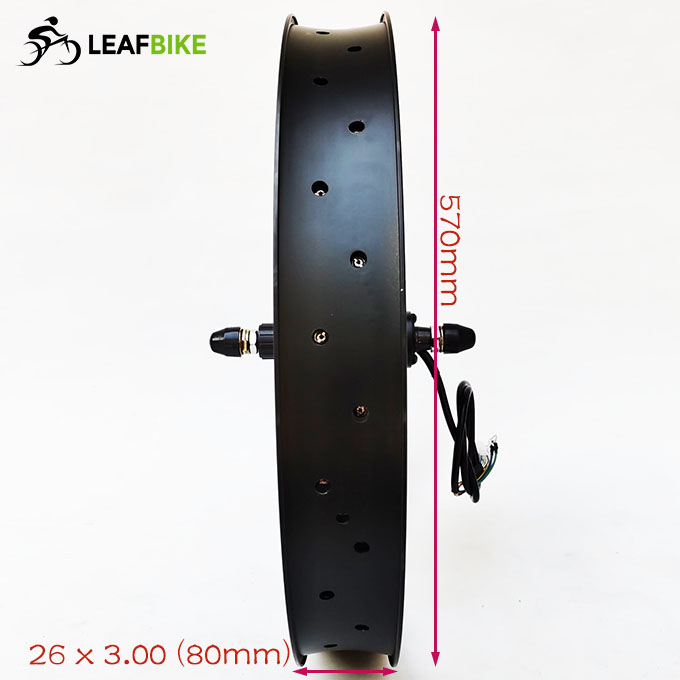

>. Rim: 26 × 3 inch double wall Alloy (Rim Fit For: 26 × 4.00" tire)
>. Spoke: 12 gauge / 160mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 72.9 kmh -- 44.4 mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Sprocket: Freewheel or Cassette
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Rear frame fork / Install: spacing of 190mm or 170mm (190mm version Default or 170mm version optional)
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 45 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

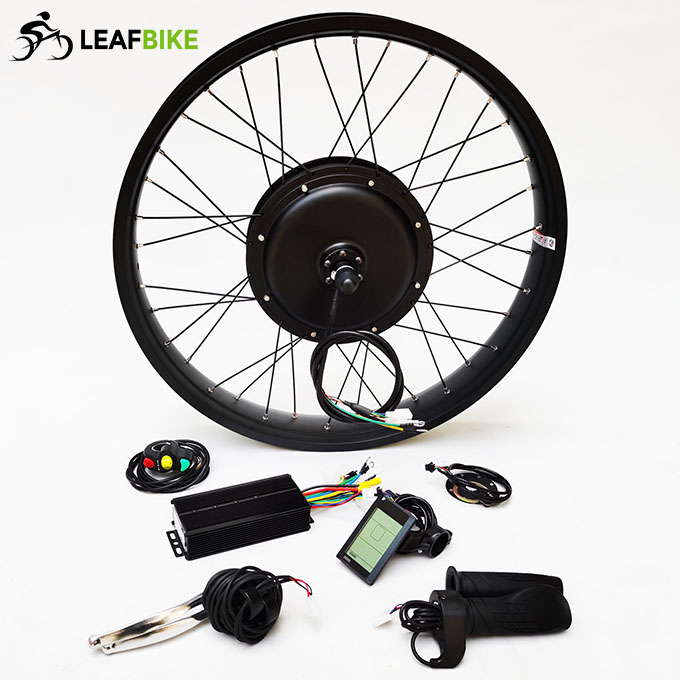

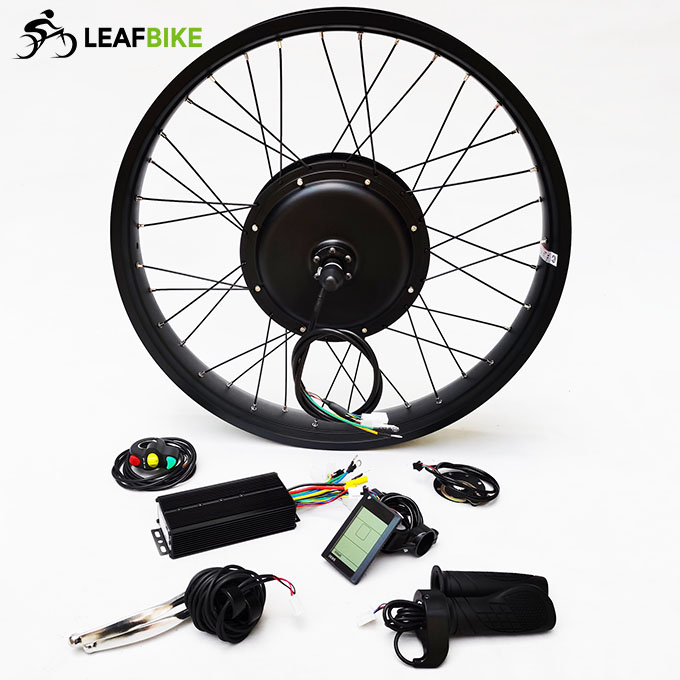

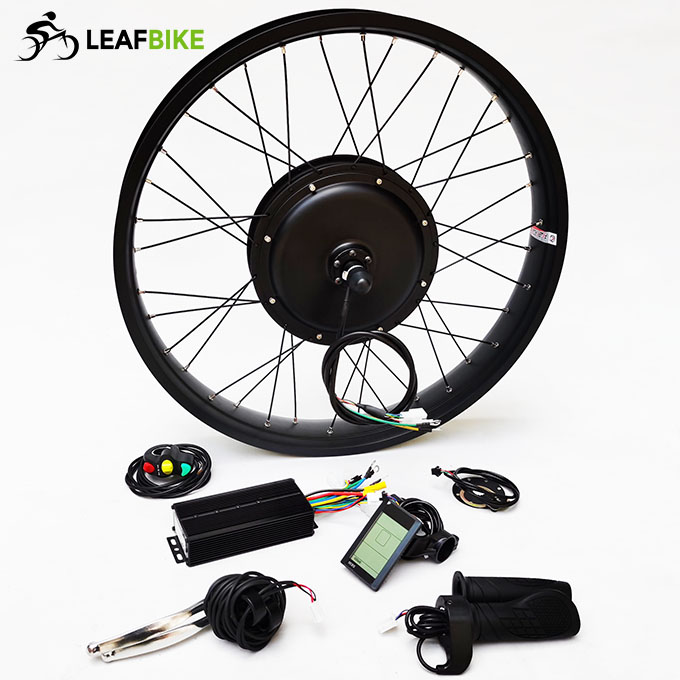

Package Content:

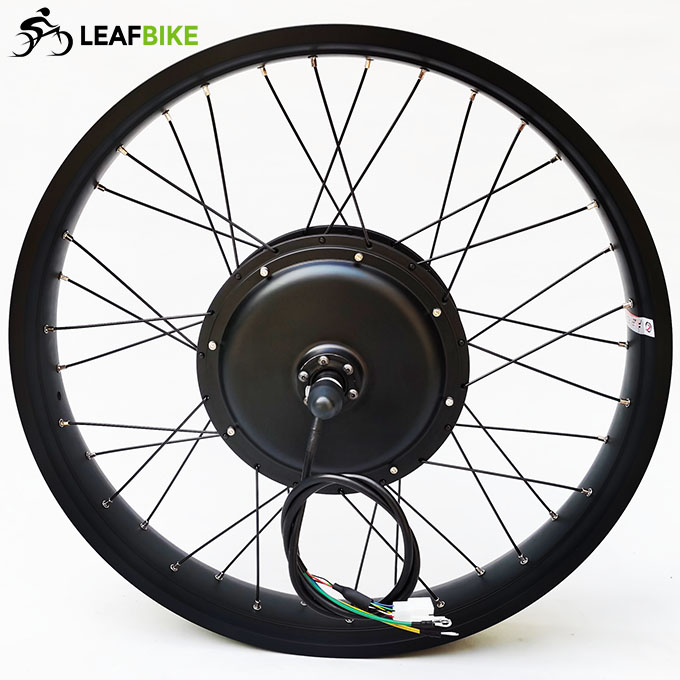

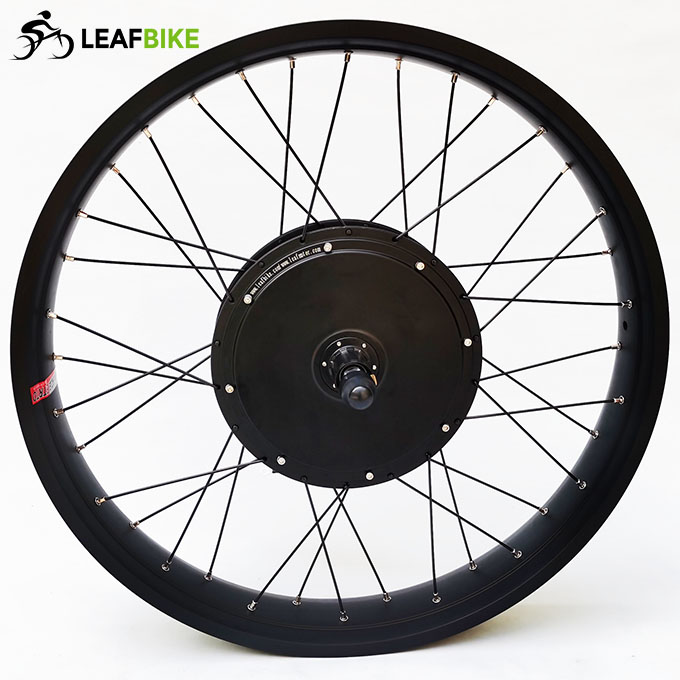

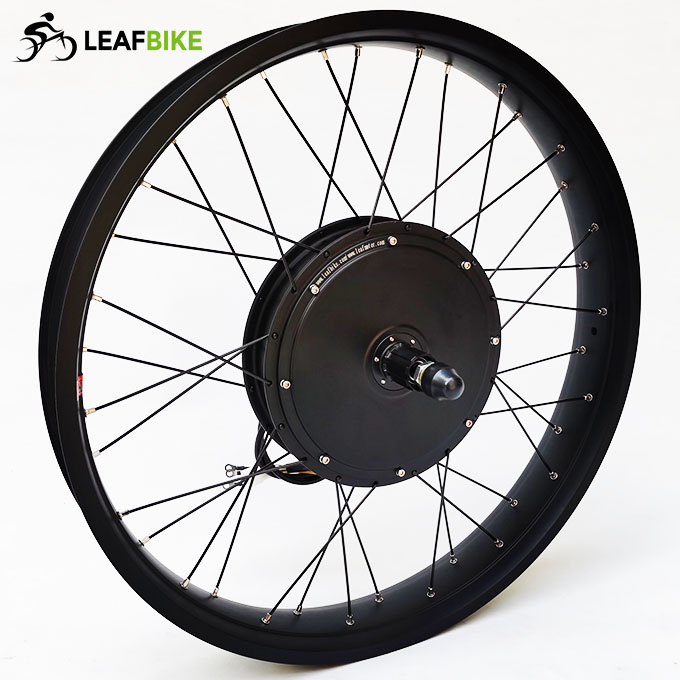

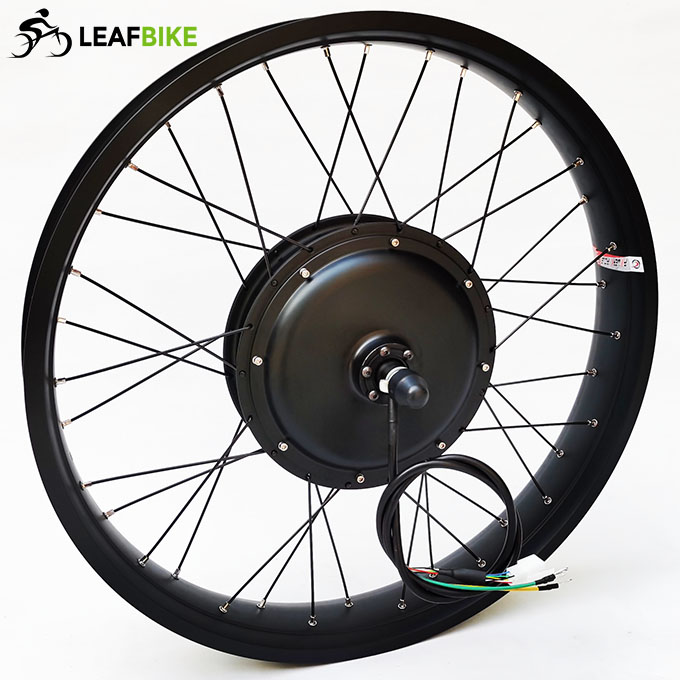

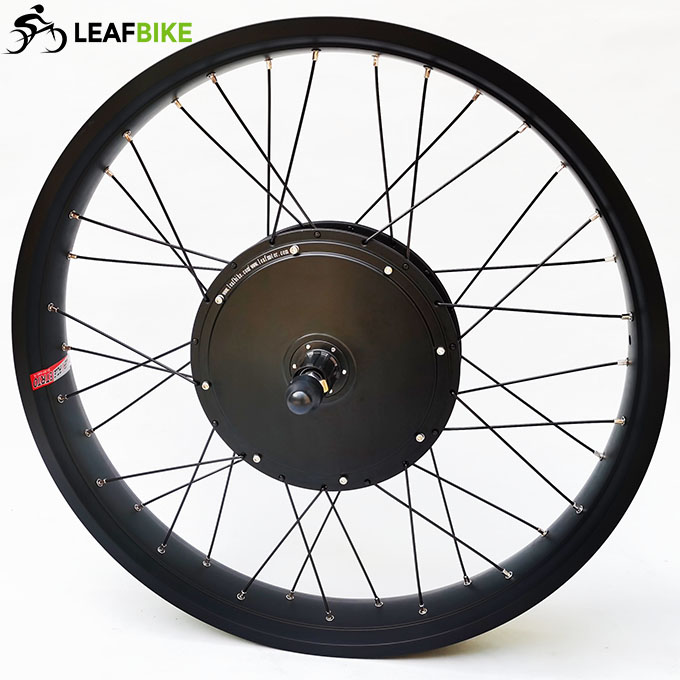

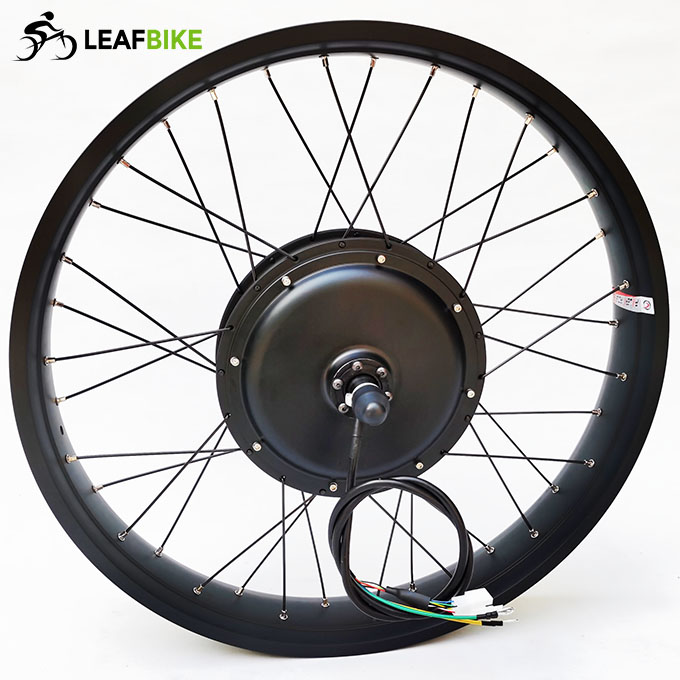

1 x 26 inch 48V / 52V 1500W rear hub motor wheel - (Fit for 26 × 4.00" fat tire / snow / beach)
1 x 48V / 52V 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11 kg / 24.2 lbs
Package Size: 62cm L x 62cm W x 28cm H
Package Type: Cardboard Box

Wire Diagram:

170mm Freewheel:

170mm Cassette:

Performance Data:

190mm dropout Drw.

190mm dropout beach snow fat bike motor drawing
