Please watch video for 20 inch 36V 300W 500W 750W front beach snow fat bike hub motor conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

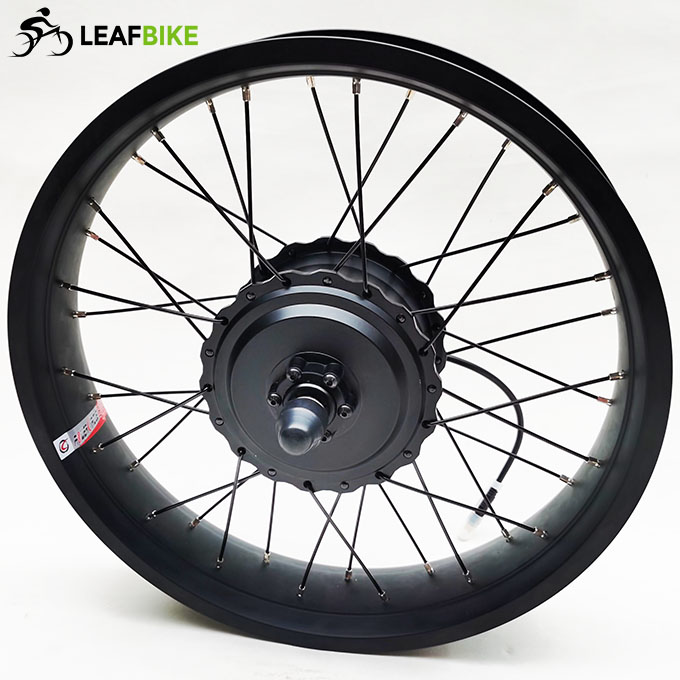

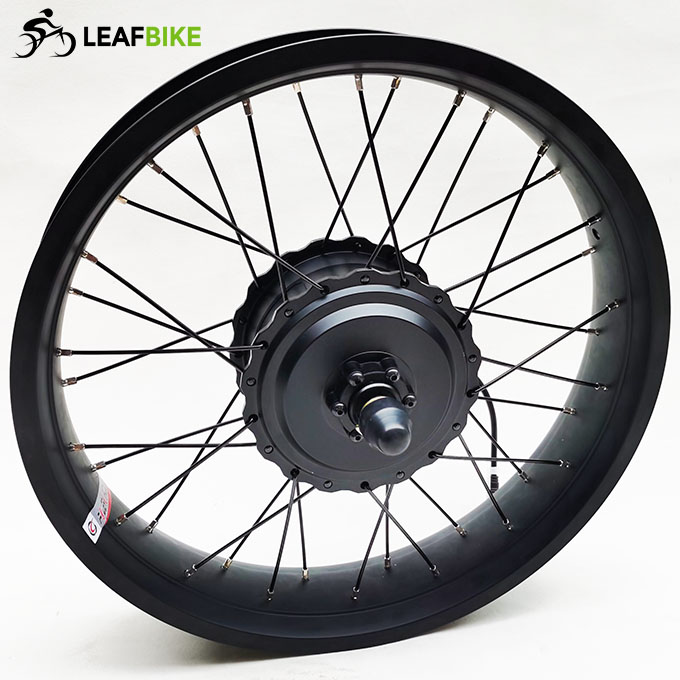

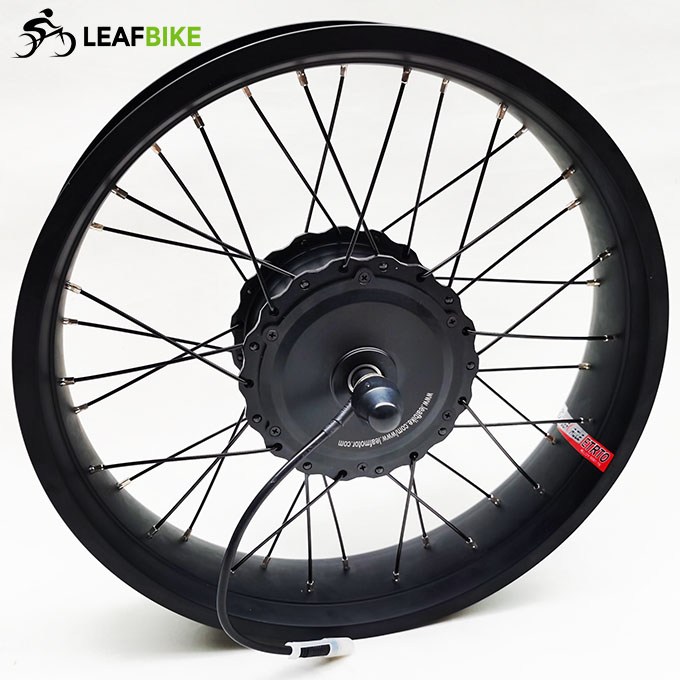

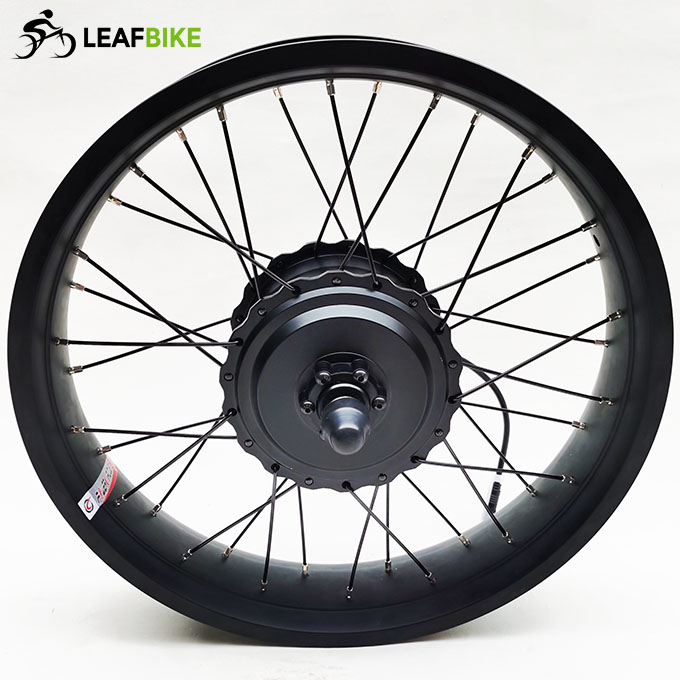

135mm front motor:
Main Features:
>. Rim: 20 x 3.00 double wall Alloy (Rim Fit For: 20 × 4.00 tire)
>. Spoke: Black 12 gauge / 124 mm Length × 36 pcs
>. Engine: Hub Motor
>>. Voltage: 36V
>>. Power: 300 / 500 / 750W
>>. Efficiency: 90.5%
>>. Max speed: 24.8 kmh -- 15.4 mph Default (Optional other speed: 32 kmh, 45 kmh...)
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, Right
>>. Cable length: 90cm / 35"
>>. Install: spacing of 135mm front fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

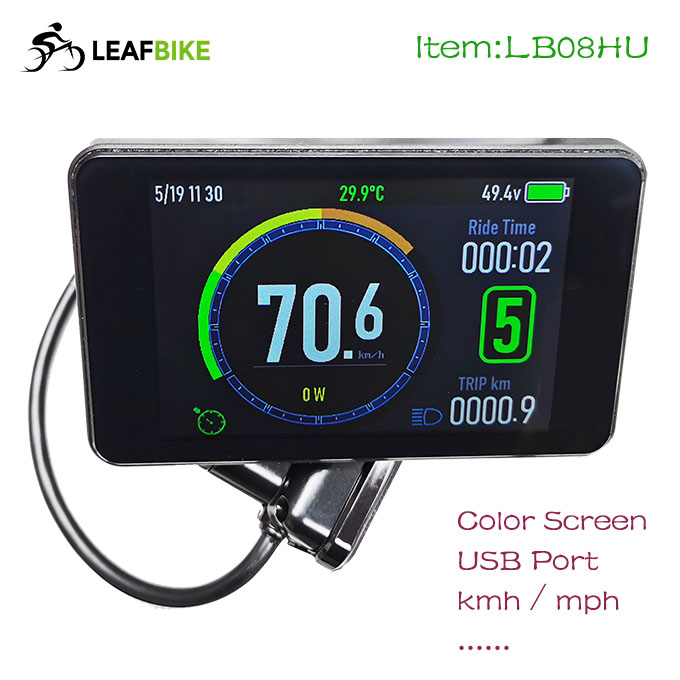

With LCD, More function:
* Cruise - Green switch to control
* Kmh & mph (Optional)
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

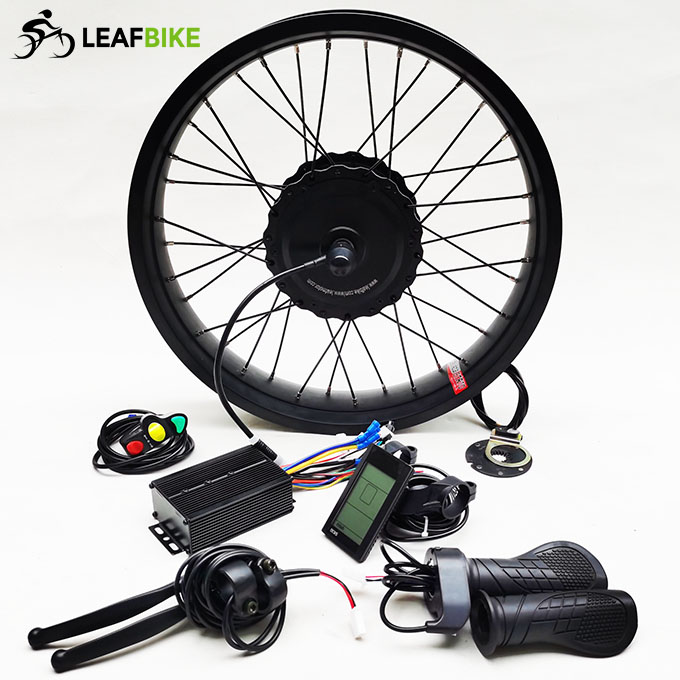

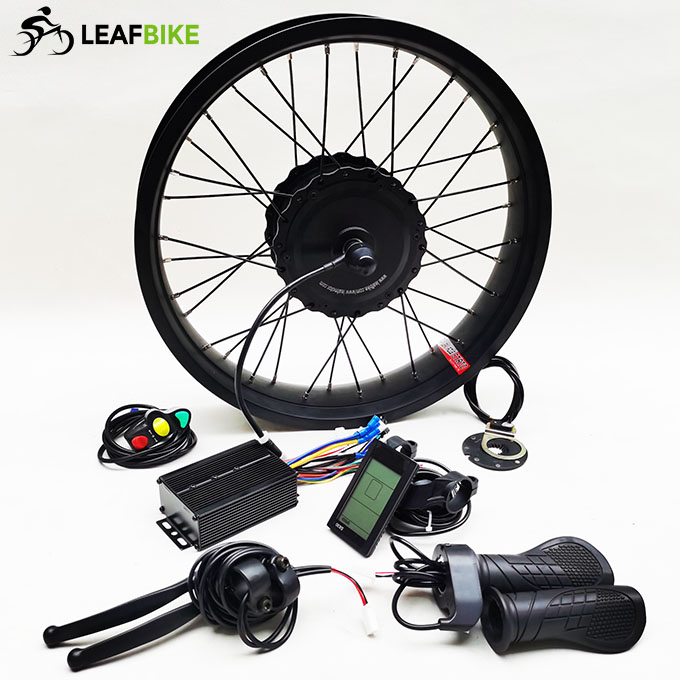

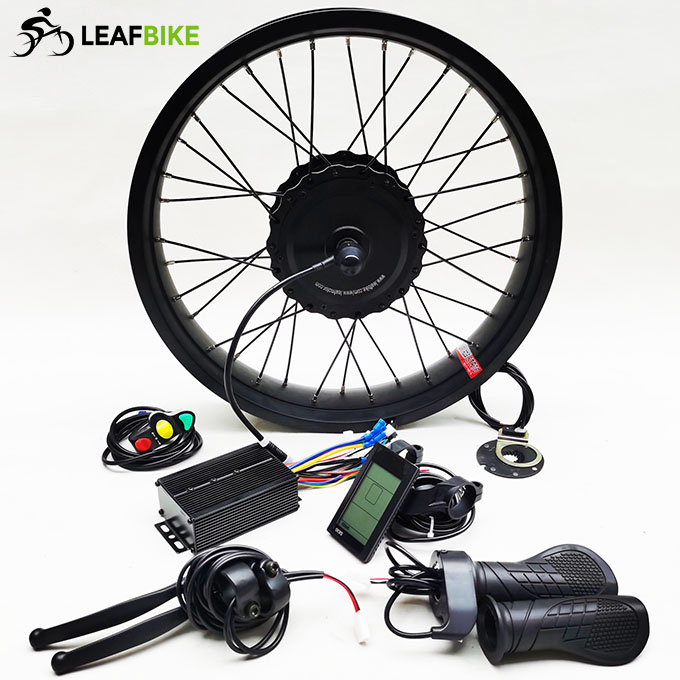

Package Content:

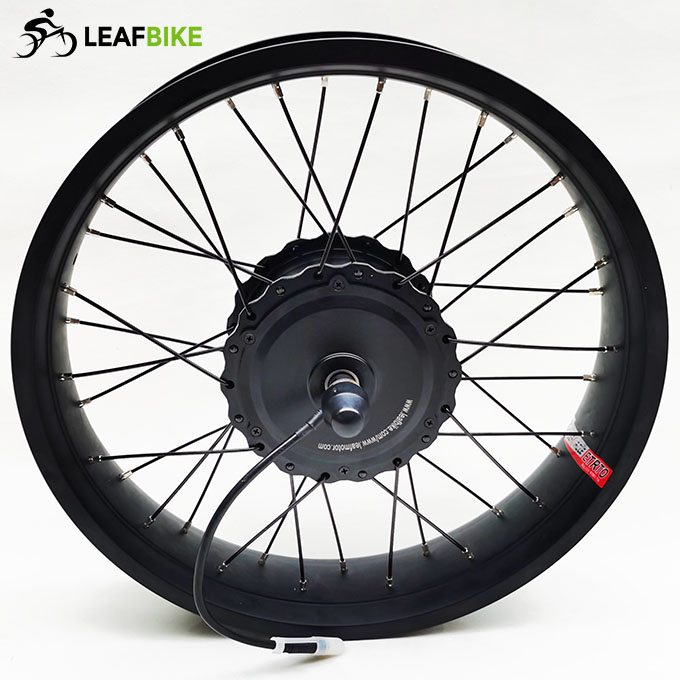

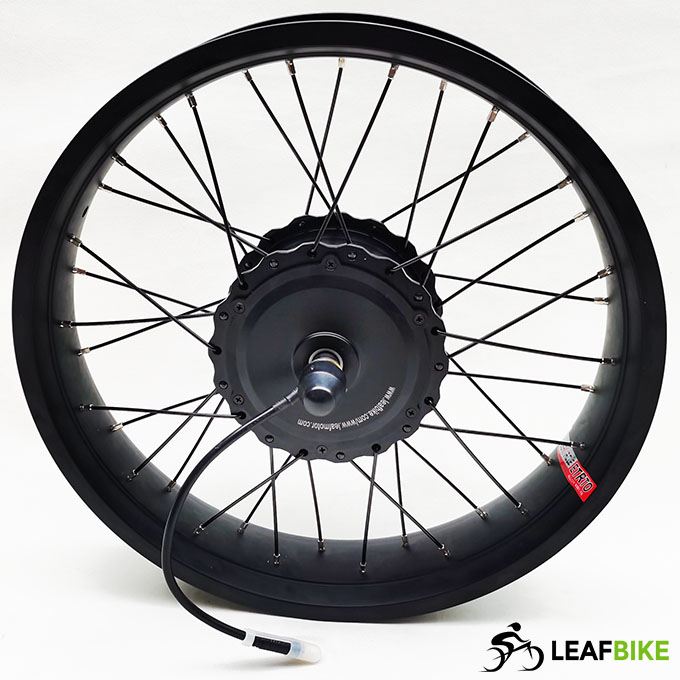

1 x 20 inch 36V 300W 500W 750W front snow fat bike hub motor wheel
1 x 36V 12-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 9.3 kg
Package Size: 50cm L x 50cm W x 28cm H
Package Type: Cardboard Box
Wire Diagram:
135mm Front:
